Model # K1C9000 Official Enviroair air conditioner

Here are the diagrams and repair parts for Official Enviroair K1C9000 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Sm Handle 100050021R
#4

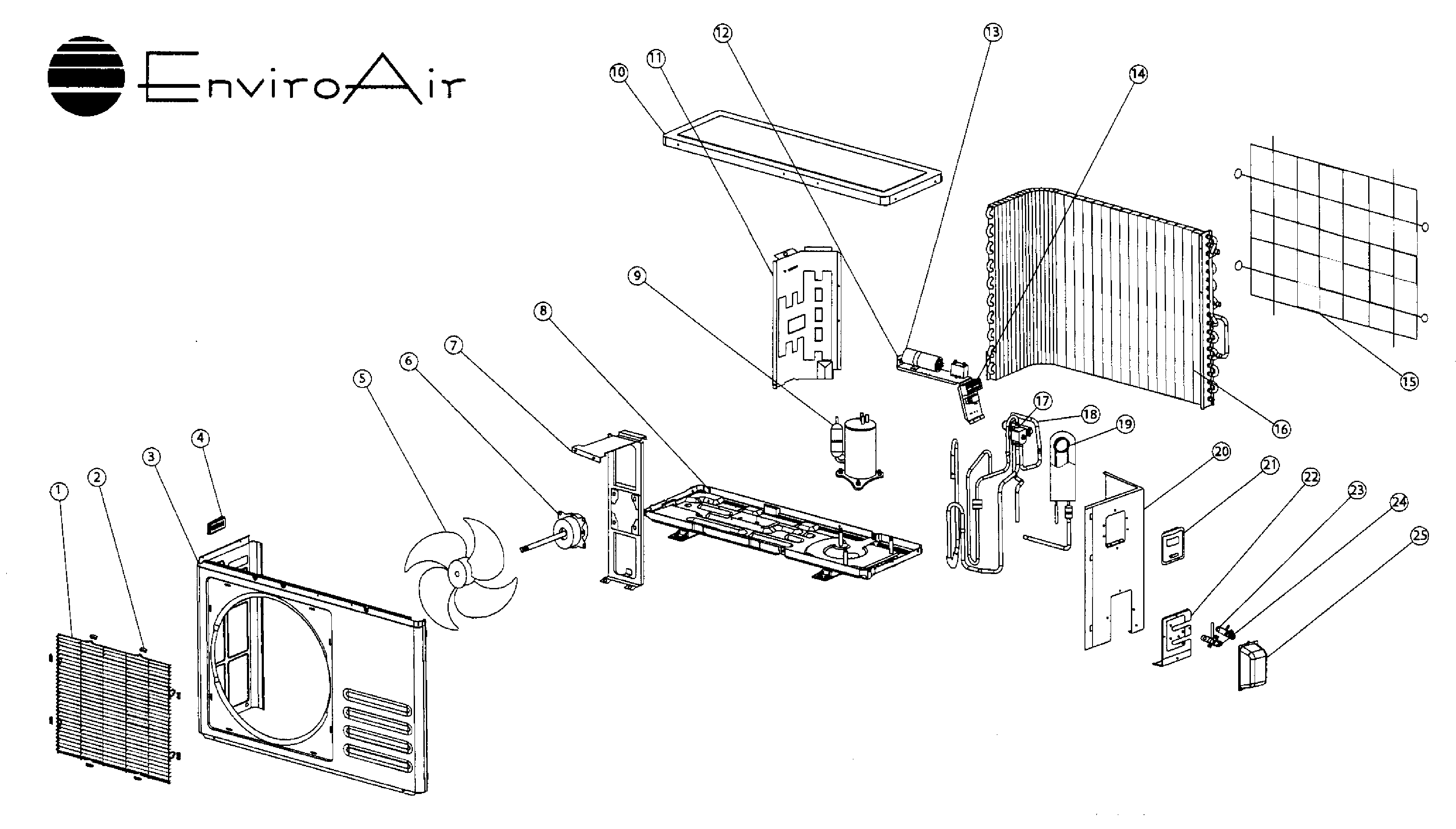

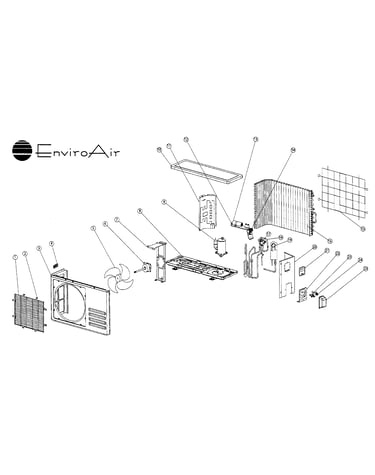

Cabinet parts diagram

Sm handle

Part #100050021R

The manufacturer no longer makes this part, and there's no substitute part

Condenser 372100116R
#16

Cabinet parts diagram

Condenser

Part #372100116R

The manufacturer no longer makes this part, and there's no substitute part

Rear Grill 020110002R
#15

Cabinet parts diagram

Rear grill

Part #020110002R

The manufacturer no longer makes this part, and there's no substitute part

Motor Cap 320110003R
#14

Cabinet parts diagram

Motor cap

Part #320110003R

The manufacturer no longer makes this part, and there's no substitute part

Motor 320224004R
#6

Cabinet parts diagram

Motor

Part #320224004R

The manufacturer no longer makes this part, and there's no substitute part

Part Board 313030027R
#11

Cabinet parts diagram

Part board

Part #313030027R

The manufacturer no longer makes this part, and there's no substitute part

Hp Valve 352120005R
#24

Cabinet parts diagram

Hp valve

Part #352120005R

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 393010001R
#5

Cabinet parts diagram

Fan blade

Part #393010001R

The manufacturer no longer makes this part, and there's no substitute part

Valve 029994567R
#22

Cabinet parts diagram

Valve

Part #029994567R

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Grille Clip 109990256R
#2

Cabinet parts diagram

Air conditioner grille clip

Part #109990256R

The manufacturer no longer makes this part, and there's no substitute part
