Kenmore
Central Air Conditioner

Model # 25371291 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 25371291 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Screw 100819
#27

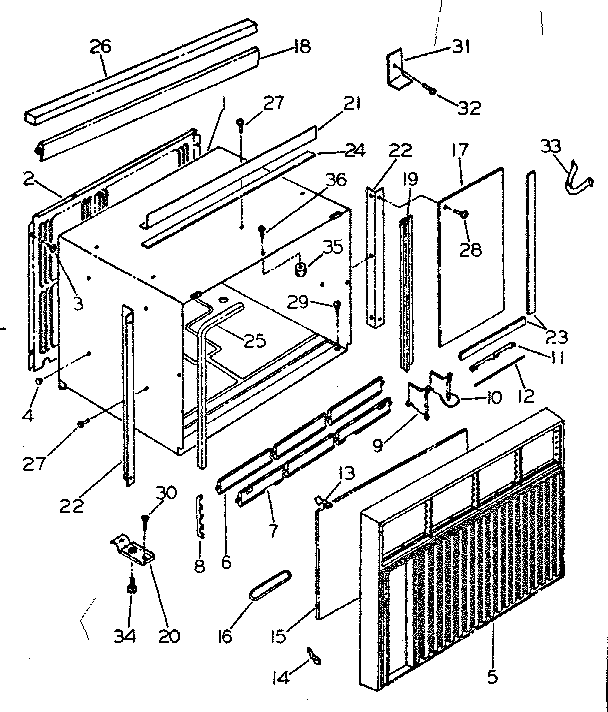

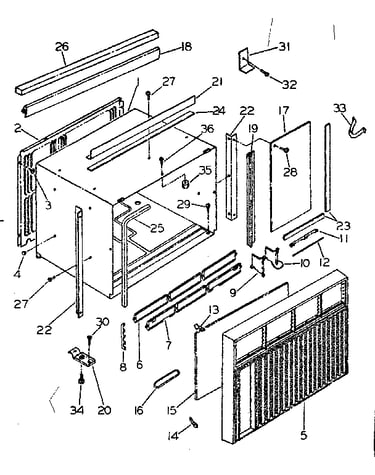

Cabinet and front parts diagram

Screw

Part #100819

Replaced by #08003581

?
Manufacturer substitution
This part replaces 100819. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Clamp 27669
#34

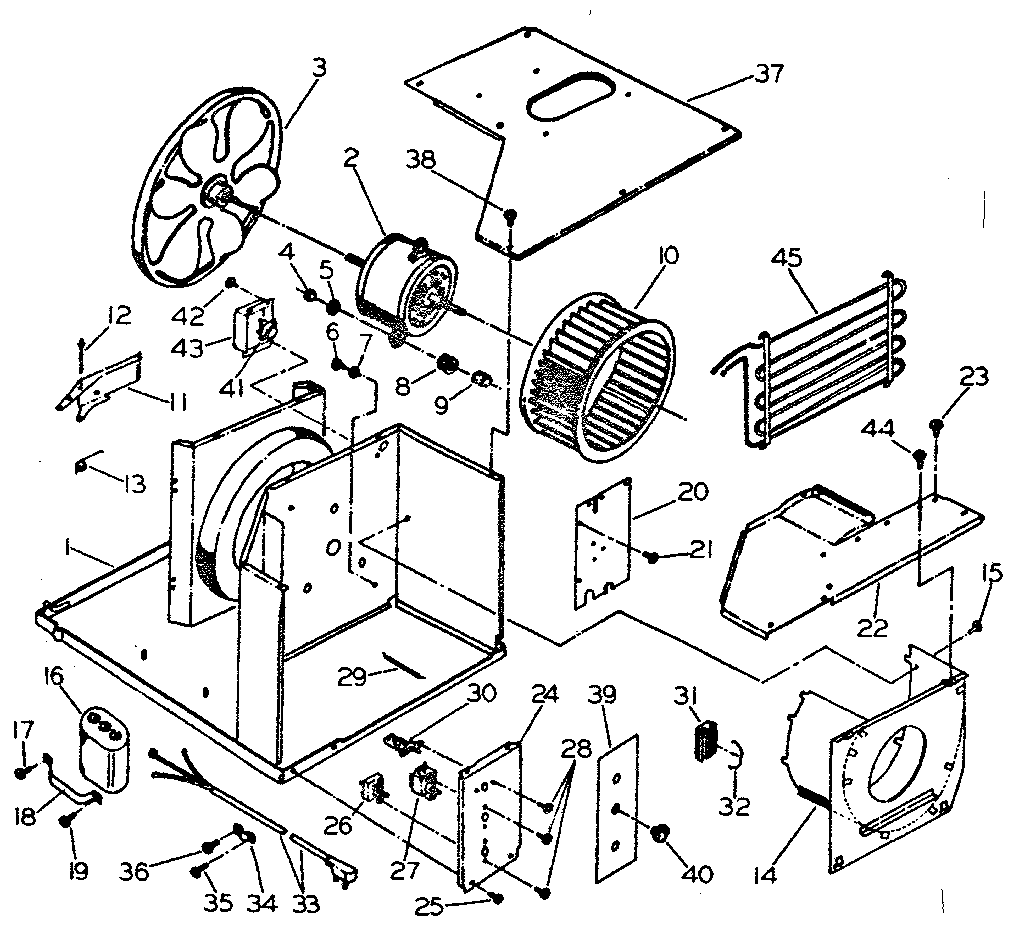

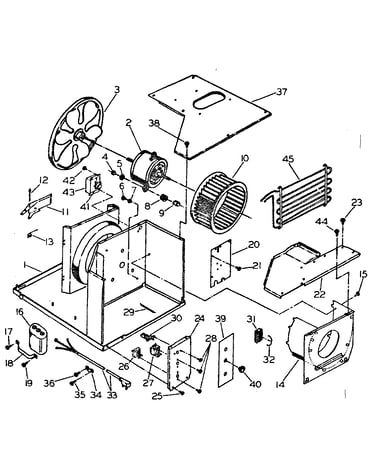

Electrical system & air handling parts diagram

Clamp

Part #27669

Replaced by #5303001199

?
Manufacturer substitution
This part replaces 27669. Substitute parts can look different from the original.
$50.60
In Stock
Grommet 126340
#2

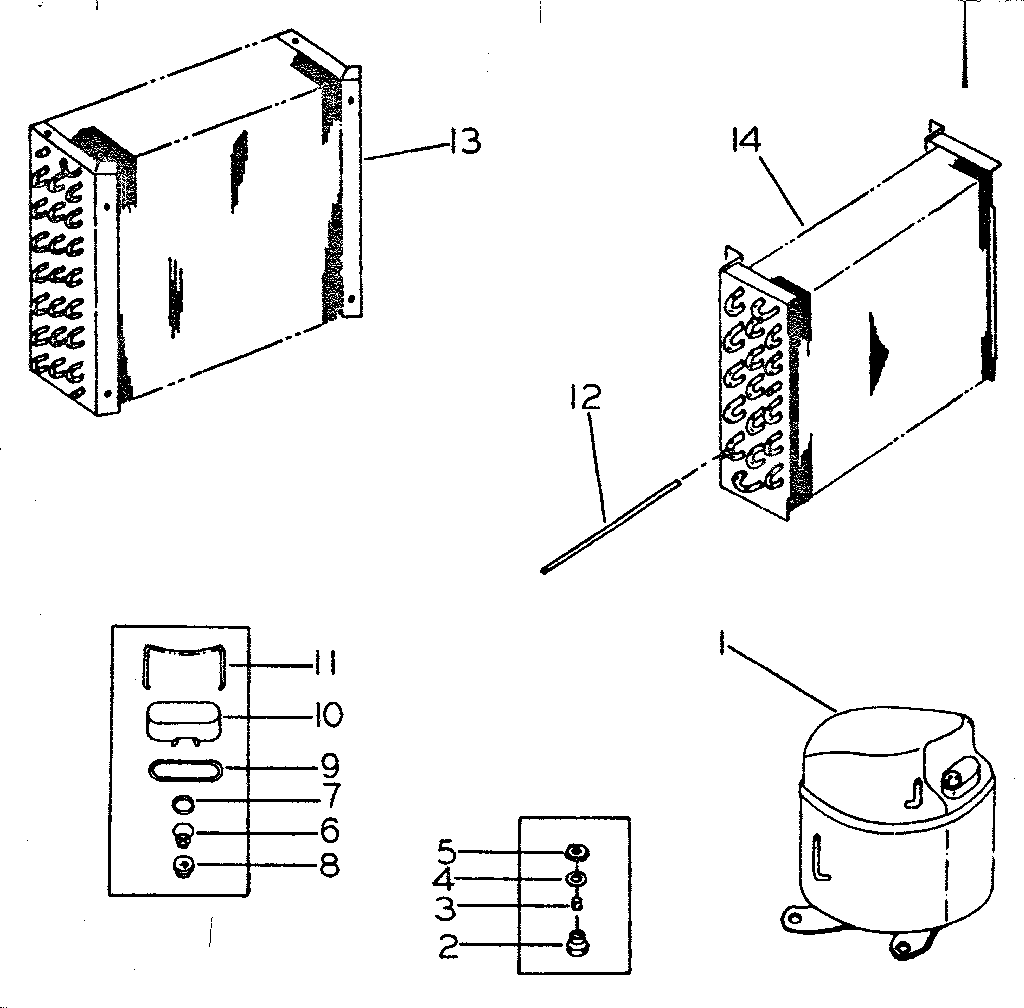

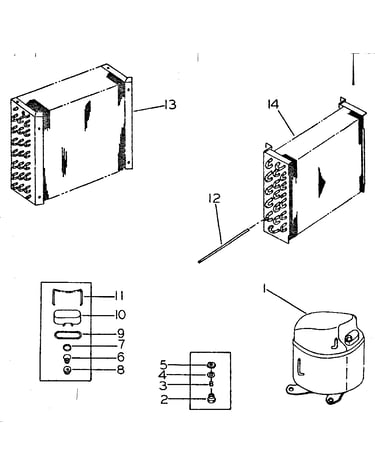

Refrigeration system parts diagram

Grommet

Part #126340

Replaced by #218513300

?
Manufacturer substitution
This part replaces 126340. Substitute parts can look different from the original.
$36.56 |
12% OFF Phone Price : $41.56
In Stock
Spring 116406
#6

Refrigeration system parts diagram

Spring

Part #116406

The manufacturer no longer makes this part, and there's no substitute part

Clip 112119
#13

Cabinet and front parts diagram

Clip

Part #112119

The manufacturer no longer makes this part, and there's no substitute part

Switch 127449
#26

Electrical system & air handling parts diagram

Switch

Part #127449

The manufacturer no longer makes this part, and there's no substitute part

Retainer 124345
#32

Electrical system & air handling parts diagram

Retainer

Part #124345

The manufacturer no longer makes this part, and there's no substitute part

Screw 99514
#28

Electrical system & air handling parts diagram

Screw

Part #99514

The manufacturer no longer makes this part, and there's no substitute part

Adapter 116407
#7

Refrigeration system parts diagram

Adapter

Part #116407

The manufacturer no longer makes this part, and there's no substitute part

Ex Door 149713
#11

Electrical system & air handling parts diagram

Ex door

Part #149713

The manufacturer no longer makes this part, and there's no substitute part
