Model # FGVU17F8QFA Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FGVU17F8QFA freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Dryer Filter 297396820
#4

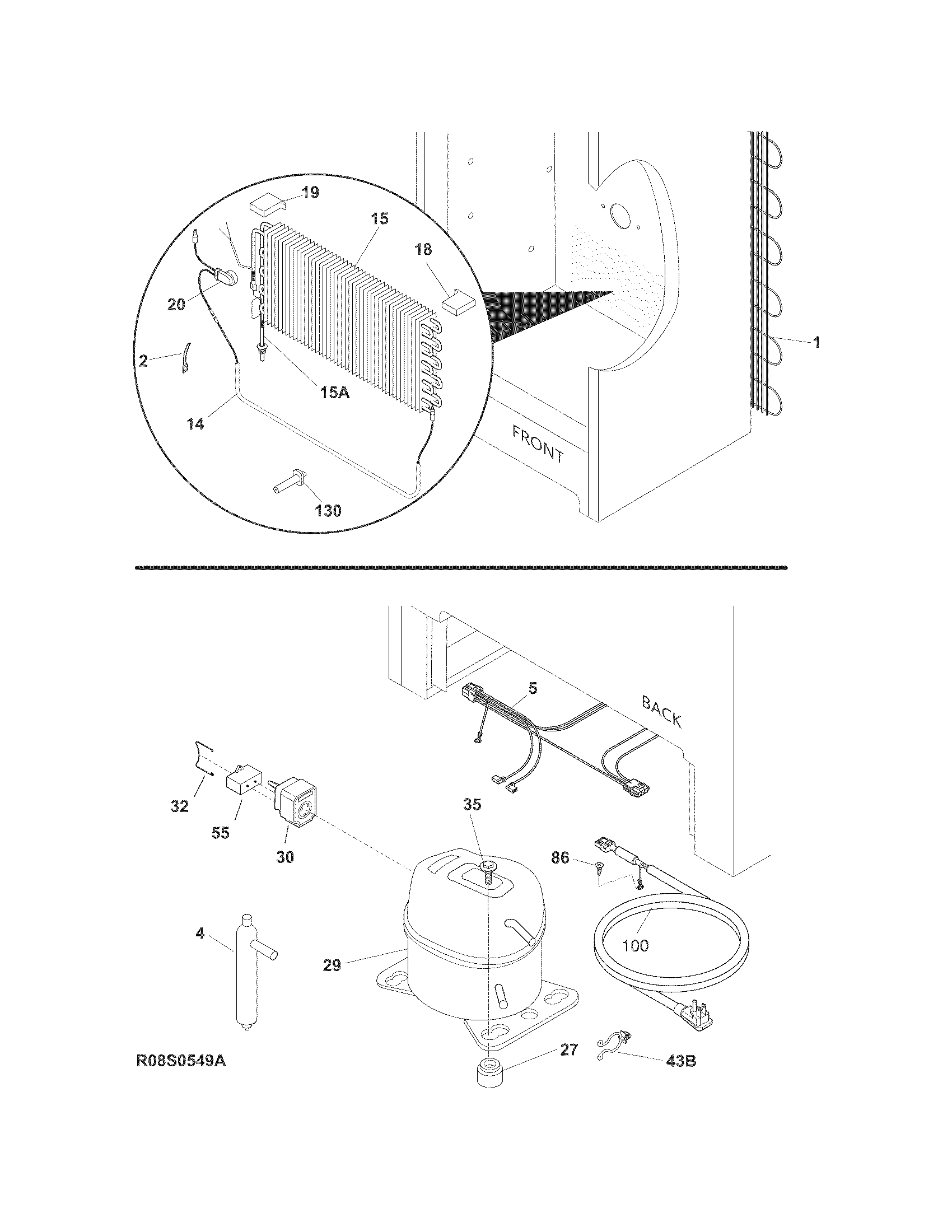

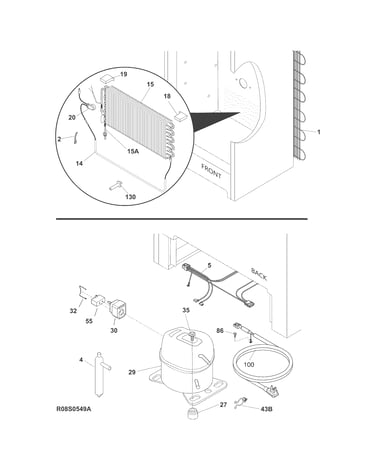

System diagram

Dryer filter

Part #297396820

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 297396820. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Evaporator 297414900
#15

System diagram

Freezer evaporator

Part #297414900

Replaced by #297414901

?
Manufacturer substitution
This part replaces 297414900. Substitute parts can look different from the original.
BEST SELLER
$87.43 |
6% OFF Phone Price : $93.43
In Stock
White-westinghouse Freezer Heat Exchanger (replaces 5304504767, 5304506363, 7297217900) 297217900
#15A

System diagram

White-westinghouse freezer heat exchanger (replaces 5304504767, 5304506363, 7297217900)

Part #297217900

BEST SELLER
$60.21 |
9% OFF Phone Price : $66.21
In Stock
Gibson Freezer Door Key (replaces 216702900, 7297147700) 297147700
#5

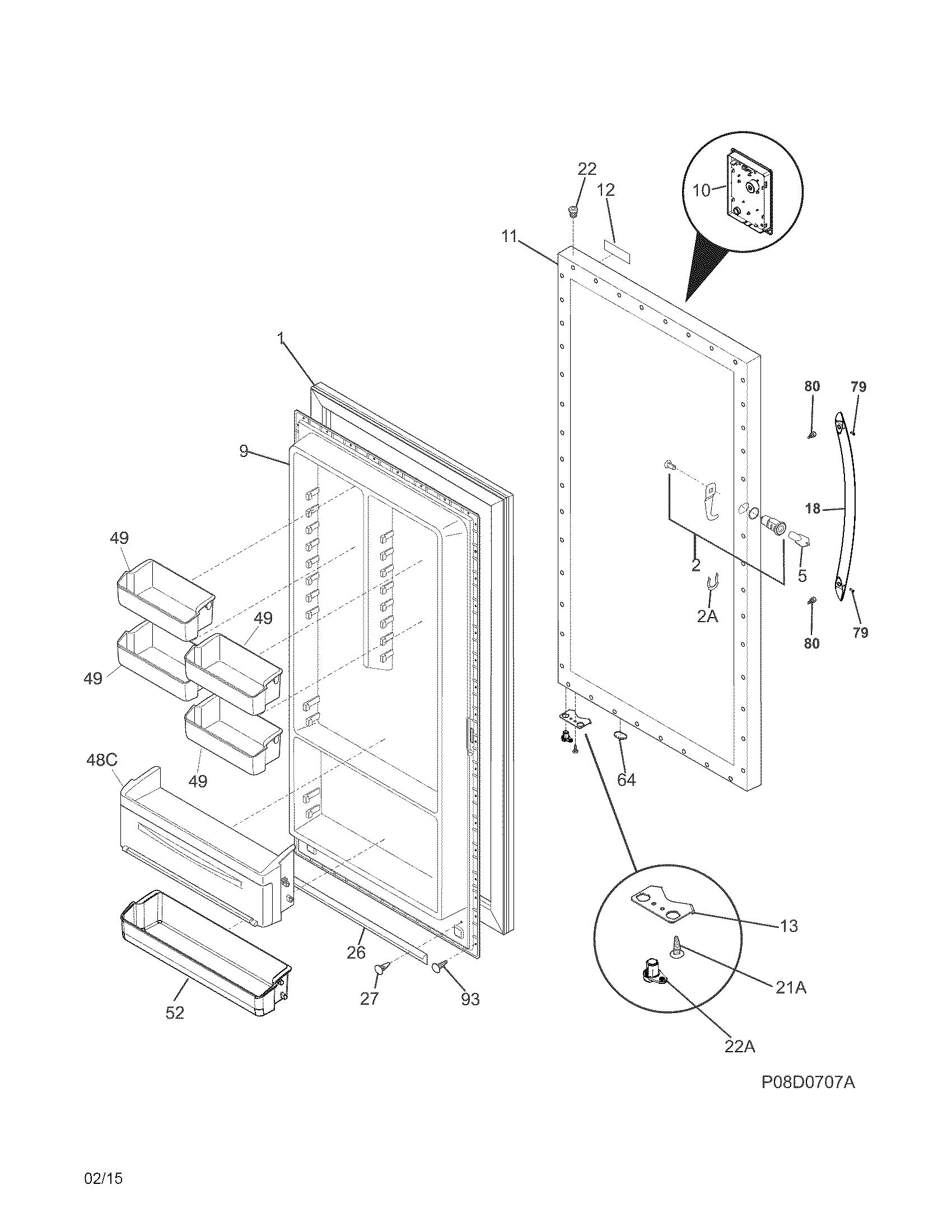

Door diagram

Gibson freezer door key (replaces 216702900, 7297147700)

Part #297147700

BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Gibson Refrigerator Run Capacitor (replaces 216985001, 297286804) 297286803
#55

System diagram

Gibson refrigerator run capacitor (replaces 216985001, 297286804)

Part #297286803

BEST SELLER
$36.46 |
14% OFF Phone Price : $42.46
In Stock
Freezer Start Relay 297259502
#30

System diagram

Freezer start relay

Part #297259502

Replaced by #297259515

?
Manufacturer substitution
This part replaces 297259502. Substitute parts can look different from the original.
BEST SELLER
$55.86 |
10% OFF Phone Price : $61.86
In Stock
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

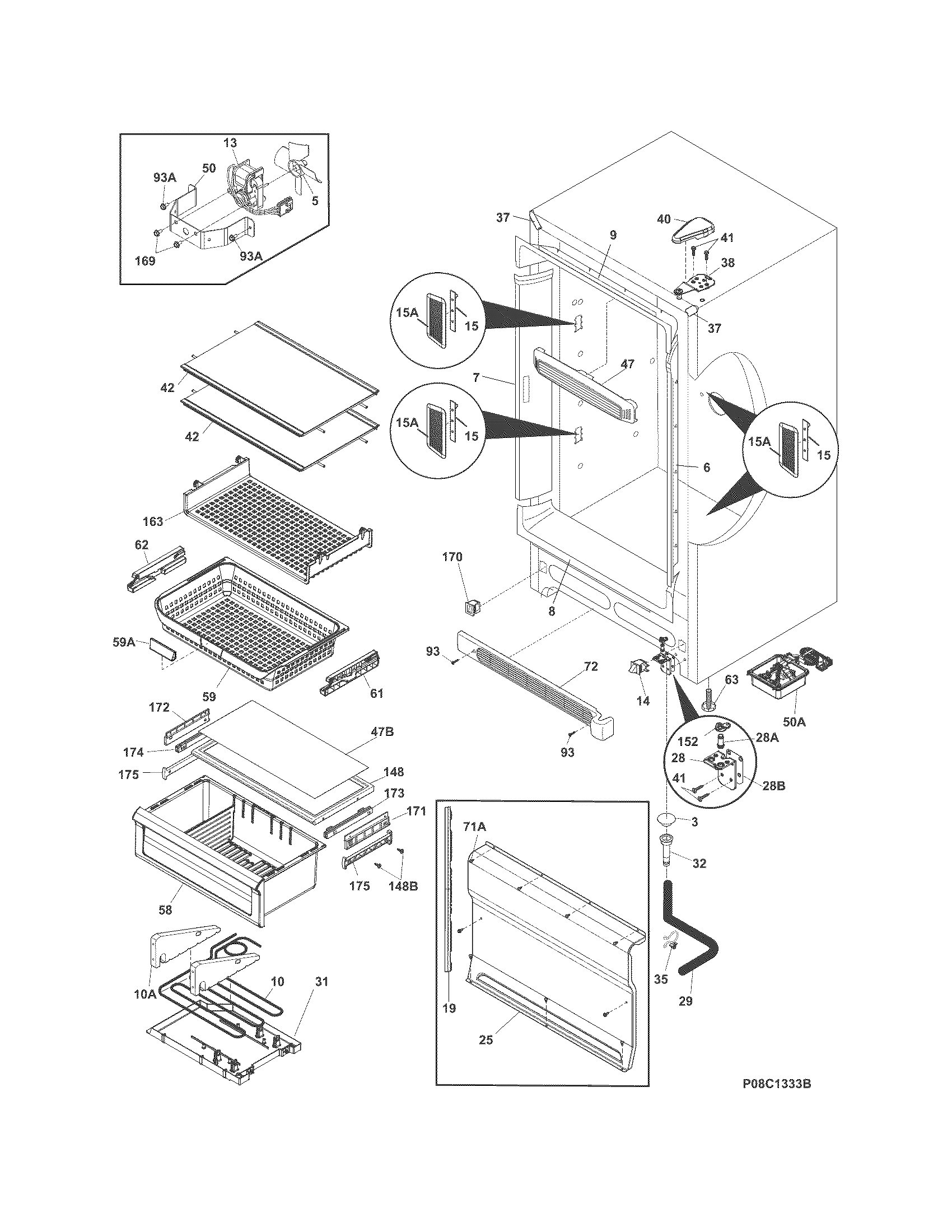

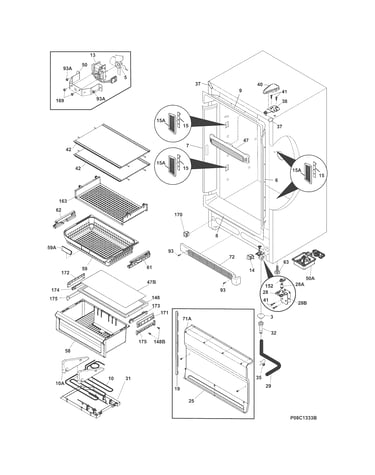

Cabinet diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

BEST SELLER
$20.04 |
23% OFF Phone Price : $26.04
In Stock
Freezer Door Hinge Bearing (gray) 216970801
#22

Door diagram

Freezer door hinge bearing (gray)

Part #216970801

Replaced by #216970802

?
Manufacturer substitution
This part replaces 216970801. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Freezer Door Hinge, Upper 297283800
#38

Cabinet diagram

Freezer door hinge, upper

Part #297283800

Replaced by #297283803

?
Manufacturer substitution
This part replaces 297283800. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.08 |
10% OFF Phone Price : $20.08
In Stock
Freezer Door Bin (replaces 297254401) 297187201
#49

Door diagram

Freezer door bin (replaces 297254401)

Part #297187201

$58.26 |
9% OFF Phone Price : $64.26
In Stock
