Model # SC-162VS Official Ryobi scroll saw

Here are the diagrams and repair parts for Official Ryobi SC-162VS scroll saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Magnet 1290016
#6-4

Motor cover/housing diagram

Magnet

Part #1290016

The manufacturer no longer makes this part, and there's no substitute part

Speed Label 1920093
#64

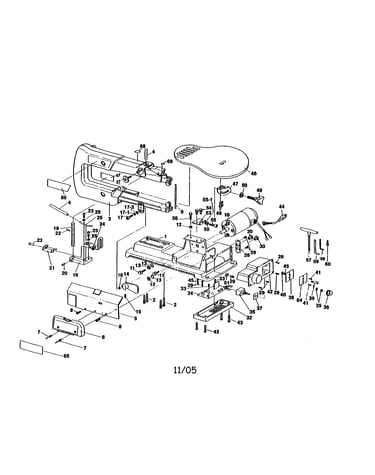

Motor/table/base diagram

Speed label

Part #1920093

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 1130250
#15

Motor/table/base diagram

Set screw

Part #1130250

The manufacturer no longer makes this part, and there's no substitute part

Bolt 1130266
#18

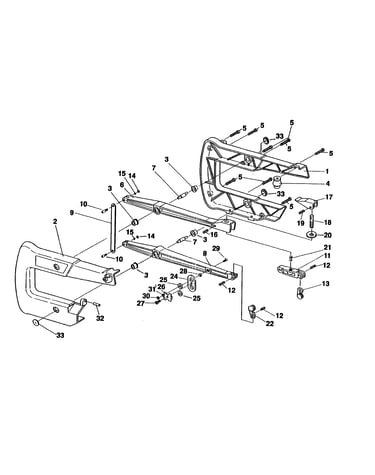

Arm/arm cover diagram

Bolt

Part #1130266

The manufacturer no longer makes this part, and there's no substitute part

Screw 1130254
#29

Motor/table/base diagram

Screw

Part #1130254

The manufacturer no longer makes this part, and there's no substitute part

Bolt 1130271
#29

Arm/arm cover diagram

Bolt

Part #1130271

The manufacturer no longer makes this part, and there's no substitute part

Washer 1900118
#45

Motor/table/base diagram

Washer

Part #1900118

The manufacturer no longer makes this part, and there's no substitute part

Blade Storage Case 1880058
#6

Motor/table/base diagram

Blade storage case

Part #1880058

The manufacturer no longer makes this part, and there's no substitute part

Label 1920090
#67

Motor/table/base diagram

Label

Part #1920090

The manufacturer no longer makes this part, and there's no substitute part

Screw 1130257
#41

Motor/table/base diagram

Screw

Part #1130257

The manufacturer no longer makes this part, and there's no substitute part
