Model # GCV160-LAOS3B Official Honda engine

Here are the diagrams and repair parts for Official Honda GCV160-LAOS3B engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

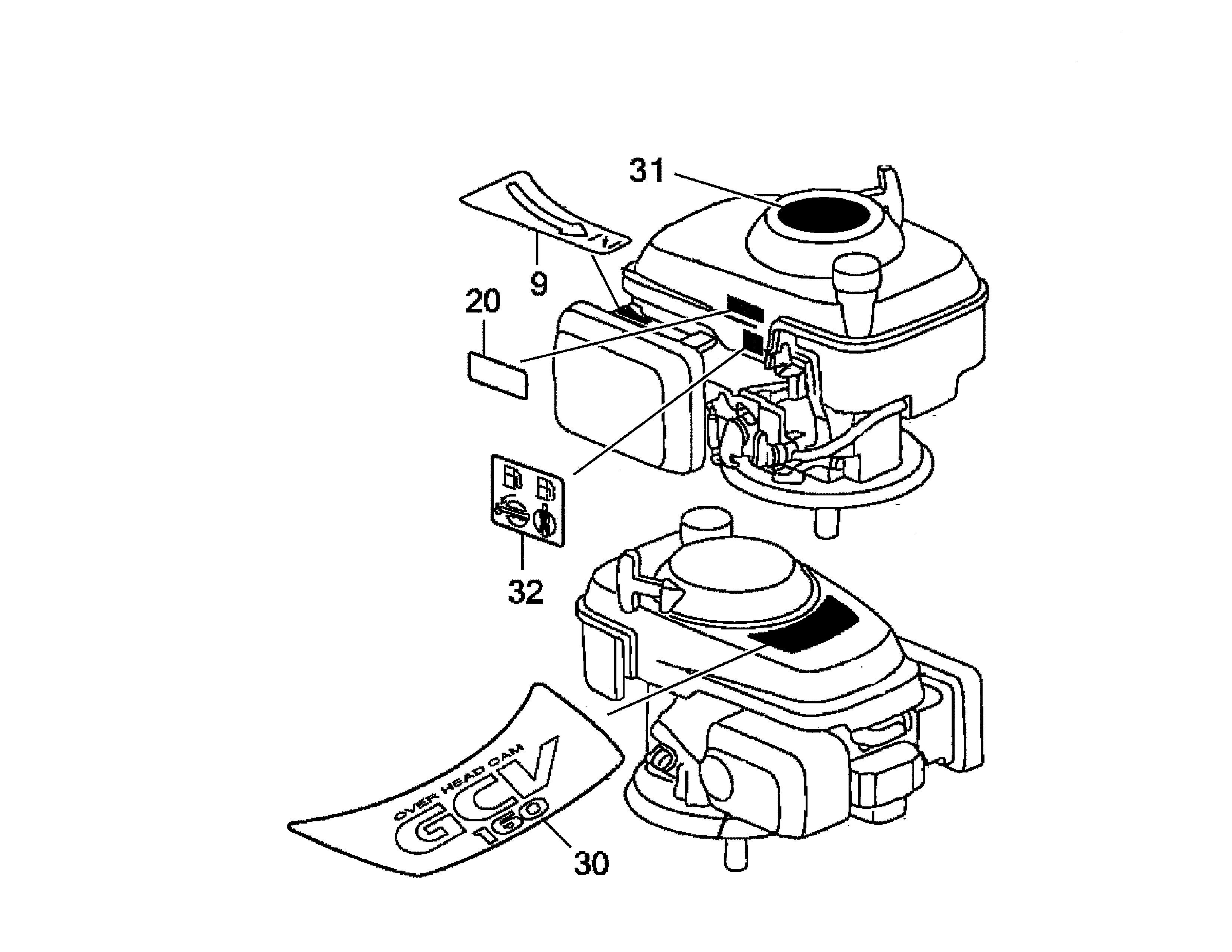

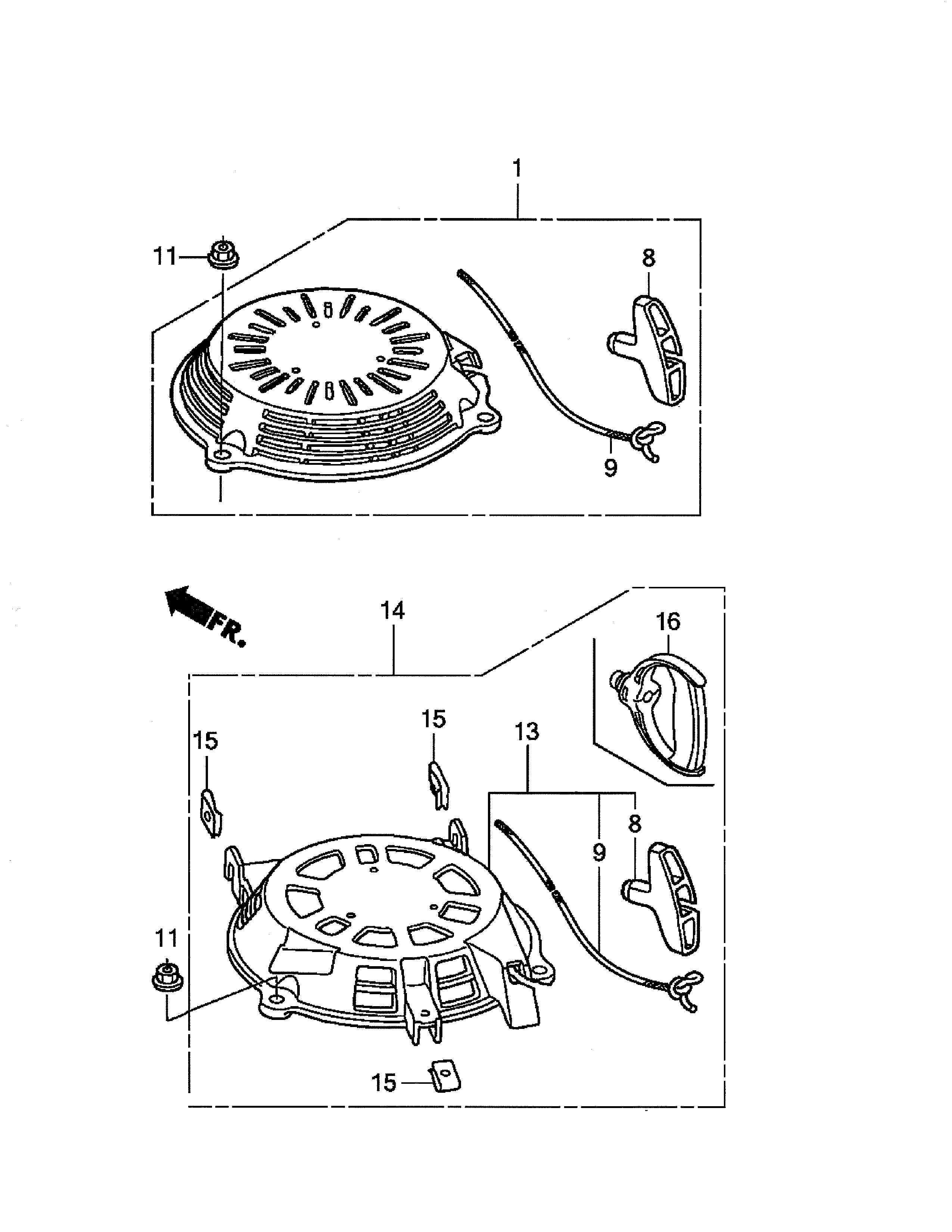

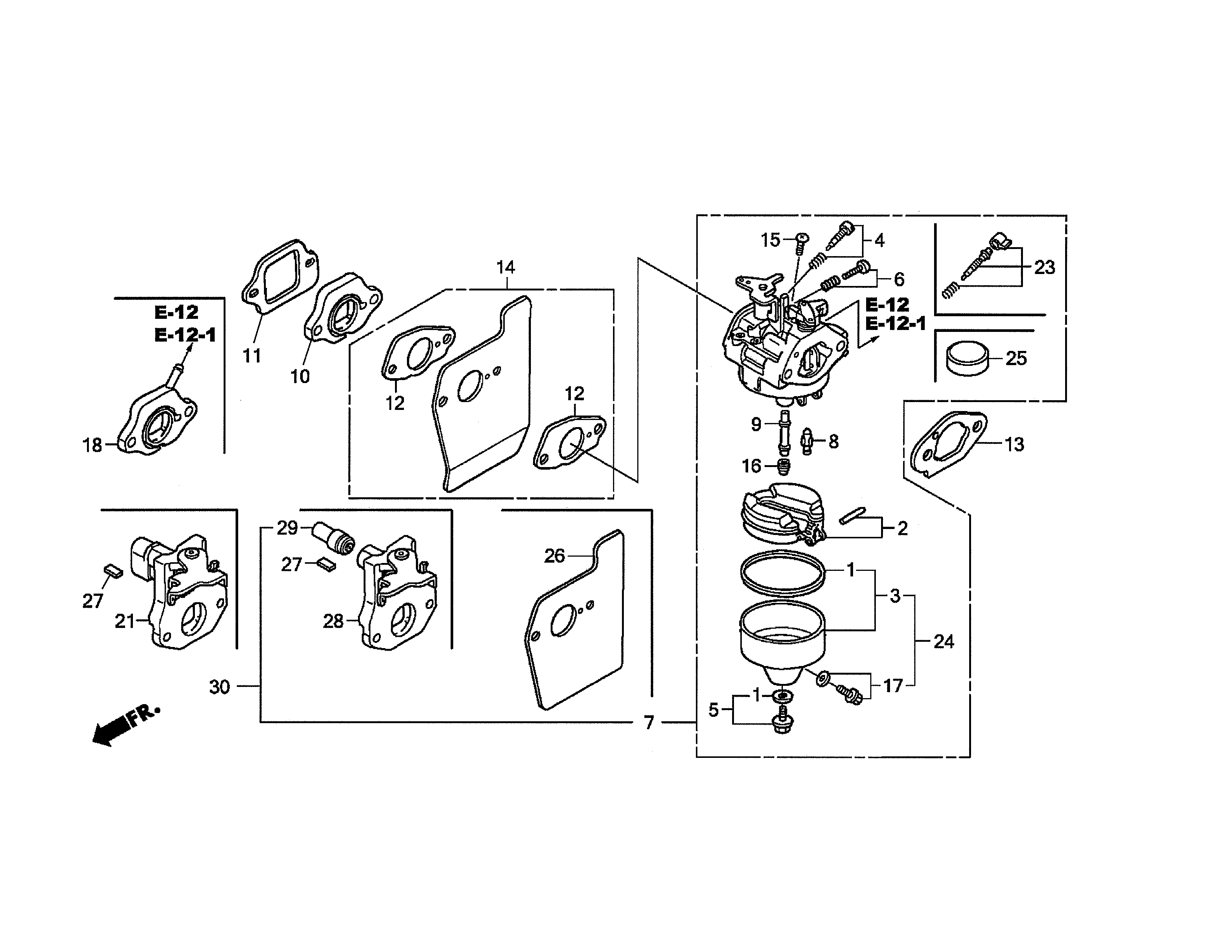

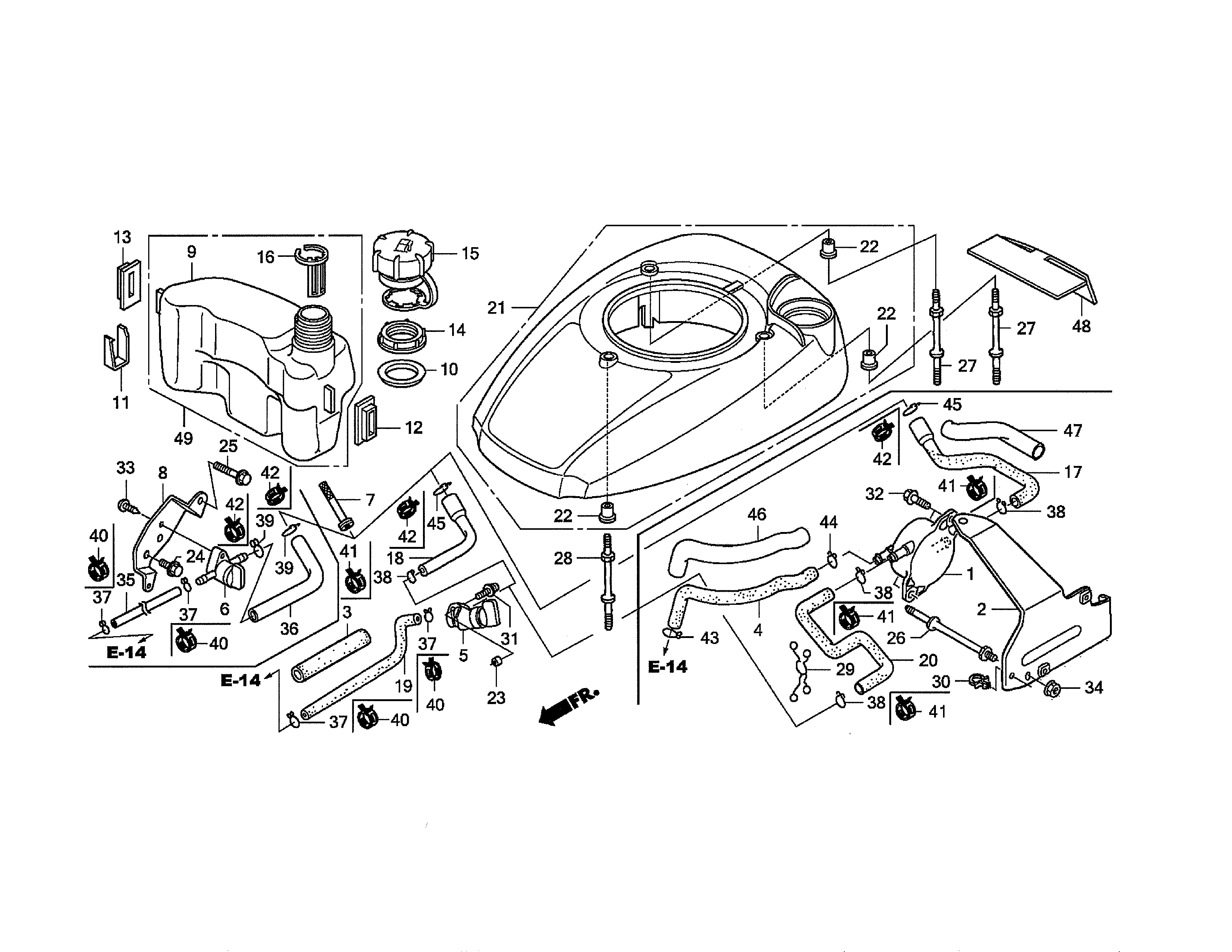

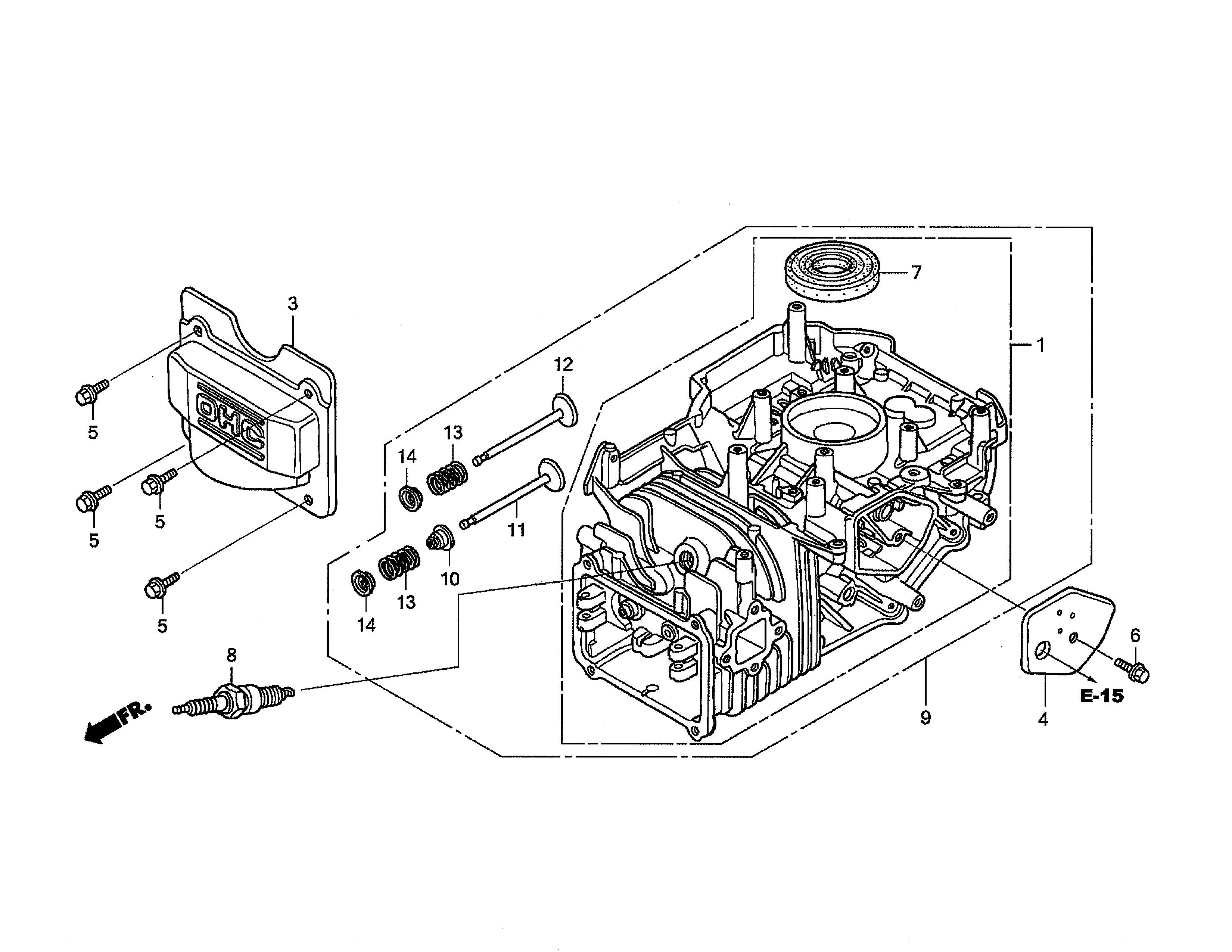

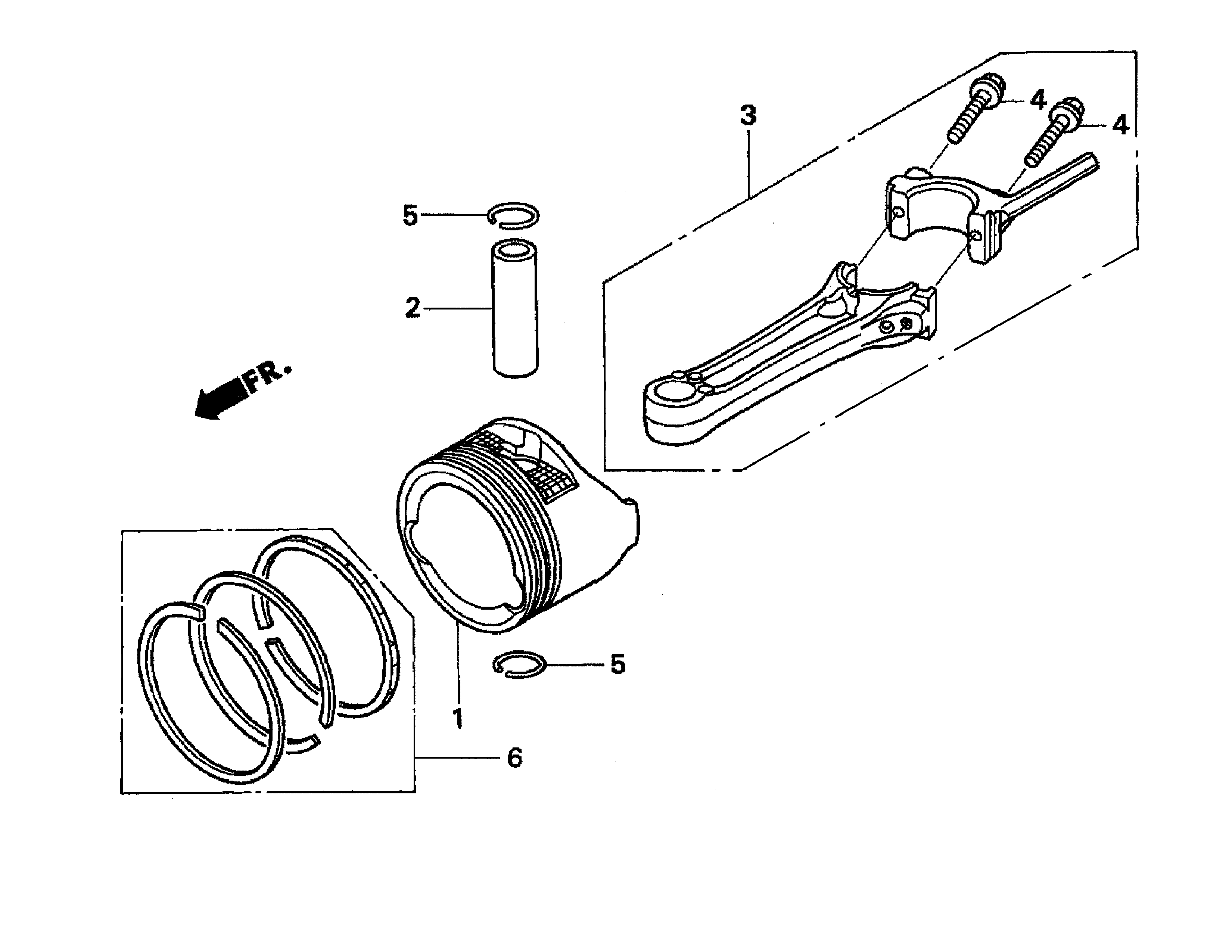

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Lawn & Garden Equipment Engine Air Filter 17211-ZL8-023
#2

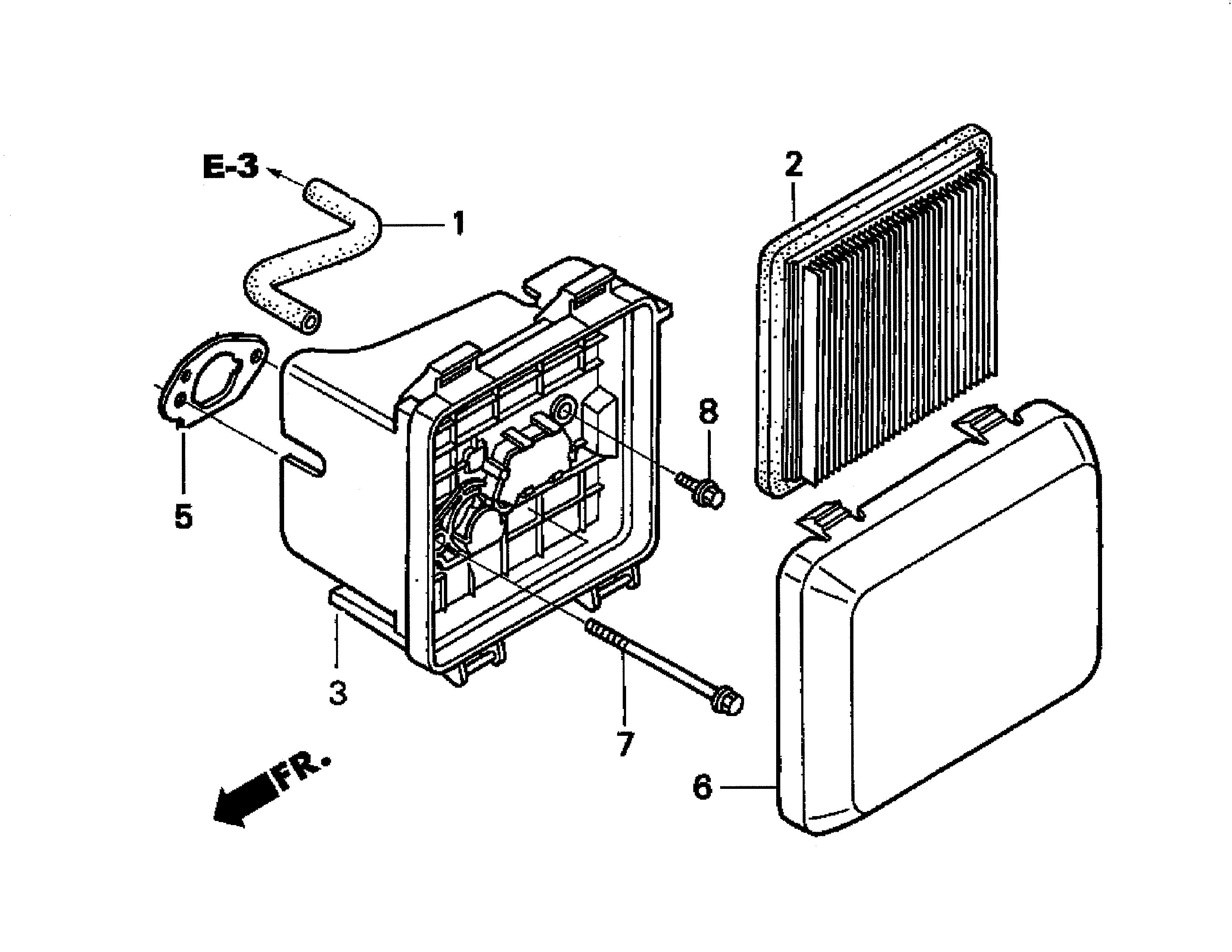

Air cleaner diagram

Lawn & garden equipment engine air filter

Part #17211-ZL8-023

The manufacturer no longer makes this part, and there's no substitute part

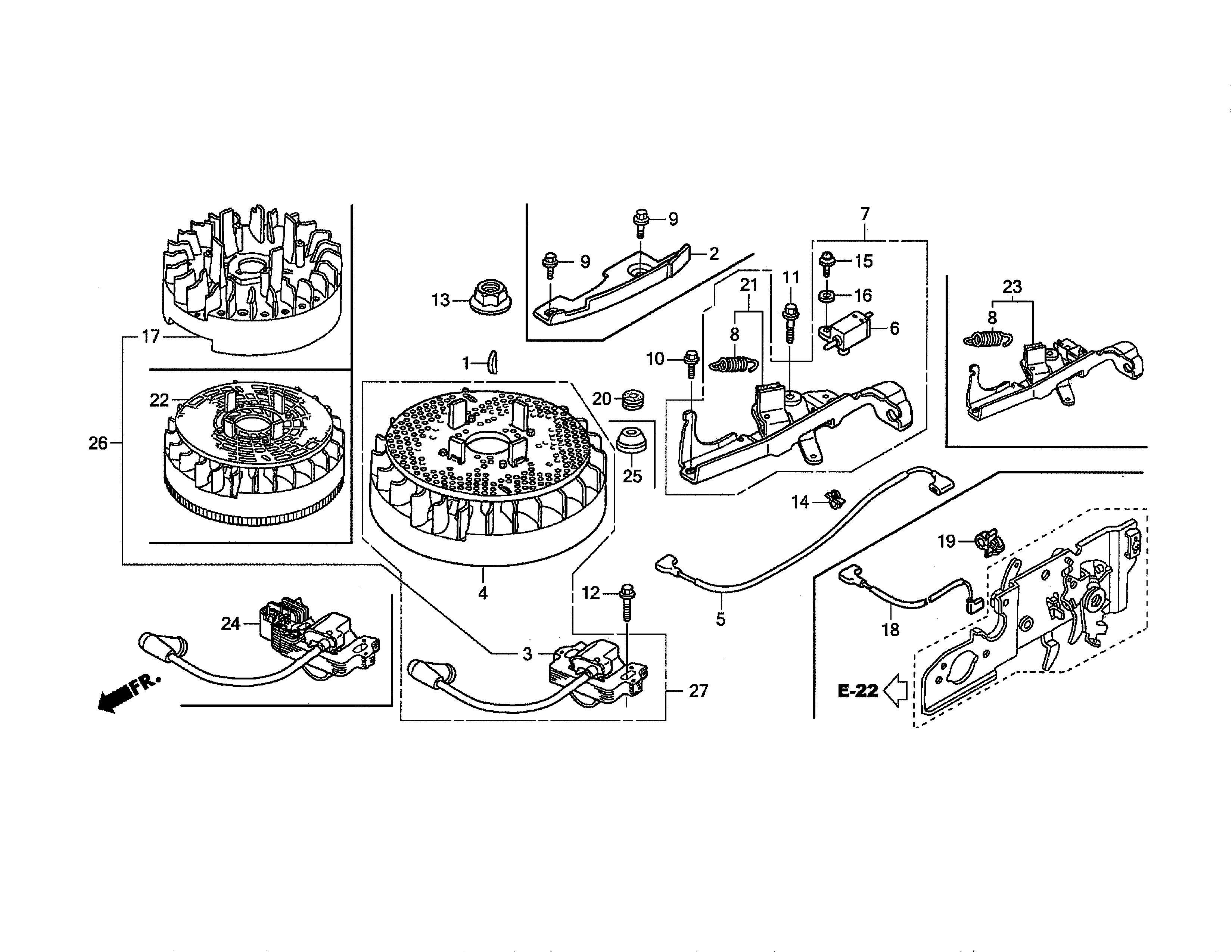

Lawn & Garden Equipment Engine Nut 90201-Z0T-800
#13

Flywheel diagram

Lawn & garden equipment engine nut

Part #90201-Z0T-800

The manufacturer no longer makes this part, and there's no substitute part

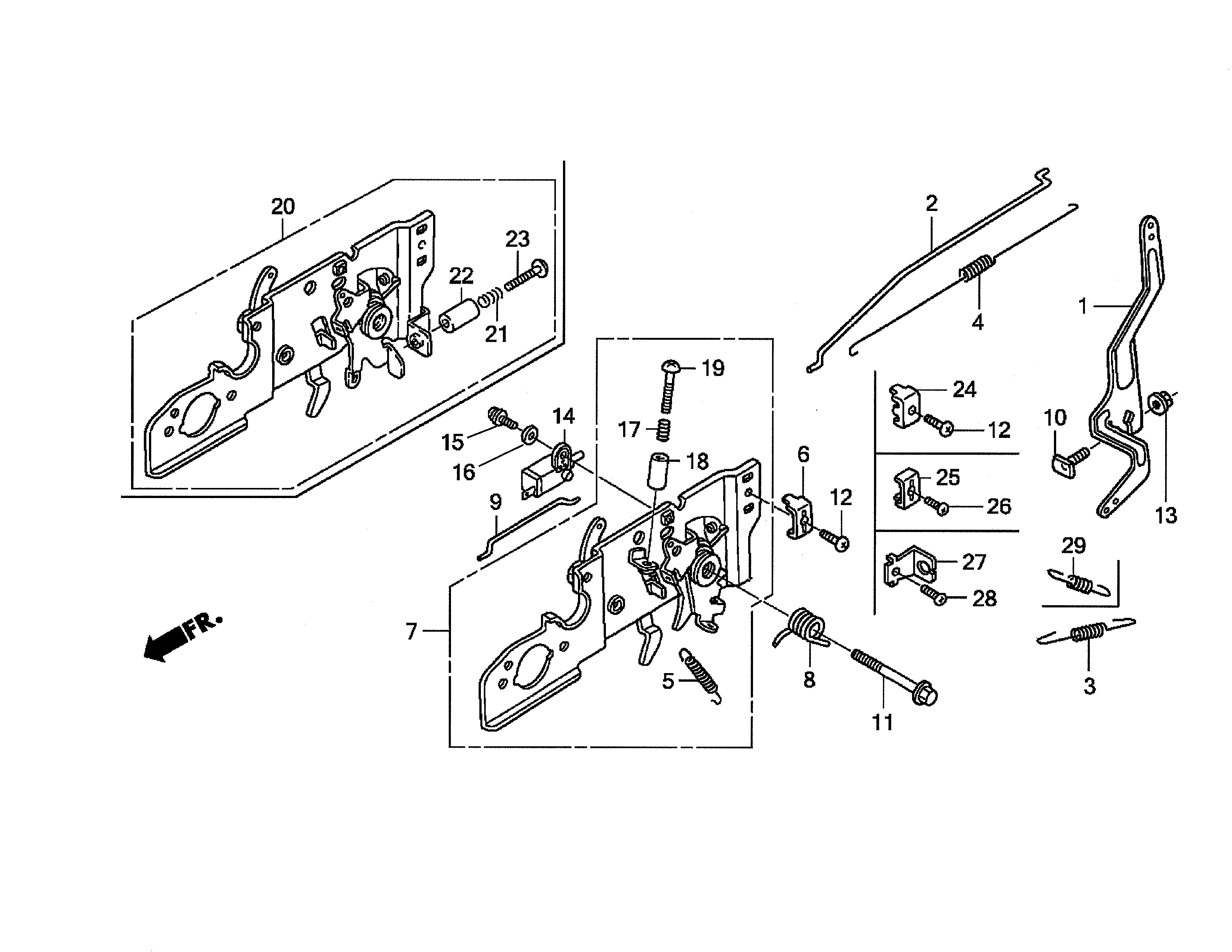

Governor Rod 16555-Z0L-801
#2

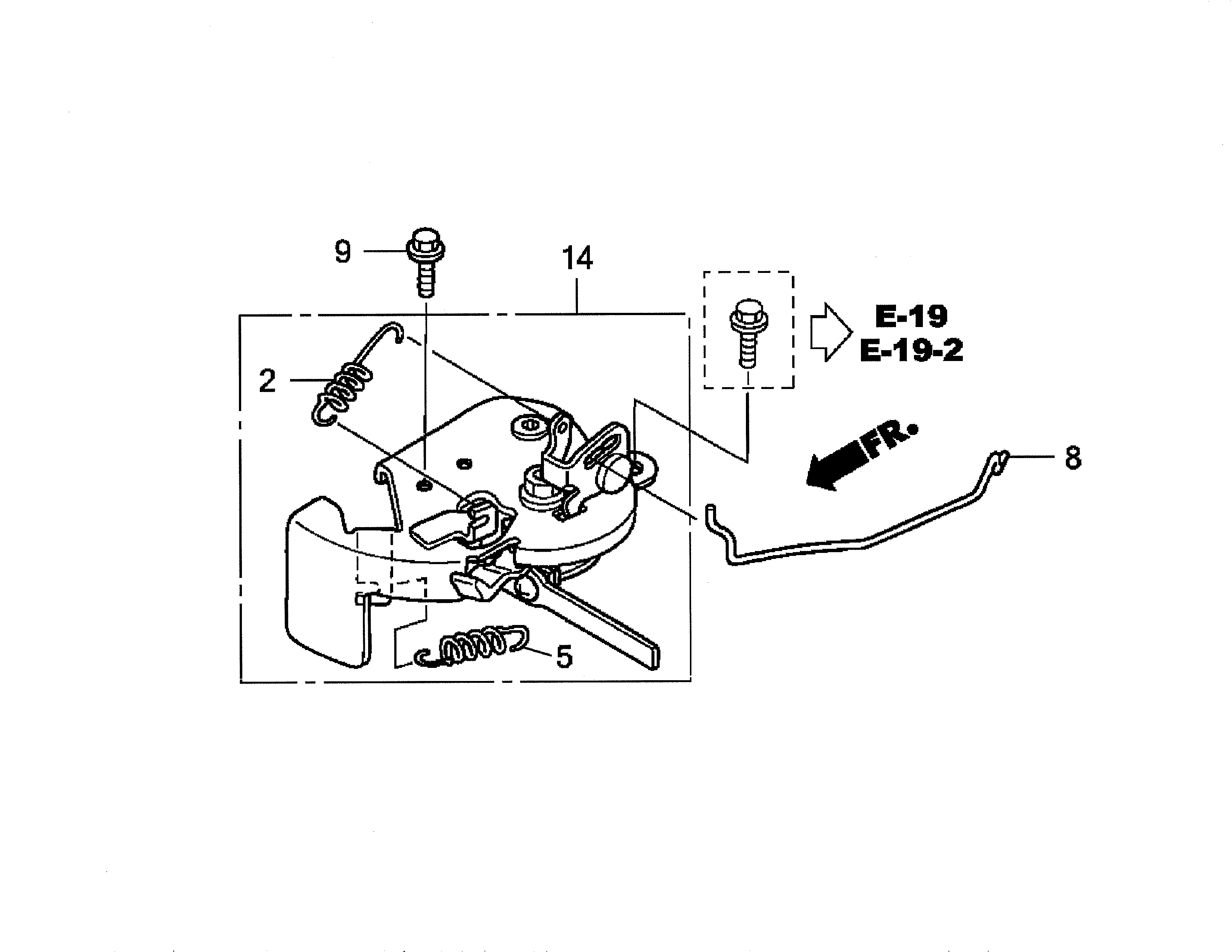

Control diagram

Governor rod

Part #16555-Z0L-801

The manufacturer no longer makes this part, and there's no substitute part

Weight, Governor 16511-ZL8-000
#10

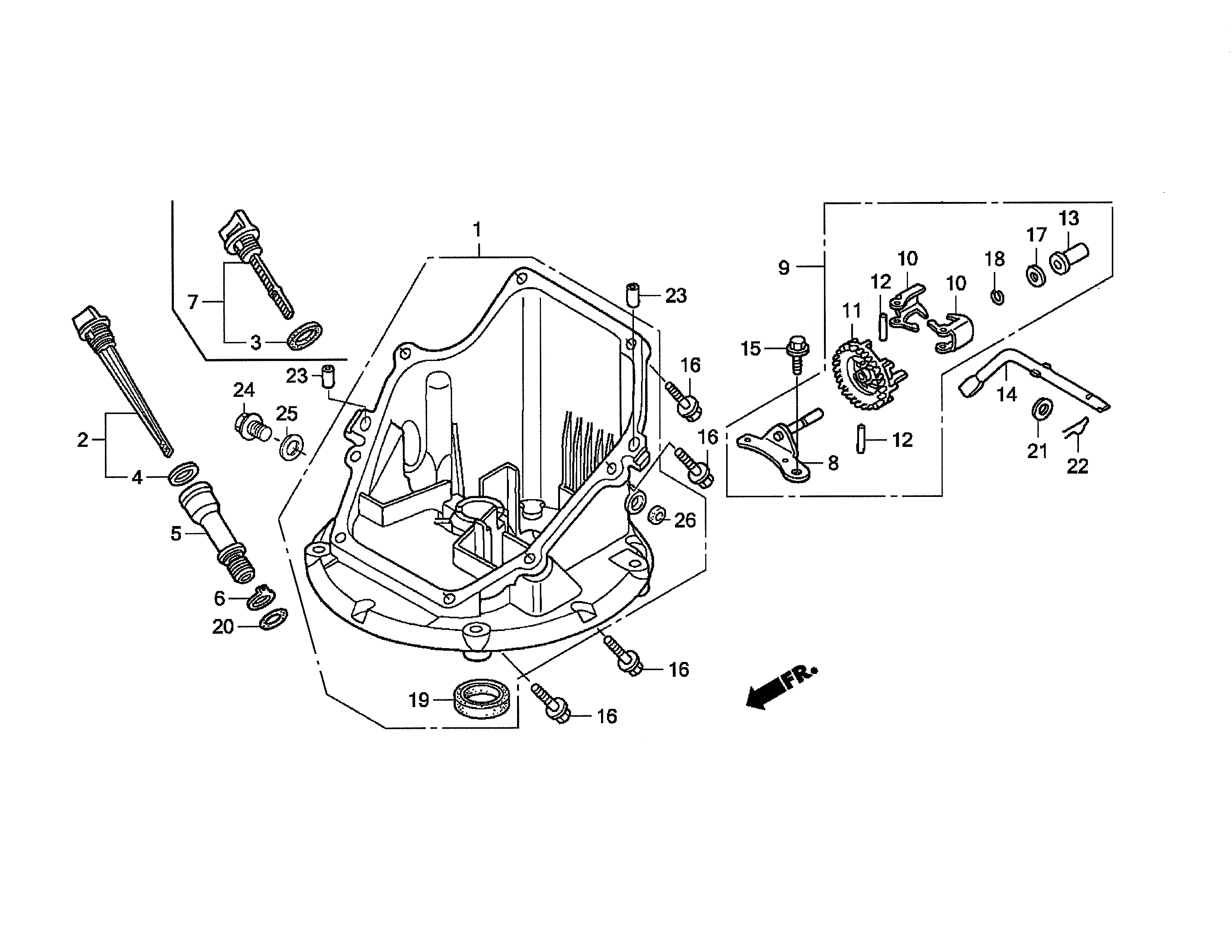

Oil pan diagram

Weight, governor

Part #16511-ZL8-000

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine O-ring 91301-ZM0-V31
#13

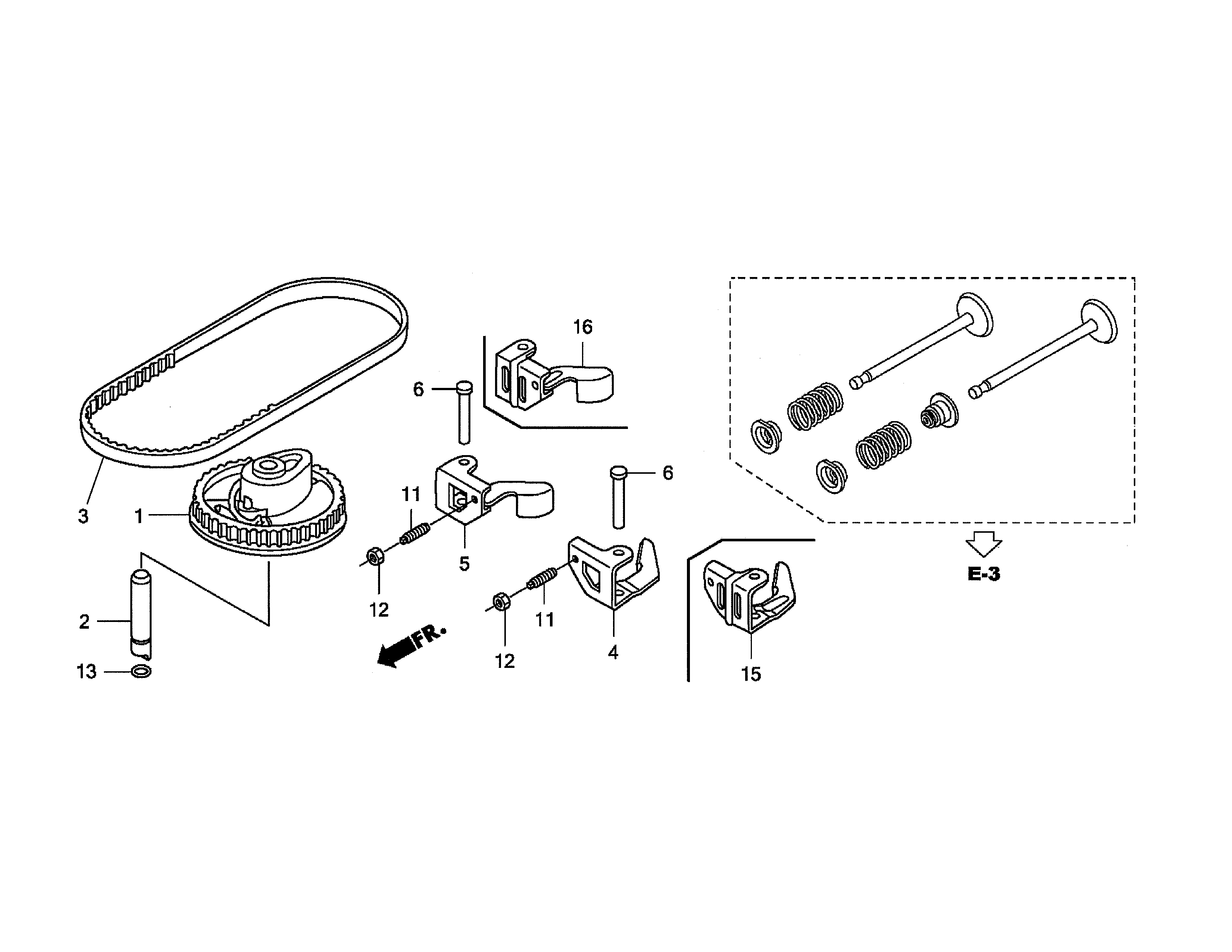

Camshaft pulley diagram

Lawn & garden equipment engine o-ring

Part #91301-ZM0-V31

The manufacturer no longer makes this part, and there's no substitute part

Crankshaft 13310-ZM0-610
#3

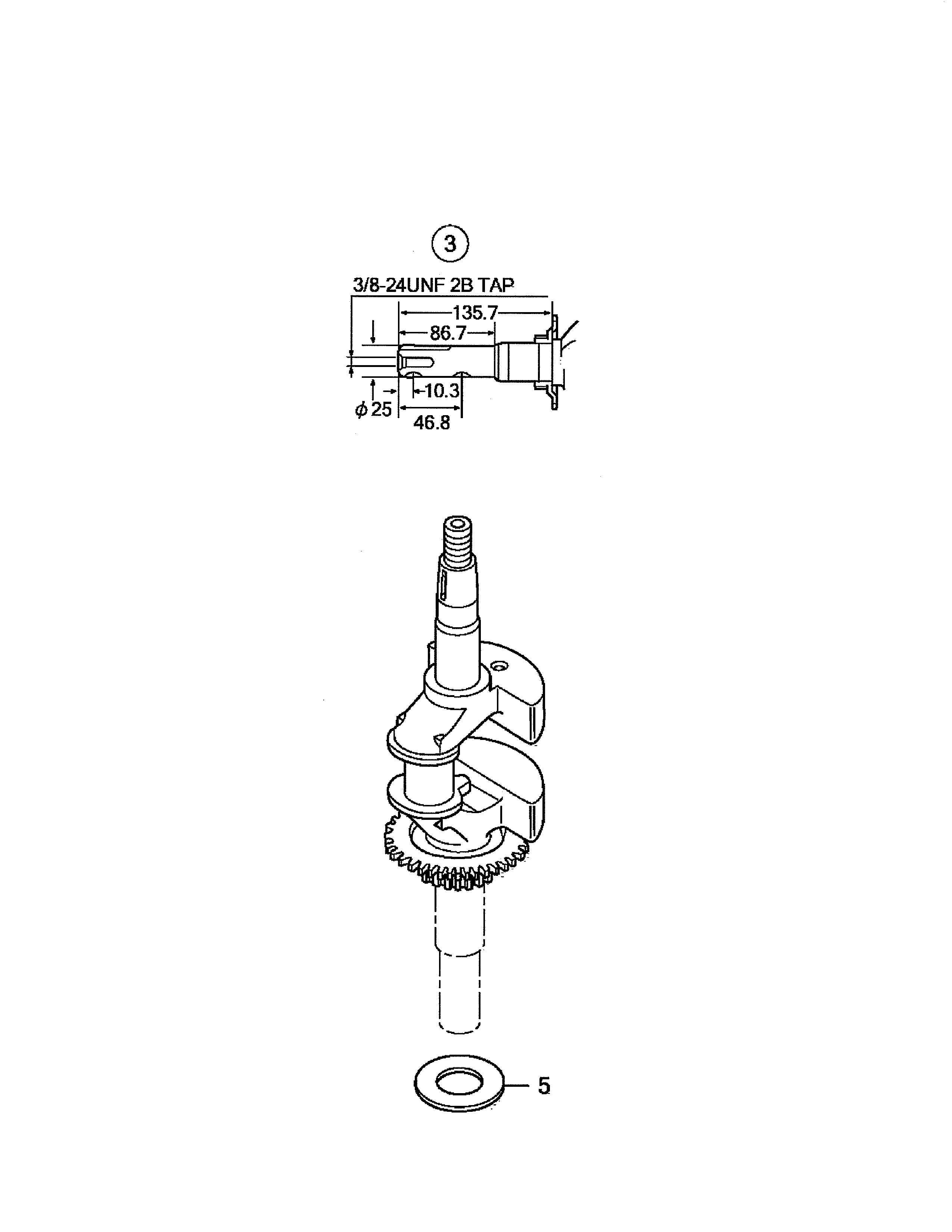

Crankshaft diagram

Crankshaft

Part #13310-ZM0-610

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Engine Oil Filter Extension 15631-ZM0-000
#5

Oil pan diagram

Lawn mower engine oil filter extension

Part #15631-ZM0-000

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Breather Tube 15721-ZM0-000
#1

Air cleaner diagram

Lawn & garden equipment engine breather tube

Part #15721-ZM0-000

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Self-tapping Screw 90055-ZE1-000
#11

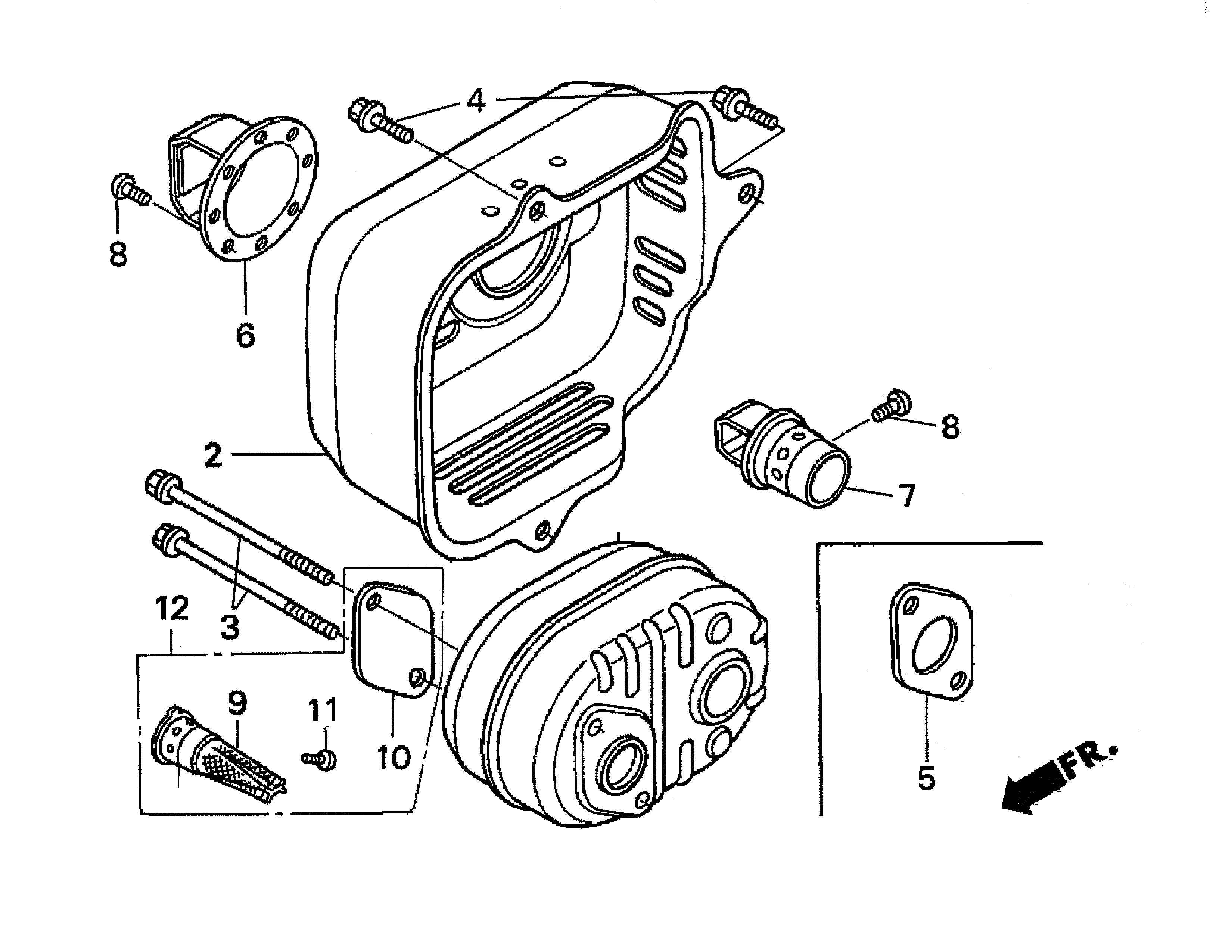

Muffler diagram

Lawn & garden equipment engine self-tapping screw

Part #90055-ZE1-000

The manufacturer no longer makes this part, and there's no substitute part

Protector 18321-Z0L-J00
#2

Muffler diagram

Protector

Part #18321-Z0L-J00

The manufacturer no longer makes this part, and there's no substitute part
