KitchenAid
Garbage Disposal

Model # KCDC150X0 Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid KCDC150X0 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Emergency, Wrench Assembly 4211397
#20

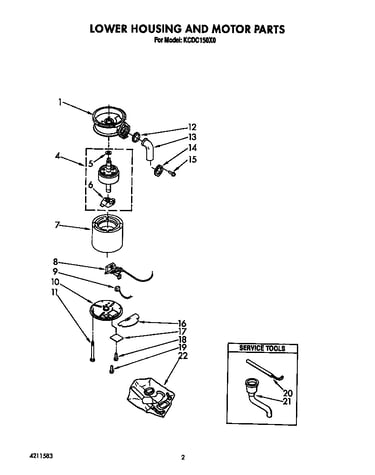

Lower housing and motor diagram

Emergency, wrench assembly

Part #4211397

The manufacturer no longer makes this part, and there's no substitute part

Stopper Assembly 4211300
#1

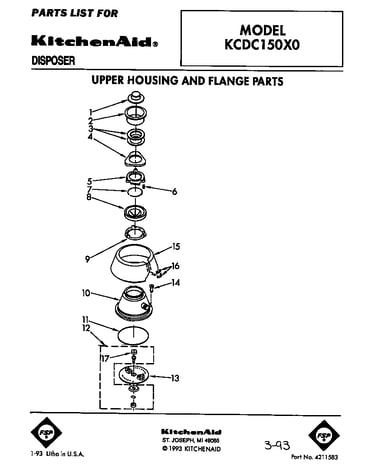

Upper housing and flange diagram

Stopper assembly

Part #4211300

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 4211328
#17

Lower housing and motor diagram

Terminal cover

Part #4211328

The manufacturer no longer makes this part, and there's no substitute part

Kit, Installation (includes Nos. 12, 13, 14, 15, 20, Ins 4211565
#22

Lower housing and motor diagram

Kit, installation (includes nos. 12, 13, 14, 15, 20, ins

Part #4211565

The manufacturer no longer makes this part, and there's no substitute part

Rotor & Shaft Assembly 4211582
#4

Lower housing and motor diagram

Rotor & shaft assembly

Part #4211582

The manufacturer no longer makes this part, and there's no substitute part

Bolt, Thru (4) 4211348
#11

Lower housing and motor diagram

Bolt, thru (4)

Part #4211348

The manufacturer no longer makes this part, and there's no substitute part

End Bell Assembly (upper) 4211492
#1

Lower housing and motor diagram

End bell assembly (upper)

Part #4211492

The manufacturer no longer makes this part, and there's no substitute part

End Frame Assembly, Lower 4211515
#10

Lower housing and motor diagram

End frame assembly, lower

Part #4211515

The manufacturer no longer makes this part, and there's no substitute part

Container, Body Assembly 4211581
#10

Upper housing and flange diagram

Container, body assembly

Part #4211581

The manufacturer no longer makes this part, and there's no substitute part

Adapter, Sink 4211396
#21

Lower housing and motor diagram

Adapter, sink

Part #4211396

The manufacturer no longer makes this part, and there's no substitute part
