Model # 5KSB1585BCA0 Official KitchenAid blender

Here are the diagrams and repair parts for Official KitchenAid 5KSB1585BCA0 blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Coupling W10279256
#2

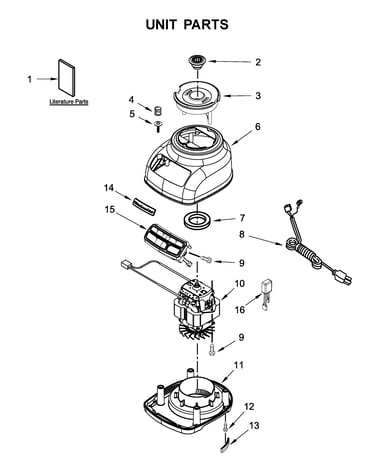

Unit parts diagram

Coupling

Part #W10279256

Replaced by #WPW10279256

?
Manufacturer substitution
This part replaces W10279256. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Seal 9709366
#7

Unit parts diagram

Seal

Part #9709366

Replaced by #WP9709366

?
Manufacturer substitution
This part replaces 9709366. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Power Cord (black - (united Kingdom)) W10705091
#8

Unit parts diagram

Power cord (black - (united kingdom))

Part #W10705091

$31.32
In Stock
Housing-pain W10646512
#6F

Unit parts diagram

Housing-pain

Part #W10646512

$85.31
In Stock
Blender Nameplate W10514169
#14

Unit parts diagram

Blender nameplate

Part #W10514169

$27.79 |
15% OFF Phone Price : $32.79
In Stock
Housing-pain W10646510
#6G

Unit parts diagram

Housing-pain

Part #W10646510

$85.31
In Stock
Assy-almond W10646874
#1

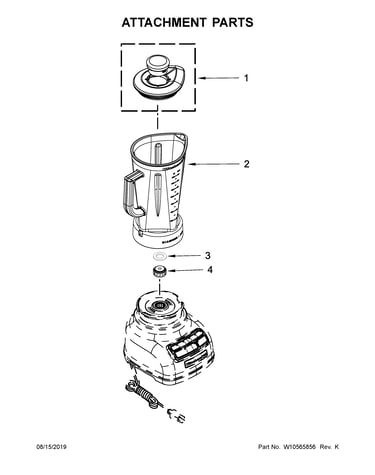

Attachment parts diagram

Assy-almond

Part #W10646874

$45.05
In Stock
Housing-pain W10646511
#6D

Unit parts diagram

Housing-pain

Part #W10646511

$85.31
In Stock
Housing-pain W10646514
#6C

Unit parts diagram

Housing-pain

Part #W10646514

$85.31
In Stock
Housing-pain W10709769
#6A

Unit parts diagram

Housing-pain

Part #W10709769

$83.51
In Stock
