Model # 3-5020X1 Official Murray 26" men's one-speed cruiser bicycle

Here are the diagrams and repair parts for Official Murray 3-5020X1 26" men's one-speed cruiser bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Seat Post 39934Z
#2

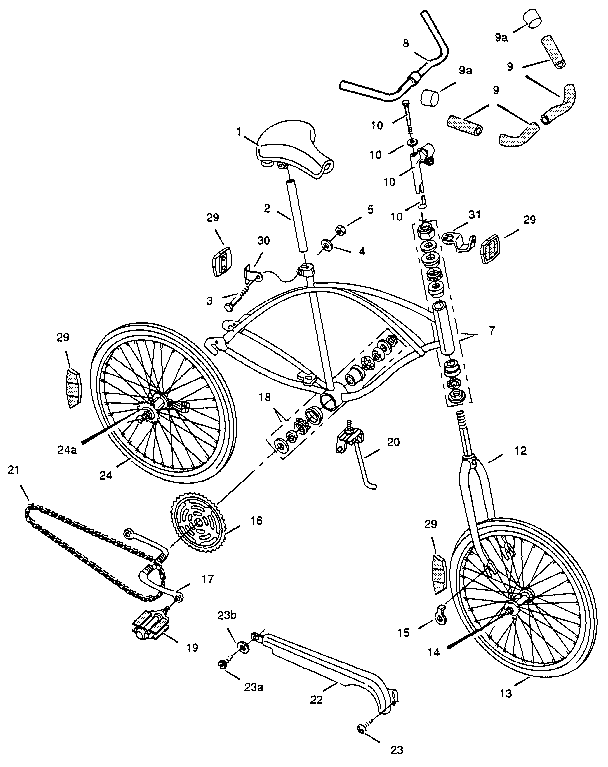

Men's 26" cruiser diagram

Seat post

Part #39934Z

The manufacturer no longer makes this part, and there's no substitute part

Kickstand 302336
#20

Men's 26" cruiser diagram

Kickstand

Part #302336

The manufacturer no longer makes this part, and there's no substitute part

Rear Wheel 303092C
#24

Men's 26" cruiser diagram

Rear wheel

Part #303092C

The manufacturer no longer makes this part, and there's no substitute part

Washer 17X47Z
#4

Men's 26" cruiser diagram

Washer

Part #17X47Z

The manufacturer no longer makes this part, and there's no substitute part

Fr 26 Wheel 303079C
#13

Men's 26" cruiser diagram

Fr 26 wheel

Part #303079C

The manufacturer no longer makes this part, and there's no substitute part

F Rflct Brkt 39863Z
#31

Men's 26" cruiser diagram

F rflct brkt

Part #39863Z

The manufacturer no longer makes this part, and there's no substitute part

Fork Assy 49097H442
#12

Men's 26" cruiser diagram

Fork assy

Part #49097H442

The manufacturer no longer makes this part, and there's no substitute part

Chain 303475
#21

Men's 26" cruiser diagram

Chain

Part #303475

The manufacturer no longer makes this part, and there's no substitute part

End Plug 36690
#9A

Men's 26" cruiser diagram

End plug

Part #36690

The manufacturer no longer makes this part, and there's no substitute part

Wheel Retain 32375Z
#15

Men's 26" cruiser diagram

Wheel retain

Part #32375Z

The manufacturer no longer makes this part, and there's no substitute part
