Model # DSC-HX7VL Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-HX7VL digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

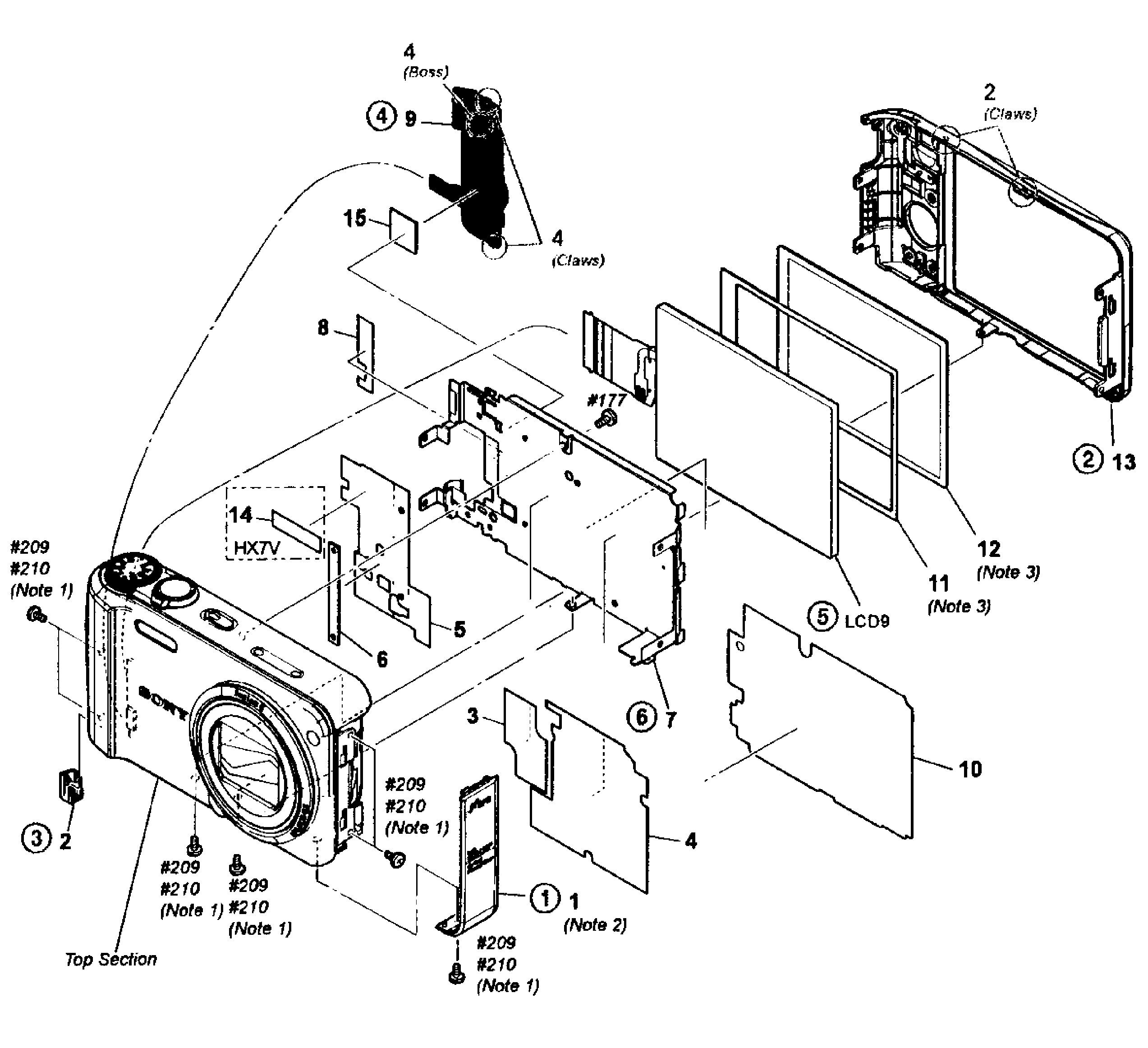

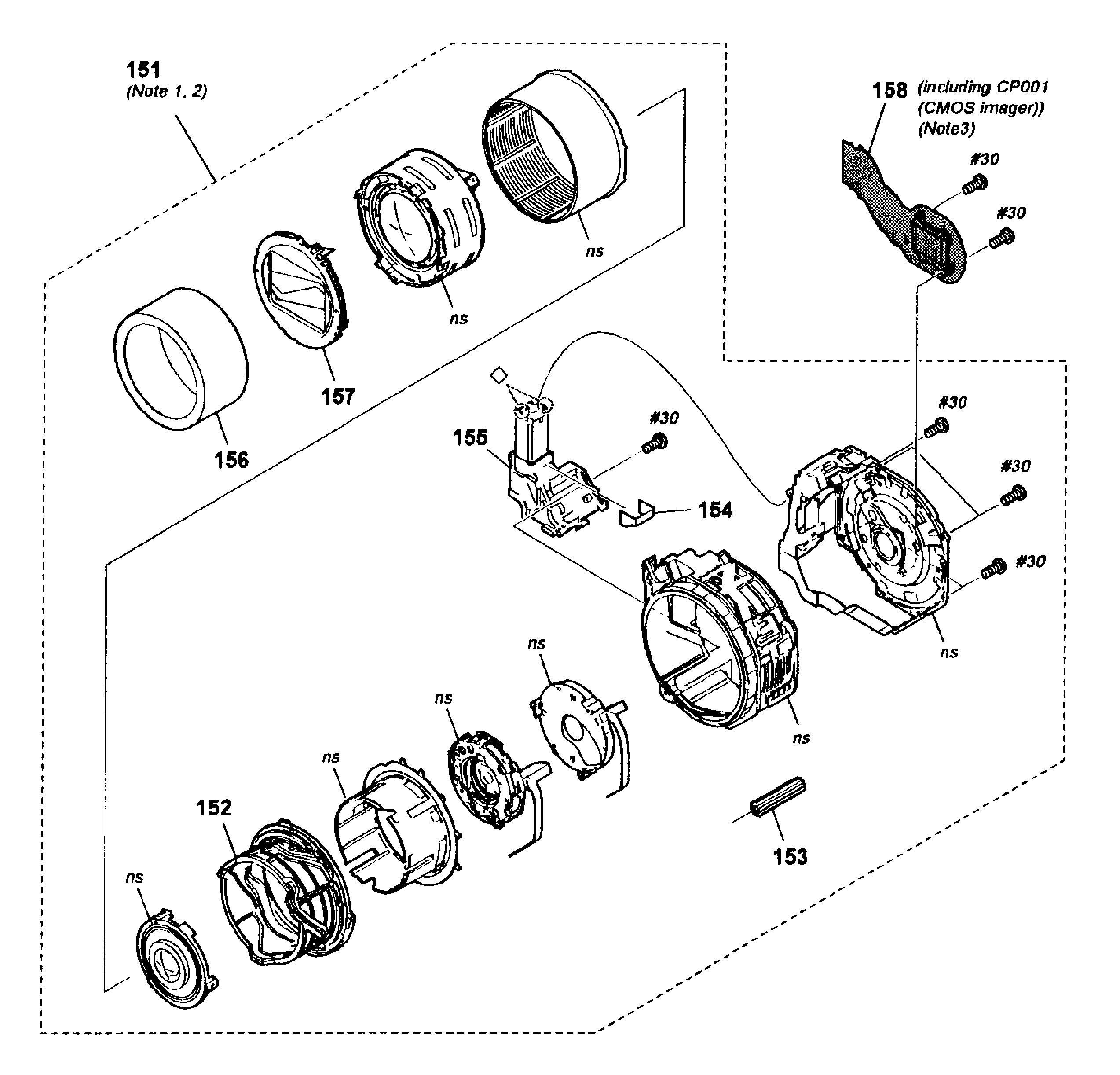

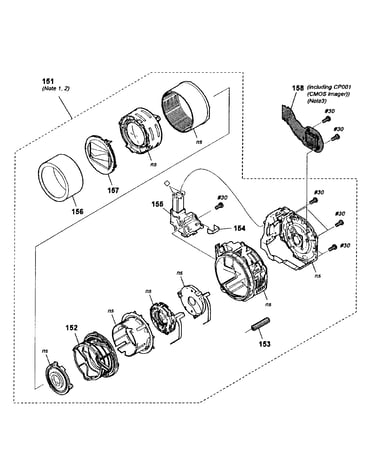

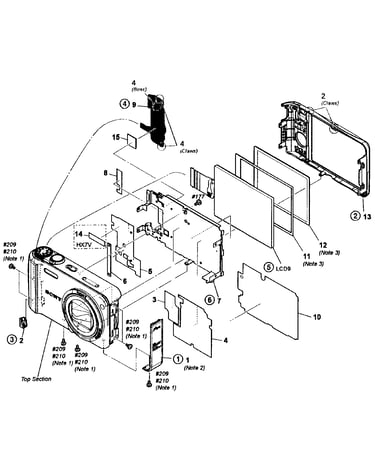

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Flash Unit 148048212
#57

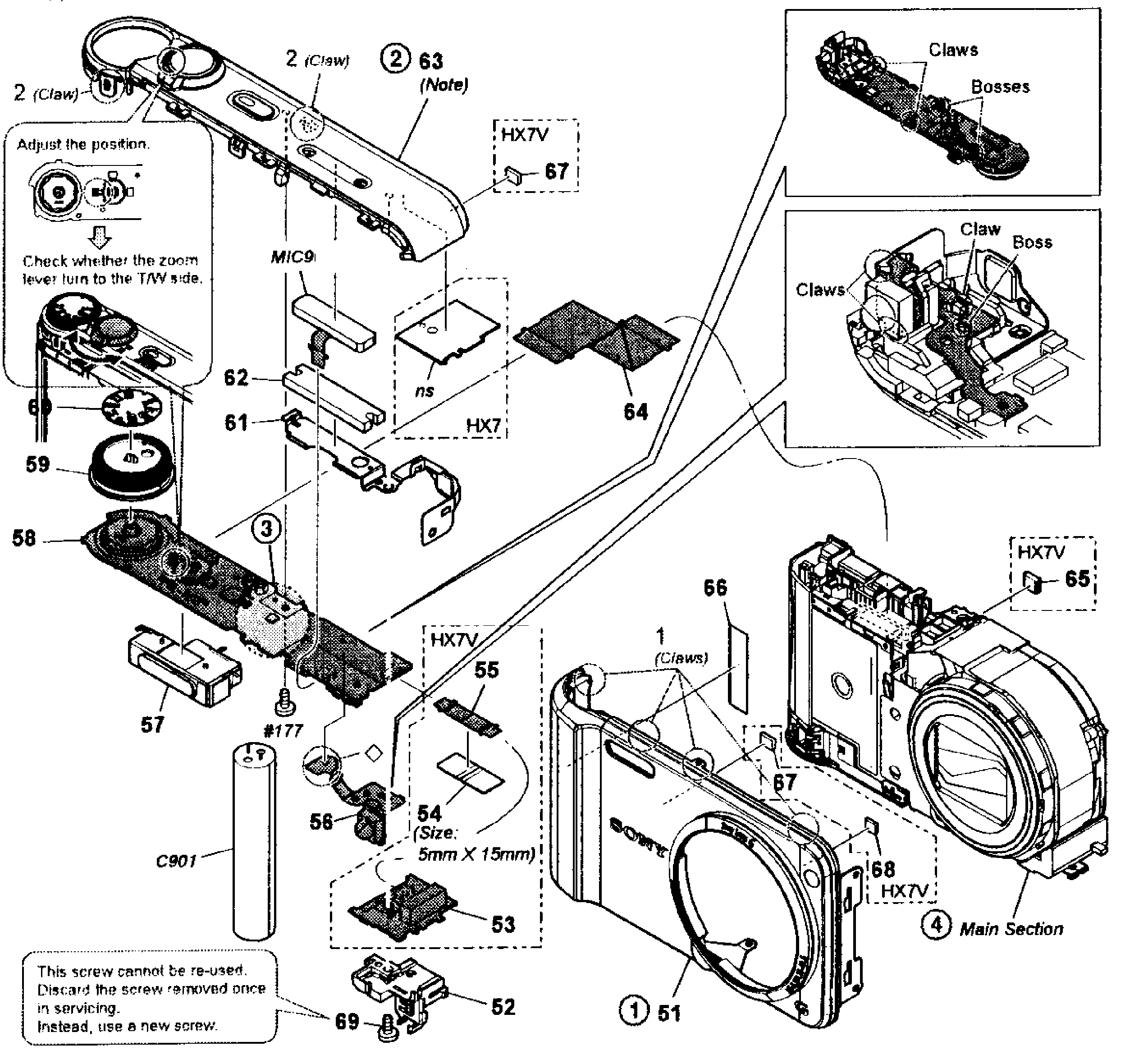

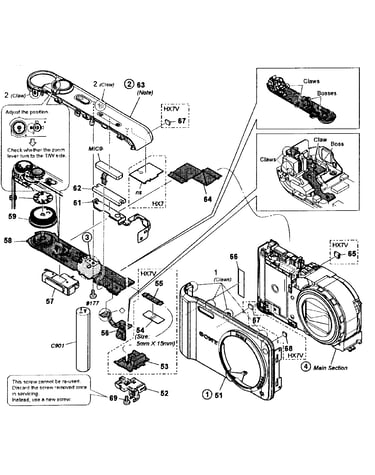

Top assy diagram

Flash unit

Part #148048212

$36.34
In Stock
Cushion 427123301
#62

Top assy diagram

Cushion

Part #427123301

This item is not returnable
$3.54
In Stock
Plate 427125621
#60

Top assy diagram

Plate

Part #427125621

$11.75
In Stock
Gasket 427257801
#68

Top assy diagram

Gasket

Part #427257801

This item is not returnable
$2.65
In Stock
Bt-070 Pcb 188305611
#107

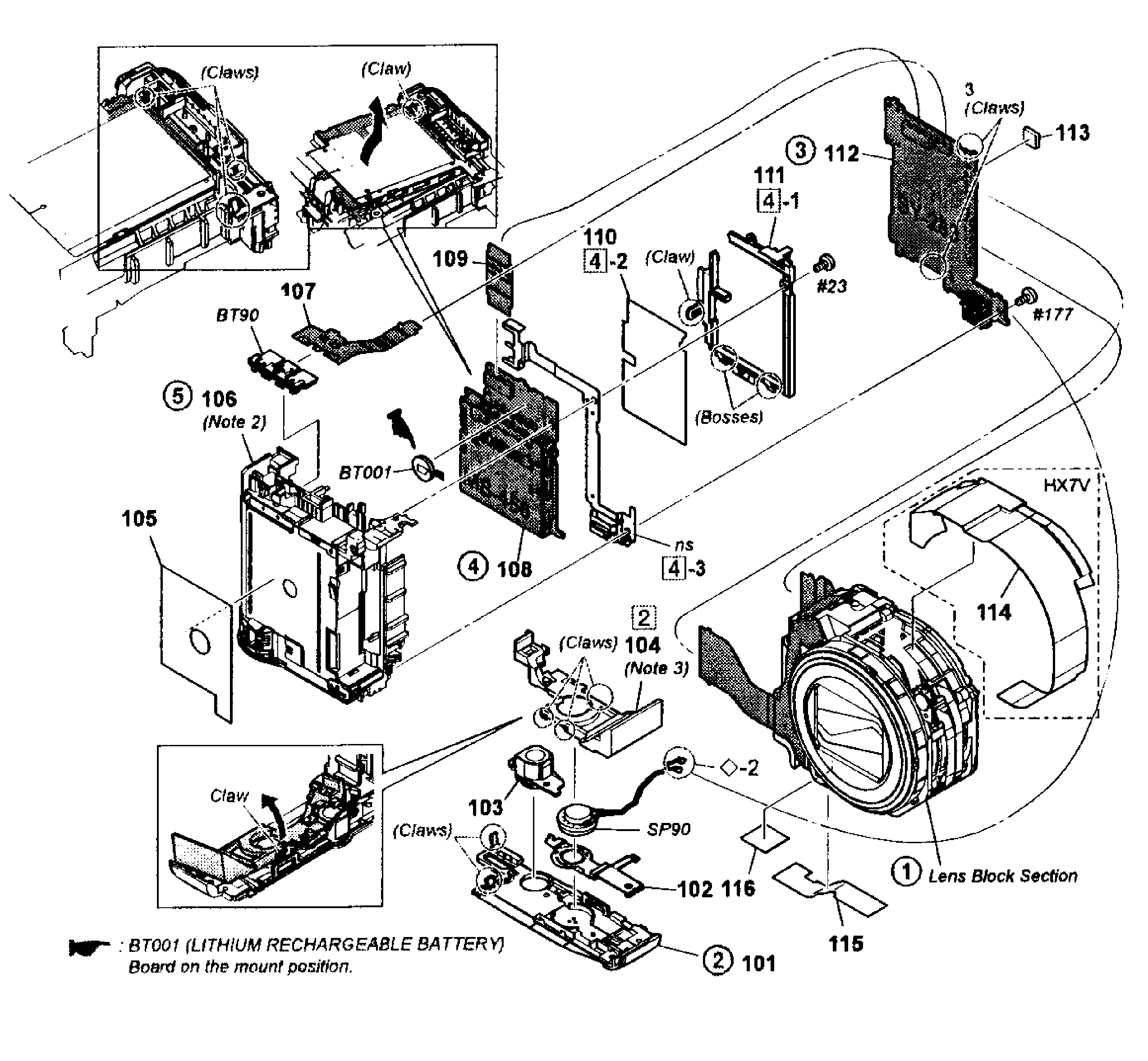

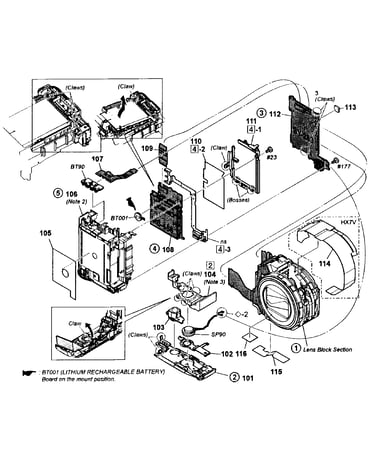

Main section diagram

Bt-070 pcb

Part #188305611

This item is not returnable
$5.80
In Stock
Frnt Cabin X25804741
#51

Top assy diagram

Frnt cabin

Part #X25804741

$100.51
In Stock
Sheet Lens 427123501
#114

Main section diagram

Sheet lens

Part #427123501

$20.13
In Stock
Sheet 427126301
#110

Main section diagram

Sheet

Part #427126301

$20.13
In Stock
Holder Sp 427124501
#104

Main section diagram

Holder sp

Part #427124501

$13.89
In Stock
Gasket 309380001
#65

Top assy diagram

Gasket

Part #309380001

$13.24
In Stock
