Roper
Gas Cooktop

Model # CGX315VW1 Official Roper gas cooktop

Here are the diagrams and repair parts for Official Roper CGX315VW1 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Clip 786580
#10

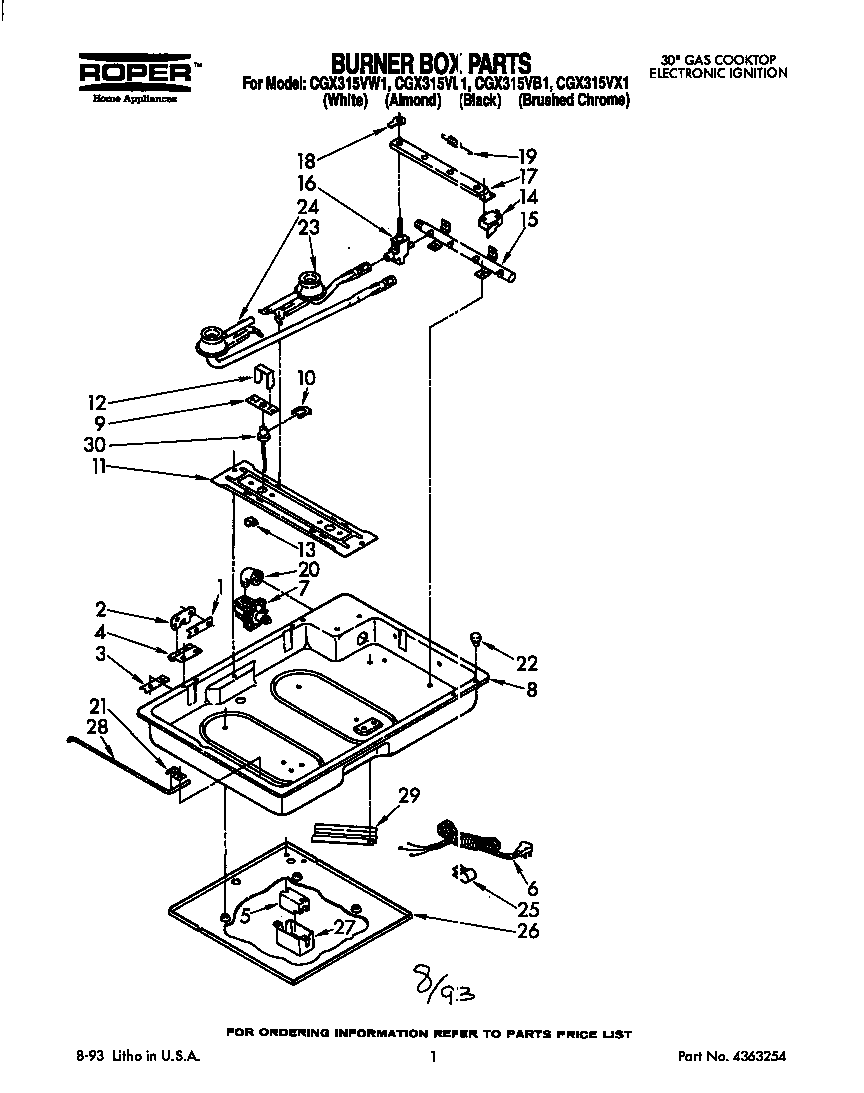

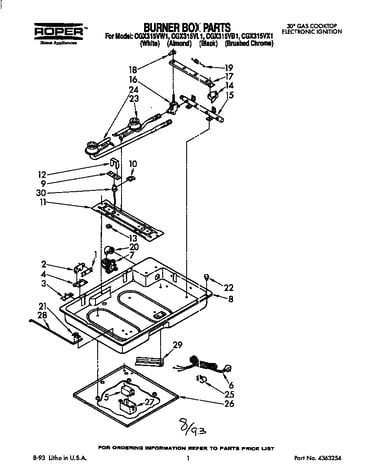

Burner box parts diagram

Clip

Part #786580

This item is not returnable
$5.87
In Stock
Glass Control Panel 4315510
#4

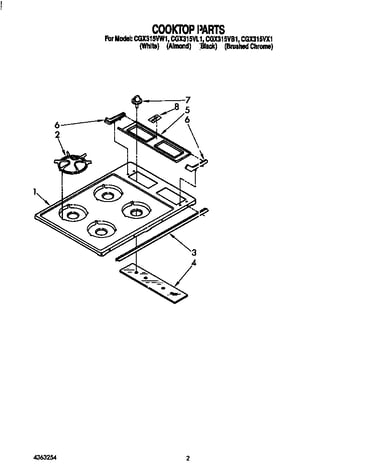

Cooktop parts diagram

Glass control panel

Part #4315510

The manufacturer no longer makes this part, and there's no substitute part

Burner R.h. (2) 4179226
#23

Burner box parts diagram

Burner r.h. (2)

Part #4179226

The manufacturer no longer makes this part, and there's no substitute part

Support Rod 4157597
#28

Burner box parts diagram

Support rod

Part #4157597

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Guide LIT4315476

#NI

All parts diagram

Use and care guide

Part #LIT4315476

The manufacturer no longer makes this part, and there's no substitute part

Raceway 4157602
#29

Burner box parts diagram

Raceway

Part #4157602

The manufacturer no longer makes this part, and there's no substitute part

Burner Support 4315155
#11

Burner box parts diagram

Burner support

Part #4315155

The manufacturer no longer makes this part, and there's no substitute part

Valve, Burner (4) 4157517
#16

Burner box parts diagram

Valve, burner (4)

Part #4157517

The manufacturer no longer makes this part, and there's no substitute part

Spark Module 4320867
#5

Burner box parts diagram

Spark module

Part #4320867

The manufacturer no longer makes this part, and there's no substitute part

Nut, Hinge (2) 4157590
#3

Burner box parts diagram

Nut, hinge (2)

Part #4157590

The manufacturer no longer makes this part, and there's no substitute part
