Model # LHB996 Official LG dvd home theater system

Here are the diagrams and repair parts for Official LG LHB996 dvd home theater system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Power Cord EAD60816611
#300

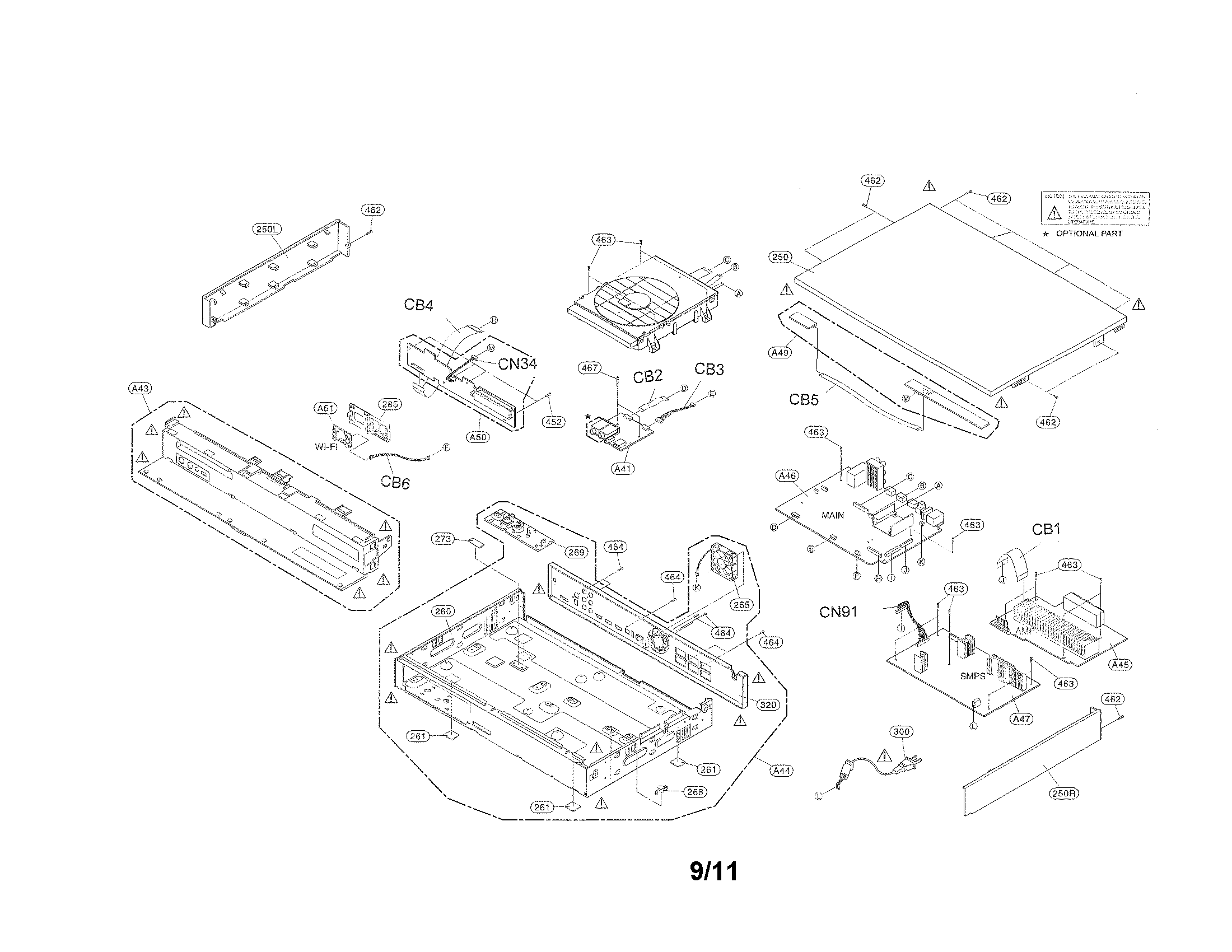

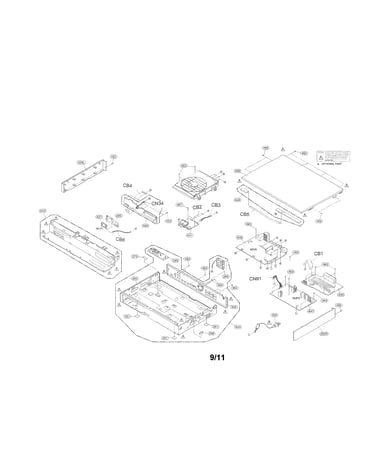

Cabinet and main frame section parts diagram

Power cord

Part #EAD60816611

$11.91
In Stock
Cover MCK66014301
#1050

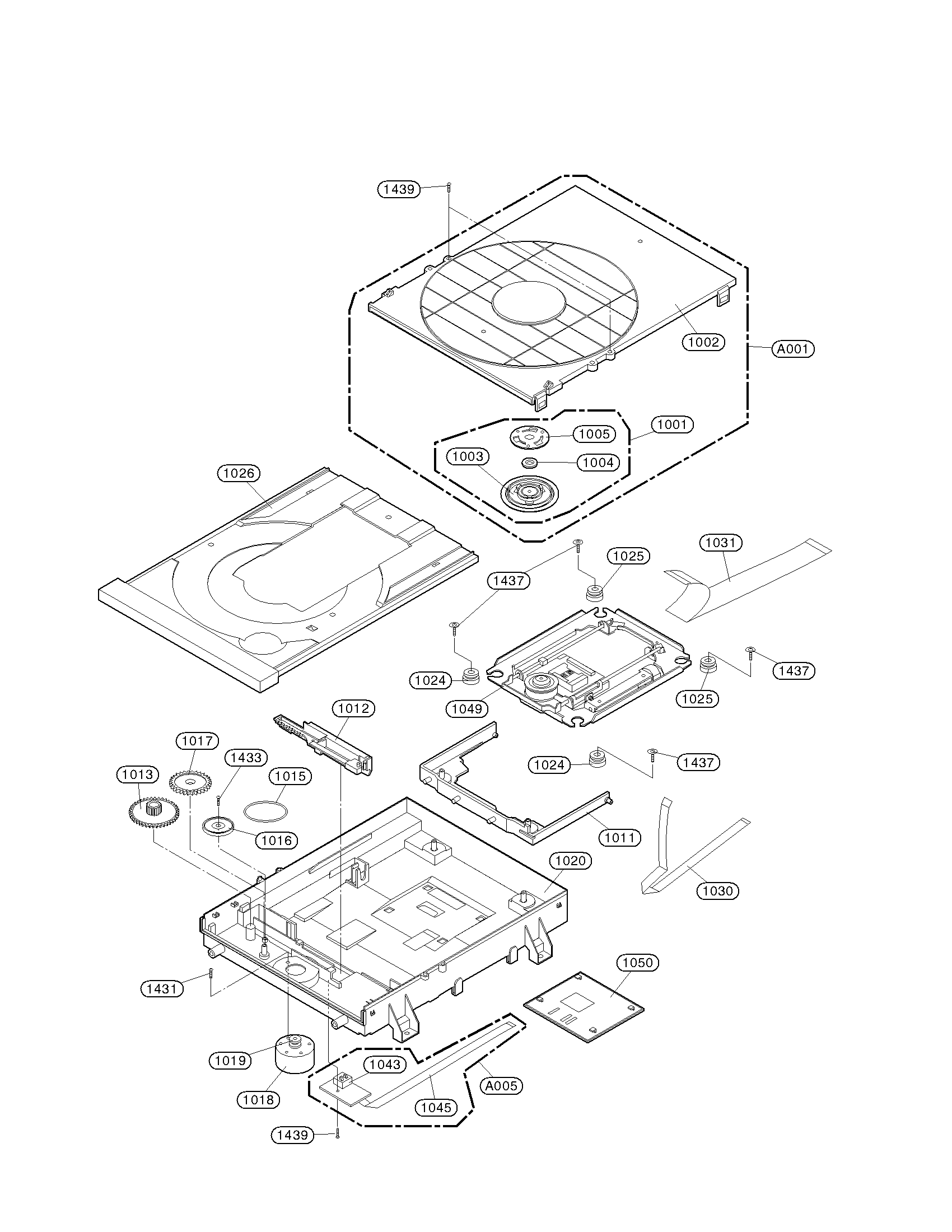

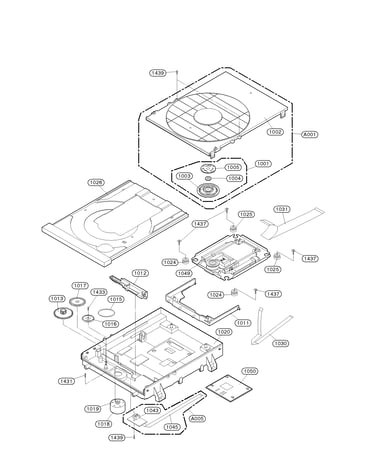

Deck mechanism section parts diagram

Cover

Part #MCK66014301

$33.13
In Stock
Magnet RAB31561501
#1004

Deck mechanism section parts diagram

Magnet

Part #RAB31561501

This item is not returnable
$3.15
In Stock
Cable EAD61548302
#CB1

Cabinet and main frame section parts diagram

Cable

Part #EAD61548302

This item is not returnable
$2.34
In Stock
Cable EAD35201509
#CB4

Cabinet and main frame section parts diagram

Cable

Part #EAD35201509

This item is not returnable
$4.11
In Stock
Cable EAD61048209
#1031

Deck mechanism section parts diagram

Cable

Part #EAD61048209

This item is not returnable
$6.31
In Stock
Single Harness EAD35863003
#CB6

Cabinet and main frame section parts diagram

Single harness

Part #EAD35863003

This item is not returnable
$2.34
In Stock
Screw 1SZZR-0098A
#452

Cabinet and main frame section parts diagram

Screw

Part #1SZZR-0098A

This item is not returnable
$2.34
In Stock
Cable Assembly EAD61811005
#WR60

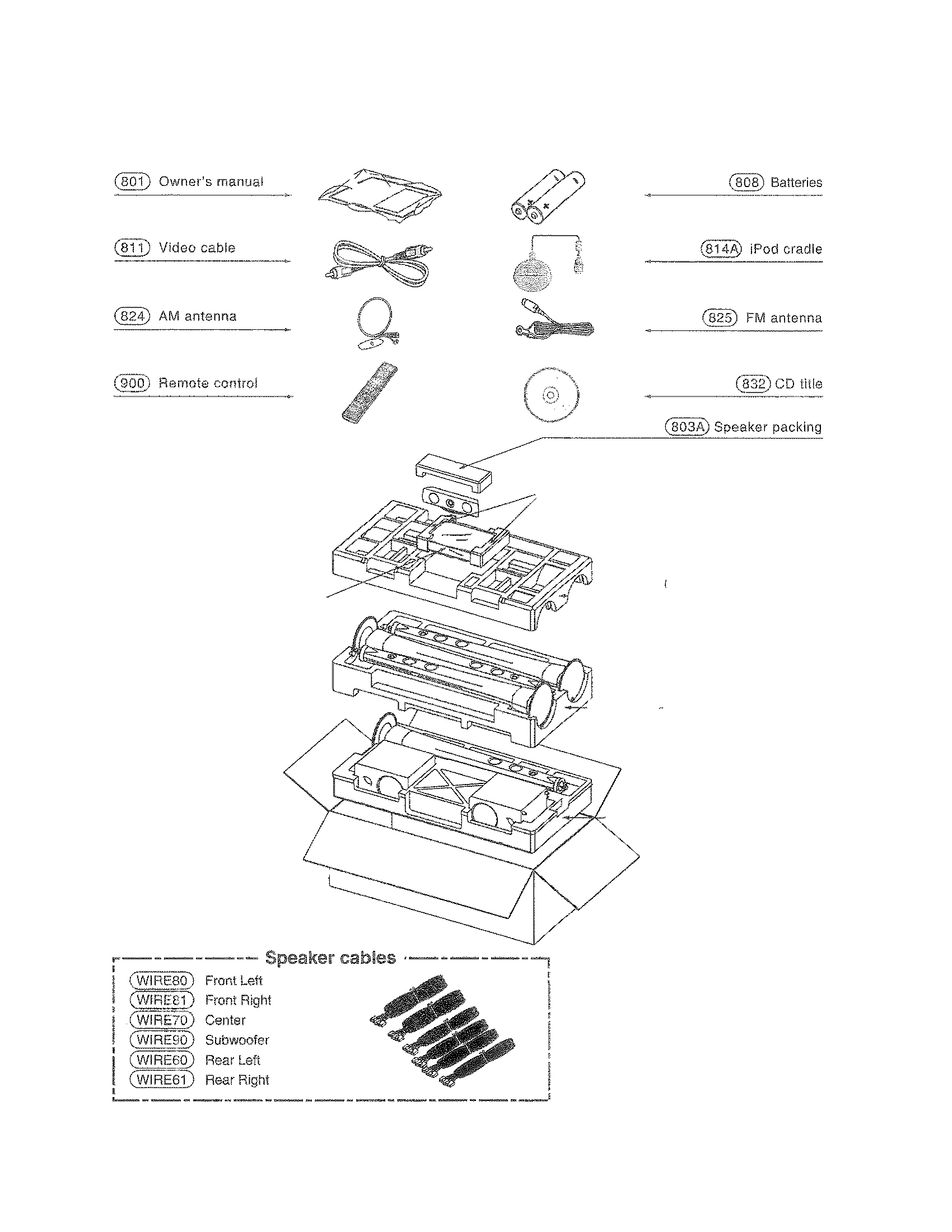

Accessory parts diagram

Cable assembly

Part #EAD61811005

$33.13
In Stock
Pulley 4560H-1005A
#1019

Deck mechanism section parts diagram

Pulley

Part #4560H-1005A

This item is not returnable
$2.16
In Stock
