Craftsman
Hammer Drill

Model # 31518110 Official Craftsman 3/8" hammer drill

Here are the diagrams and repair parts for Official Craftsman 31518110 3/8" hammer drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Chuck Key 1-623262-00
#22

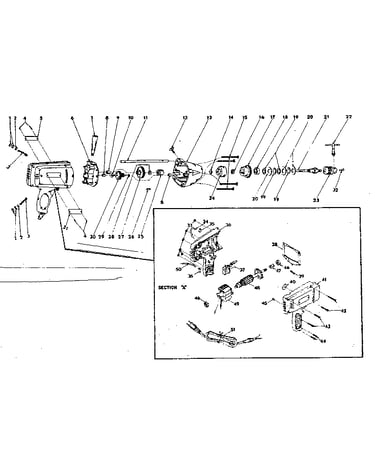

Unit parts diagram

Chuck key

Part #1-623262-00

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 2-611084-01
#31

Unit parts diagram

Data plate

Part #2-611084-01

The manufacturer no longer makes this part, and there's no substitute part

Ret Plug 1-623019-01
#45

Unit parts diagram

Ret plug

Part #1-623019-01

The manufacturer no longer makes this part, and there's no substitute part

Key 998861-000
#26

Unit parts diagram

Key

Part #998861-000

The manufacturer no longer makes this part, and there's no substitute part

Washer 1-706239-832
#10

Unit parts diagram

Washer

Part #1-706239-832

The manufacturer no longer makes this part, and there's no substitute part

Field 3-607882-01
#49

Unit parts diagram

Field

Part #3-607882-01

The manufacturer no longer makes this part, and there's no substitute part

Handle 1-606607-01
#7

Unit parts diagram

Handle

Part #1-606607-01

The manufacturer no longer makes this part, and there's no substitute part

Washer 1-706382-813
#2

Unit parts diagram

Washer

Part #1-706382-813

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-614658-24
#42

Unit parts diagram

Screw

Part #1-614658-24

The manufacturer no longer makes this part, and there's no substitute part

1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
#34

Unit parts diagram

1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
