Homelite
Gas Chainsaw

Model # UT10045 Official Homelite chainsaw

Here are the diagrams and repair parts for Official Homelite UT10045 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

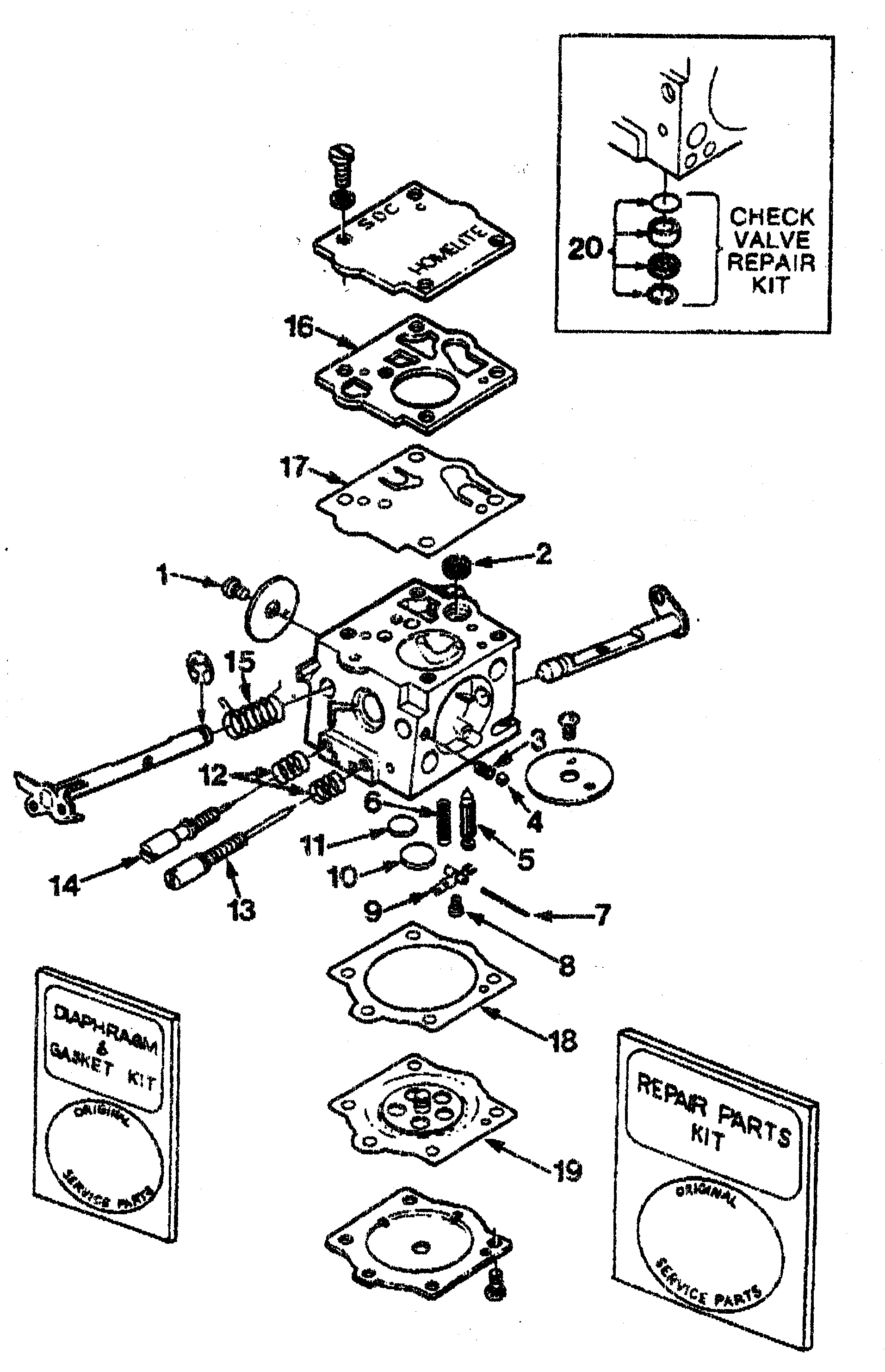

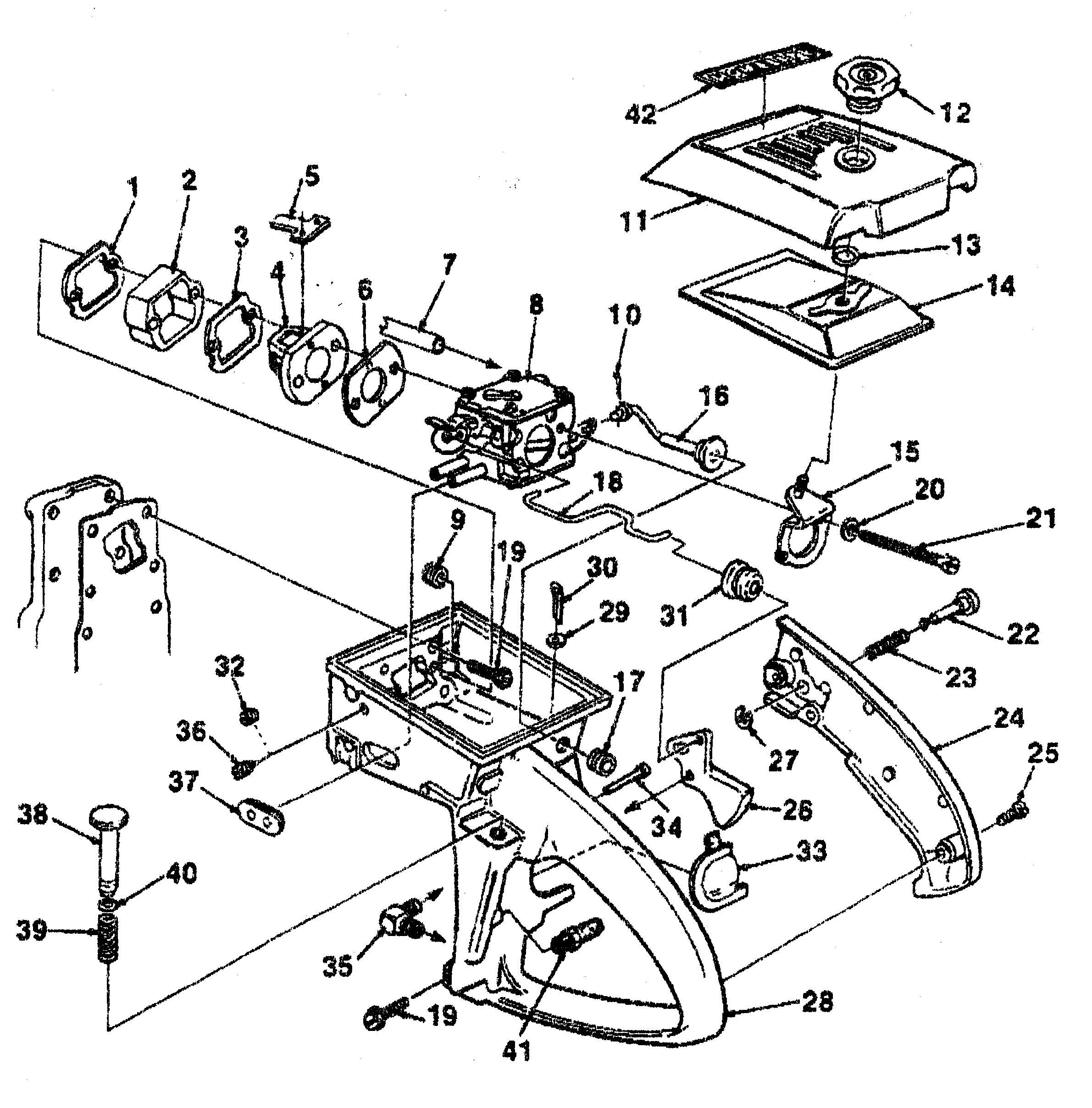

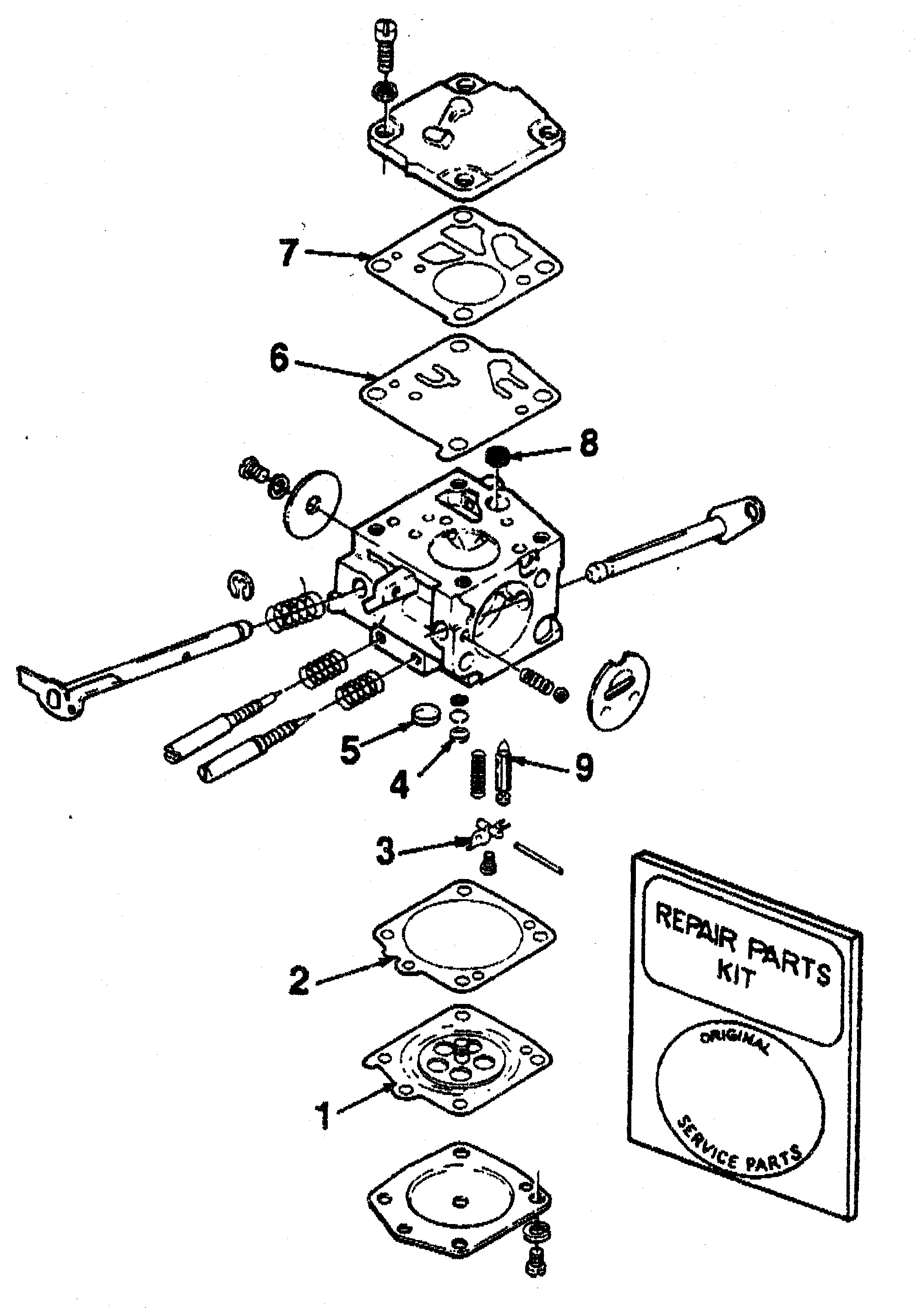

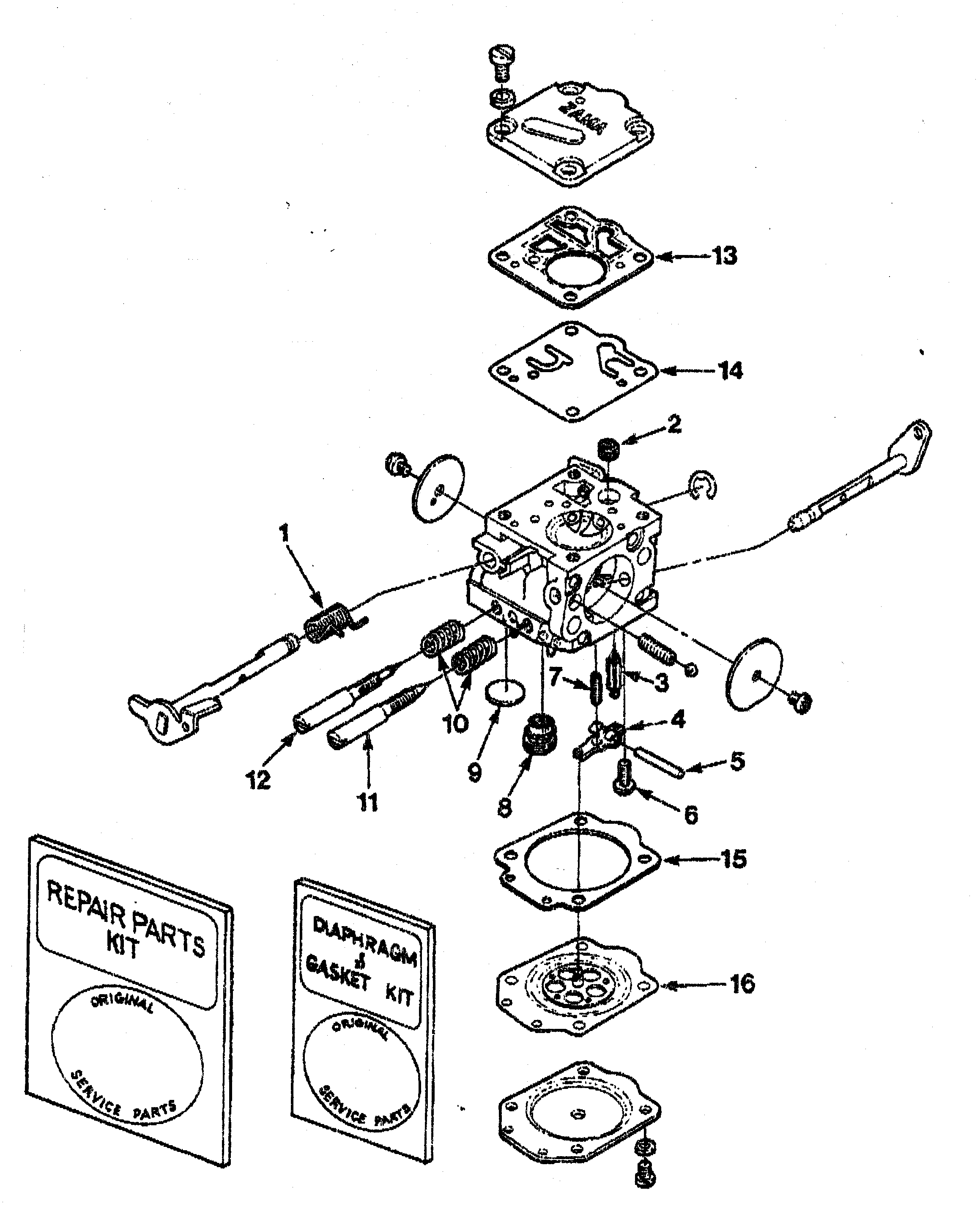

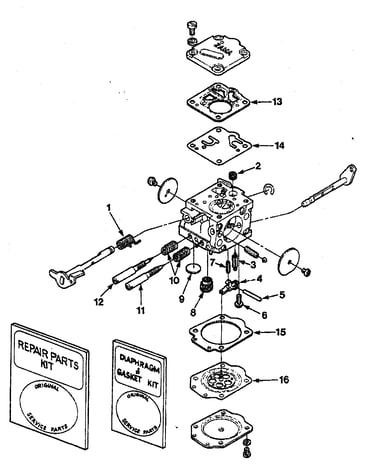

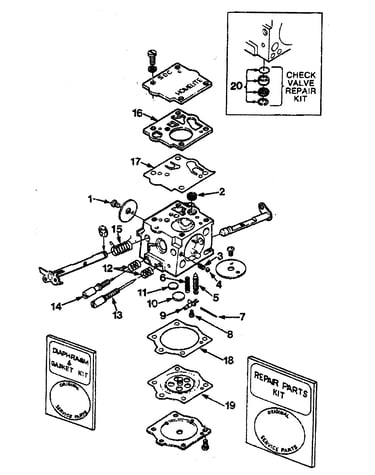

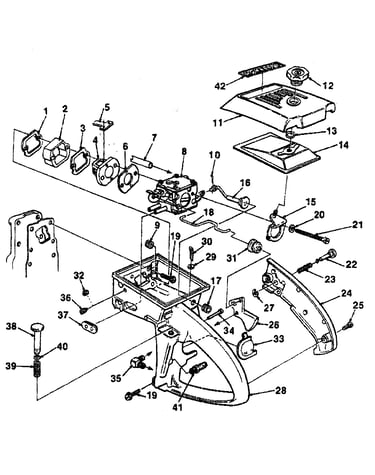

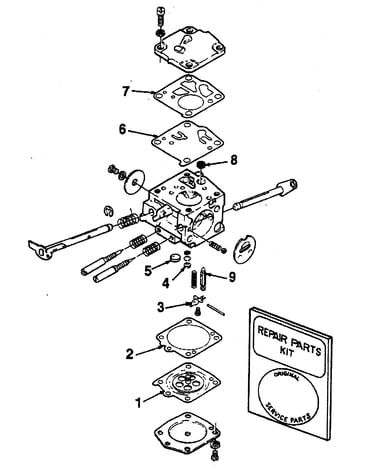

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 234 parts  |
Clutch Shoe 69461
#25

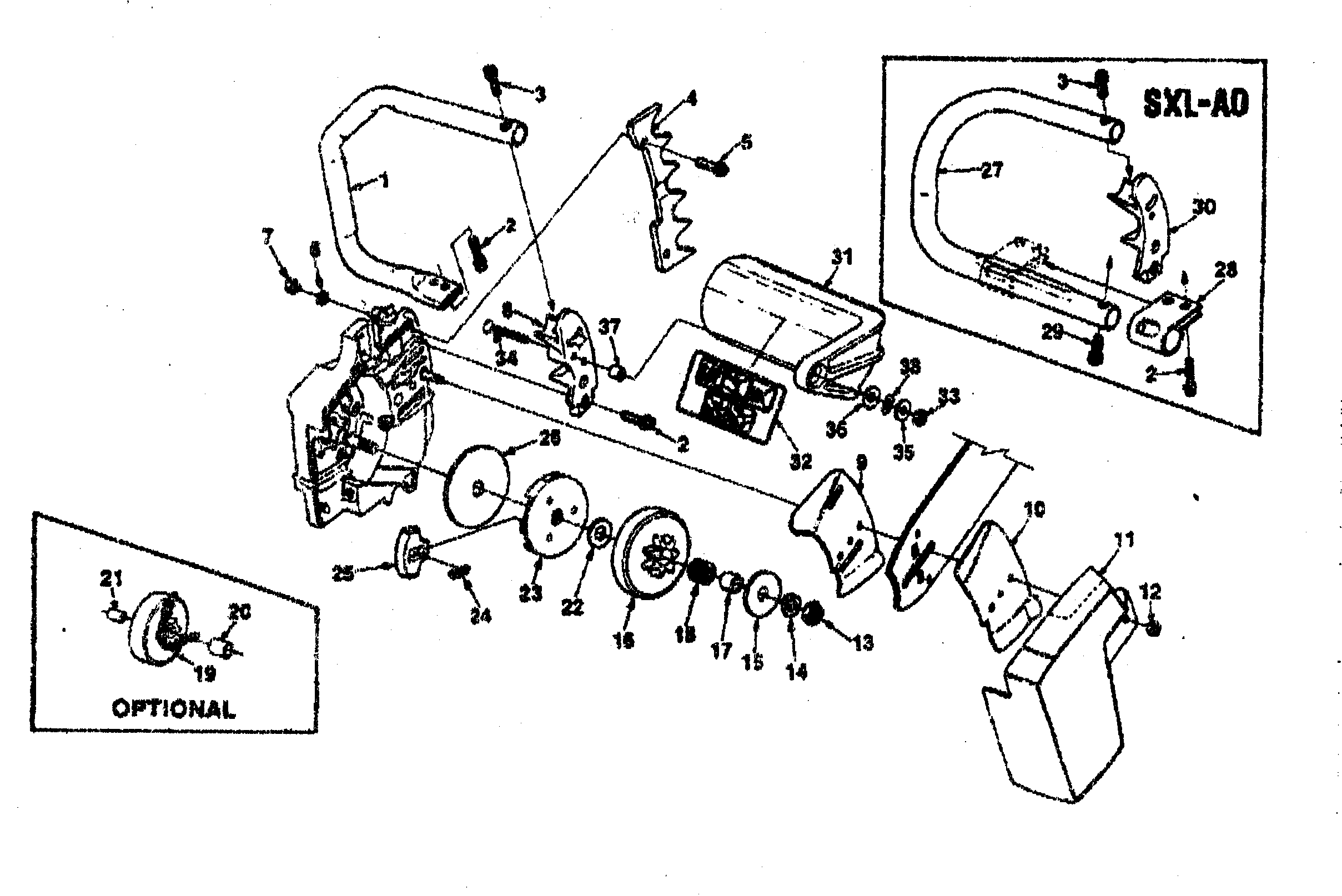

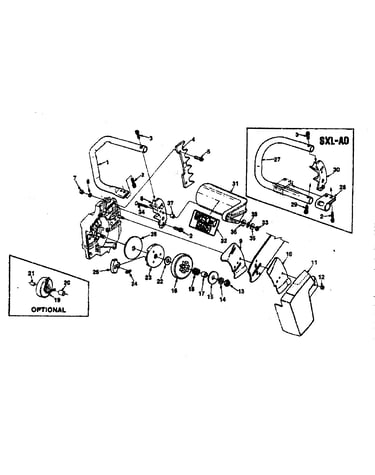

Handles/clutch diagram

Clutch shoe

Part #69461

The manufacturer no longer makes this part, and there's no substitute part

Air Screen 58765
#9

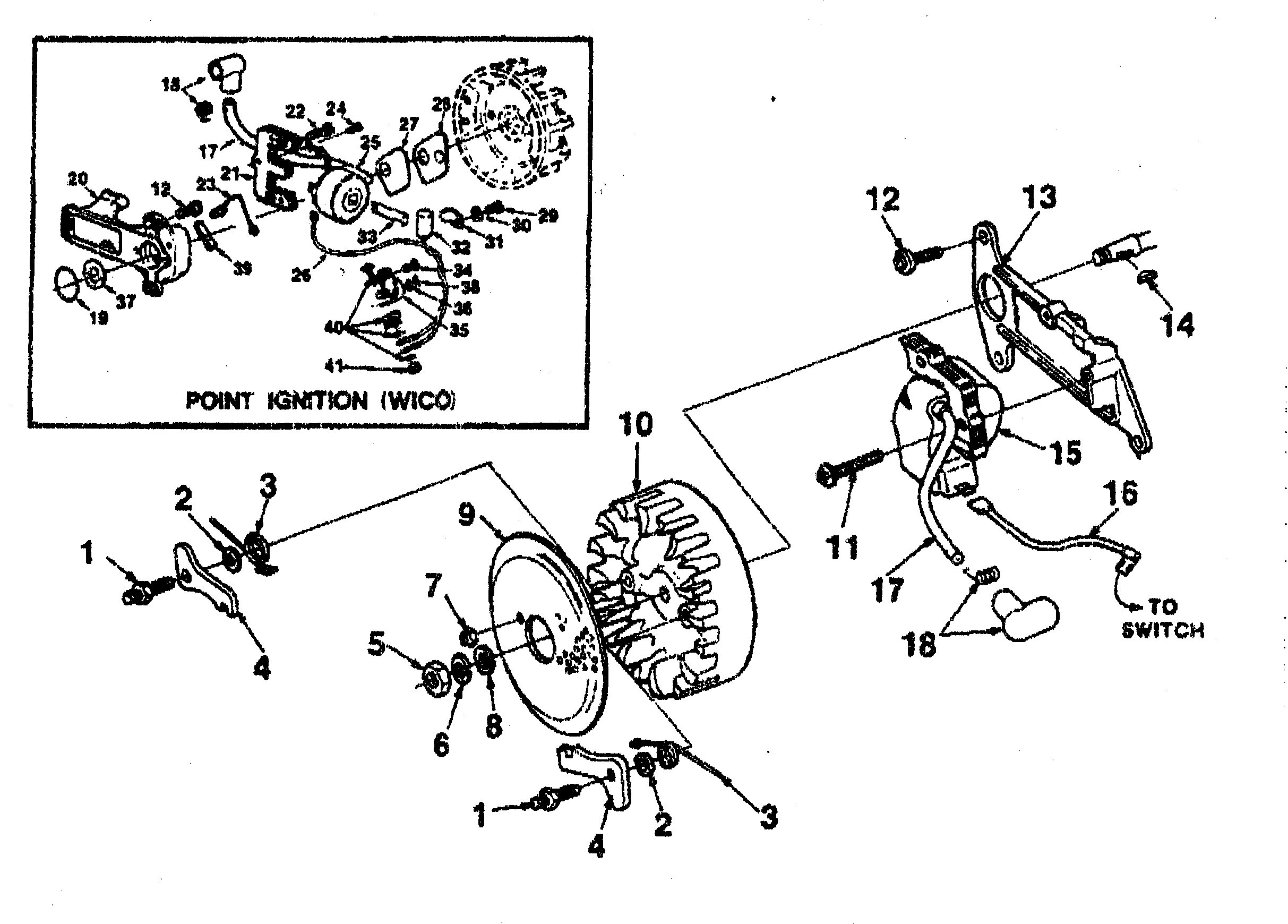

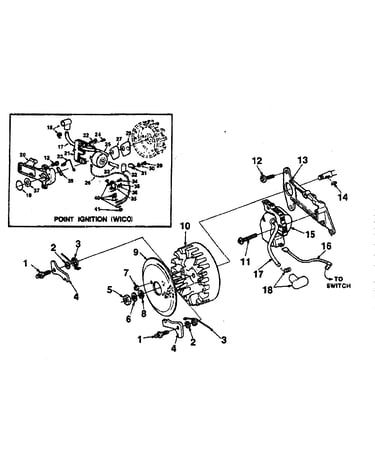

Ignition assy diagram

Air screen

Part #58765

The manufacturer no longer makes this part, and there's no substitute part

Muffler A94219A
#35A

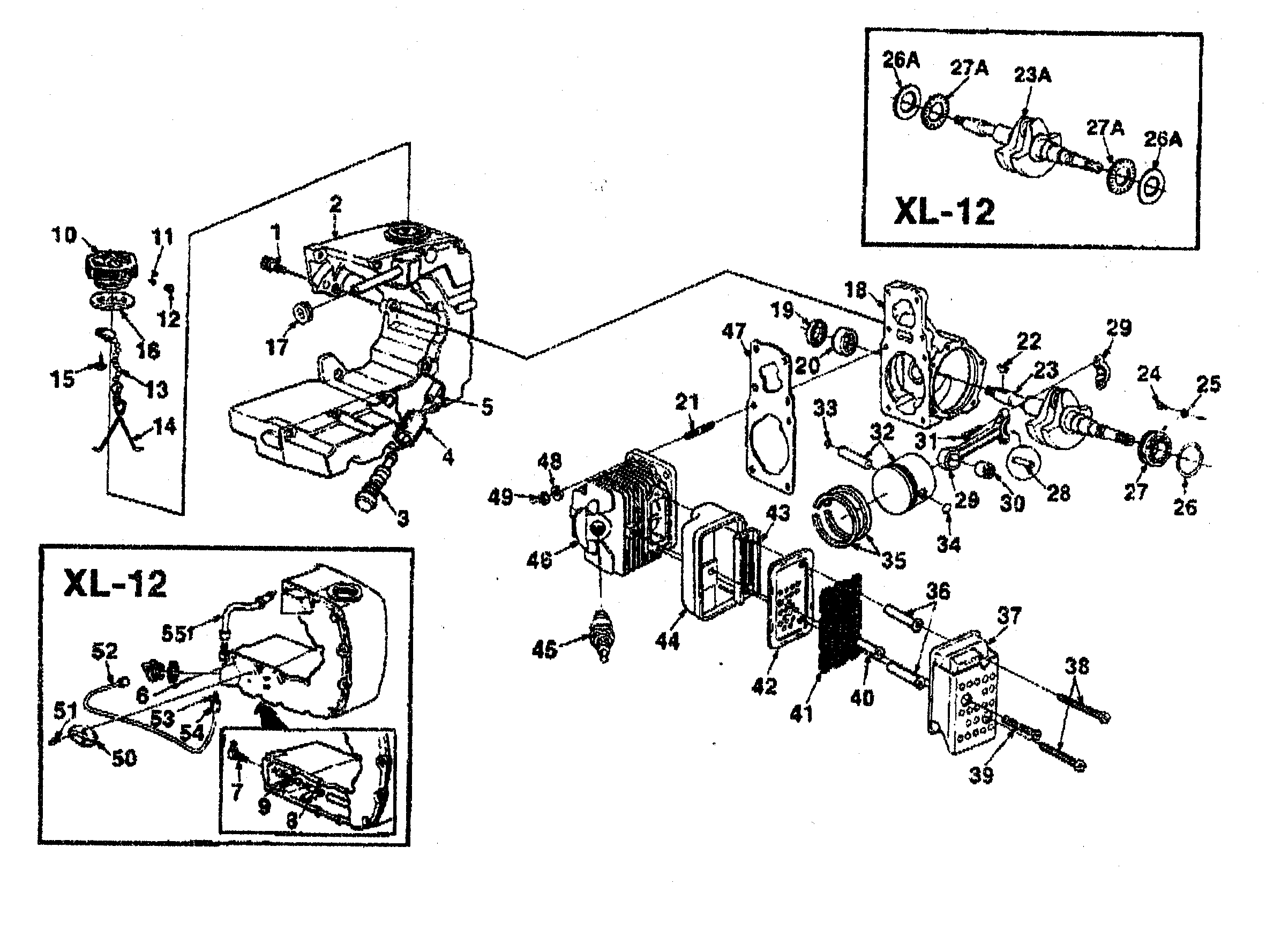

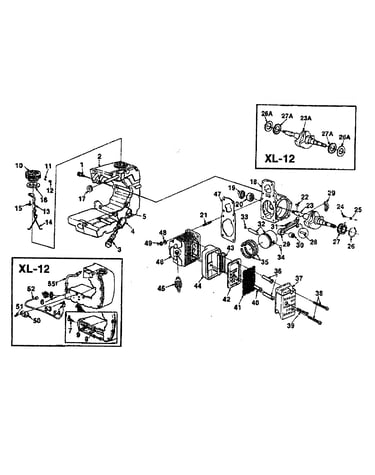

Engine assy diagram

Muffler

Part #A94219A

The manufacturer no longer makes this part, and there's no substitute part

Screw 82223
#34

Handles/clutch diagram

Screw

Part #82223

The manufacturer no longer makes this part, and there's no substitute part

Cap A69500A
#10

Engine assy diagram

Cap

Part #A69500A

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 96212
#49

Engine assy diagram

Hex nut

Part #96212

The manufacturer no longer makes this part, and there's no substitute part

Cam Screw 64102A
#24

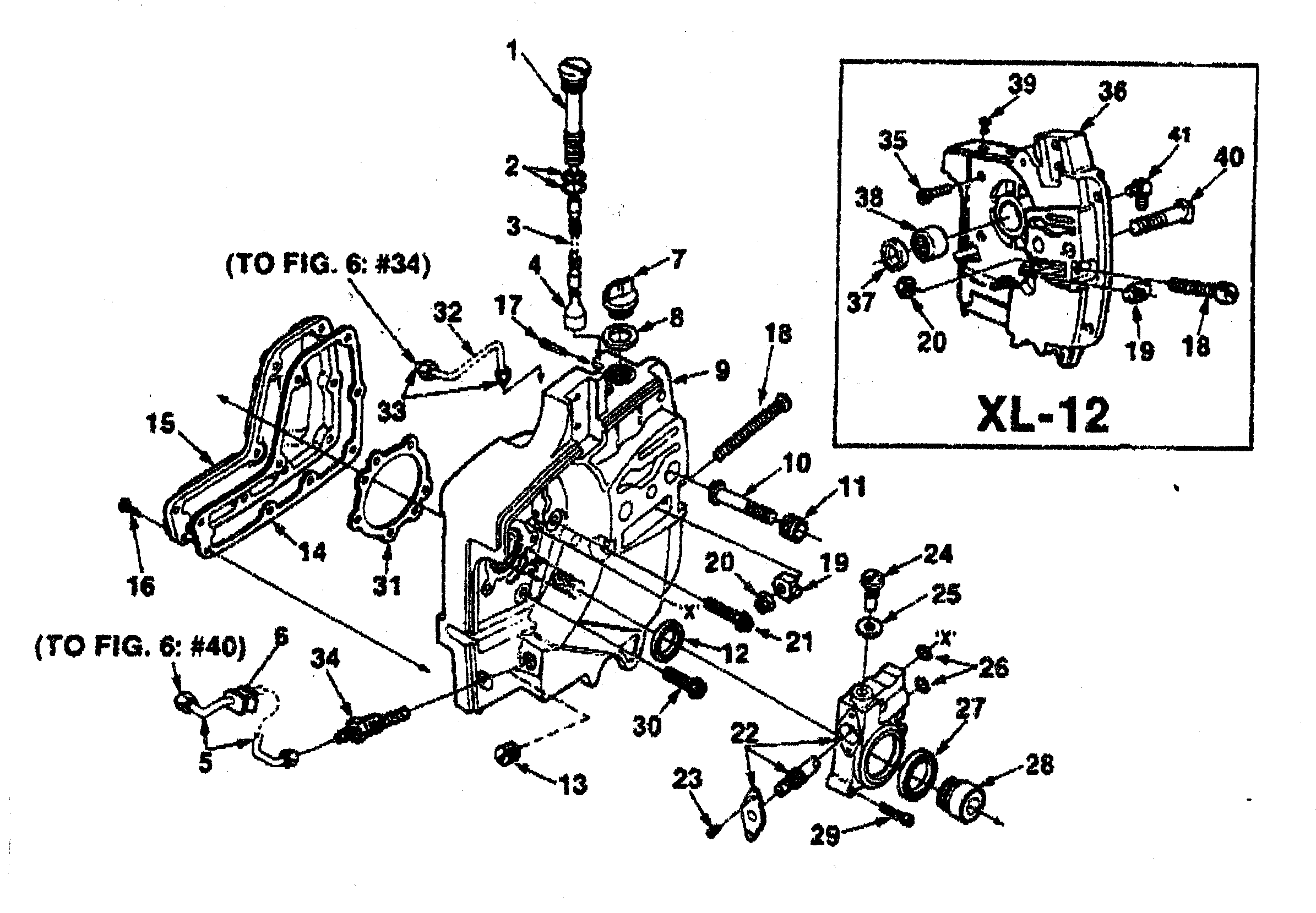

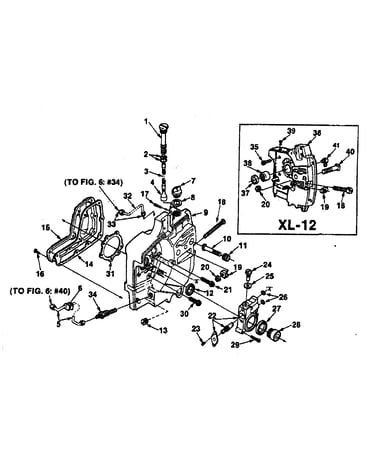

Drive case/oil pump diagram

Cam screw

Part #64102A

The manufacturer no longer makes this part, and there's no substitute part

Grip A69962B
#9

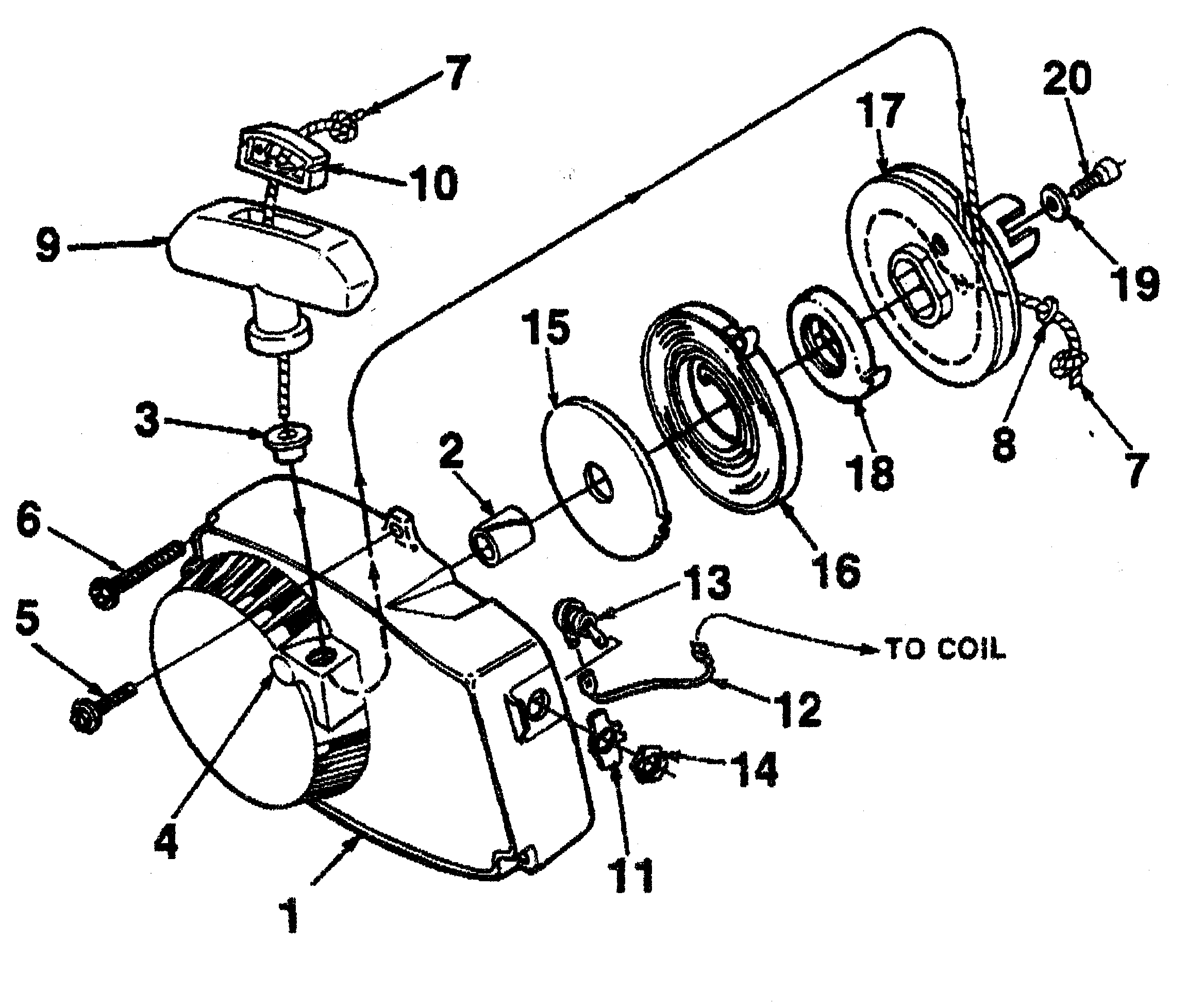

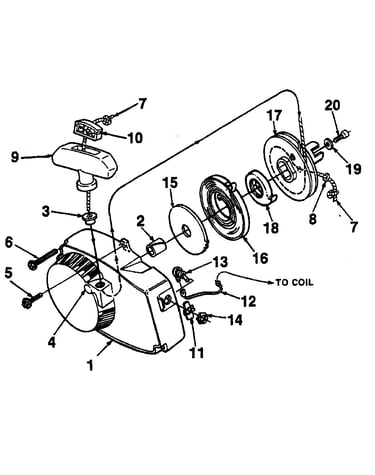

Starter assy diagram

Grip

Part #A69962B

The manufacturer no longer makes this part, and there's no substitute part

Retainer 96535
#14

Engine assy diagram

Retainer

Part #96535

The manufacturer no longer makes this part, and there's no substitute part

Scrw Bnd Hdp 30261
#29

Ignition assy diagram

Scrw bnd hdp

Part #30261

The manufacturer no longer makes this part, and there's no substitute part
