Model # KDL-65W850A Official Sony lcd television

Here are the diagrams and repair parts for Official Sony KDL-65W850A lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Pcb Vle-em A1969565A
#109

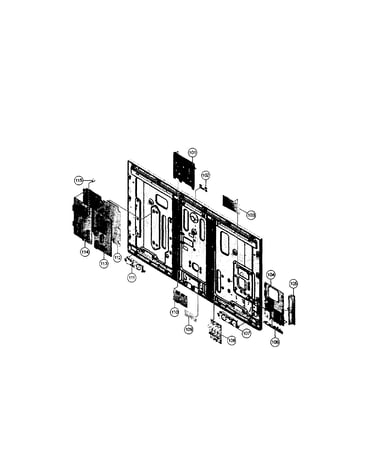

Cabinet 2 diagram

Pcb vle-em

Part #A1969565A

Replaced by #A1969565A

?
Manufacturer substitution
This part replaces A1969565A. Substitute parts can look different from the original.
$95.91
In Stock
Cable 51p 184697511
#204

Connectors diagram

Cable 51p

Part #184697511

Replaced by #184697511

?
Manufacturer substitution
This part replaces 184697511. Substitute parts can look different from the original.
$23.31
In Stock

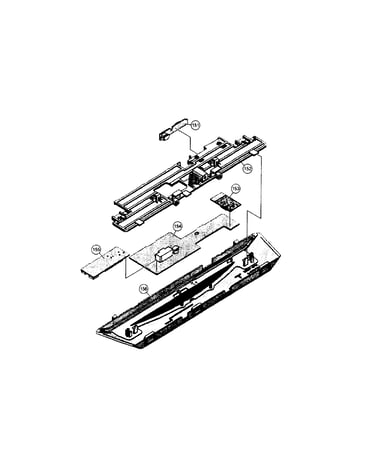

Speaker, Right 185887321
#111

Cabinet 2 diagram

Speaker, right

Part #185887321

The manufacturer no longer makes this part, and there's no substitute part

Cover Ac 429798901
#62

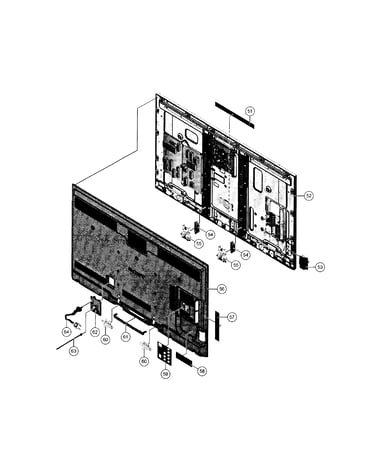

Cabinet 1 diagram

Cover ac

Part #429798901

Replaced by #429798901

?
Manufacturer substitution
This part replaces 429798901. Substitute parts can look different from the original.
$11.76
In Stock
Pcb G7b 147453111
#114

Cabinet 2 diagram

Pcb g7b

Part #147453111

The manufacturer no longer makes this part, and there's no substitute part

Insulation 445751611
#112

Cabinet 2 diagram

Insulation

Part #445751611

Replaced by #445751611

?
Manufacturer substitution
This part replaces 445751611. Substitute parts can look different from the original.
$28.11
In Stock
Clamper Ca 426270804
#63

Cabinet 1 diagram

Clamper ca

Part #426270804

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Rr 448044701
#56

Cabinet 1 diagram

Cabinet rr

Part #448044701

Replaced by #448044711

?
Manufacturer substitution
This part replaces 448044701. Substitute parts can look different from the original.
$124.50
In Stock
Pcb Ld 189546511
#110

Cabinet 2 diagram

Pcb ld

Part #189546511

The manufacturer no longer makes this part, and there's no substitute part

Television Screw 258060701
#7

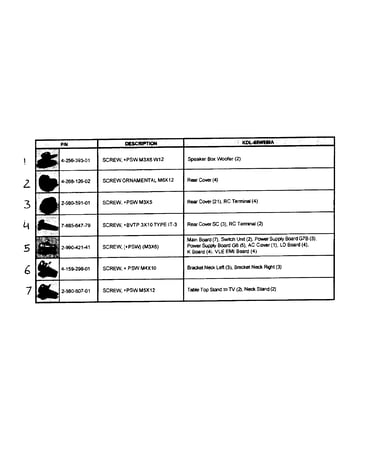

Screws diagram

Television screw

Part #258060701

The manufacturer no longer makes this part, and there's no substitute part
