Model # MAH22PRAWW0 Official Maytag commercial washer

Here are the diagrams and repair parts for Official Maytag MAH22PRAWW0 commercial washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

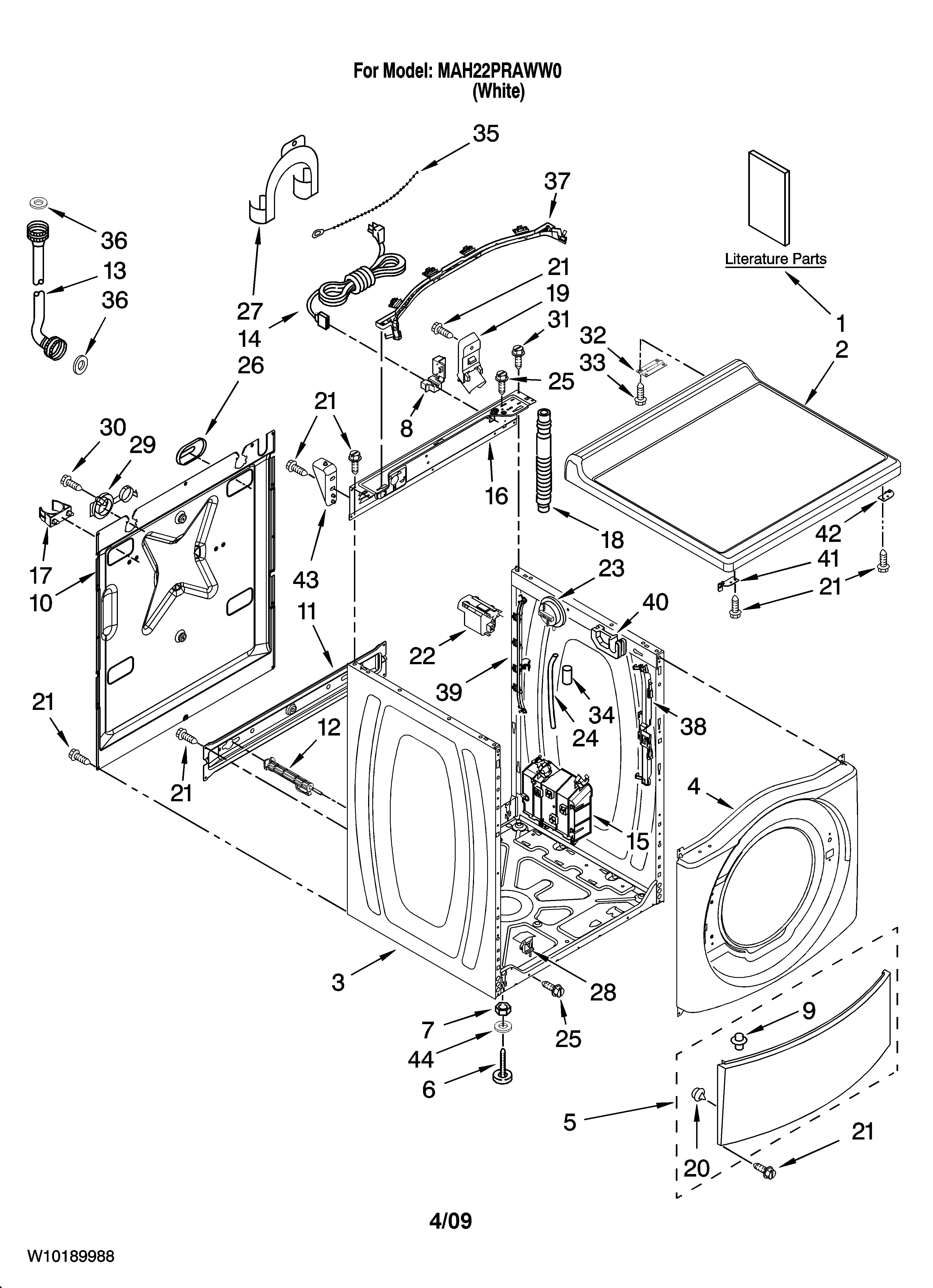

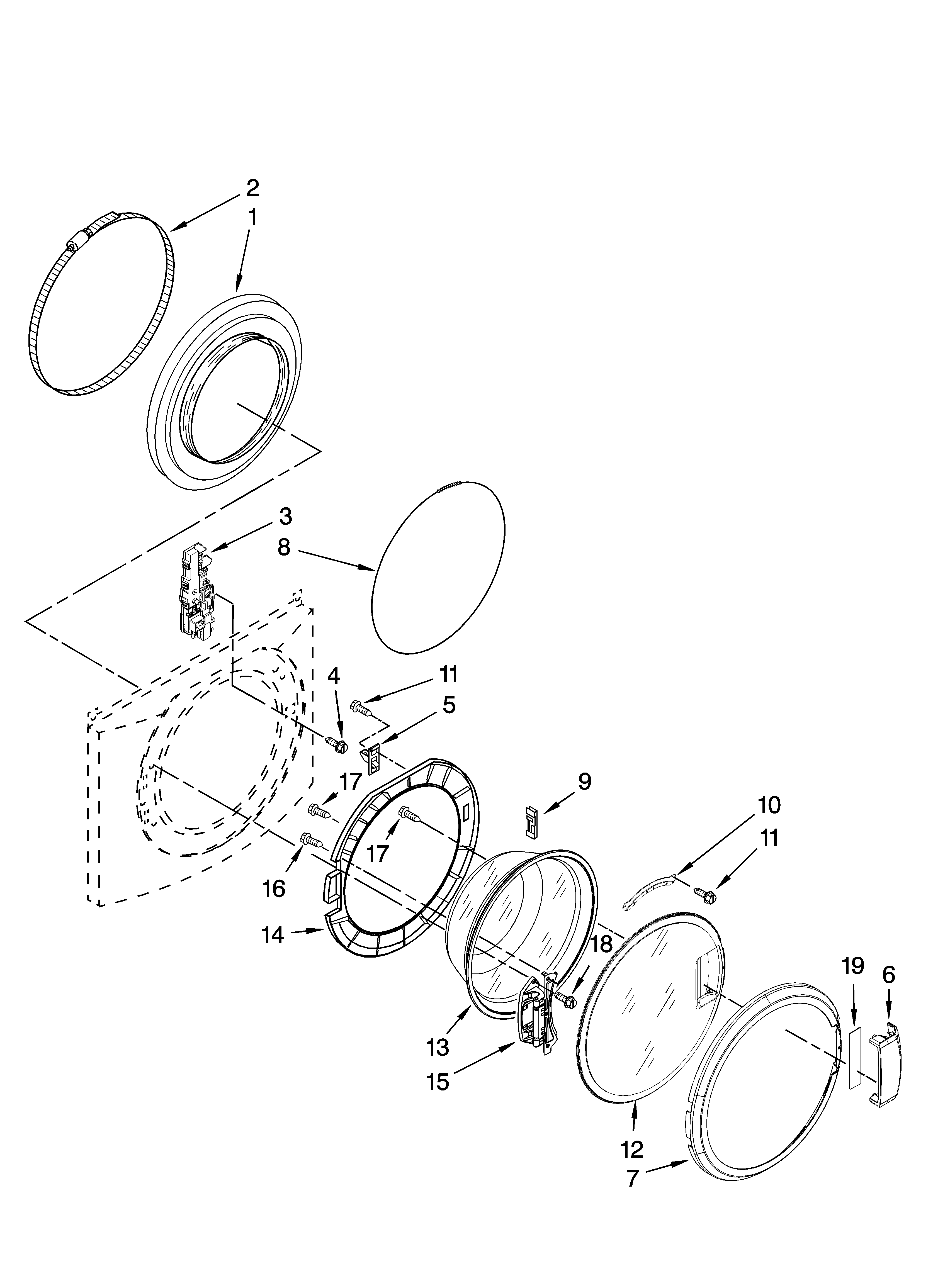

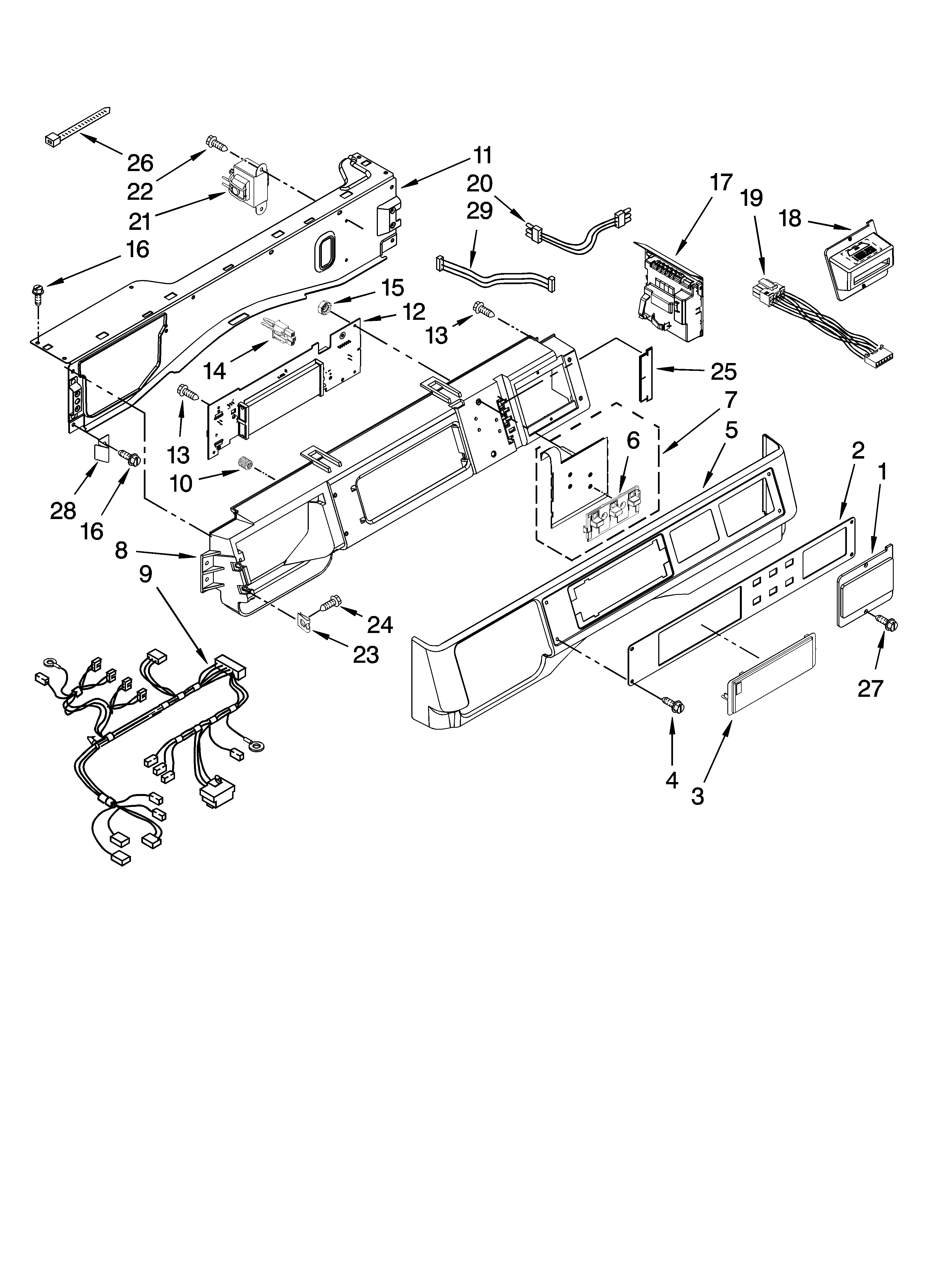

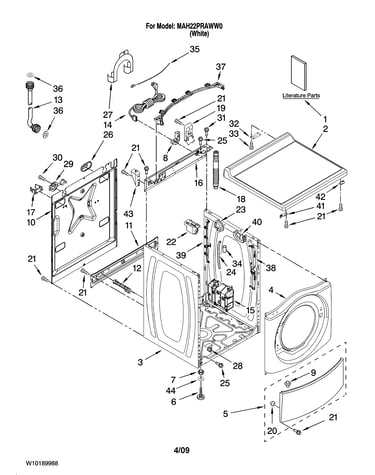

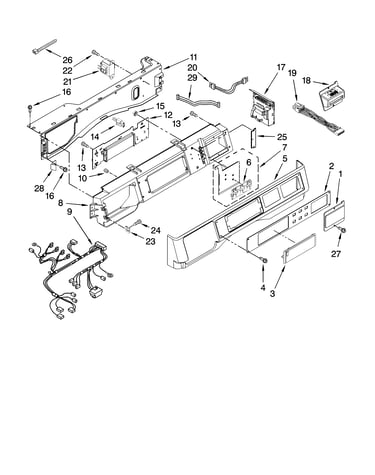

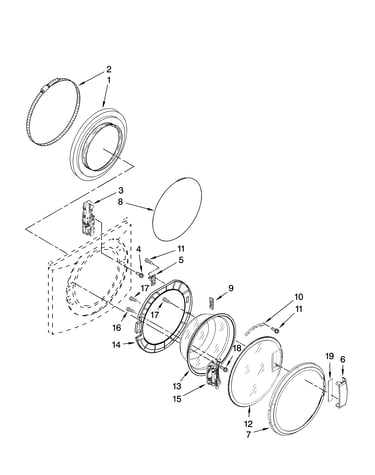

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |

Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

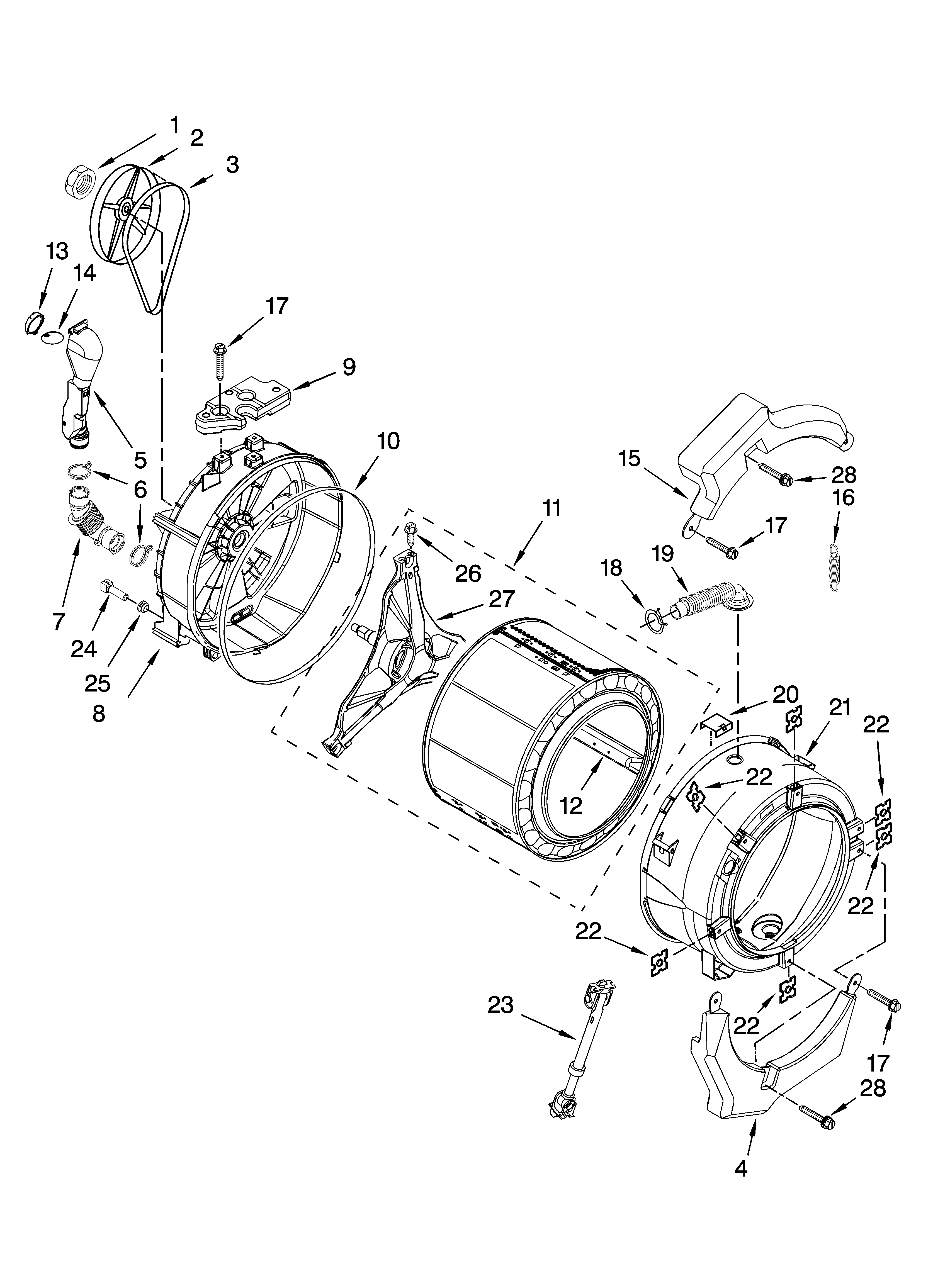

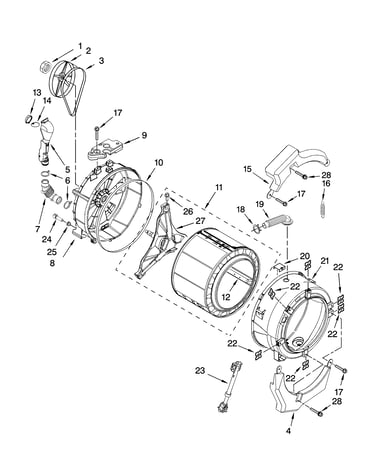

Tub and basket parts diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$11.91
14% OFF Phone Price : $13.91
In Stock
Washer Drain Pump Assembly W10130913
#9

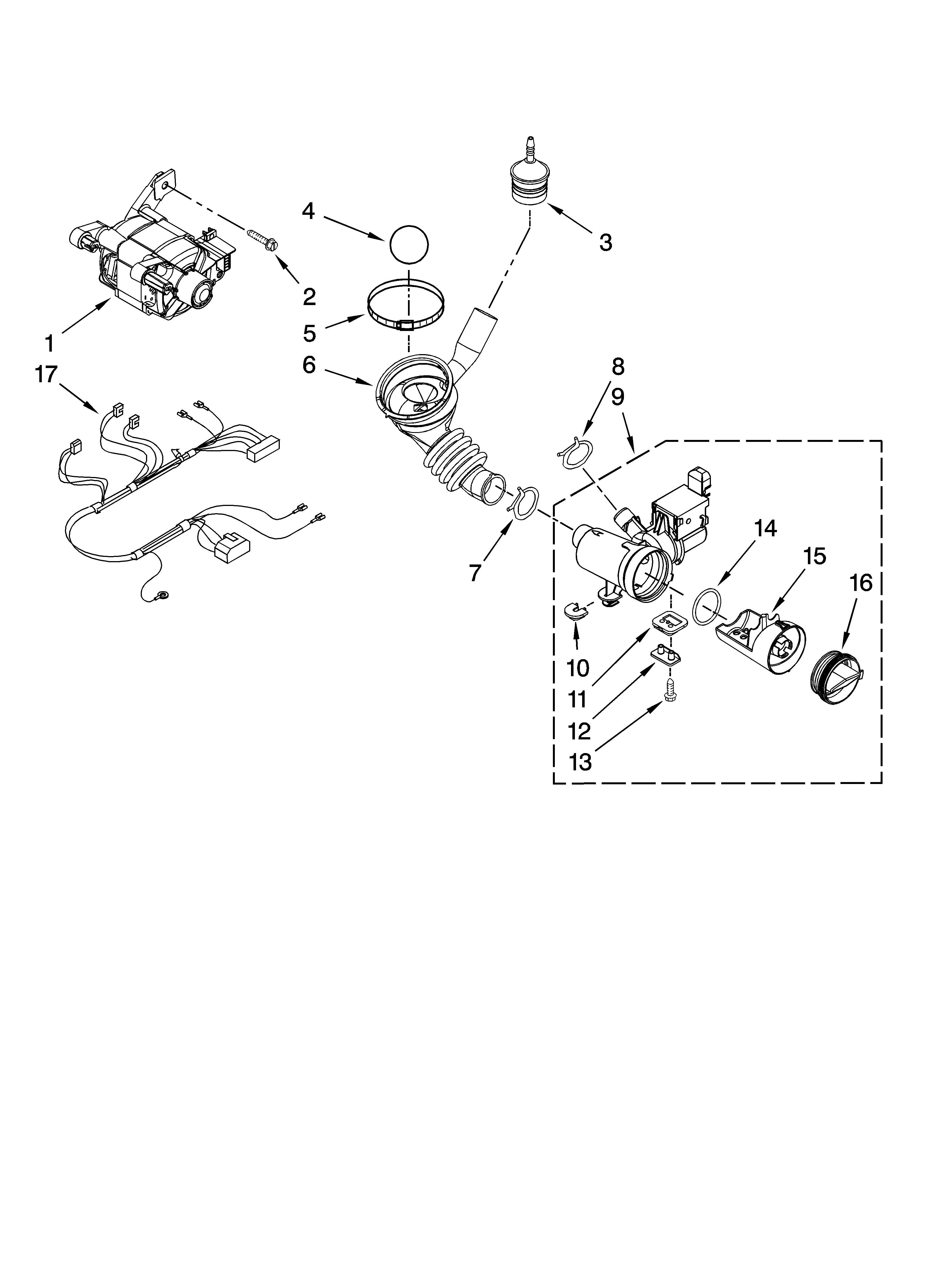

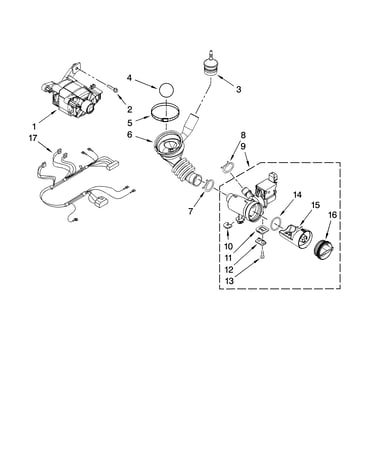

Pump and motor parts diagram

Washer drain pump assembly

Part #W10130913

Replaced by #WPW10730972

?
Manufacturer substitution
This part replaces W10130913. Substitute parts can look different from the original.
BEST SELLER
$112.47
10% OFF Phone Price : $124.47
In Stock
Cap W10190648
#16

Pump and motor parts diagram

Cap

Part #W10190648

Replaced by #WPW10730972

?
Manufacturer substitution
This part replaces W10190648. Substitute parts can look different from the original.
BEST SELLER
$112.47
10% OFF Phone Price : $124.47
In Stock
Filter W10190647
#15

Pump and motor parts diagram

Filter

Part #W10190647

Replaced by #WPW10730972

?
Manufacturer substitution
This part replaces W10190647. Substitute parts can look different from the original.
BEST SELLER
$112.47
10% OFF Phone Price : $124.47
In Stock
Seal W10201457
#14

Pump and motor parts diagram

Seal

Part #W10201457

Replaced by #WPW10730972

?
Manufacturer substitution
This part replaces W10201457. Substitute parts can look different from the original.
BEST SELLER
$112.47
10% OFF Phone Price : $124.47
In Stock
Clamp 370450
#3

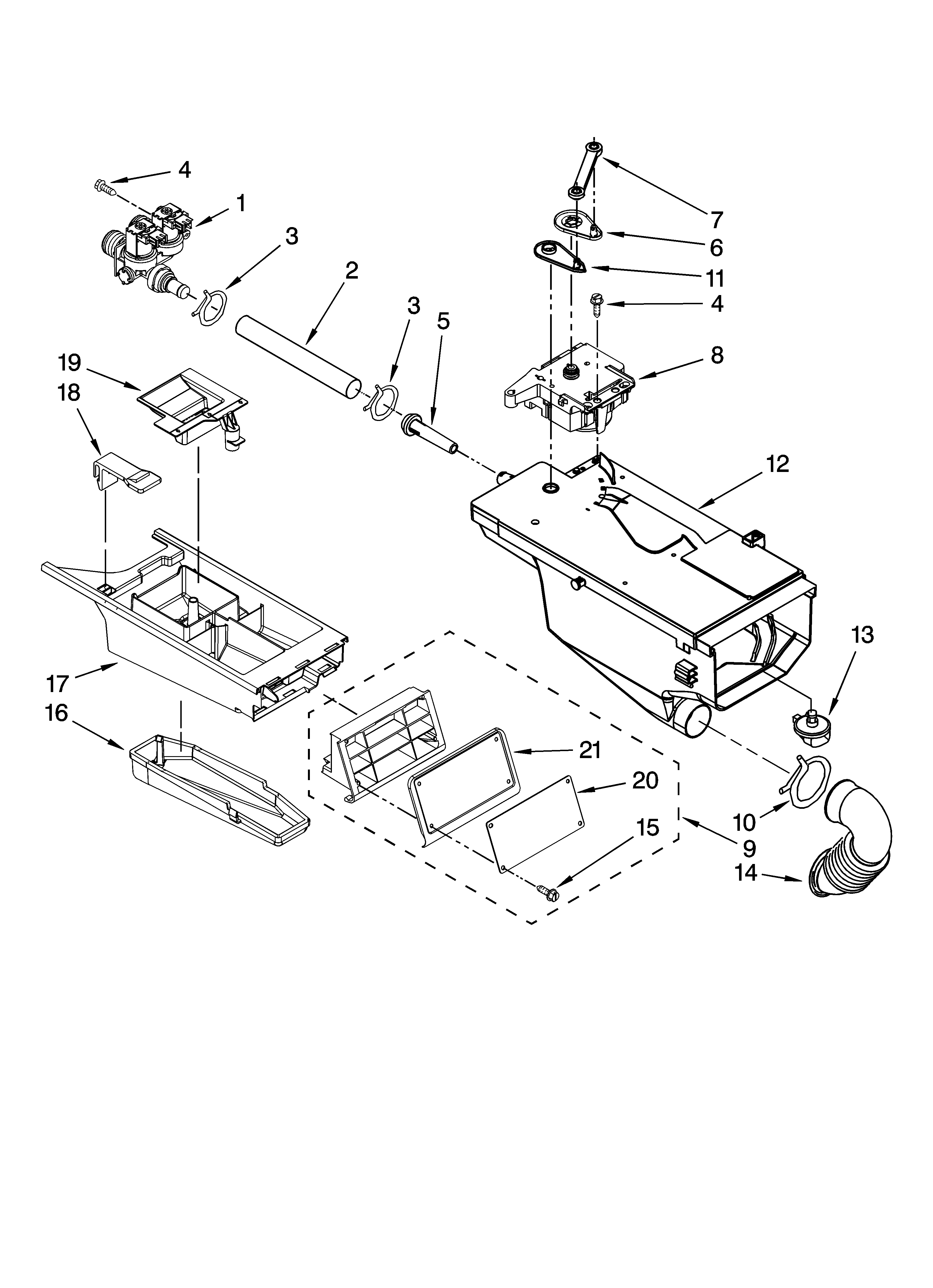

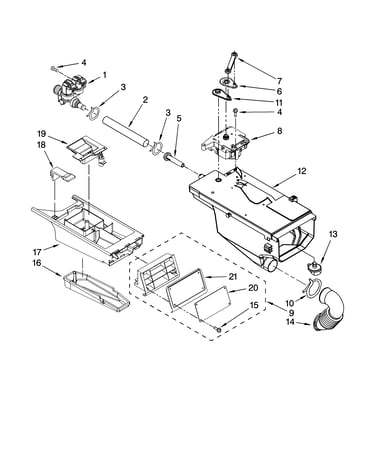

Dispenser parts diagram

Clamp

Part #370450

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 370450. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Tub and basket parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Sensor-ntc 8540226
#24

Tub and basket parts diagram

Sensor-ntc

Part #8540226

Replaced by #WPW10467289

?
Manufacturer substitution
This part replaces 8540226. Substitute parts can look different from the original.
BEST SELLER
$28.62
17% OFF Phone Price : $34.62
In Stock
Washer Outer Tub Gasket 8540090
#10

Tub and basket parts diagram

Washer outer tub gasket

Part #8540090

Replaced by #WPW10111158

?
Manufacturer substitution
This part replaces 8540090. Substitute parts can look different from the original.
BEST SELLER
$30.83
16% OFF Phone Price : $36.83
In Stock
Washer Dispenser Hose 8540063
#14

Dispenser parts diagram

Washer dispenser hose

Part #8540063

Replaced by #W11366227

?
Manufacturer substitution
This part replaces 8540063. Substitute parts can look different from the original.
$20.64
23% OFF Phone Price : $26.64
In Stock
