Model # CGL1100ADW Official Magic Chef gas freestanding range

Here are the diagrams and repair parts for Official Magic Chef CGL1100ADW gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

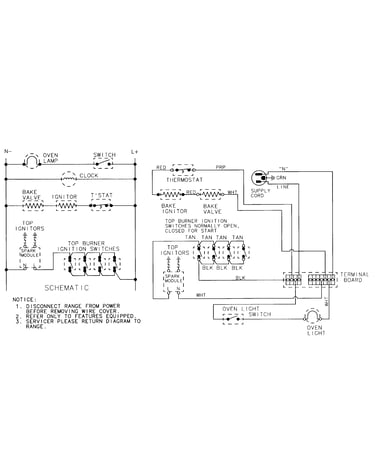

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
Ikea Range Oven Burner Igniter (replaces 7432p075-60, 7432p106-60) 74007498
#9

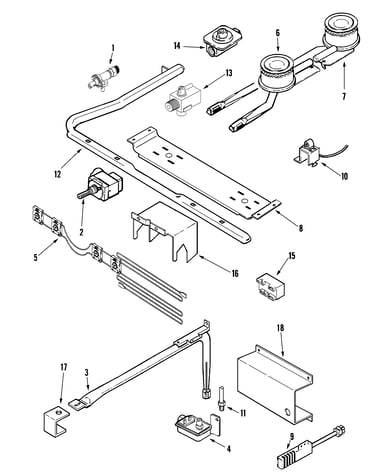

Gas controls diagram

Ikea range oven burner igniter (replaces 7432p075-60, 7432p106-60)

Part #74007498

BEST SELLER
$61.62 |
9% OFF Phone Price : $67.62
In Stock
Clamp Screw 7101P080-60
#8

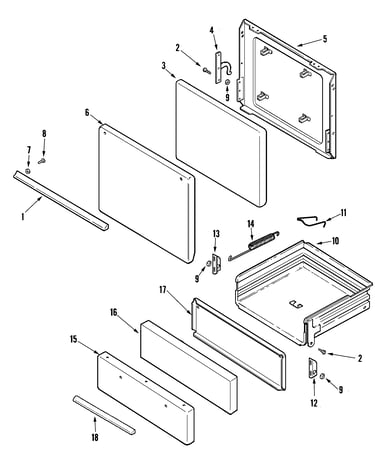

Door/drawer diagram

Clamp screw

Part #7101P080-60

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 7101P080-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 7118P004-60
#10

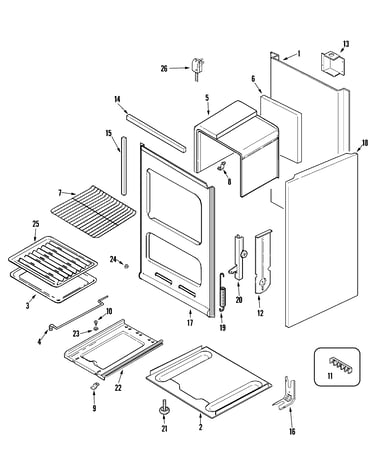

Body/oven diagram

Screw

Part #7118P004-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7118P004-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 7101P068-60
#4B

Body/oven diagram

Screw

Part #7101P068-60

Replaced by #WP3400074

?
Manufacturer substitution
This part replaces 7101P068-60. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Range Leveling Leg 74002373
#21

Body/oven diagram

Range leveling leg

Part #74002373

Replaced by #W11665456

?
Manufacturer substitution
This part replaces 74002373. Substitute parts can look different from the original.
$17.74
In Stock
Range Thermostat Knob 74010597
#13A

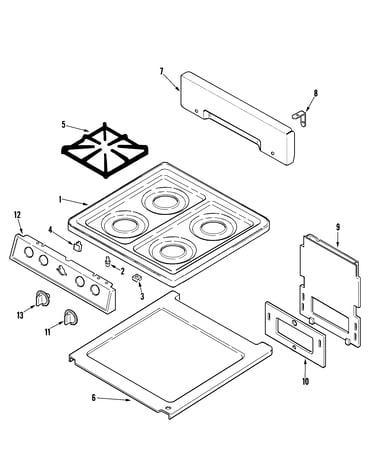

Top assembly diagram

Range thermostat knob

Part #74010597

This item is not returnable
$6.99
In Stock
Screw With Washer 7101P188-60
#20C

Body/oven diagram

Screw with washer

Part #7101P188-60

Replaced by #WP3400094

?
Manufacturer substitution
This part replaces 7101P188-60. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Screw (black) 7101P309-60
#2A

Gas controls diagram

Screw (black)

Part #7101P309-60

Replaced by #WP7101P309-60

?
Manufacturer substitution
This part replaces 7101P309-60. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Broiler Pan 3401F016-19
#3

Body/oven diagram

Broiler pan

Part #3401F016-19

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3401F016-19. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Crosley Range Surface Burner Knob (white) 74010588
#11

Top assembly diagram

Crosley range surface burner knob (white)

Part #74010588

This item is not returnable
$19.79 |
9% OFF Phone Price : $21.79
In Stock
