Model # 31518111 Official Craftsman 3/8" hammer drill

Here are the diagrams and repair parts for Official Craftsman 31518111 3/8" hammer drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

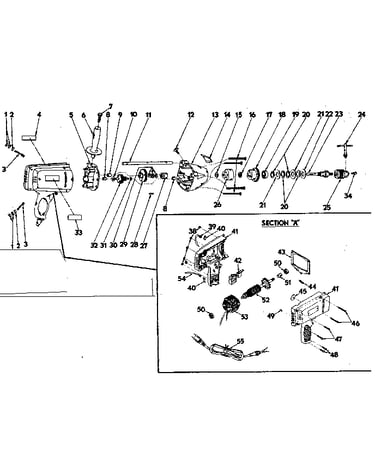

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Set Sleeve 617242-005
#18

Unit parts diagram

Set sleeve

Part #617242-005

The manufacturer no longer makes this part, and there's no substitute part

Clutch 617366-003
#17

Unit parts diagram

Clutch

Part #617366-003

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 621221-001
#50

Unit parts diagram

Ball bearing

Part #621221-001

The manufacturer no longer makes this part, and there's no substitute part

Lead W/term 990618-003
#39

Unit parts diagram

Lead w/term

Part #990618-003

The manufacturer no longer makes this part, and there's no substitute part

1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Chuck Key 623262-000
#24

Unit parts diagram

Chuck key

Part #623262-000

The manufacturer no longer makes this part, and there's no substitute part

Washer 706382-813
#2

Unit parts diagram

Washer

Part #706382-813

The manufacturer no longer makes this part, and there's no substitute part

Spacer 617400-003
#27

Unit parts diagram

Spacer

Part #617400-003

The manufacturer no longer makes this part, and there's no substitute part

Nut Assembly 611147-001
#43

Unit parts diagram

Nut assembly

Part #611147-001

The manufacturer no longer makes this part, and there's no substitute part

Bearing 617401-001
#15

Unit parts diagram

Bearing

Part #617401-001

The manufacturer no longer makes this part, and there's no substitute part
