Model # 315174451 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 315174451 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 34 parts |

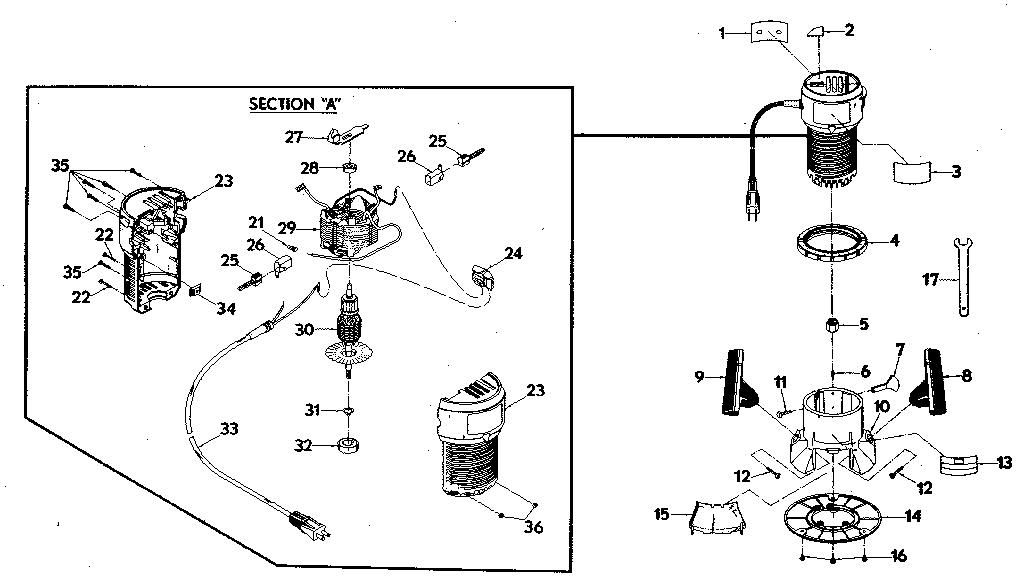

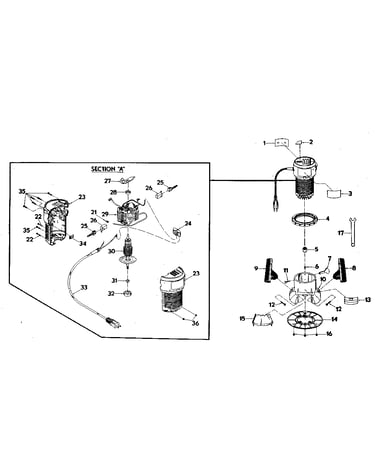

Unit parts diagram

Decal

Part #989576-001

The manufacturer no longer makes this part, and there's no substitute part

#27

Unit parts diagram

Spindle assembly

Part #612704-001

The manufacturer no longer makes this part, and there's no substitute part

#14

Unit parts diagram

Sub-base

Part #612191-004

The manufacturer no longer makes this part, and there's no substitute part

#11

Unit parts diagram

Sq h bolt

Part #623166-002

The manufacturer no longer makes this part, and there's no substitute part

#34

Unit parts diagram

Stator pad

Part #623552-003

The manufacturer no longer makes this part, and there's no substitute part

#13

Unit parts diagram

Logo plate

Part #998023-001

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Handle, left

Part #967331-001

The manufacturer no longer makes this part, and there's no substitute part

#21

Unit parts diagram

Wire connctr

Part #623173-001

The manufacturer no longer makes this part, and there's no substitute part

#23

Unit parts diagram

Mtr hsg a

Part #967608-001

The manufacturer no longer makes this part, and there's no substitute part

#15

Unit parts diagram

Chip shield

Part #612785-001

The manufacturer no longer makes this part, and there's no substitute part
