Drill Press

Model # 10324500 Official Craftsman drill press

Here are the diagrams and repair parts for Official Craftsman 10324500 drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Screw X-205
#50

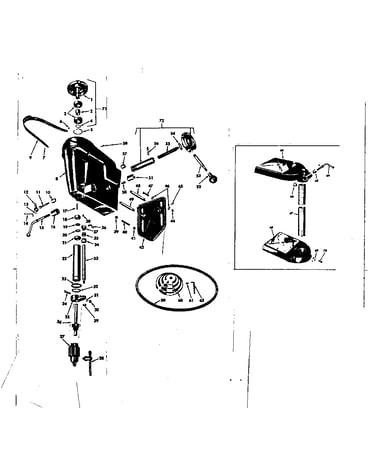

Unit diagram

Screw

Part #X-205

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Feed Return Spring (replaces 38939) 38989
#55

Unit diagram

Drill press feed return spring (replaces 38939)

Part #38989

The manufacturer no longer makes this part, and there's no substitute part

Washer X-601
#46

Unit diagram

Washer

Part #X-601

The manufacturer no longer makes this part, and there's no substitute part

Quill Brng 18211
#21

Unit diagram

Quill brng

Part #18211

The manufacturer no longer makes this part, and there's no substitute part

Chuck Key 18129
#28

Unit diagram

Chuck key

Part #18129

The manufacturer no longer makes this part, and there's no substitute part

Handle Knob 18916
#52

Unit diagram

Handle knob

Part #18916

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut X-417
Hex nut

Part #X-417

The manufacturer no longer makes this part, and there's no substitute part

Hex Wrench X-1407
#14

Unit diagram

Hex wrench

Part #X-1407

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 58712
#17

Unit diagram

Roll pin

Part #58712

The manufacturer no longer makes this part, and there's no substitute part

Fiber Washer 38452
#54

Unit diagram

Fiber washer

Part #38452

The manufacturer no longer makes this part, and there's no substitute part
