Model # MQU2056BRW03 Official Maytag vertical freezer

Here are the diagrams and repair parts for Official Maytag MQU2056BRW03 vertical freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Light Bulb 4390465
#11

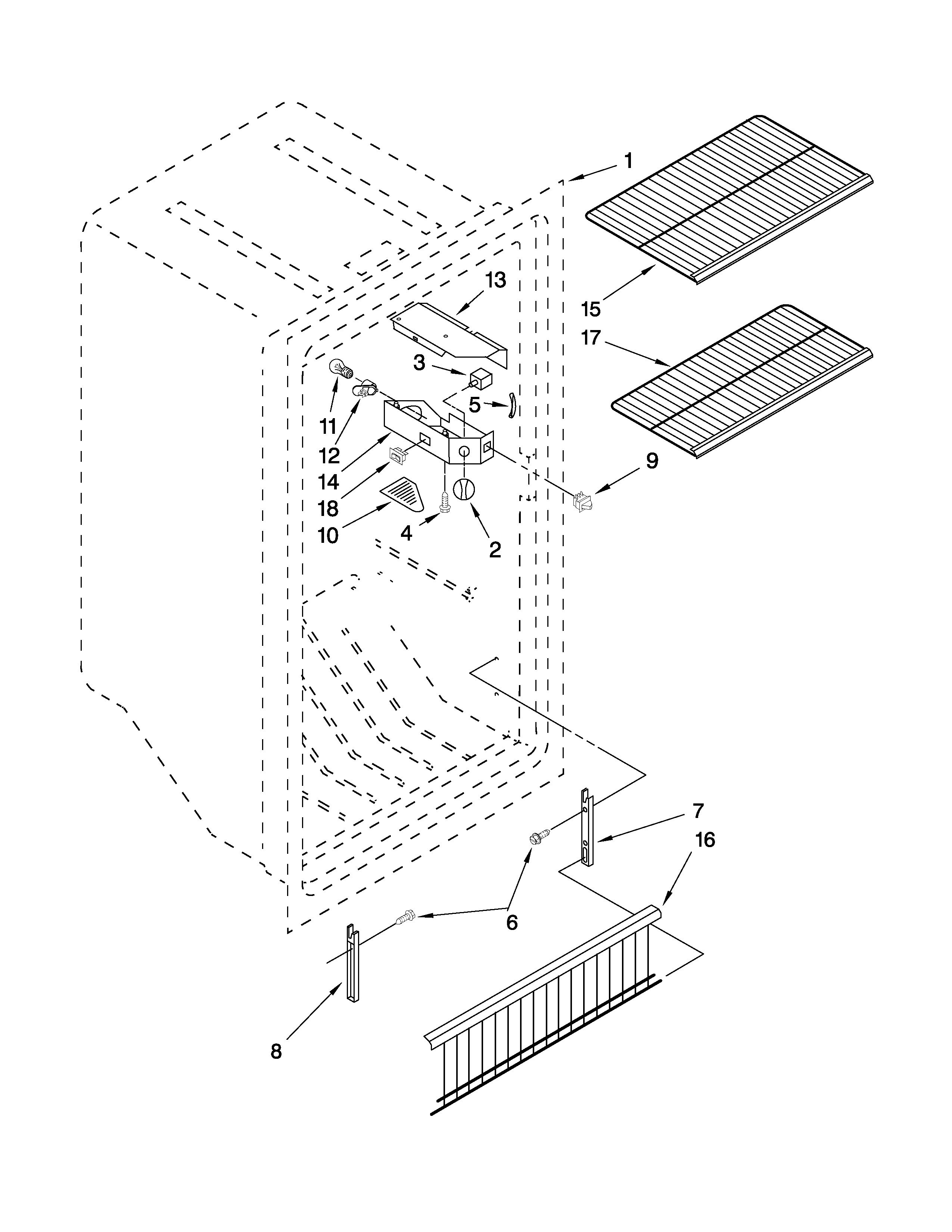

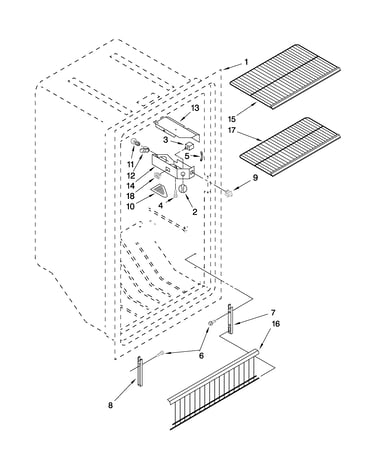

Liner parts diagram

Light bulb

Part #4390465

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4390465. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Switch 4390513
#9

Liner parts diagram

Switch

Part #4390513

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 4390513. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Drier Tube 4357299
#2

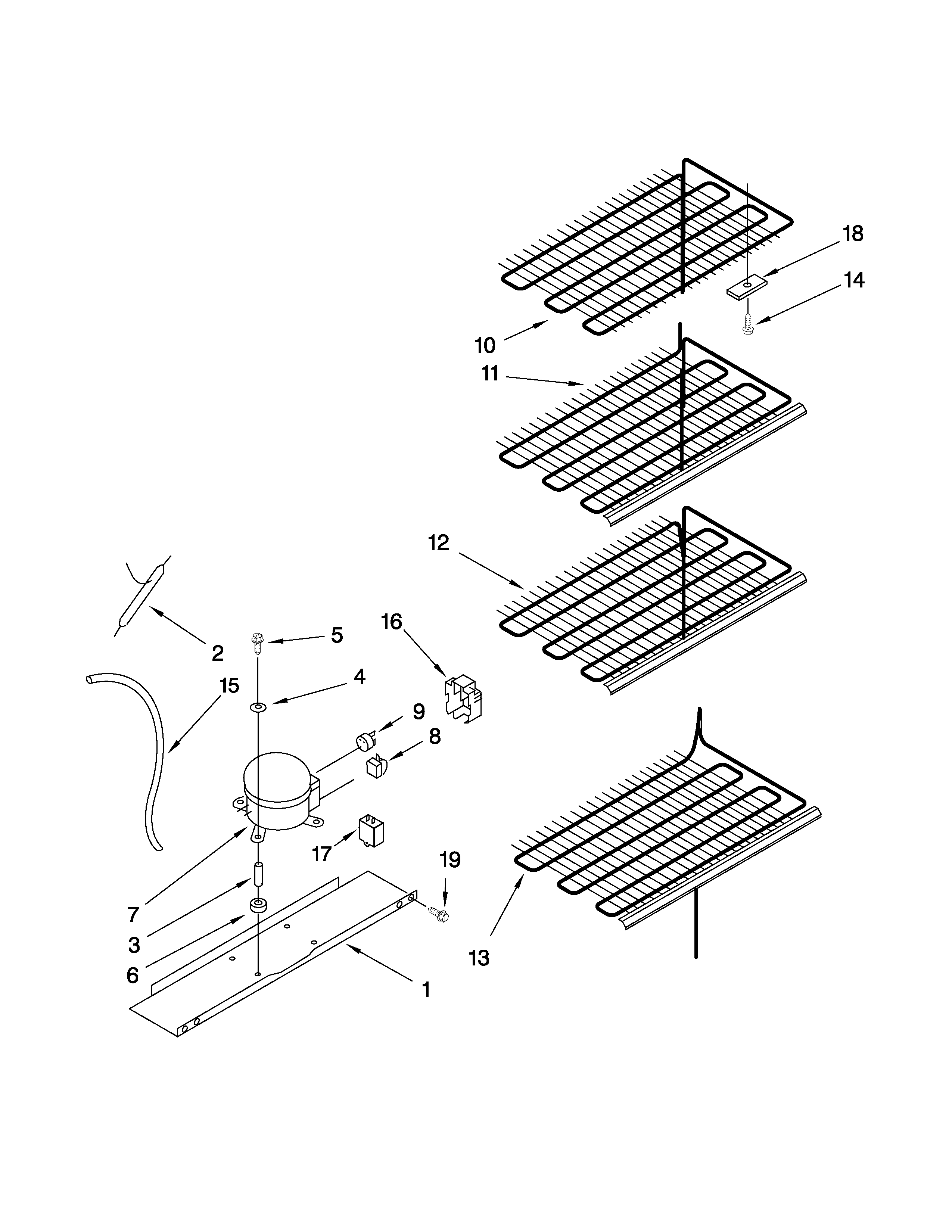

Unit parts diagram

Drier tube

Part #4357299

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4357299. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Upright Freezer Compressor 4356775
#7

Unit parts diagram

Upright freezer compressor

Part #4356775

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 4356775. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

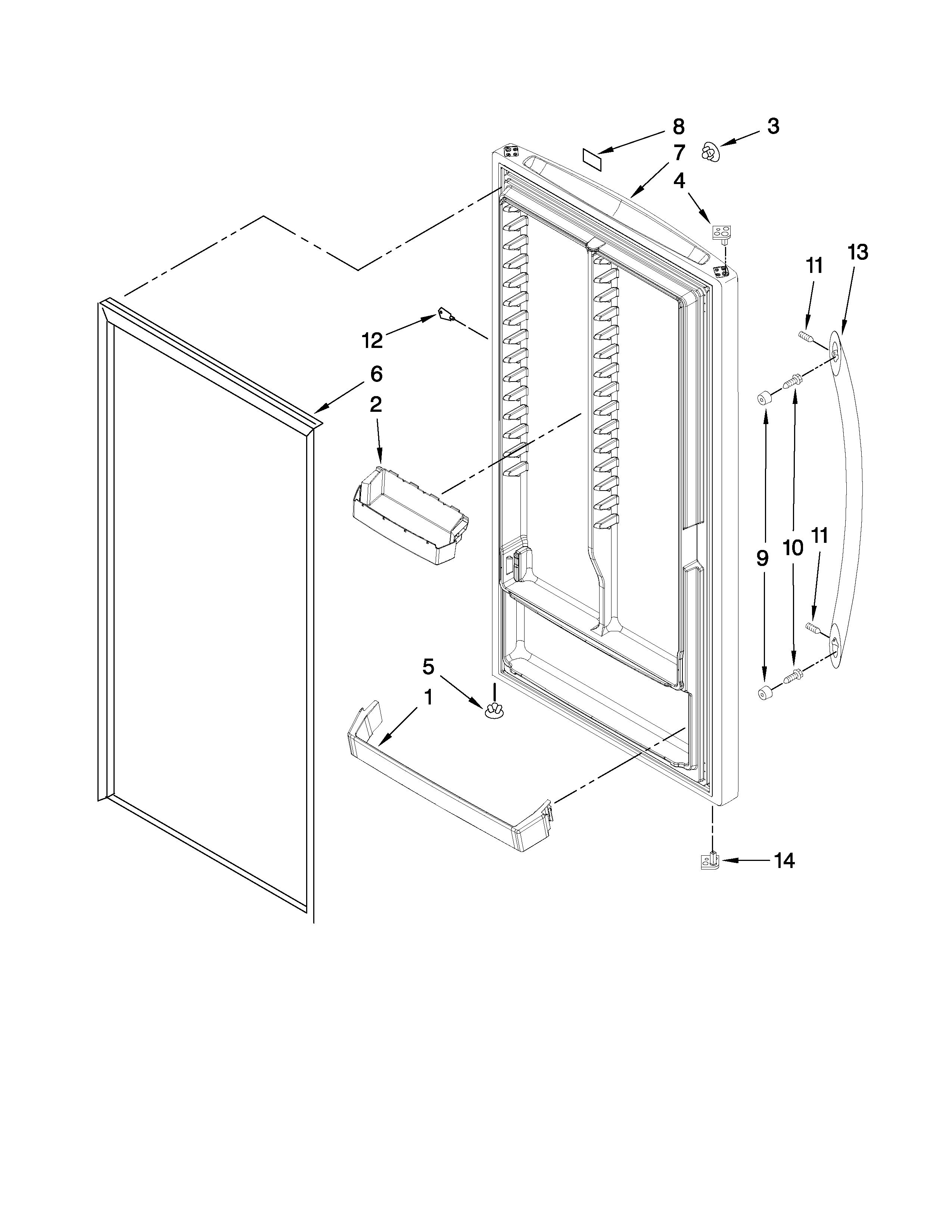

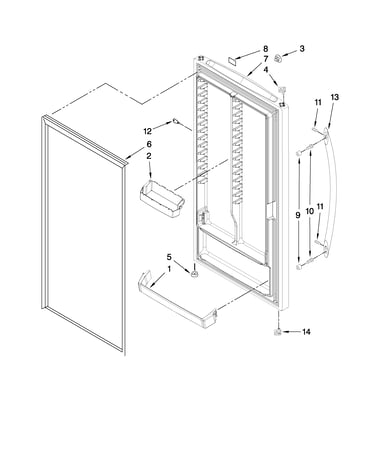

Door parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Refrigerator Door Handle Mounting Stud 2219698
#9

Door parts diagram

Refrigerator door handle mounting stud

Part #2219698

Replaced by #WPW10170540

?
Manufacturer substitution
This part replaces 2219698. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Level Legs W10177675
#11

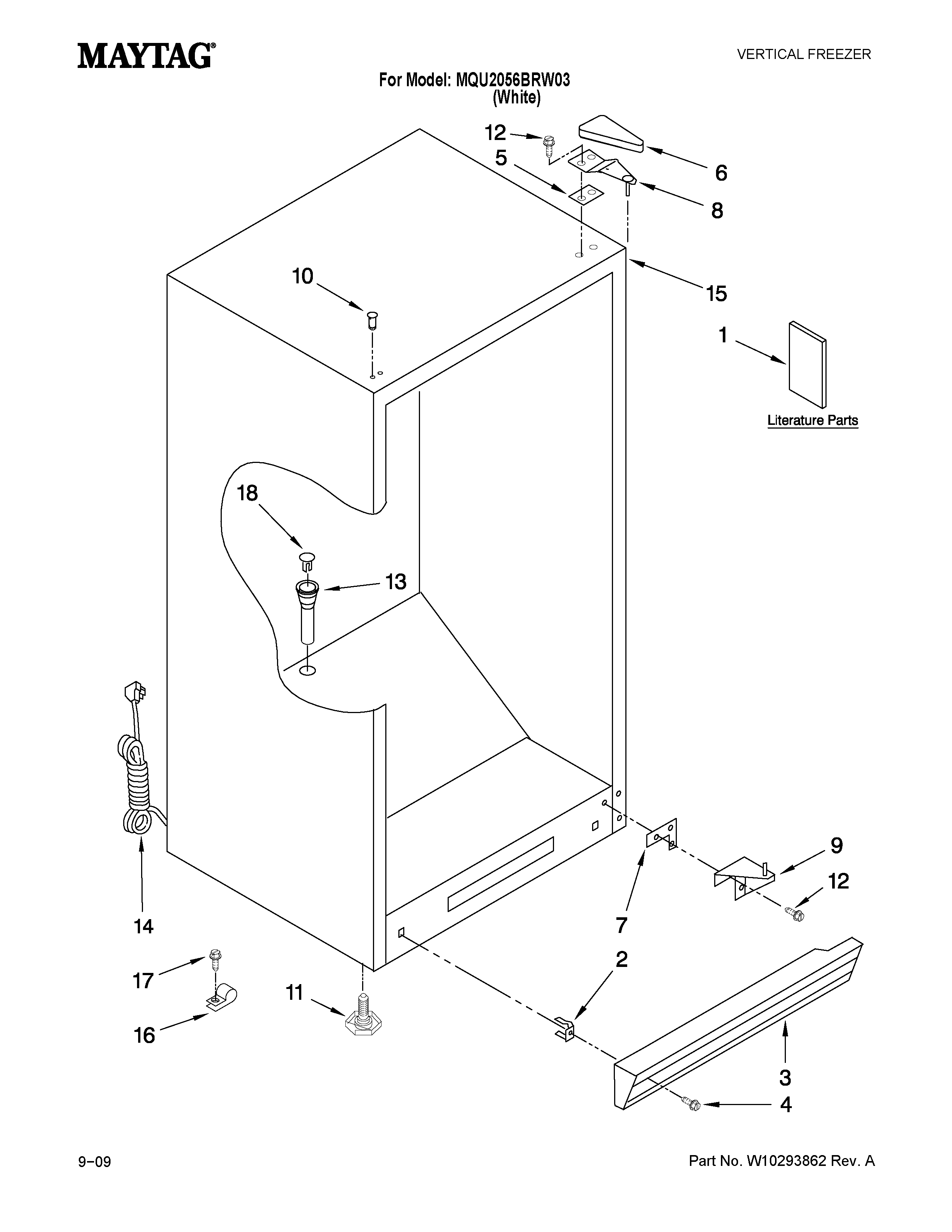

Cabinet parts diagram

Level legs

Part #W10177675

Replaced by #WP3-82710-001

?
Manufacturer substitution
This part replaces W10177675. Substitute parts can look different from the original.
This item is not returnable
$10.62 |
16% OFF Phone Price : $12.62
In Stock
Appliance Porcelain Touch-up Paint, 1-qt (white) 799344
#NI

Door parts diagram

Appliance porcelain touch-up paint, 1-qt (white)

Part #799344

$109.53 |
10% OFF Phone Price : $121.53
In Stock
Door Stop 8210400
#14

Door parts diagram

Door stop

Part #8210400

Replaced by #2-81124-001

?
Manufacturer substitution
This part replaces 8210400. Substitute parts can look different from the original.
This item is not returnable
$19.57
In Stock
Overload 4356776
#9

Unit parts diagram

Overload

Part #4356776

Replaced by #2-34286-021

?
Manufacturer substitution
This part replaces 4356776. Substitute parts can look different from the original.
$64.71
In Stock
