Model # 113213090 Official Craftsman drill press

Here are the diagrams and repair parts for Official Craftsman 113213090 drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 78 parts |

#21

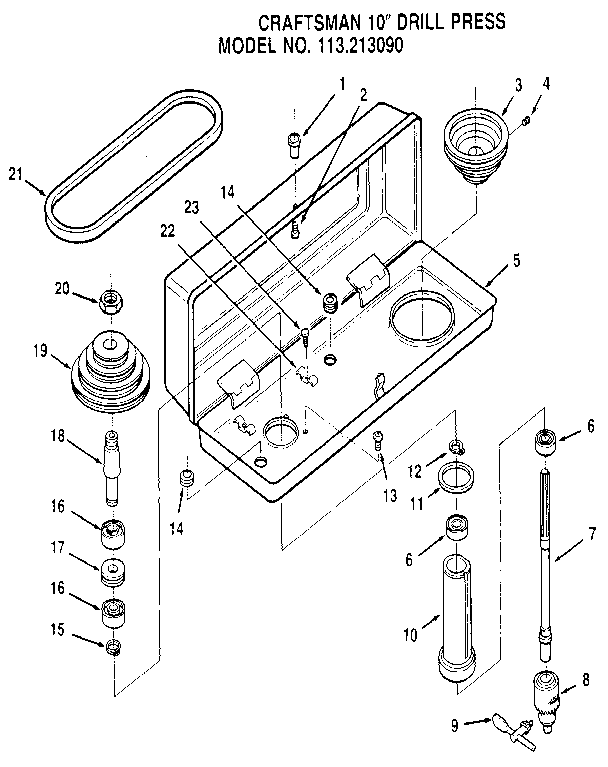

Figure 1 diagram

Drill press belt

Part #817428-1

The manufacturer no longer makes this part, and there's no substitute part

Screw

Part #816755-3

The manufacturer no longer makes this part, and there's no substitute part

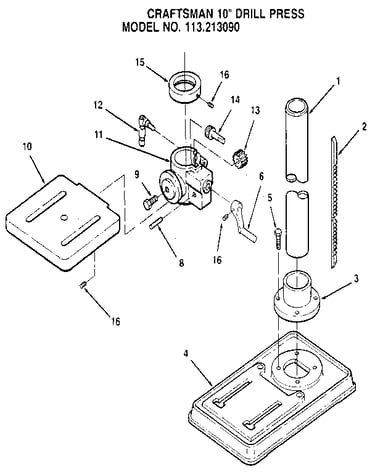

Figure 3 diagram

Screw

Part #817447

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Tension Spring Retainer 817443

#36

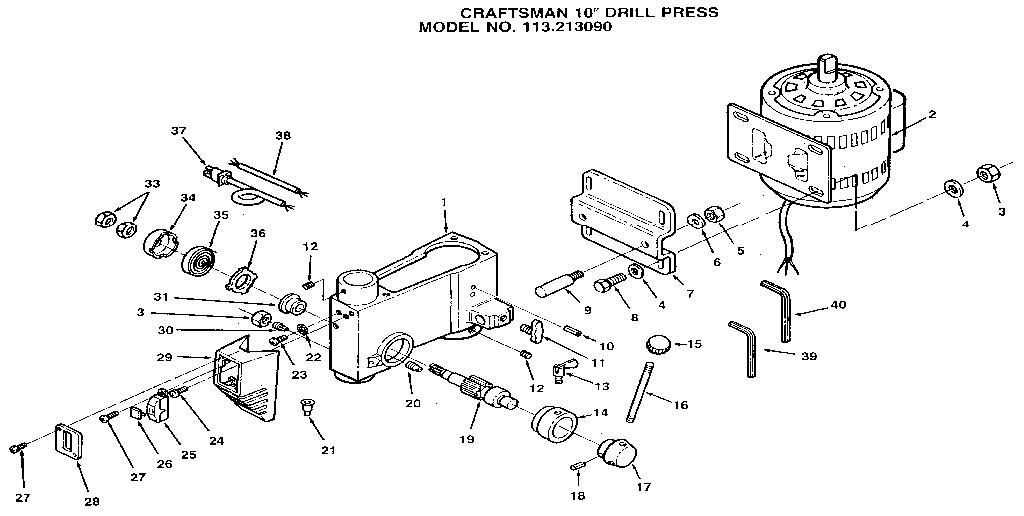

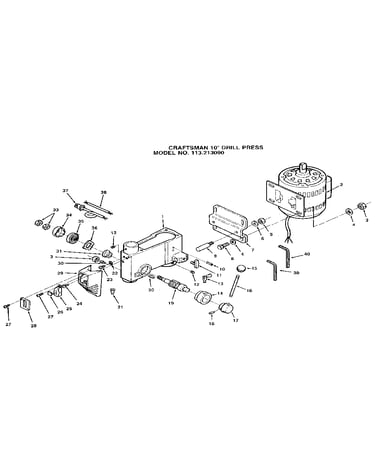

Figure 2 diagram

Drill press tension spring retainer

Part #817443

The manufacturer no longer makes this part, and there's no substitute part

Hex socket screw set, m6-1 x 10 (black)

Part #817391-1

The manufacturer no longer makes this part, and there's no substitute part

#18

Figure 2 diagram

Pn-roll 5x16

Part #813249-128

The manufacturer no longer makes this part, and there's no substitute part

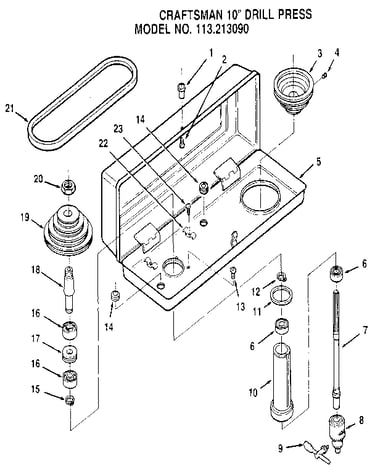

Figure 1 diagram

Drill press chuck key (replaces 71232, 71267)

Part #817339-1

The manufacturer no longer makes this part, and there's no substitute part

#35

Figure 2 diagram

Spring torsn

Part #817415

The manufacturer no longer makes this part, and there's no substitute part

Figure 2 diagram

Washer

Part #STD551037

The manufacturer no longer makes this part, and there's no substitute part

#12

Figure 2 diagram

Screw-set

Part #817391-2

The manufacturer no longer makes this part, and there's no substitute part
