Haier
Air Handler

Model # AW24ES2VHA Official Haier ductless split a/c

Here are the diagrams and repair parts for Official Haier AW24ES2VHA ductless split a/c, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Wifi Module QAWF01A
#9999

Optional accessories diagram

Wifi module

Part #QAWF01A

$112.00
In Stock
Casing Assembly WJ76X31358
#60

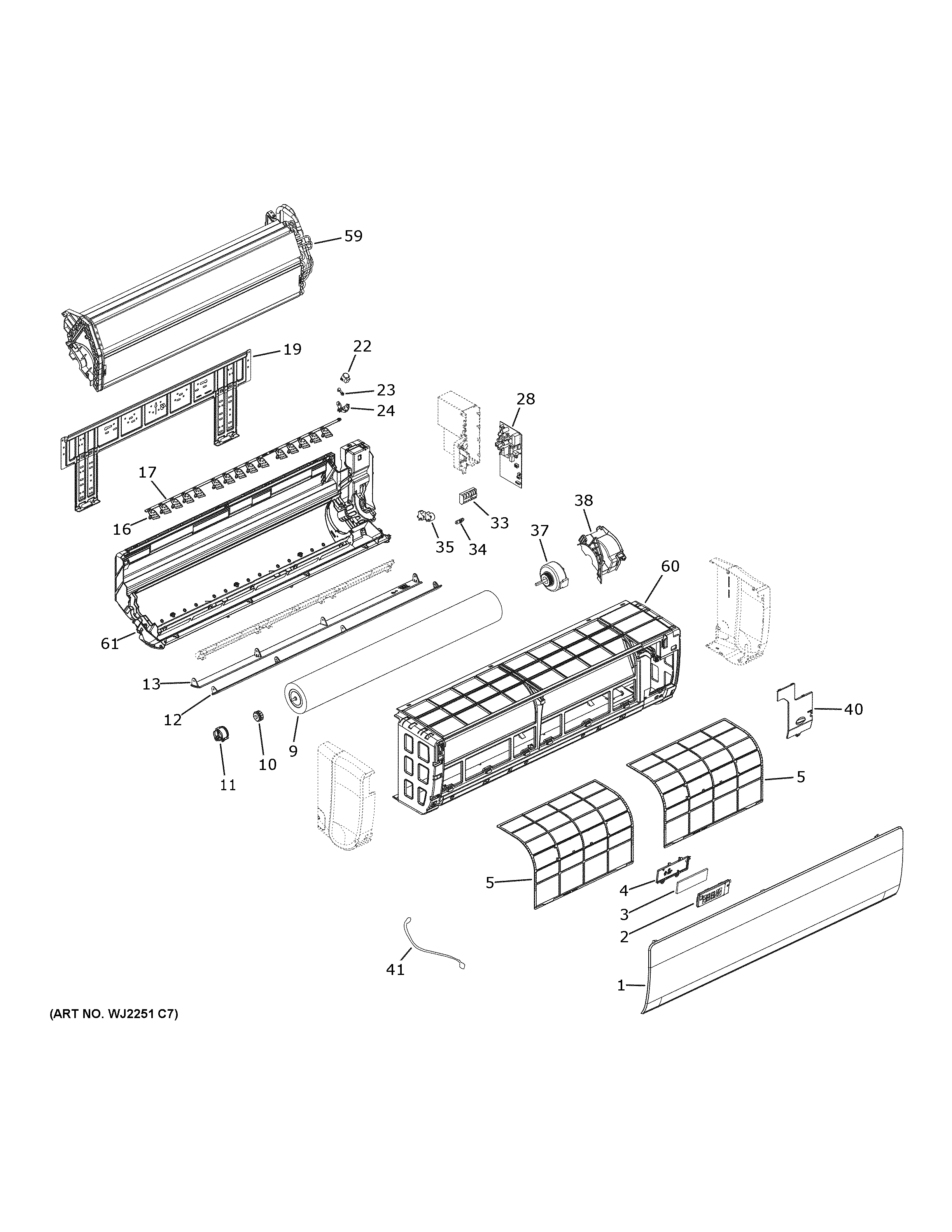

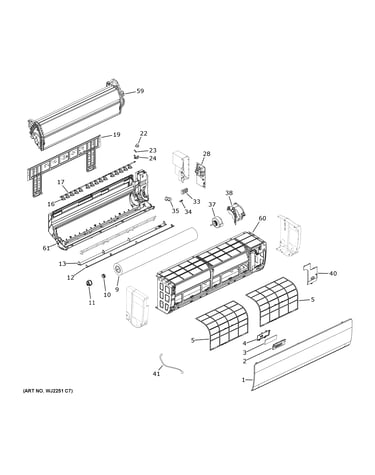

Room air conditioner diagram

Casing assembly

Part #WJ76X31358

$87.53
In Stock
Cross Flow Fan Bearing Cover WJ73X23050
#11

Room air conditioner diagram

Cross flow fan bearing cover

Part #WJ73X23050

$7.86
In Stock
Cover Board WJ76X23048
#40

Room air conditioner diagram

Cover board

Part #WJ76X23048

This item is not returnable
$4.35
In Stock
Display Board Cover WJ71X23030
#2

Room air conditioner diagram

Display board cover

Part #WJ71X23030

$10.11 |
17% OFF Phone Price : $12.11
In Stock
Horizontal Louvre WJ71X23053
#13

Room air conditioner diagram

Horizontal louvre

Part #WJ71X23053

$16.51
In Stock
Haulm WJ71X23052
#17

Room air conditioner diagram

Haulm

Part #WJ71X23052

$7.44 |
12% OFF Phone Price : $8.44
In Stock
Auto Flap Haulm WJ71X23047
#23

Room air conditioner diagram

Auto flap haulm

Part #WJ71X23047

$7.86
In Stock
Top Flap WJ71X23063
#12

Room air conditioner diagram

Top flap

Part #WJ71X23063

$16.51
In Stock
Power Cable Cover Board WJ76X23057
#34

Room air conditioner diagram

Power cable cover board

Part #WJ76X23057

$12.57
In Stock
