Model # XBR-65X900B Official Sony lcd television

Here are the diagrams and repair parts for Official Sony XBR-65X900B lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Remote 149276611
#NI

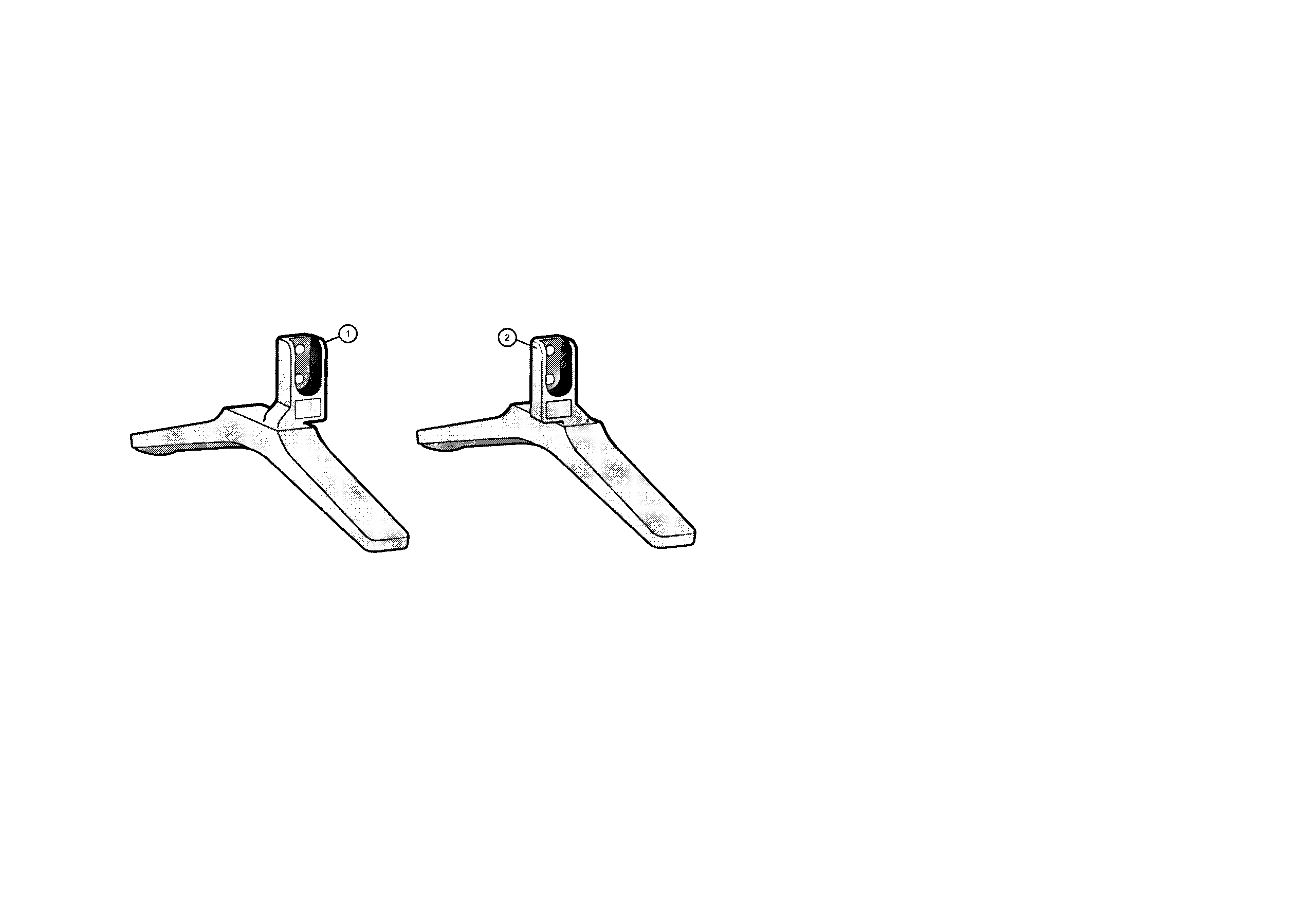

Table top stand diagram

Remote

Part #149276611

The manufacturer no longer makes this part, and there's no substitute part

Cover Ac 448011901
#56

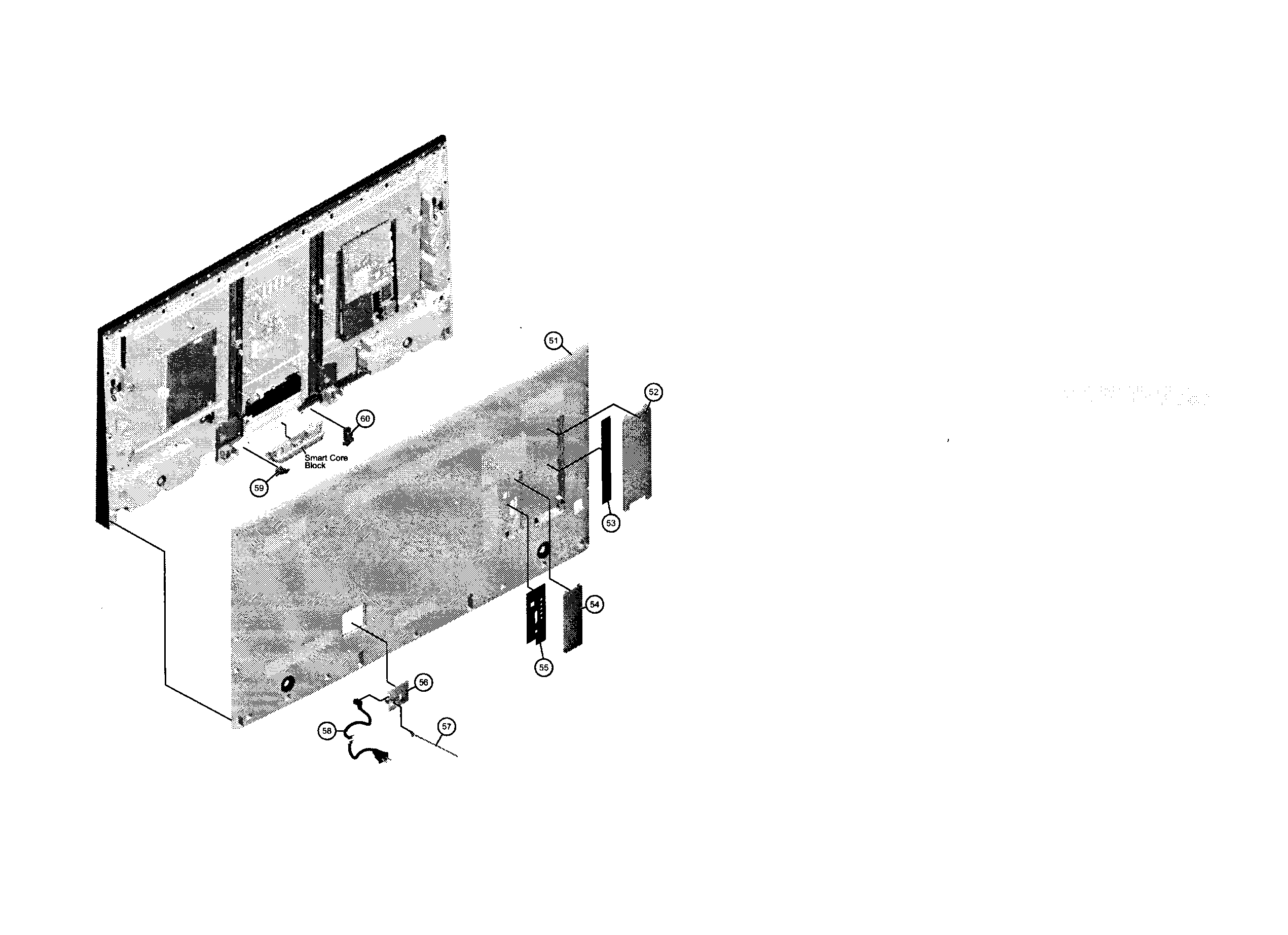

Rear cabinet diagram

Cover ac

Part #448011901

The manufacturer no longer makes this part, and there's no substitute part

Cable Gb-b 191010920
#302

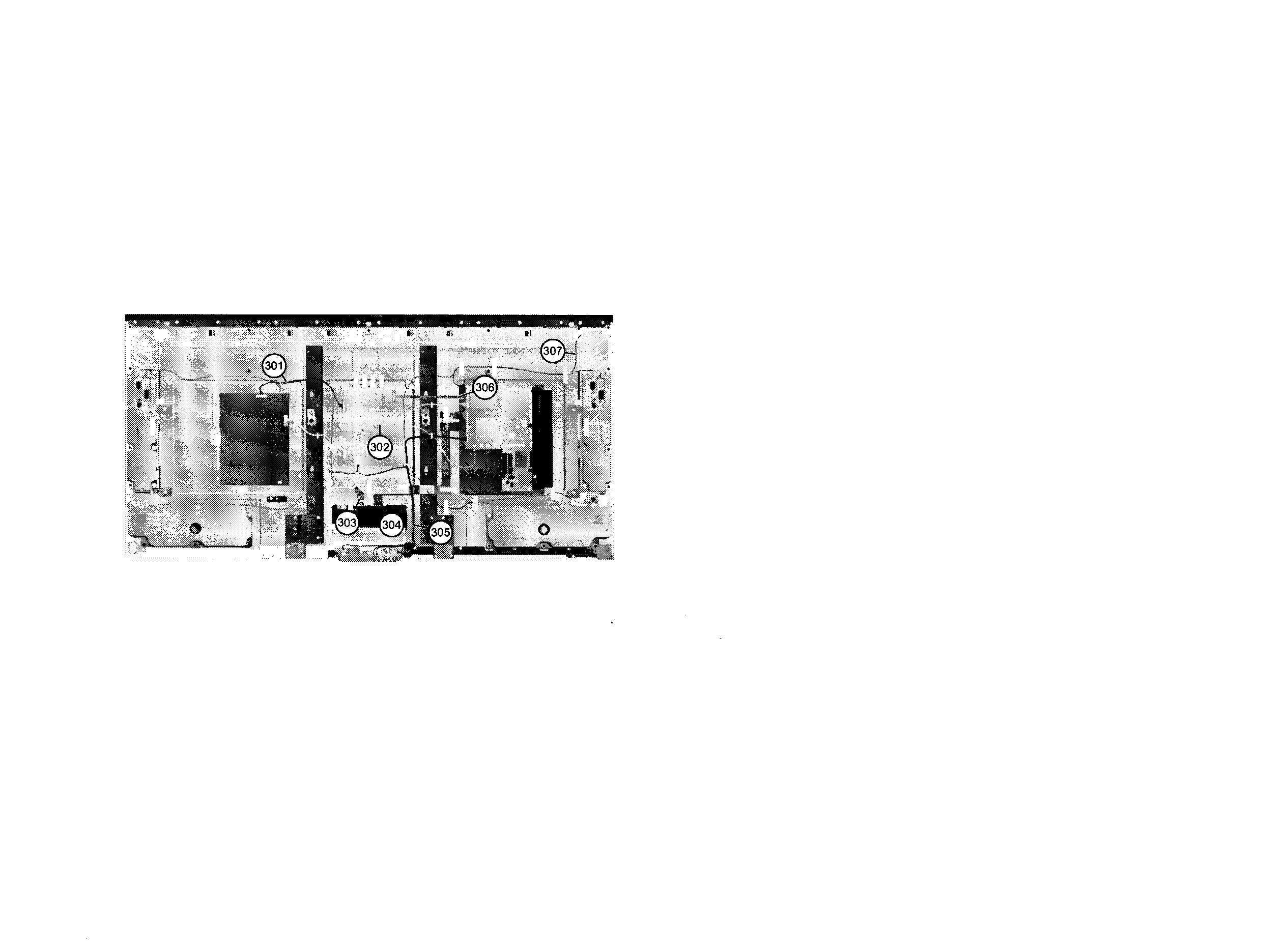

Connectors diagram

Cable gb-b

Part #191010920

Replaced by #191010920

?
Manufacturer substitution
This part replaces 191010920. Substitute parts can look different from the original.
$30.43
In Stock
Television Screw 258060801
#NI

Table top stand diagram

Television screw

Part #258060801

The manufacturer no longer makes this part, and there's no substitute part

Supply Belt 441447001
#NI

Table top stand diagram

Supply belt

Part #441447001

The manufacturer no longer makes this part, and there's no substitute part

Cable 40p 191010921
#305

Connectors diagram

Cable 40p

Part #191010921

Replaced by #191010921

?
Manufacturer substitution
This part replaces 191010921. Substitute parts can look different from the original.
$29.71
In Stock
Vesa Bracket 448409711
#101

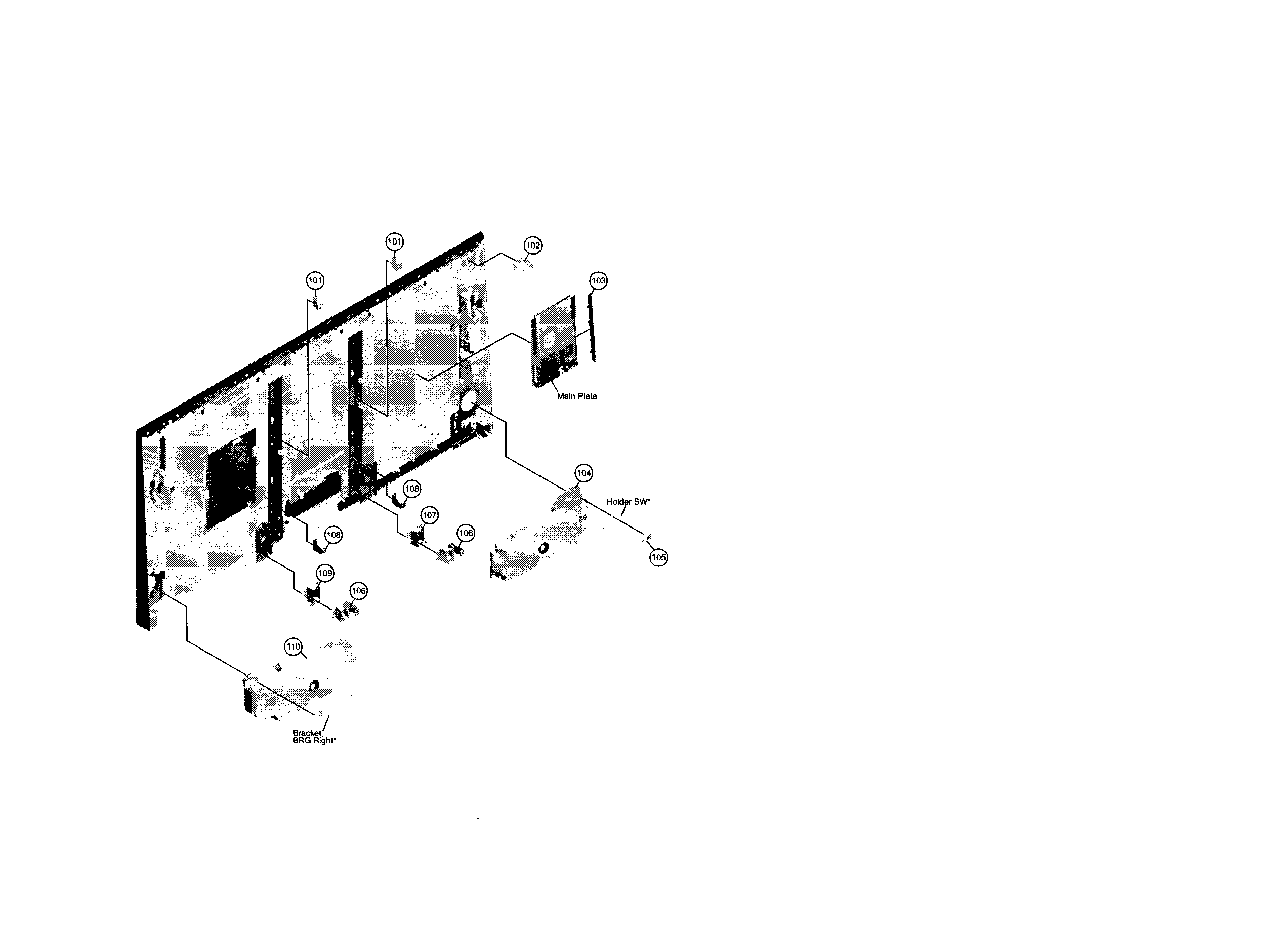

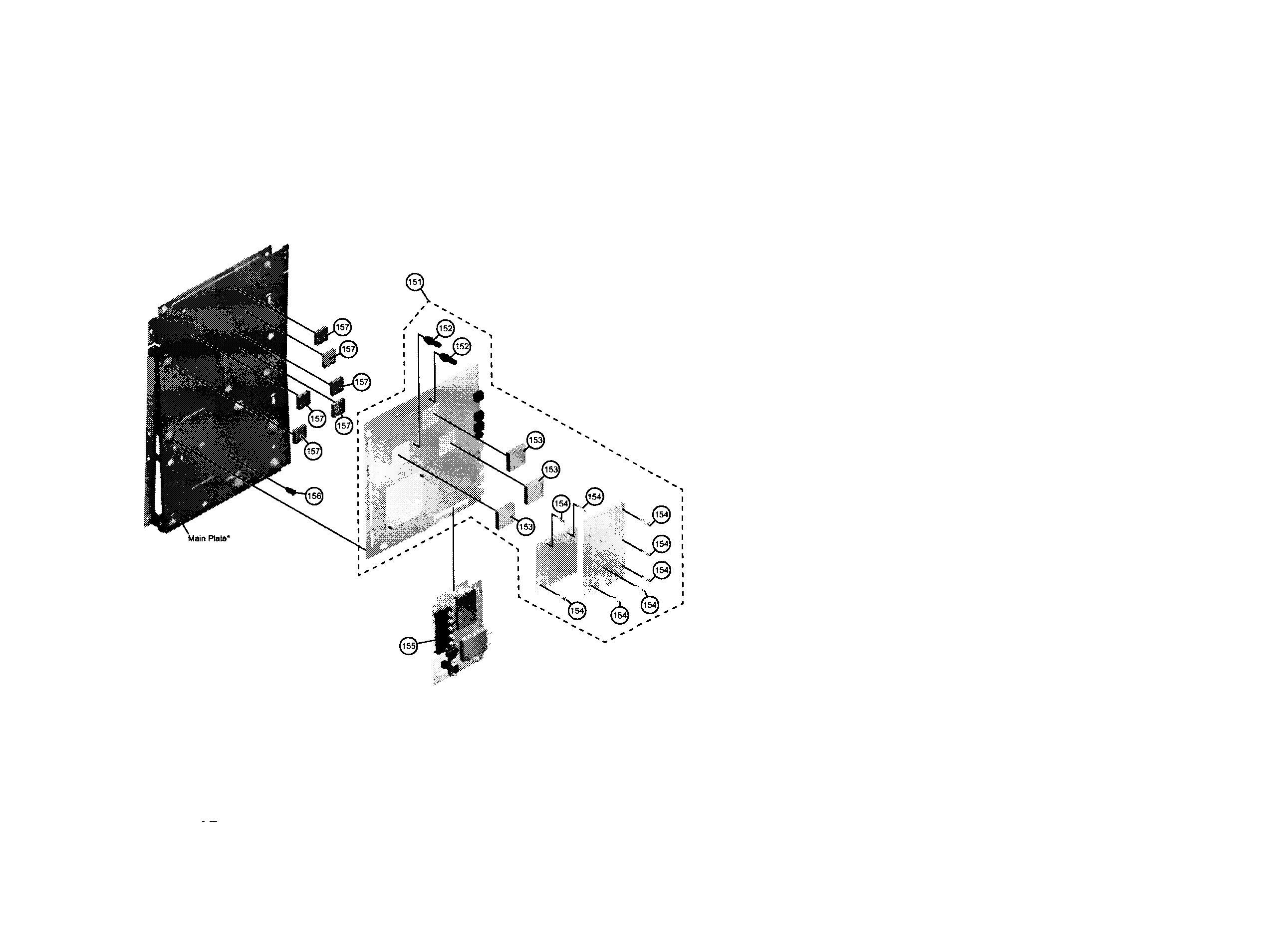

Speaker assy 1 diagram

Vesa bracket

Part #448409711

Replaced by #448409711

?
Manufacturer substitution
This part replaces 448409711. Substitute parts can look different from the original.
This item is not returnable
$7.11
In Stock
Lvds Cable 184830911
#304

Connectors diagram

Lvds cable

Part #184830911

Replaced by #184830911

?
Manufacturer substitution
This part replaces 184830911. Substitute parts can look different from the original.
$19.14
In Stock
Speaker, Left 185897431
#211

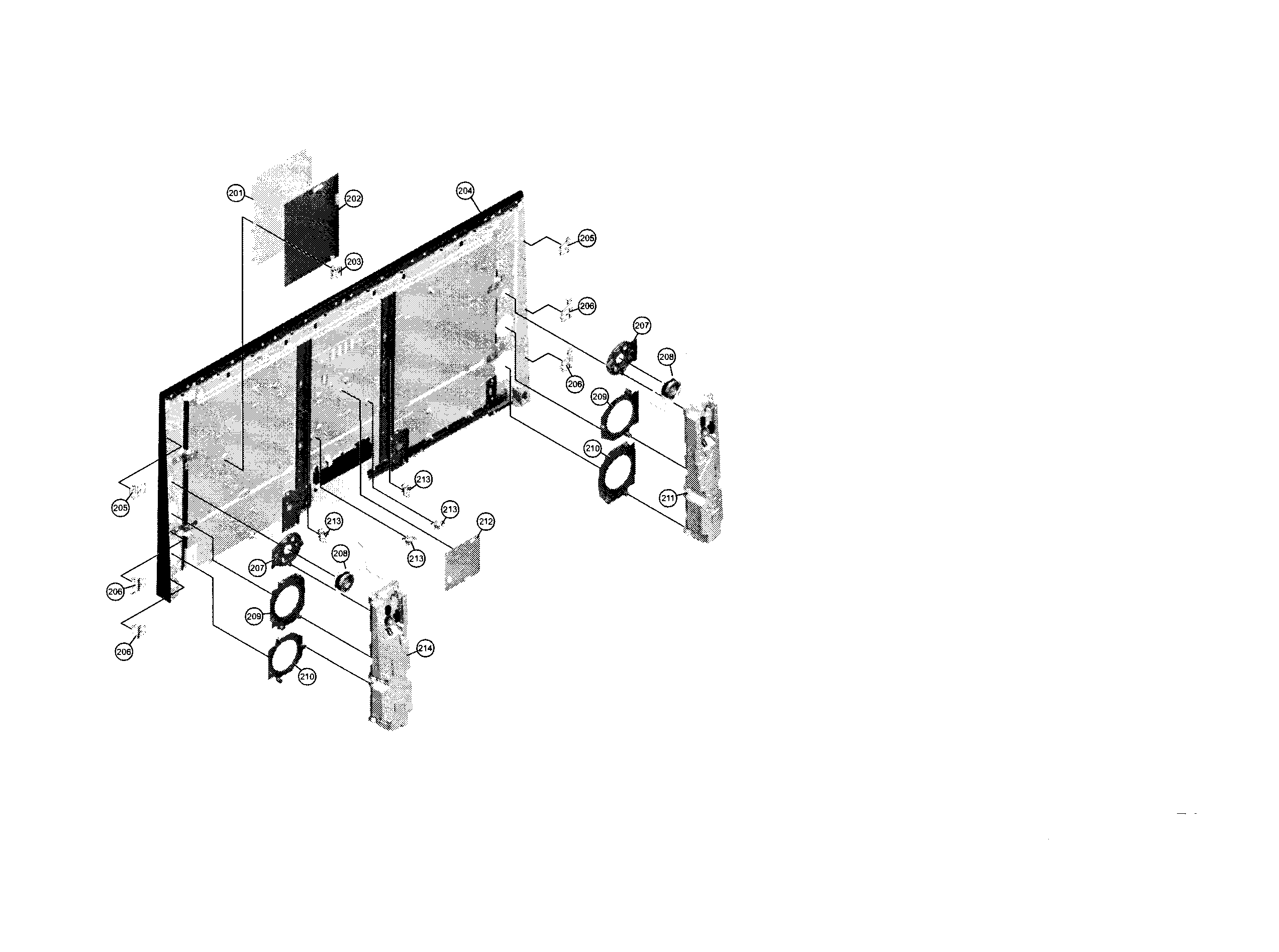

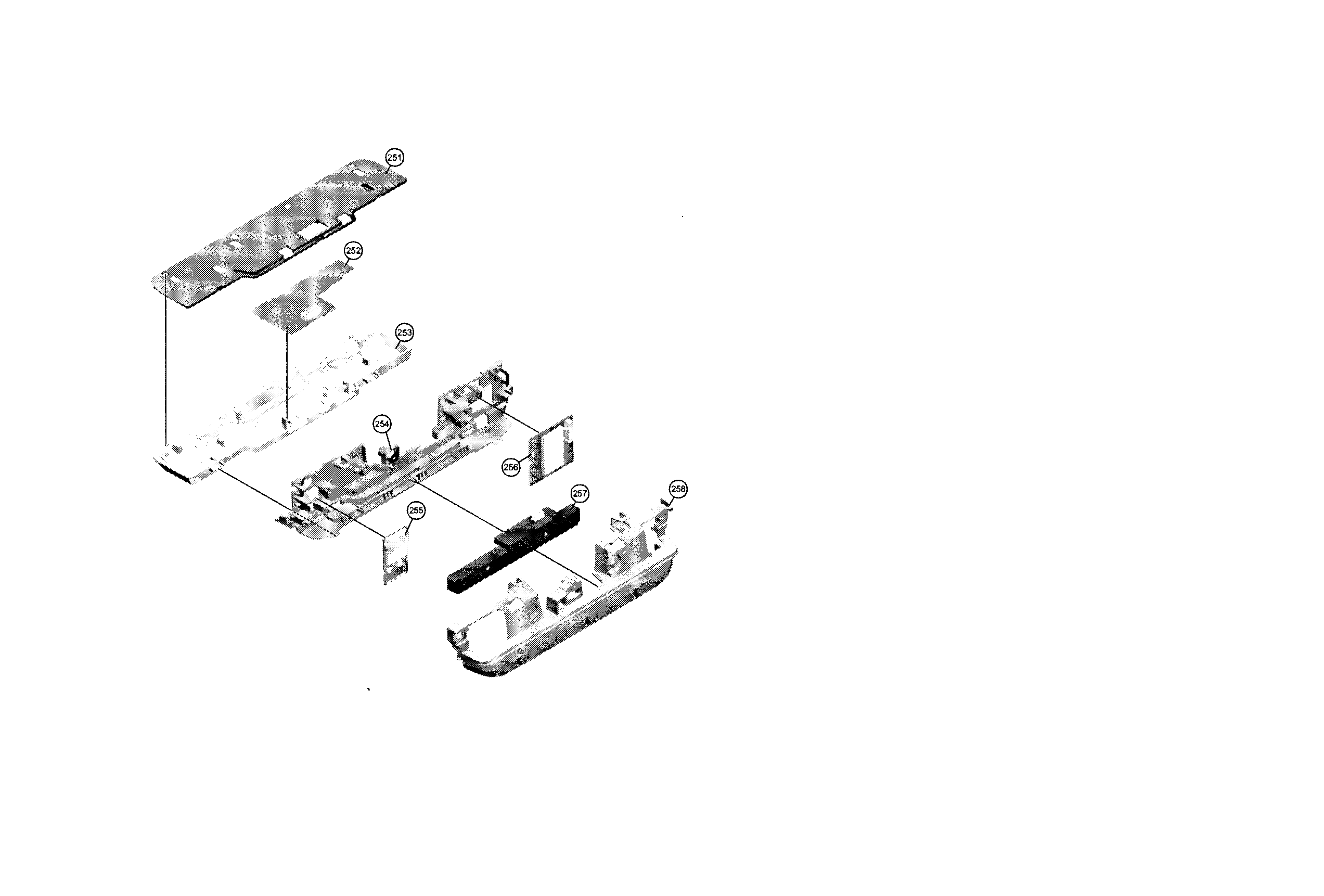

Speaker assy 2 diagram

Speaker, left

Part #185897431

Replaced by #185897431

?
Manufacturer substitution
This part replaces 185897431. Substitute parts can look different from the original.
$158.27
In Stock
Pcb K1 A2031746A
#212

Speaker assy 2 diagram

Pcb k1

Part #A2031746A

The manufacturer no longer makes this part, and there's no substitute part
