Model # 7218815181 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218815181 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

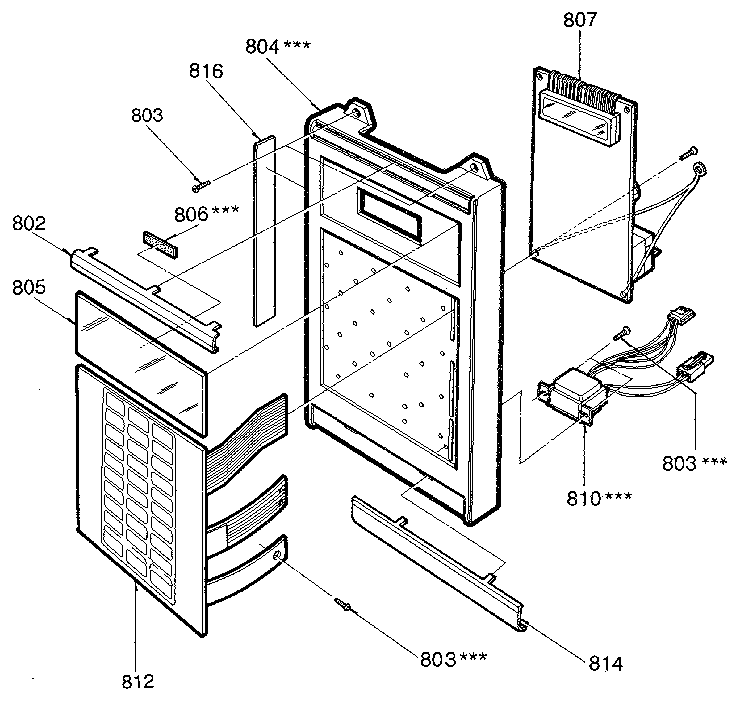

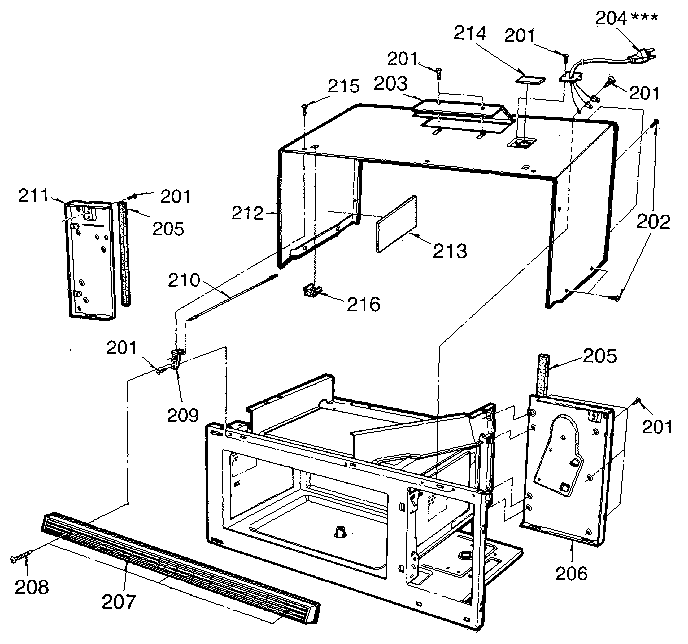

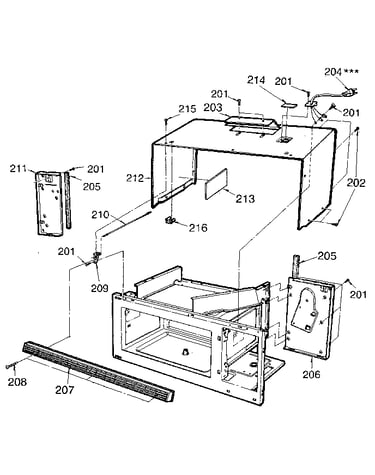

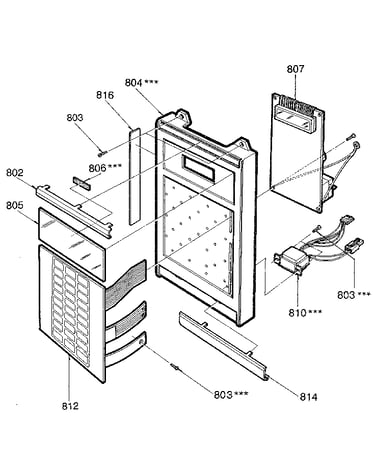

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 214 parts  |
Exhaust Damper 500791
#113

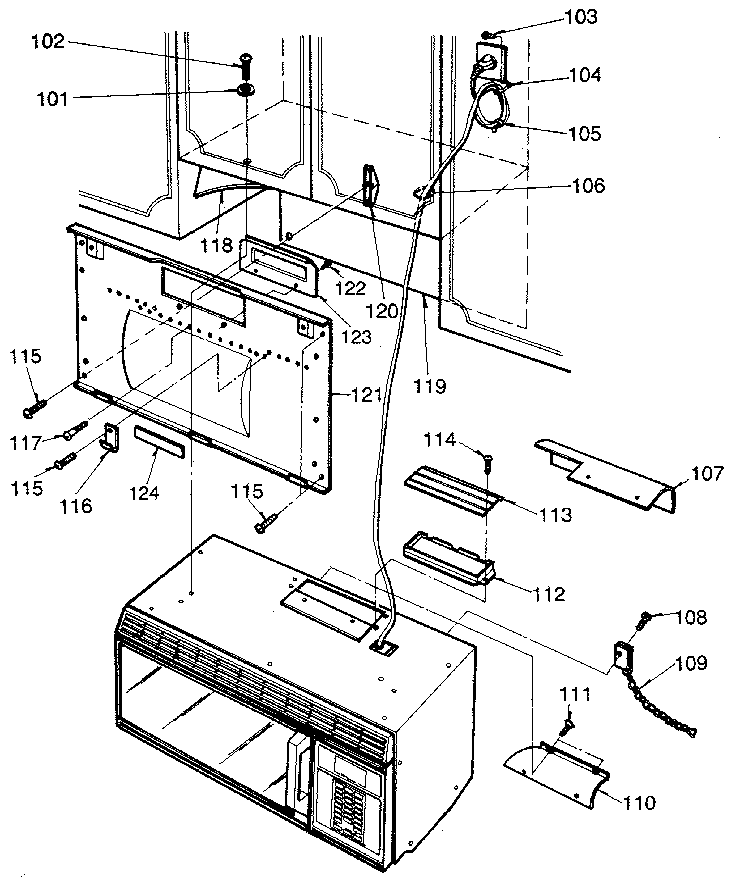

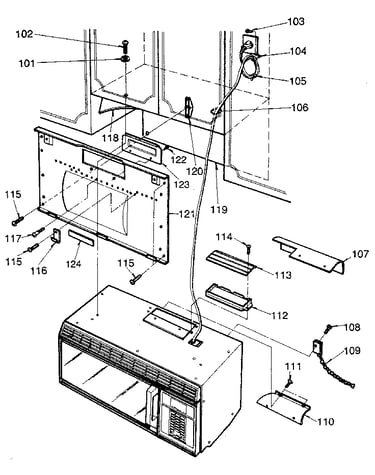

Installation diagram

Exhaust damper

Part #500791

Replaced by #4900W1A001B

?
Manufacturer substitution
This part replaces 500791. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Screw 500194
#323

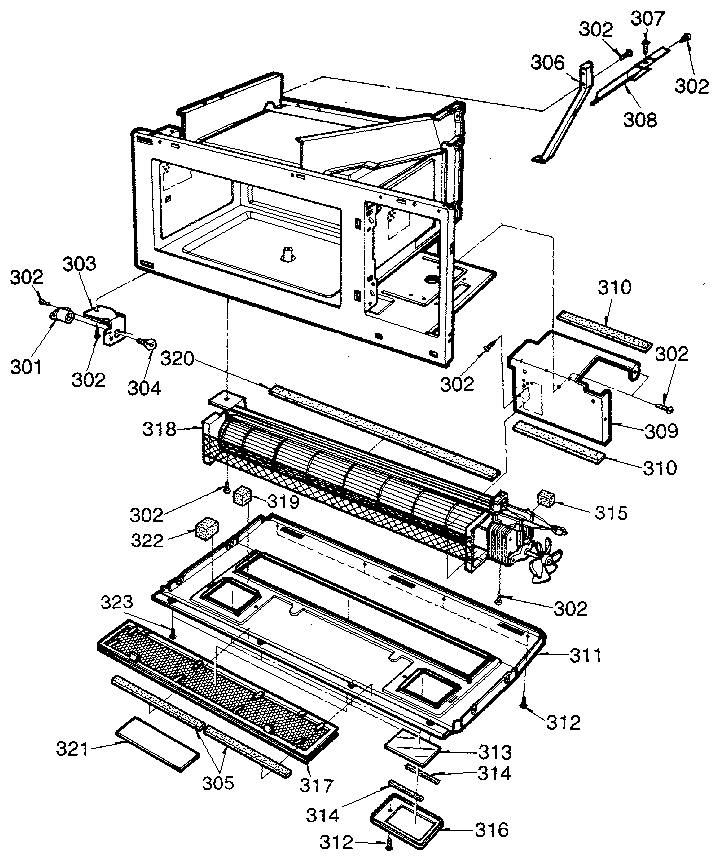

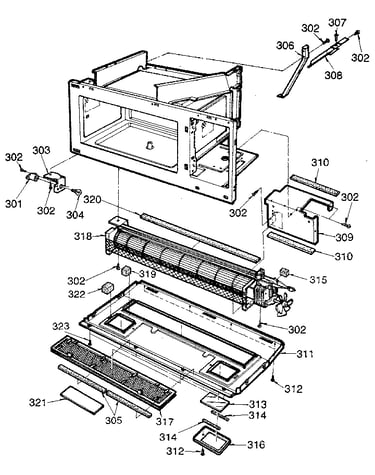

Grill and duct diagram

Screw

Part #500194

Replaced by #1TTG0402422

?
Manufacturer substitution
This part replaces 500194. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Magnetron 500859
#603

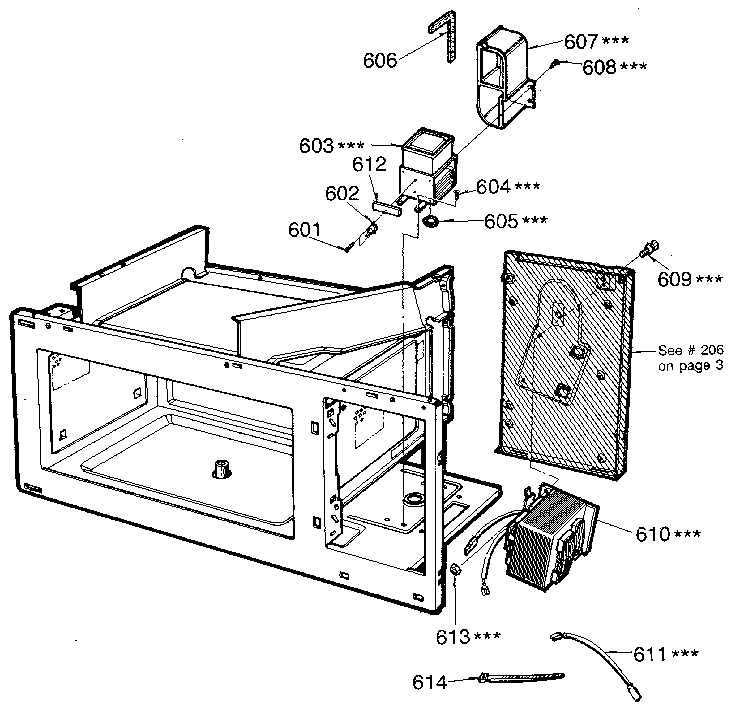

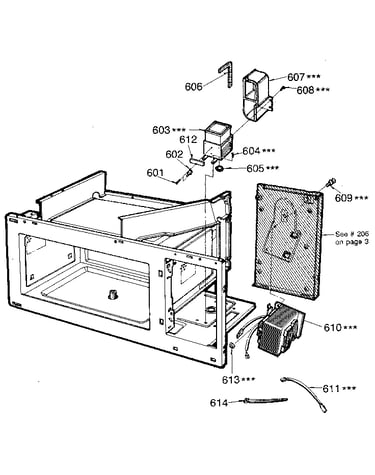

Microwave diagram

Magnetron

Part #500859

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 501447
#507

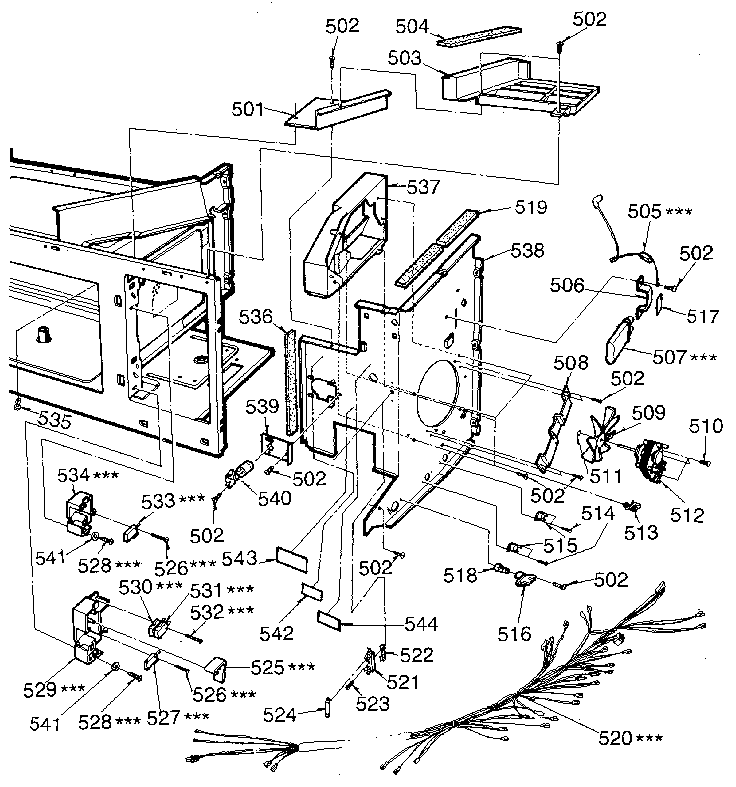

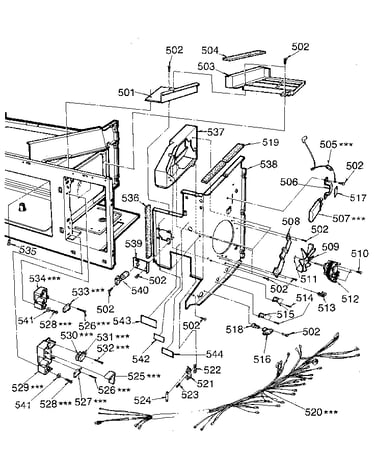

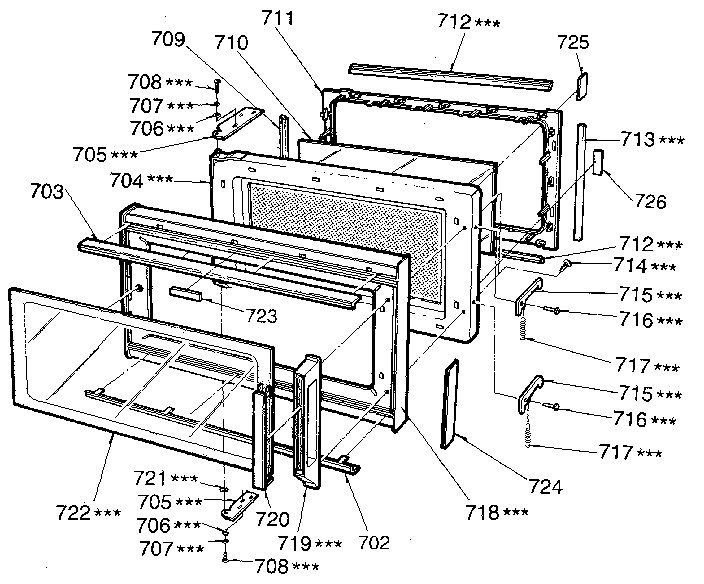

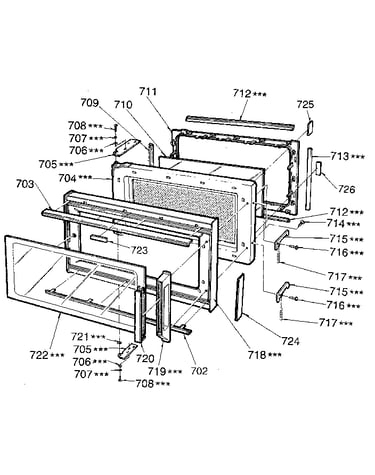

Switches and microwave diagram

Capacitor

Part #501447

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 500060
#613

Microwave diagram

Hex nut

Part #500060

Replaced by #46-56142-3

?
Manufacturer substitution
This part replaces 500060. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Capacitor 500009
Capacitor

Part #500009

Replaced by #46-201514-3

?
Manufacturer substitution
This part replaces 500009. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Capacitor 500464
#15

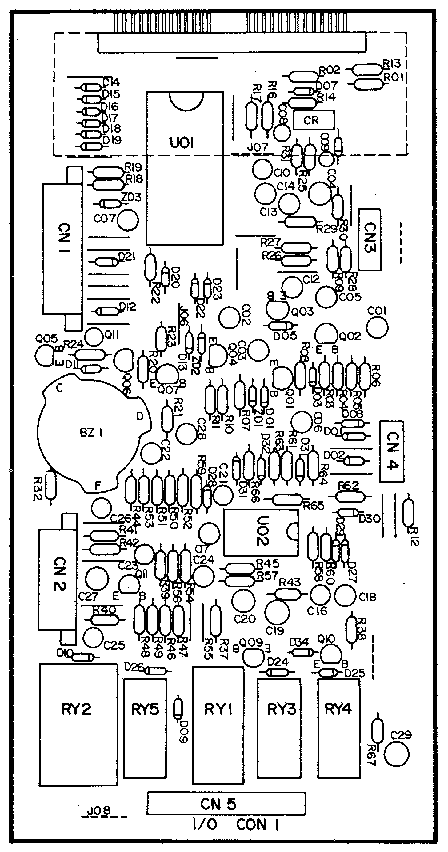

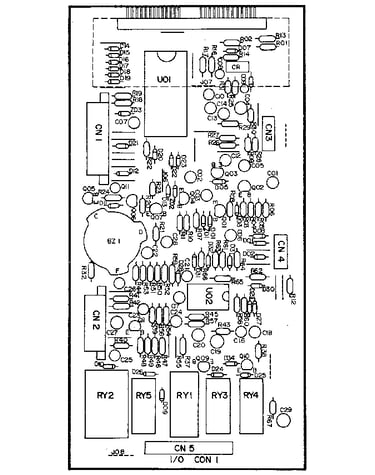

Power & control circuit board diagram

Capacitor

Part #500464

Replaced by #163389

?
Manufacturer substitution
This part replaces 500464. Substitute parts can look different from the original.
This item is not returnable
$5.45
In Stock
Screw 501098
#409

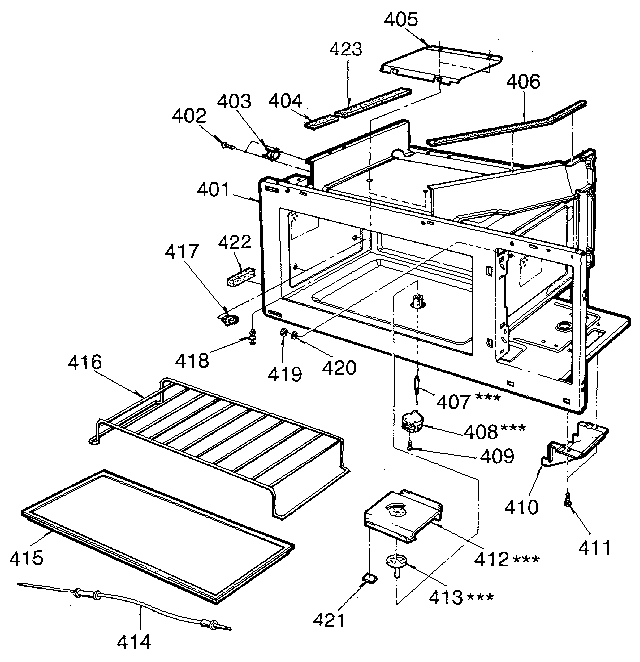

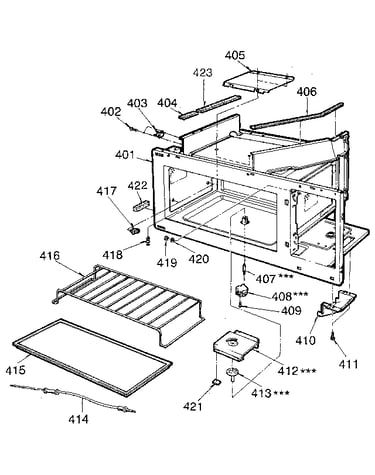

Cavity diagram

Screw

Part #501098

Replaced by #1SBF0402418

?
Manufacturer substitution
This part replaces 501098. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Capacitor 500175
#4

Power & control circuit board diagram

Capacitor

Part #500175

The manufacturer no longer makes this part, and there's no substitute part

Zerer Diode 500040
#62

Power & control circuit board diagram

Zerer diode

Part #500040

Replaced by #46-86653-3

?
Manufacturer substitution
This part replaces 500040. Substitute parts can look different from the original.
This item is not returnable
$2.53
In Stock
