Model # PSA1201RSS01 Official GE microwave/hood combo

Here are the diagrams and repair parts for Official GE PSA1201RSS01 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Primary Switch WB24X0815
#604

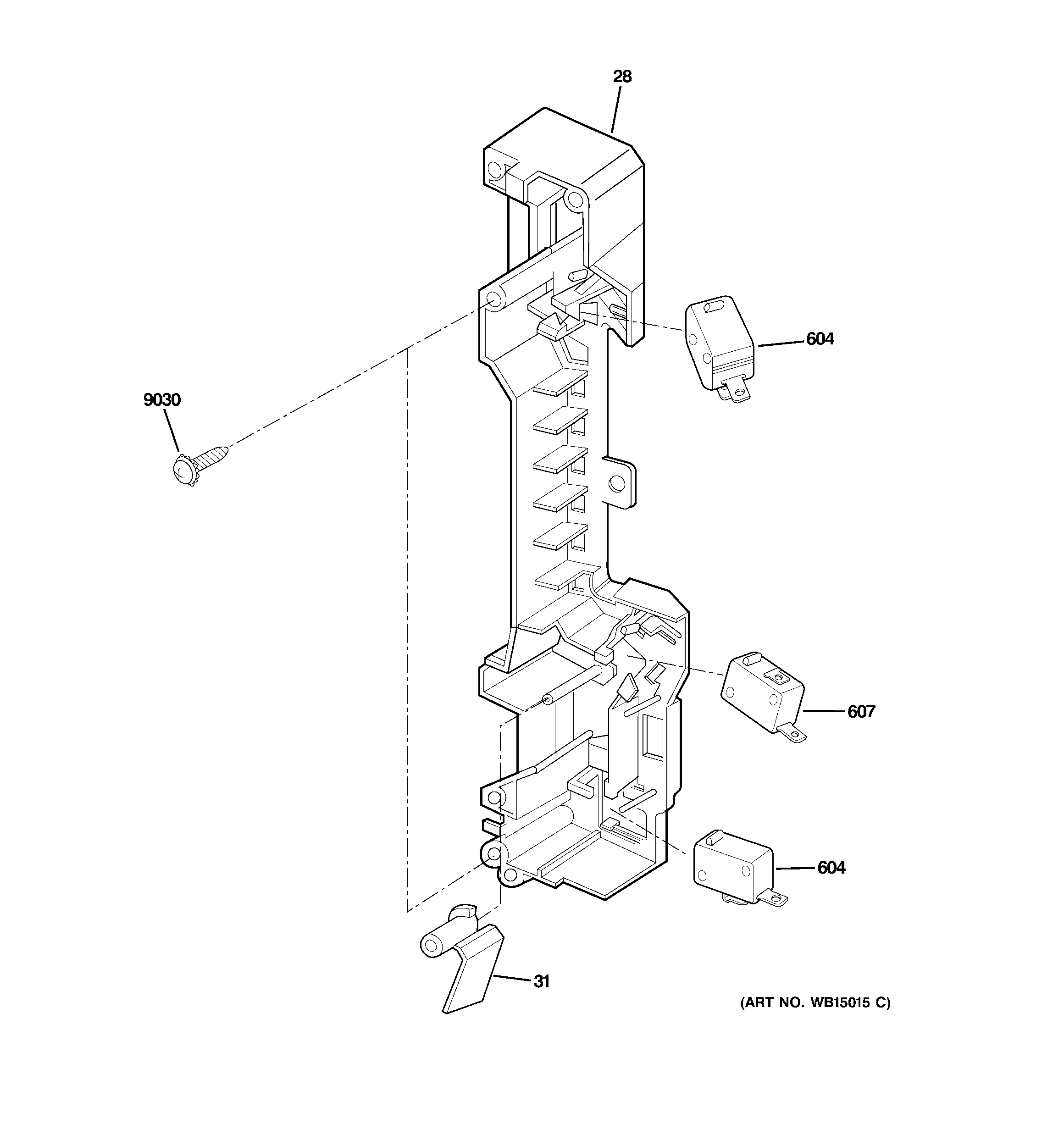

Latch board parts diagram

Primary switch

Part #WB24X0815

Replaced by #WB24X10047

?
Manufacturer substitution
This part replaces WB24X0815. Substitute parts can look different from the original.
BEST SELLER
$24.27 |
17% OFF Phone Price : $29.27
In Stock
Monitor Switch WB24X0817
Monitor switch

Part #WB24X0817

Replaced by #WB24X25397

?
Manufacturer substitution
This part replaces WB24X0817. Substitute parts can look different from the original.
BEST SELLER
$26.64 |
16% OFF Phone Price : $31.64
In Stock
Cable WB18X10286
#1648

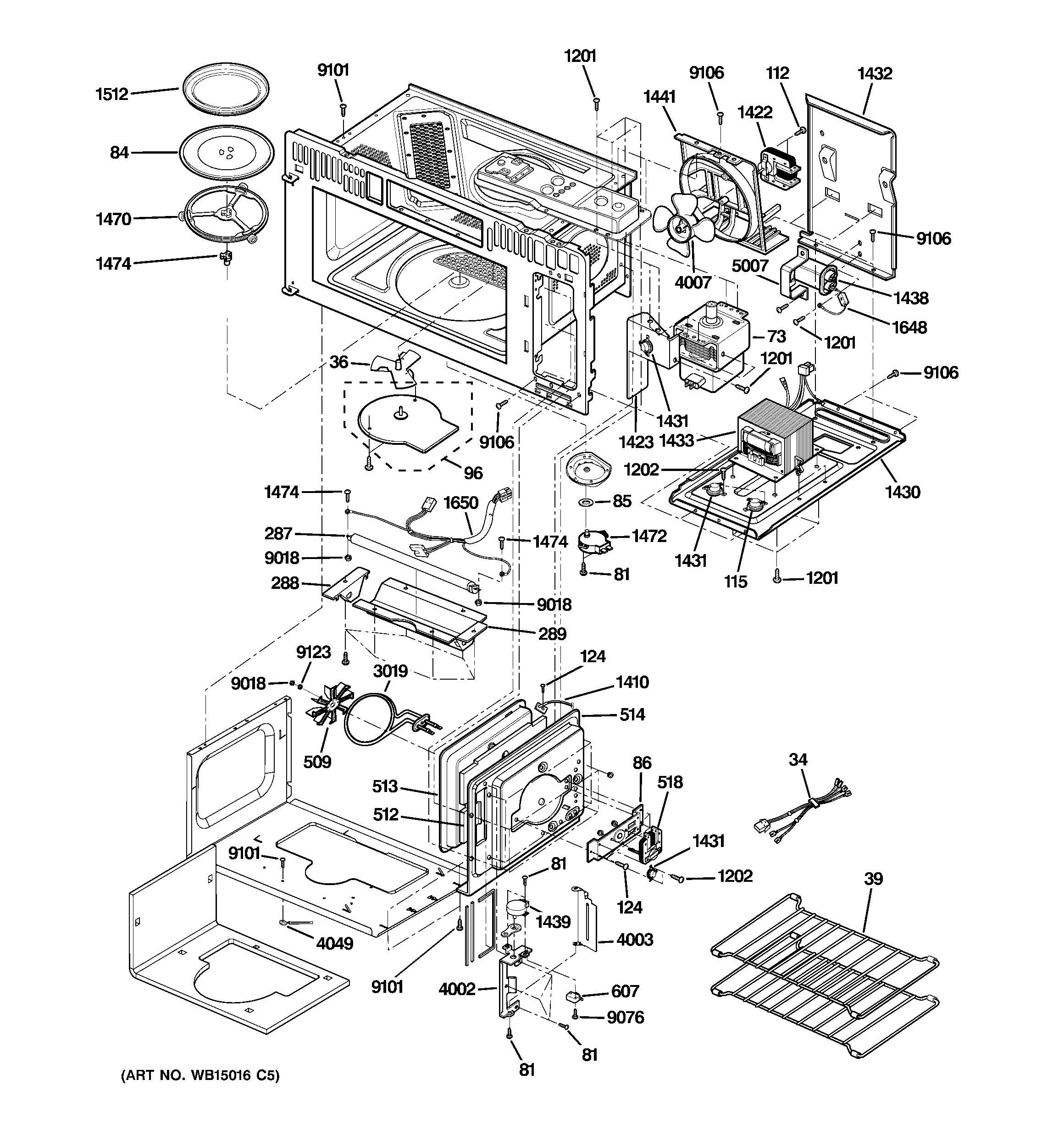

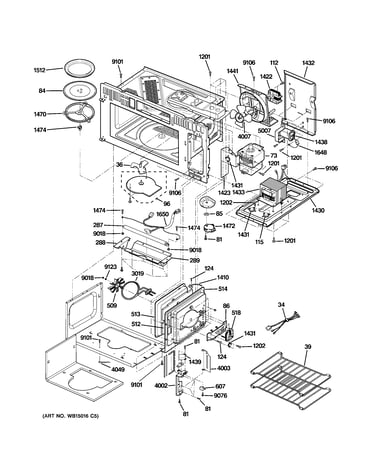

Interior parts (1) diagram

Cable

Part #WB18X10286

Replaced by #WB27X10037

?
Manufacturer substitution
This part replaces WB18X10286. Substitute parts can look different from the original.
BEST SELLER
$24.73 |
17% OFF Phone Price : $29.73
In Stock
Microwave Light Bulb (replaces Wb08x10051, Wb25x21248, Wb25x25393) WB08X10057
#291

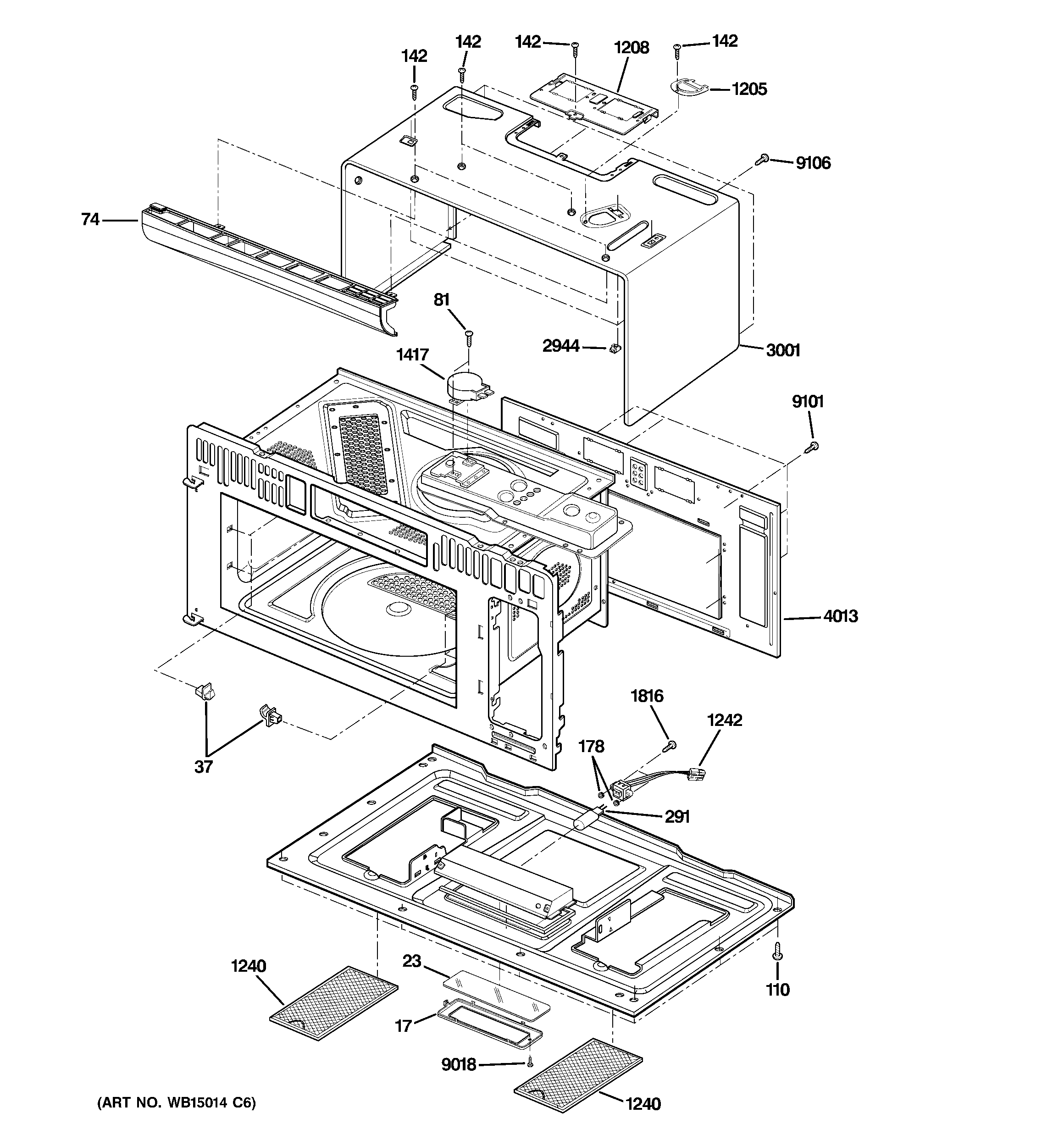

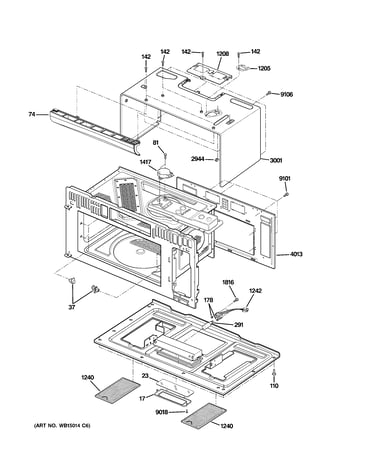

Oven cavity parts diagram

Microwave light bulb (replaces wb08x10051, wb25x21248, wb25x25393)

Part #WB08X10057

This item is not returnable
$12.90 |
13% OFF Phone Price : $14.90
In Stock
Microwave Mounting Plate WB56X10204
#9001

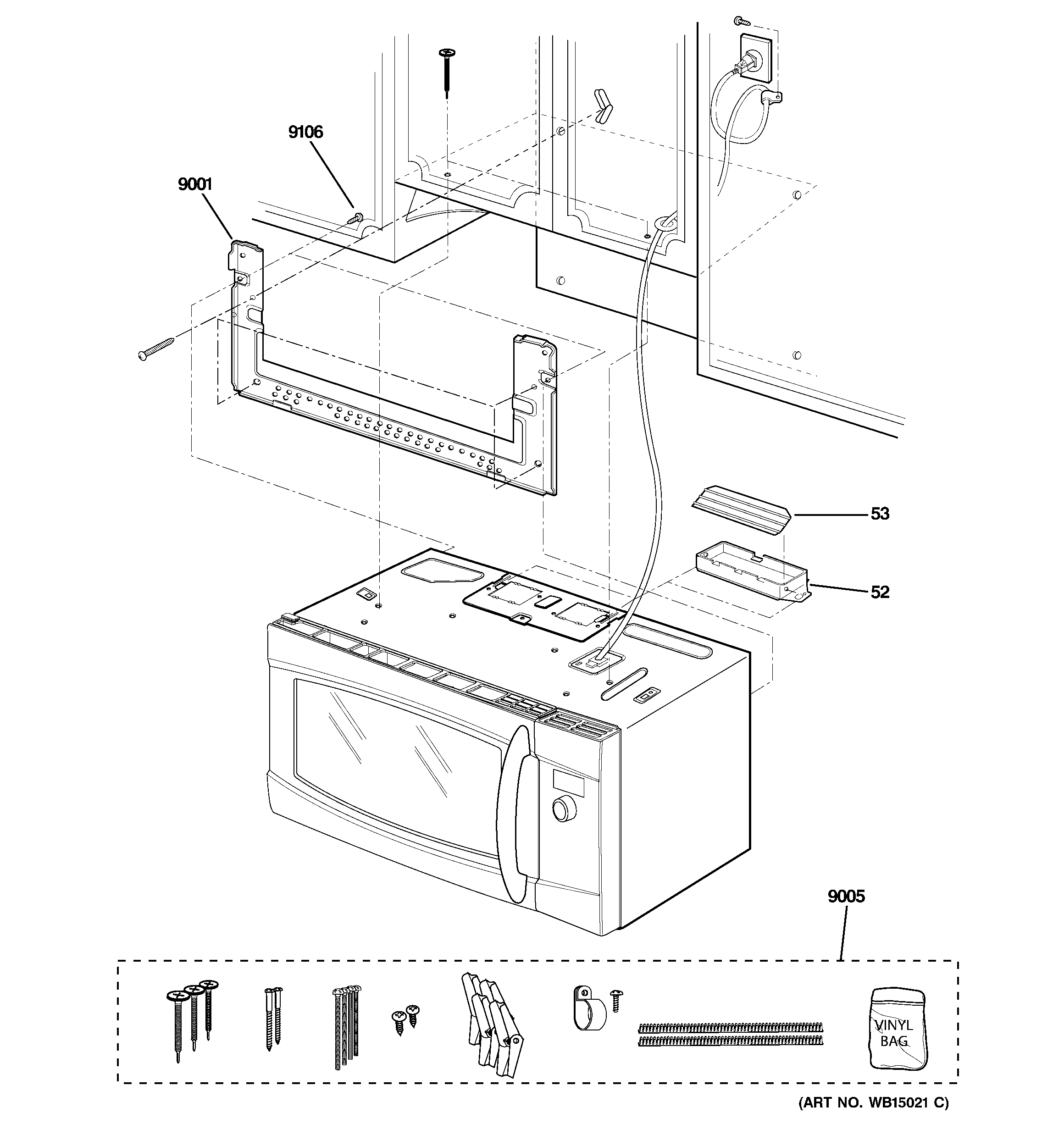

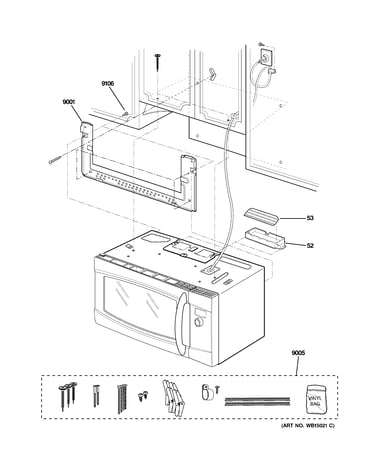

Installation parts diagram

Microwave mounting plate

Part #WB56X10204

Replaced by #WB56X35363

?
Manufacturer substitution
This part replaces WB56X10204. Substitute parts can look different from the original.
This item is not returnable
$20.80 |
19% OFF Phone Price : $25.80
In Stock
Microwave High-voltage Capacitor WB27X11031
#1438

Interior parts (1) diagram

Microwave high-voltage capacitor

Part #WB27X11031

$41.19 |
11% OFF Phone Price : $46.19
In Stock
Microwave Halogen Light Bulb WB25X10019
#282

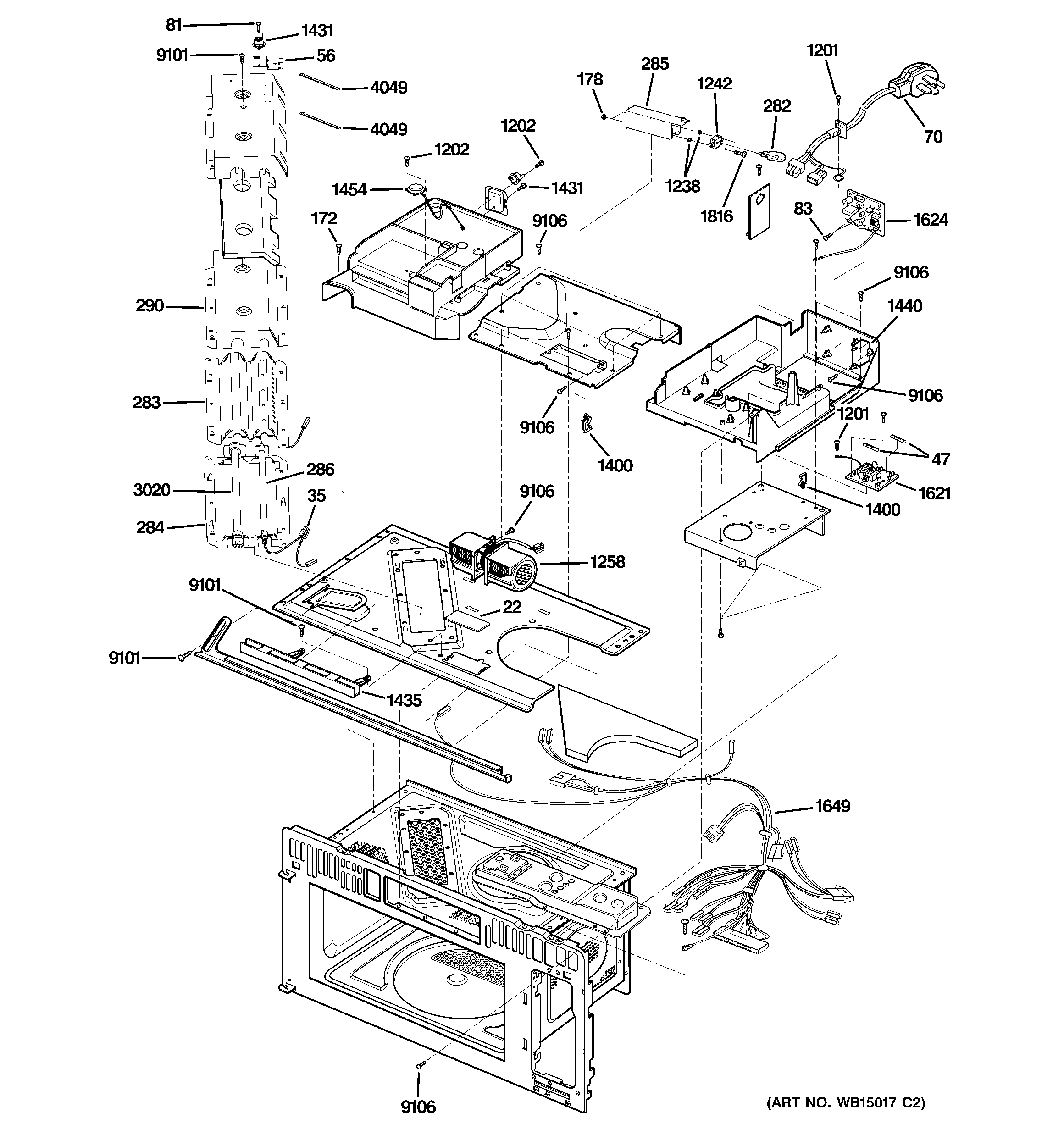

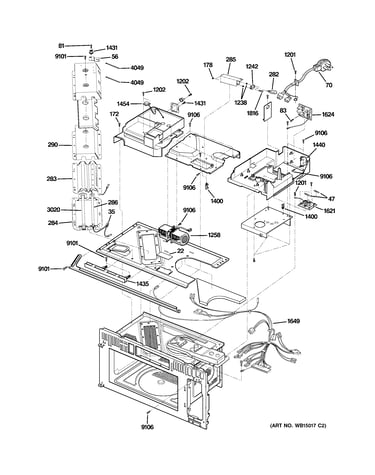

Interior parts (2) diagram

Microwave halogen light bulb

Part #WB25X10019

This item is not returnable
$11.67 |
15% OFF Phone Price : $13.67
In Stock
Latch Board WB06X10256
#28

Latch board parts diagram

Latch board

Part #WB06X10256

Replaced by #WB02X32720

?
Manufacturer substitution
This part replaces WB06X10256. Substitute parts can look different from the original.
This item is not returnable
$16.59 |
11% OFF Phone Price : $18.59
In Stock
Microwave Turntable Motor (replaces Wb26x10075) WB26X10193
#1472

Interior parts (1) diagram

Microwave turntable motor (replaces wb26x10075)

Part #WB26X10193

$88.34 |
5% OFF Phone Price : $93.34
In Stock
Wall Oven Display Board WB06X10835
#1604

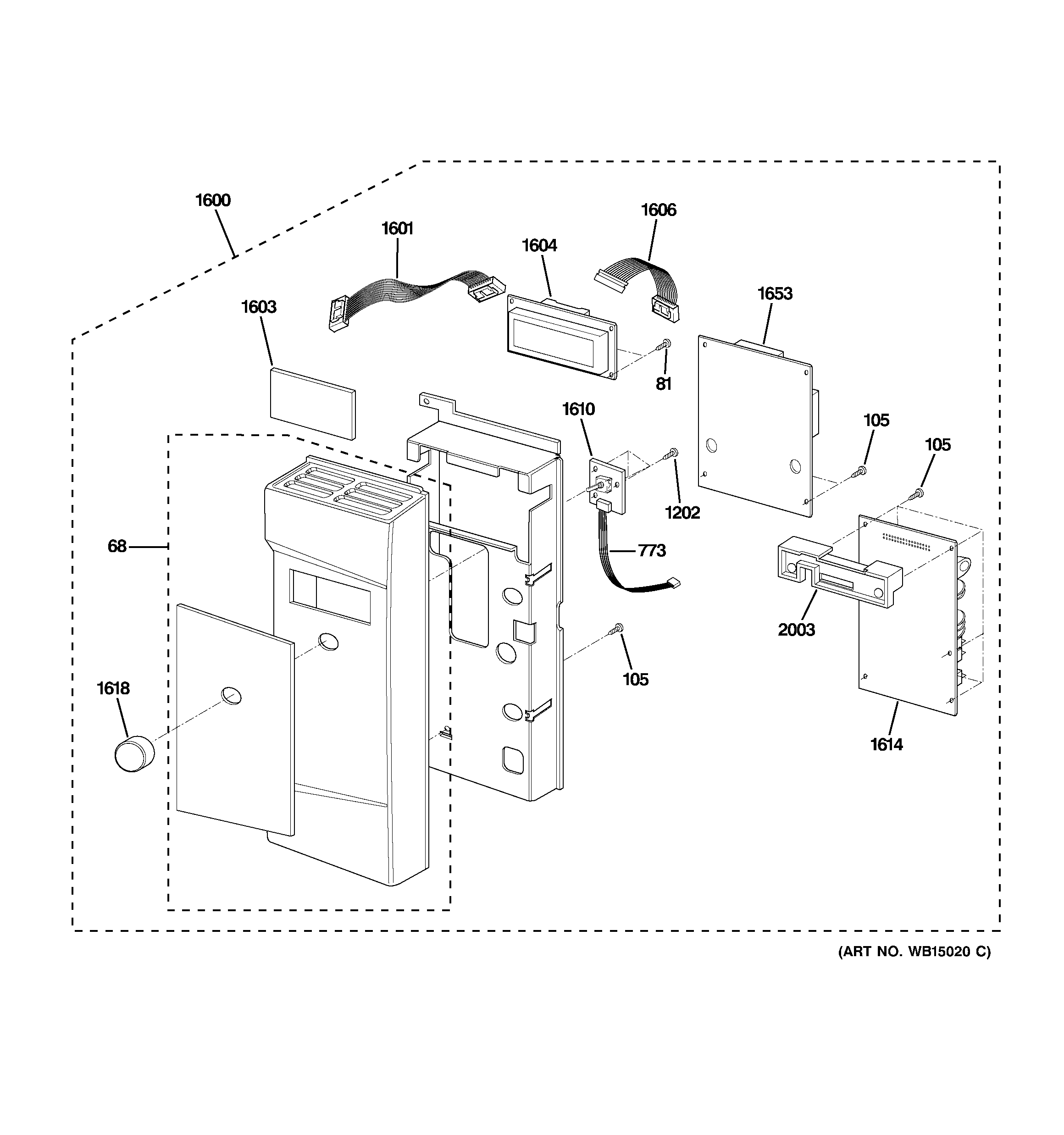

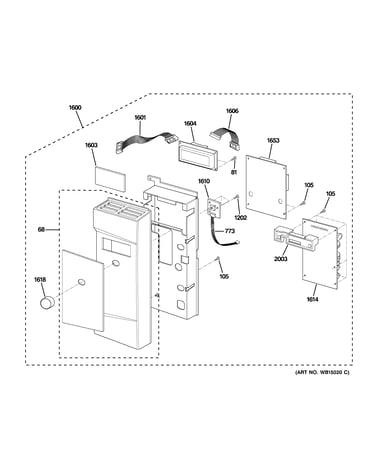

Control parts diagram

Wall oven display board

Part #WB06X10835

Replaced by #WB27X44086

?
Manufacturer substitution
This part replaces WB06X10835. Substitute parts can look different from the original.
$335.05
In Stock
