Hedge Trimmer

Model # HT1700-00 Official Paramount hedge trimmer

Here are the diagrams and repair parts for Official Paramount HT1700-00 hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

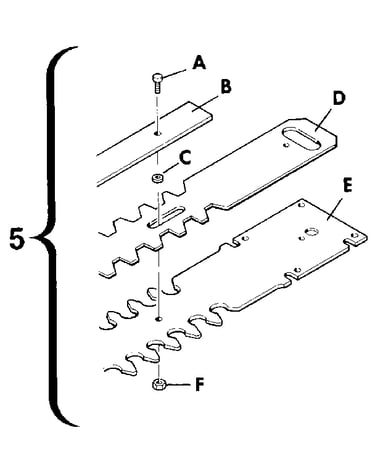

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Wire Assembly 8663-1
#20

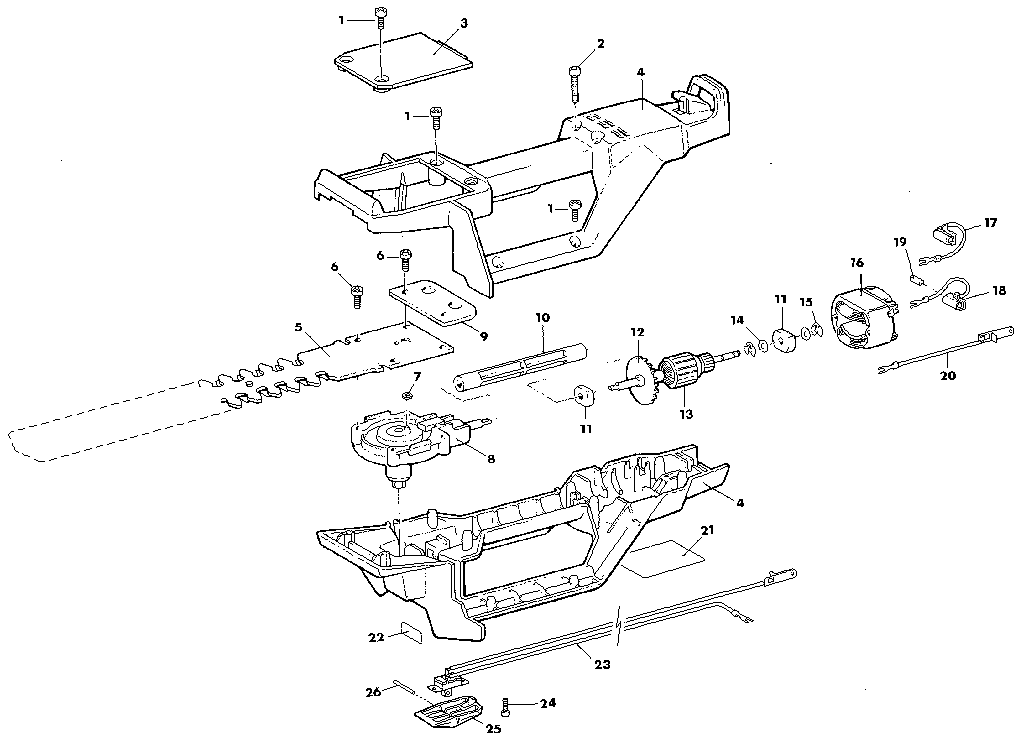

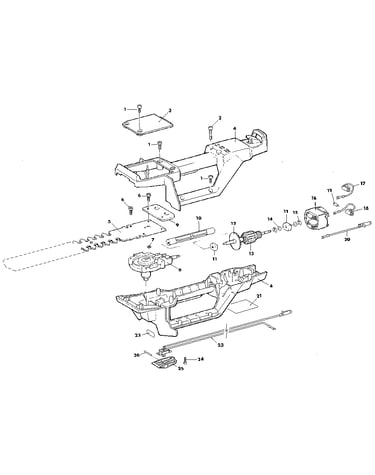

Exploded view diagram

Wire assembly

Part #8663-1

The manufacturer no longer makes this part, and there's no substitute part

Washer 4946-6
#14

Exploded view diagram

Washer

Part #4946-6

The manufacturer no longer makes this part, and there's no substitute part

Shaft 8103
#10

Exploded view diagram

Shaft

Part #8103

The manufacturer no longer makes this part, and there's no substitute part

Label 8786
#21

Exploded view diagram

Label

Part #8786

The manufacturer no longer makes this part, and there's no substitute part

Cap 8117
#25

Exploded view diagram

Cap

Part #8117

The manufacturer no longer makes this part, and there's no substitute part

Washer 8121
#7

Exploded view diagram

Washer

Part #8121

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 2467-1
#15

Exploded view diagram

Retaining ring

Part #2467-1

The manufacturer no longer makes this part, and there's no substitute part

Cover 8913-02
#3

Exploded view diagram

Cover

Part #8913-02

The manufacturer no longer makes this part, and there's no substitute part

Armature 8127-1
#13

Exploded view diagram

Armature

Part #8127-1

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 9353-1
#23

Exploded view diagram

Switch assembly

Part #9353-1

The manufacturer no longer makes this part, and there's no substitute part
