Kenmore
Countertop Microwave

Model # 7218954190 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218954190 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

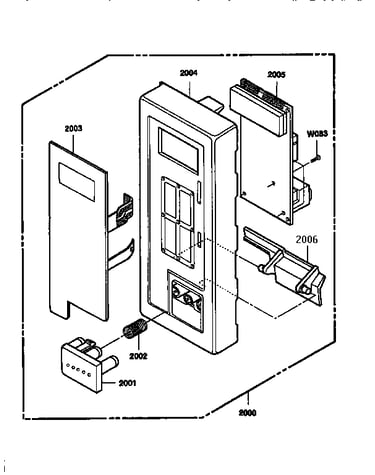

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Switch 503388
#4003

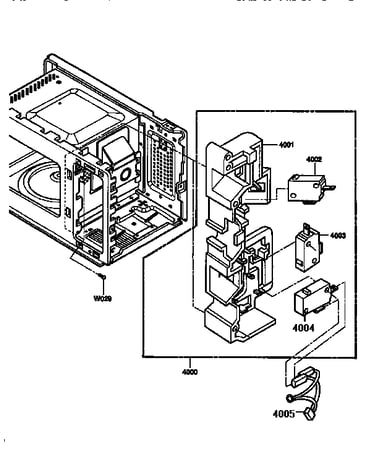

Latch board diagram

Switch

Part #503388

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 506108
#5012

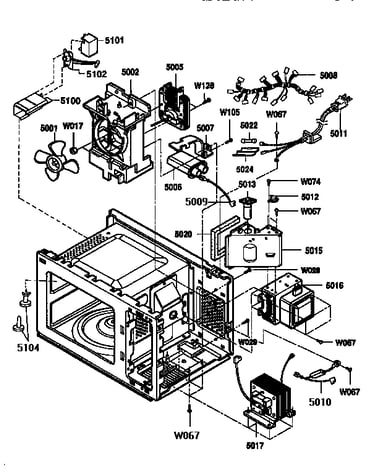

Oven interior diagram

Thermostat

Part #506108

Replaced by #6930W1A003K

?
Manufacturer substitution
This part replaces 506108. Substitute parts can look different from the original.
$7.89
In Stock
High-voltage Capacitor 505183
#5006

Oven interior diagram

High-voltage capacitor

Part #505183

Replaced by #0CZZW1H004T

?
Manufacturer substitution
This part replaces 505183. Substitute parts can look different from the original.
$29.52 |
14% OFF Phone Price : $34.52
In Stock
Zener Diode 0DZ560009AA
#ZD2

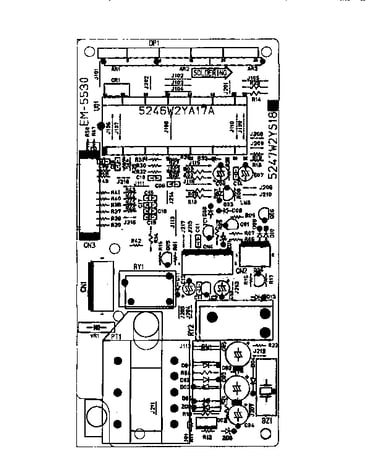

Power control circuit board diagram

Zener diode

Part #0DZ560009AA

This item is not returnable
$2.57
In Stock
Microwave Power Control Board Transformer 6010W2P008A
#PT1

Power control circuit board diagram

Microwave power control board transformer

Part #6010W2P008A

$30.76
In Stock
Thermostat 505959
#3005

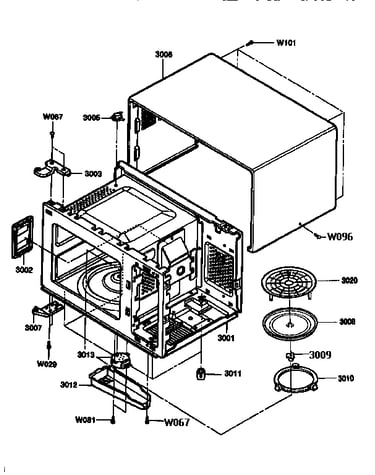

Oven cavity diagram

Thermostat

Part #505959

Replaced by #6930WRT001A

?
Manufacturer substitution
This part replaces 505959. Substitute parts can look different from the original.
$10.03 |
17% OFF Phone Price : $12.03
In Stock
Lamp 505975
#5013

Oven interior diagram

Lamp

Part #505975

Replaced by #6912W3B002L

?
Manufacturer substitution
This part replaces 505975. Substitute parts can look different from the original.
This item is not returnable
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Ring 507047
#3010

Oven cavity diagram

Ring

Part #507047

Replaced by #5889W2A005K

?
Manufacturer substitution
This part replaces 507047. Substitute parts can look different from the original.
This item is not returnable
$20.53 |
20% OFF Phone Price : $25.53
In Stock
Screw 501098
Screw

Part #501098

Replaced by #1SBF0402418

?
Manufacturer substitution
This part replaces 501098. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Spring 505950
#1006

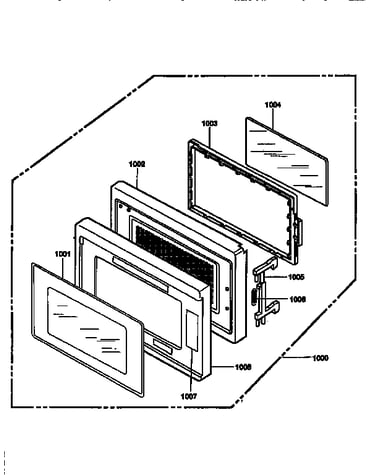

Door diagram

Spring

Part #505950

Replaced by #4970WRA001A

?
Manufacturer substitution
This part replaces 505950. Substitute parts can look different from the original.
$7.89
In Stock
