Gas Water Heater

Model # 5-30-NKRS6 Official Ace gas water heater

Here are the diagrams and repair parts for Official Ace 5-30-NKRS6 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Water Heater Thermocouple 9000283
#14

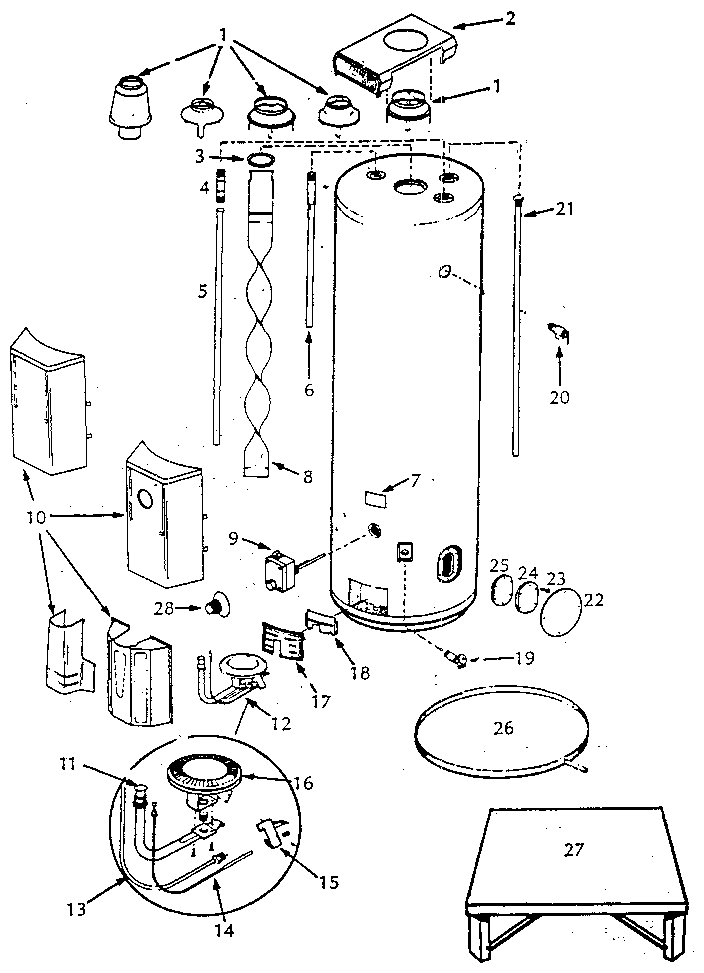

Round gas diagram

Water heater thermocouple

Part #9000283

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 9000246
#9

Round gas diagram

Thermostat

Part #9000246

The manufacturer no longer makes this part, and there's no substitute part

Water Heater Drain Valve 9000254
#19

Round gas diagram

Water heater drain valve

Part #9000254

This item is not returnable
$17.69 |
10% OFF Phone Price : $19.69
In Stock
Water Heater Manifold Inner Door 9000281
#18

Round gas diagram

Water heater manifold inner door

Part #9000281

$17.69 |
10% OFF Phone Price : $19.69
In Stock
Base Stand 9001421
#27

Round gas diagram

Base stand

Part #9001421

$62.99
In Stock
Drip Pan 9000741
#26

Round gas diagram

Drip pan

Part #9000741

Replaced by #9002846

?
Manufacturer substitution
This part replaces 9000741. Substitute parts can look different from the original.
$20.99
In Stock
Pilot 9000284
#15

Round gas diagram

Pilot

Part #9000284

Replaced by #100109070

?
Manufacturer substitution
This part replaces 9000284. Substitute parts can look different from the original.
$47.78
In Stock
Water Heater Burner 9000390
#16A

Round gas diagram

Water heater burner

Part #9000390

Replaced by #100108399

?
Manufacturer substitution
This part replaces 9000390. Substitute parts can look different from the original.
$27.78
In Stock
Heater Stand 9001422
#27A

Round gas diagram

Heater stand

Part #9001422

Replaced by #9005744005

?
Manufacturer substitution
This part replaces 9001422. Substitute parts can look different from the original.
$115.49
In Stock
Dip Tube 9001838
#5

Round gas diagram

Dip tube

Part #9001838

Replaced by #9002364

?
Manufacturer substitution
This part replaces 9001838. Substitute parts can look different from the original.
$7.99
In Stock
