Schwinn
Elliptical Machine

Model # 100327 Official Schwinn elliptical machine

Here are the diagrams and repair parts for Official Schwinn 100327 elliptical machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Elliptical Power Cord 8005265
#20

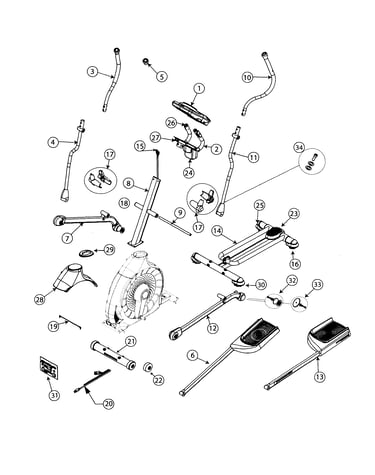

Frame assy diagram

Elliptical power cord

Part #8005265

The manufacturer no longer makes this part, and there's no substitute part

Elliptical Console Mast 8002086
#8

Frame assy diagram

Elliptical console mast

Part #8002086

The manufacturer no longer makes this part, and there's no substitute part

Right Leg 8000995
#7

Frame assy diagram

Right leg

Part #8000995

The manufacturer no longer makes this part, and there's no substitute part

Upper Pivot Shroud 8003849
#17

Frame assy diagram

Upper pivot shroud

Part #8003849

The manufacturer no longer makes this part, and there's no substitute part

Lift Cover 8002626
#50

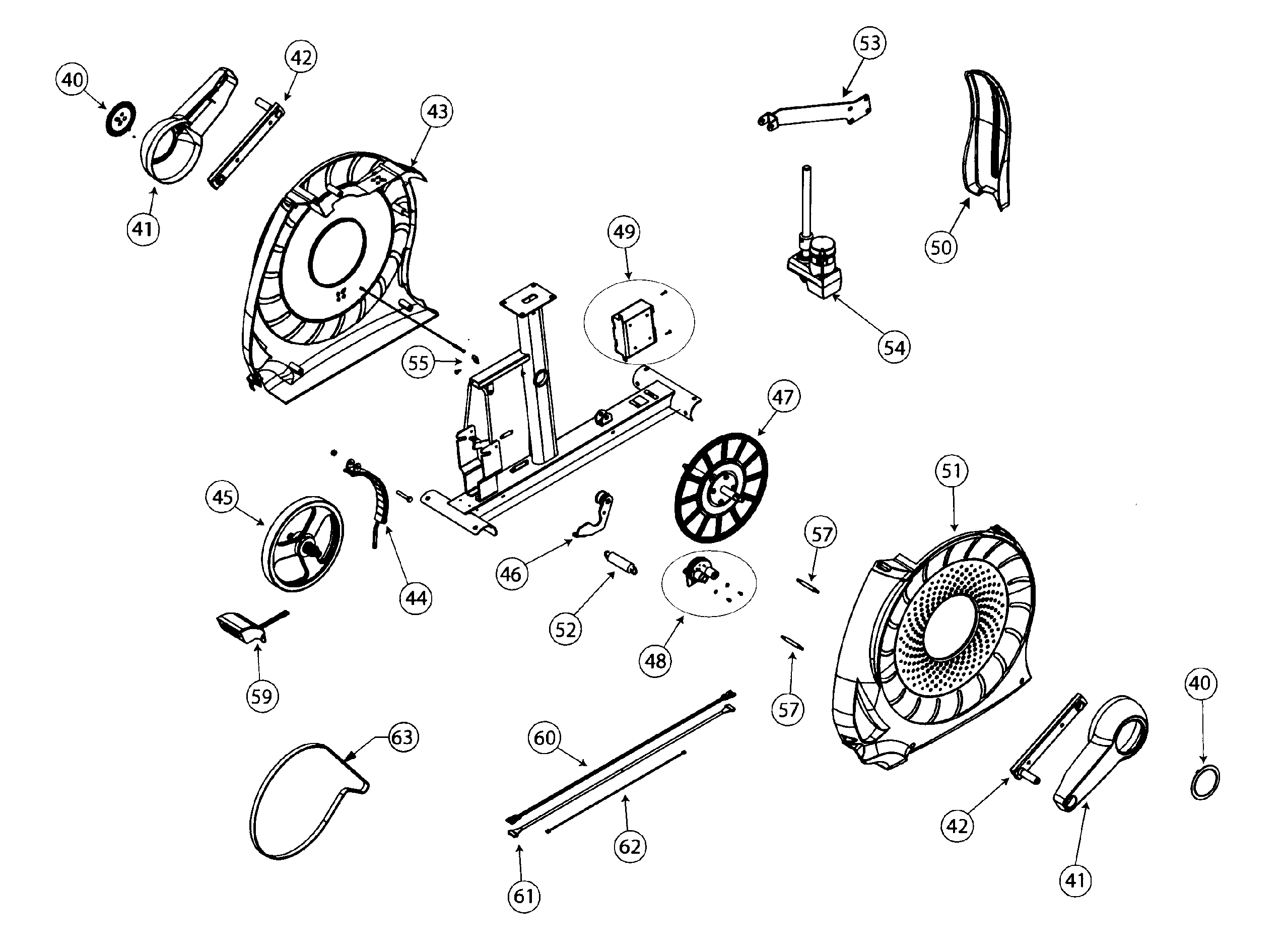

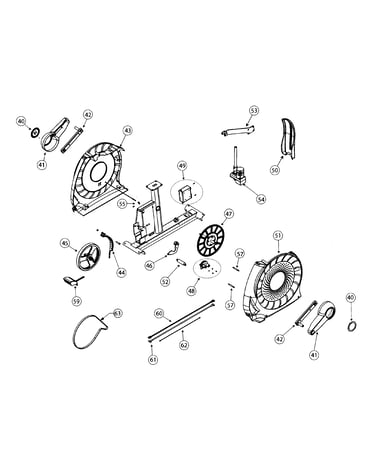

Wheel assy diagram

Lift cover

Part #8002626

The manufacturer no longer makes this part, and there's no substitute part

Eddy Brake 8002344
#44

Wheel assy diagram

Eddy brake

Part #8002344

The manufacturer no longer makes this part, and there's no substitute part

Front Stabilizer 8001036
#21

Frame assy diagram

Front stabilizer

Part #8001036

The manufacturer no longer makes this part, and there's no substitute part

Front Transport Wheel 8002327
#22

Frame assy diagram

Front transport wheel

Part #8002327

The manufacturer no longer makes this part, and there's no substitute part

Elliptical Bushing 8001100
#18

Frame assy diagram

Elliptical bushing

Part #8001100

The manufacturer no longer makes this part, and there's no substitute part

Crank Cover 8001125
#41

Wheel assy diagram

Crank cover

Part #8001125

The manufacturer no longer makes this part, and there's no substitute part
