Model # 200203192 Official Craftsman 2-cycle engine

Here are the diagrams and repair parts for Official Craftsman 200203192 2-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

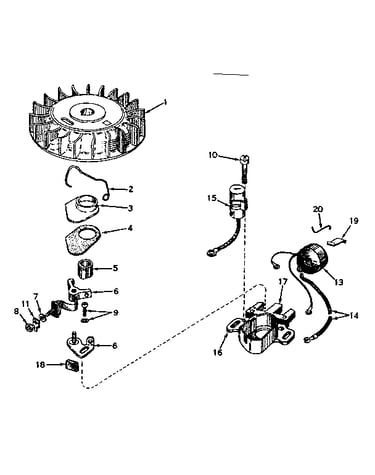

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |

Fuel Line 29774
#68

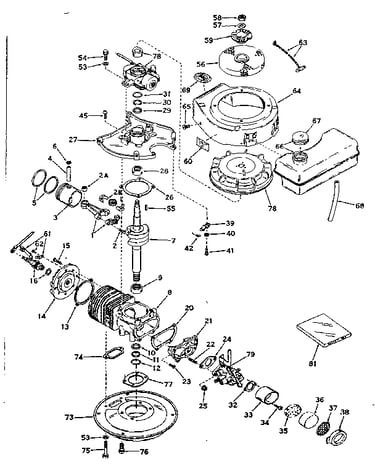

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Spring Retainer 630731
#2

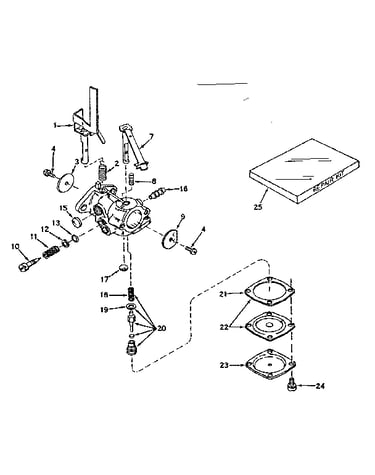

Carburetor diagram

Spring retainer

Part #630731

The manufacturer no longer makes this part, and there's no substitute part

Spark Plug 610795
#16

Basic engine diagram

Spark plug

Part #610795

The manufacturer no longer makes this part, and there's no substitute part

Cylndr Gskt 510262
#13

Basic engine diagram

Cylndr gskt

Part #510262

The manufacturer no longer makes this part, and there's no substitute part

Gasket 630750
#21

Carburetor diagram

Gasket

Part #630750

The manufacturer no longer makes this part, and there's no substitute part

Piston 310230
#3

Basic engine diagram

Piston

Part #310230

The manufacturer no longer makes this part, and there's no substitute part

Seat/gskt 630932
#20

Carburetor diagram

Seat/gskt

Part #630932

The manufacturer no longer makes this part, and there's no substitute part

Pistn Rng St 310190
#5

Basic engine diagram

Pistn rng st

Part #310190

The manufacturer no longer makes this part, and there's no substitute part

Gasket 630742
#19

Carburetor diagram

Gasket

Part #630742

The manufacturer no longer makes this part, and there's no substitute part

Tank Assembly 410232
#66

Basic engine diagram

Tank assembly

Part #410232

The manufacturer no longer makes this part, and there's no substitute part
