Model # 563305801 Official Craftsman battery-powered standby sump pump

Here are the diagrams and repair parts for Official Craftsman 563305801 battery-powered standby sump pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 25 parts |

#16

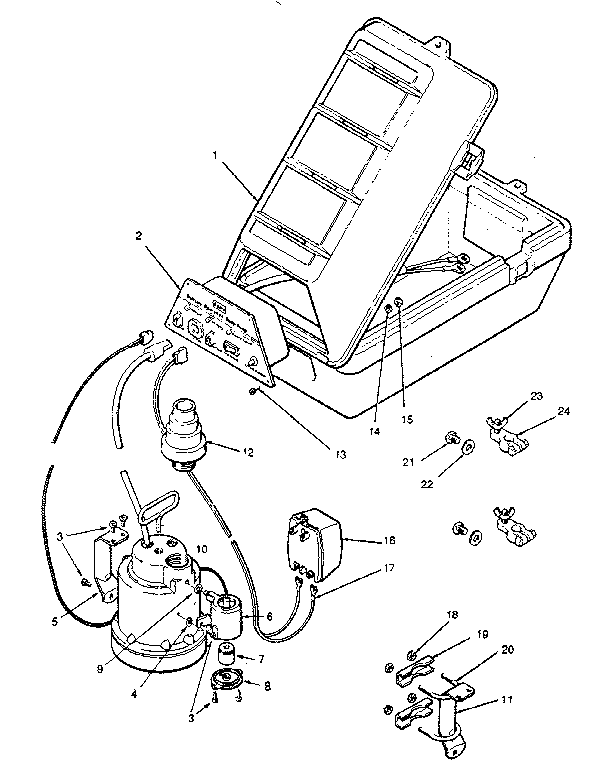

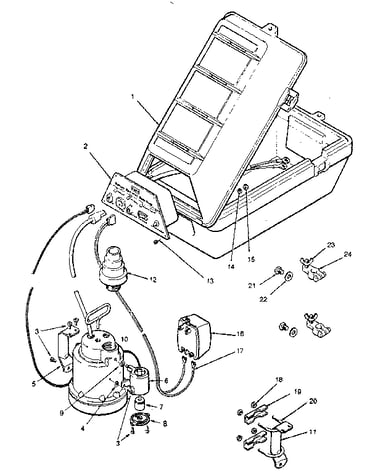

Functional replacement parts diagram

Pump transformer

Part #SK816

The manufacturer no longer makes this part, and there's no substitute part

#22

Functional replacement parts diagram

Flat washer

Part #STD551037

The manufacturer no longer makes this part, and there's no substitute part

Functional replacement parts diagram

Control housing

Part #SK826

The manufacturer no longer makes this part, and there's no substitute part

Functional replacement parts diagram

Float

Part #SK805

The manufacturer no longer makes this part, and there's no substitute part

Functional replacement parts diagram

Control unit

Part #SK802

The manufacturer no longer makes this part, and there's no substitute part

#14

Functional replacement parts diagram

Washer

Part #SK815

The manufacturer no longer makes this part, and there's no substitute part

#18

Functional replacement parts diagram

Nut

Part #STD541025

The manufacturer no longer makes this part, and there's no substitute part

Functional replacement parts diagram

Battery box

Part #SK801

The manufacturer no longer makes this part, and there's no substitute part

Functional replacement parts diagram

O-ring

Part #SK825

The manufacturer no longer makes this part, and there's no substitute part

#17

Functional replacement parts diagram

Cord

Part #SK817

The manufacturer no longer makes this part, and there's no substitute part
