Model # MAV4757AWW Official Maytag washer

Here are the diagrams and repair parts for Official Maytag MAV4757AWW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

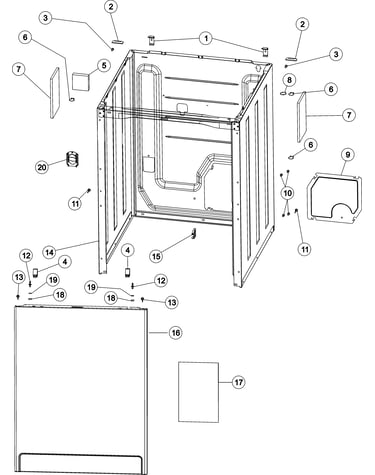

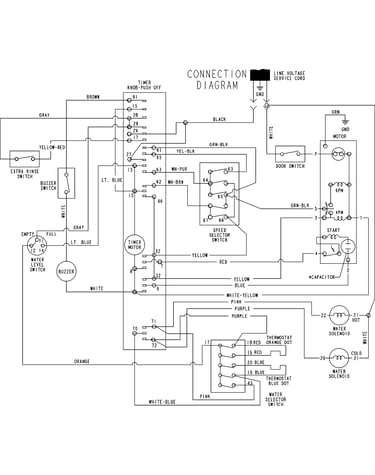

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |

Clamp, Pressure Switch Hose 25-7796
#1

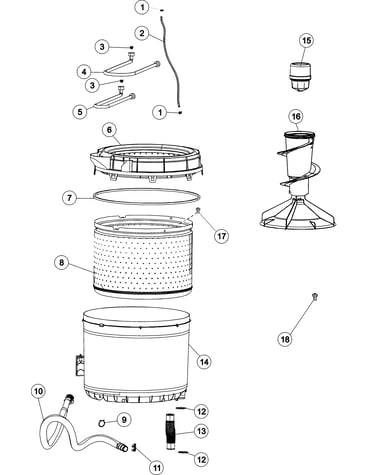

Inner - outer tub diagram

Clamp, pressure switch hose

Part #25-7796

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 25-7796. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Pump 21001873
#19

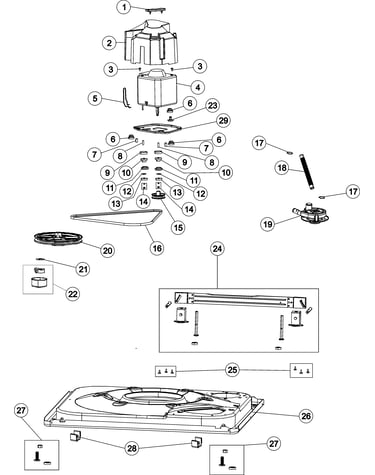

Base & motor diagram

Pump

Part #21001873

Replaced by #WP35-6780

?
Manufacturer substitution
This part replaces 21001873. Substitute parts can look different from the original.
BEST SELLER
$105.65
10% OFF Phone Price : $117.65
In Stock
Washer Drive Belt 21352320
#16

Base & motor diagram

Washer drive belt

Part #21352320

Replaced by #WP21352320

?
Manufacturer substitution
This part replaces 21352320. Substitute parts can look different from the original.
BEST SELLER
$15.14
12% OFF Phone Price : $17.14
In Stock
Washer Pulley And Thrust Bearing Kit (replaces 12001797, 12500036, 22004258, 22004259, La-2007) 12002213
Washer pulley and thrust bearing kit (replaces 12001797, 12500036, 22004258, 22004259, la-2007)

Part #12002213

BEST SELLER
$41.09
13% OFF Phone Price : $47.09
In Stock
Washer Drive Motor 21001950
#4

Base & motor diagram

Washer drive motor

Part #21001950

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 21001950. Substitute parts can look different from the original.
BEST SELLER
$125.20
9% OFF Phone Price : $137.20
In Stock
Pulley 22004297
#15

Base & motor diagram

Pulley

Part #22004297

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 22004297. Substitute parts can look different from the original.
BEST SELLER
$125.20
9% OFF Phone Price : $137.20
In Stock
Pulley, Driv 21001733
#20

Base & motor diagram

Pulley, driv

Part #21001733

Replaced by #12002213

?
Manufacturer substitution
This part replaces 21001733. Substitute parts can look different from the original.
BEST SELLER
$41.09
13% OFF Phone Price : $47.09
In Stock
Washer Lid Hinge Pin 35-2045
#40

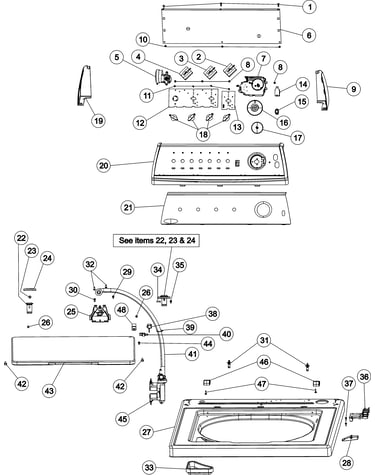

Control panel & top diagram

Washer lid hinge pin

Part #35-2045

Replaced by #WP35-2045

?
Manufacturer substitution
This part replaces 35-2045. Substitute parts can look different from the original.
$13.99
13% OFF Phone Price : $15.99
In Stock
Seal Hub 21001868
#3

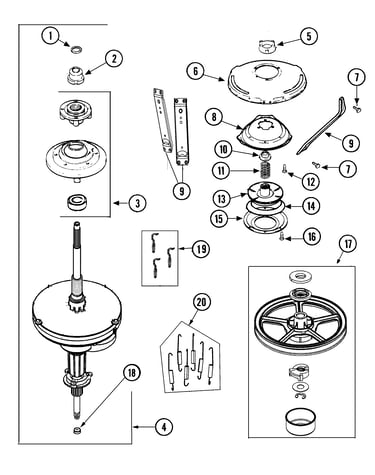

Transmission diagram

Seal hub

Part #21001868

Replaced by #W10219156

?
Manufacturer substitution
This part replaces 21001868. Substitute parts can look different from the original.
$153.01
7% OFF Phone Price : $165.01
In Stock
Spring Kit 21002065
#20

Transmission diagram

Spring kit

Part #21002065

The manufacturer no longer makes this part, and there's no substitute part
