Koehring
Space Heater

Model # K350A Official Koehring high-pressure heater

Here are the diagrams and repair parts for Official Koehring K350A high-pressure heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

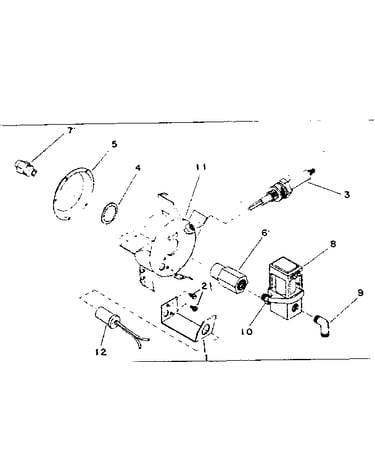

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Nut Hex NTC-4C
#33

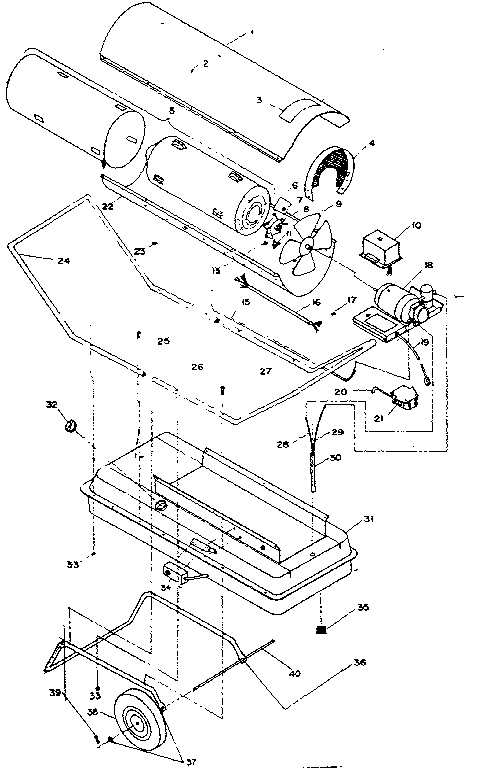

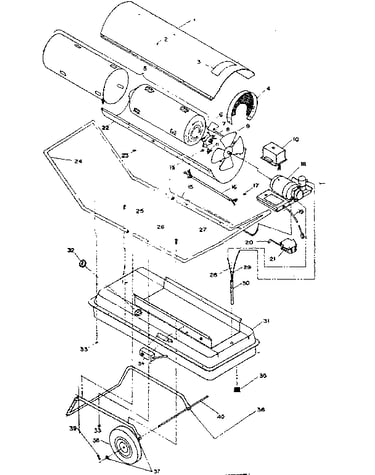

Heater assembly diagram

Nut hex

Part #NTC-4C

The manufacturer no longer makes this part, and there's no substitute part

Fan Switch M31301-02
#11

Heater assembly diagram

Fan switch

Part #M31301-02

The manufacturer no longer makes this part, and there's no substitute part

Wheel Spacer M50296

#NI

All parts diagram

Wheel spacer

Part #M50296

The manufacturer no longer makes this part, and there's no substitute part

Washer, Flat 5/8 WP-10C
#37

Heater assembly diagram

Washer, flat 5/8

Part #WP-10C

The manufacturer no longer makes this part, and there's no substitute part

.fuel Line (input) M50118-03
#29

Heater assembly diagram

.fuel line (input)

Part #M50118-03

The manufacturer no longer makes this part, and there's no substitute part

Washer, Lock 5/16 WLM-5
#18

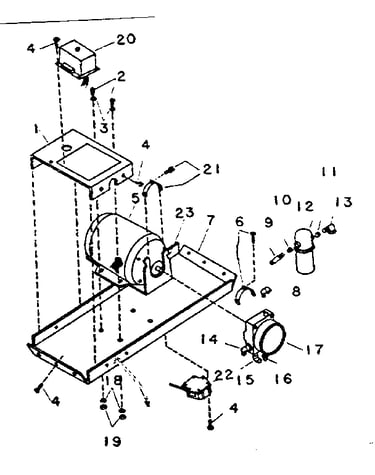

Motor and pump assembly diagram

Washer, lock 5/16

Part #WLM-5

The manufacturer no longer makes this part, and there's no substitute part

Upper Shell M50060AZ
#1

Heater assembly diagram

Upper shell

Part #M50060AZ

The manufacturer no longer makes this part, and there's no substitute part

Decal-operation Instruction M50623

#NI

All parts diagram

Decal-operation instruction

Part #M50623

The manufacturer no longer makes this part, and there's no substitute part

Boot Ignition M50050
#20

Heater assembly diagram

Boot ignition

Part #M50050

The manufacturer no longer makes this part, and there's no substitute part

Drain Plug M27417
#35

Heater assembly diagram

Drain plug

Part #M27417

The manufacturer no longer makes this part, and there's no substitute part
