Model # KV-27FS320 Official Sony television

Here are the diagrams and repair parts for Official Sony KV-27FS320 television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
22k 1/16w J 121683711
#NI

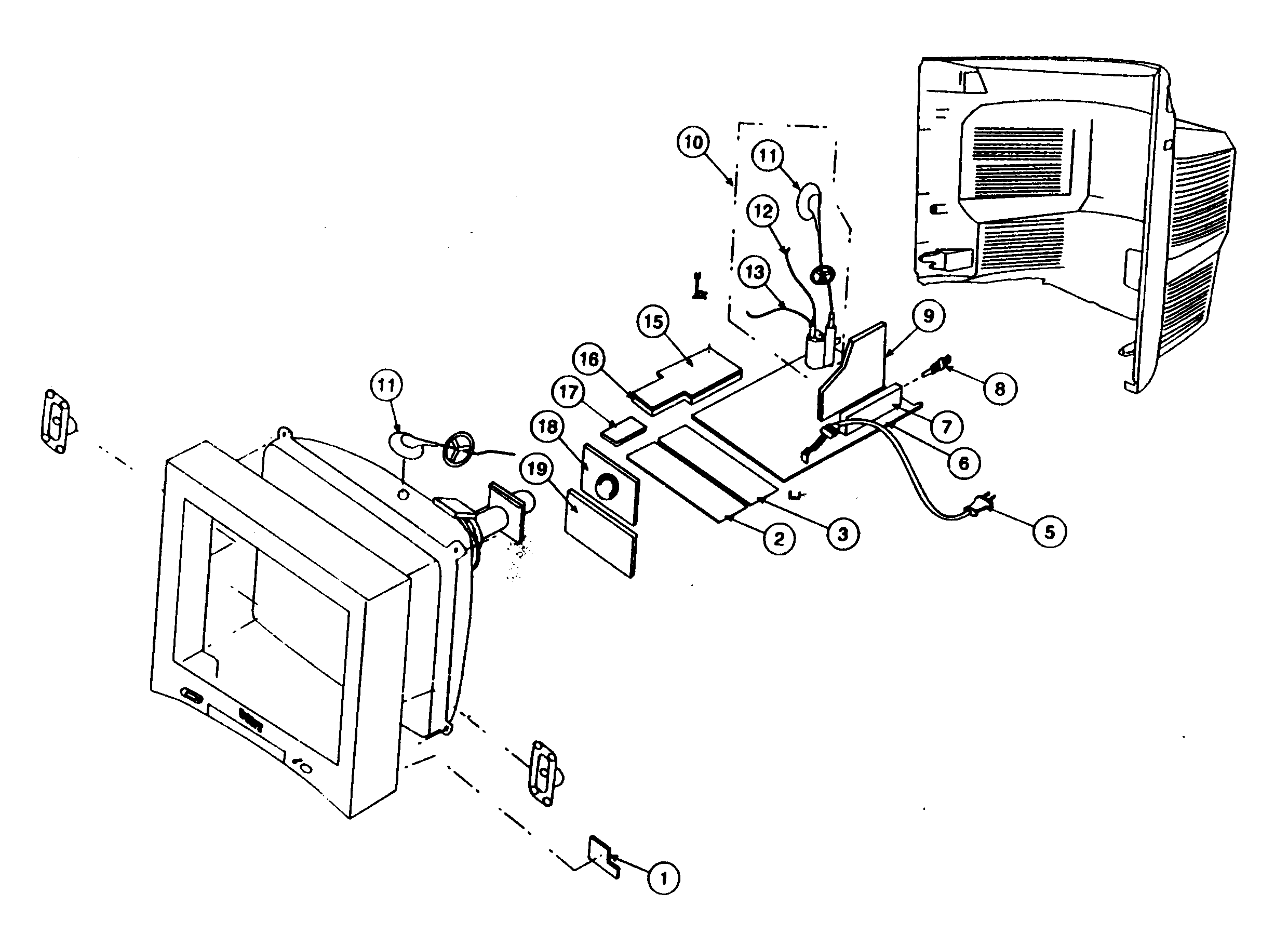

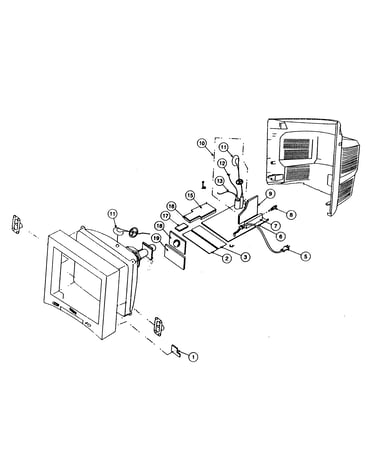

Cabinet parts 1 diagram

22k 1/16w j

Part #121683711

This item is not returnable
$3.62
In Stock
Yoke 845149441
#43

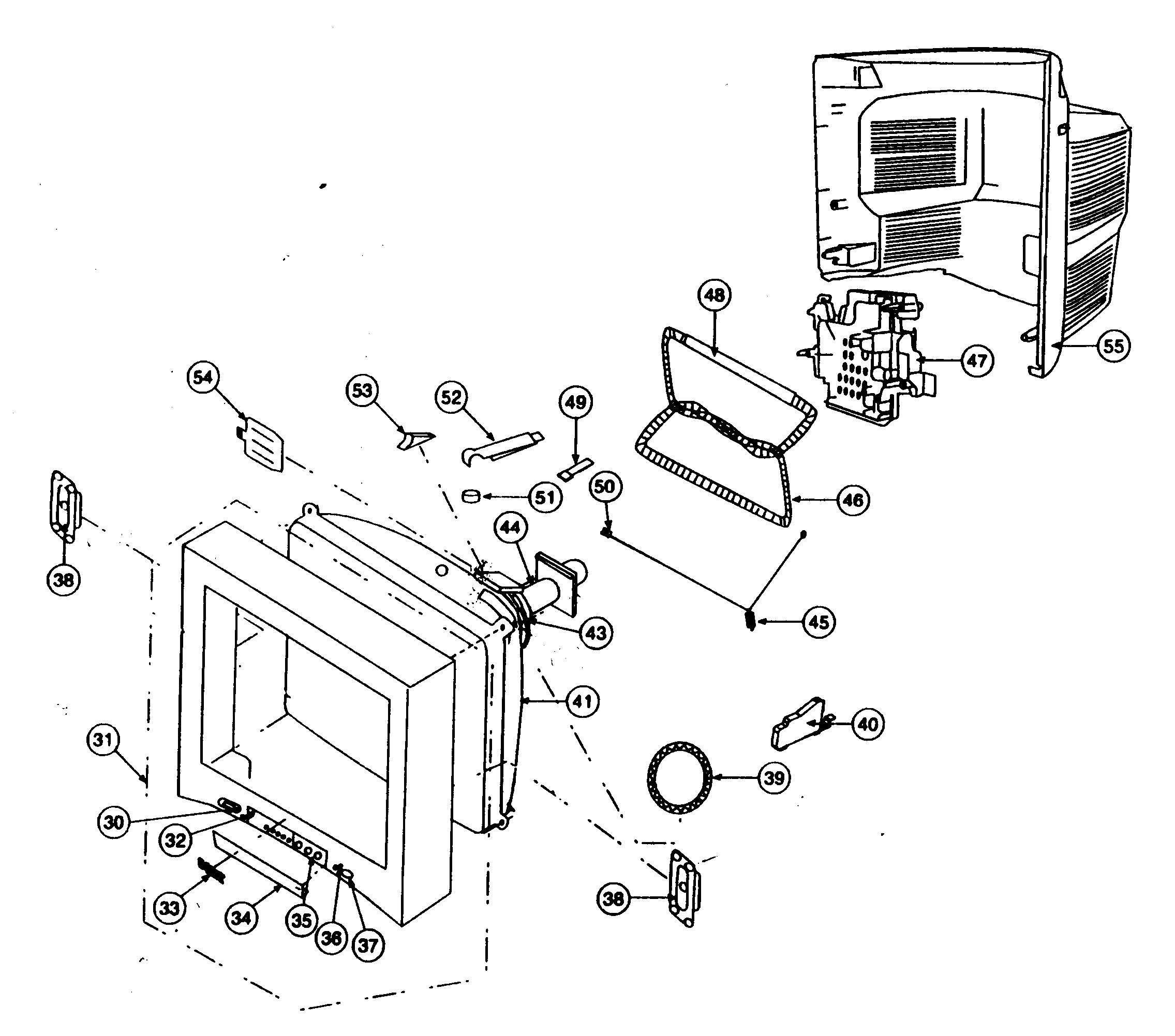

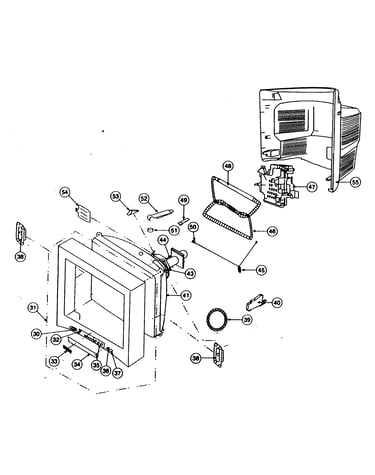

Cabinet parts 2 diagram

Yoke

Part #845149441

The manufacturer no longer makes this part, and there's no substitute part

Resistor 121886911
#NI

Cabinet parts 1 diagram

Resistor

Part #121886911

The manufacturer no longer makes this part, and there's no substitute part

2sc2463e 872942227
#NI

Cabinet parts 1 diagram

2sc2463e

Part #872942227

The manufacturer no longer makes this part, and there's no substitute part

Television Integrated Circuit Chip 670581001
#NI

Cabinet parts 1 diagram

Television integrated circuit chip

Part #670581001

The manufacturer no longer makes this part, and there's no substitute part

Transformer 143586911
#NI

Cabinet parts 1 diagram

Transformer

Part #143586911

The manufacturer no longer makes this part, and there's no substitute part

Clip 406297012
#52

Cabinet parts 2 diagram

Clip

Part #406297012

Replaced by #406297012

?
Manufacturer substitution
This part replaces 406297012. Substitute parts can look different from the original.
This item is not returnable
$2.57
In Stock
Flyback Transformer 145331011
#10

Cabinet parts 1 diagram

Flyback transformer

Part #145331011

The manufacturer no longer makes this part, and there's no substitute part

Resistor 124938511
#NI

Cabinet parts 1 diagram

Resistor

Part #124938511

The manufacturer no longer makes this part, and there's no substitute part

Eliz Diode 871930243
#NI

Cabinet parts 1 diagram

Eliz diode

Part #871930243

Replaced by #46-86507-3

?
Manufacturer substitution
This part replaces 871930243. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
