Jenn-Air
Wall Oven/Microwave Combo

Model # JMW8130DAB Official Jenn-Air wall oven

Here are the diagrams and repair parts for Official Jenn-Air JMW8130DAB wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

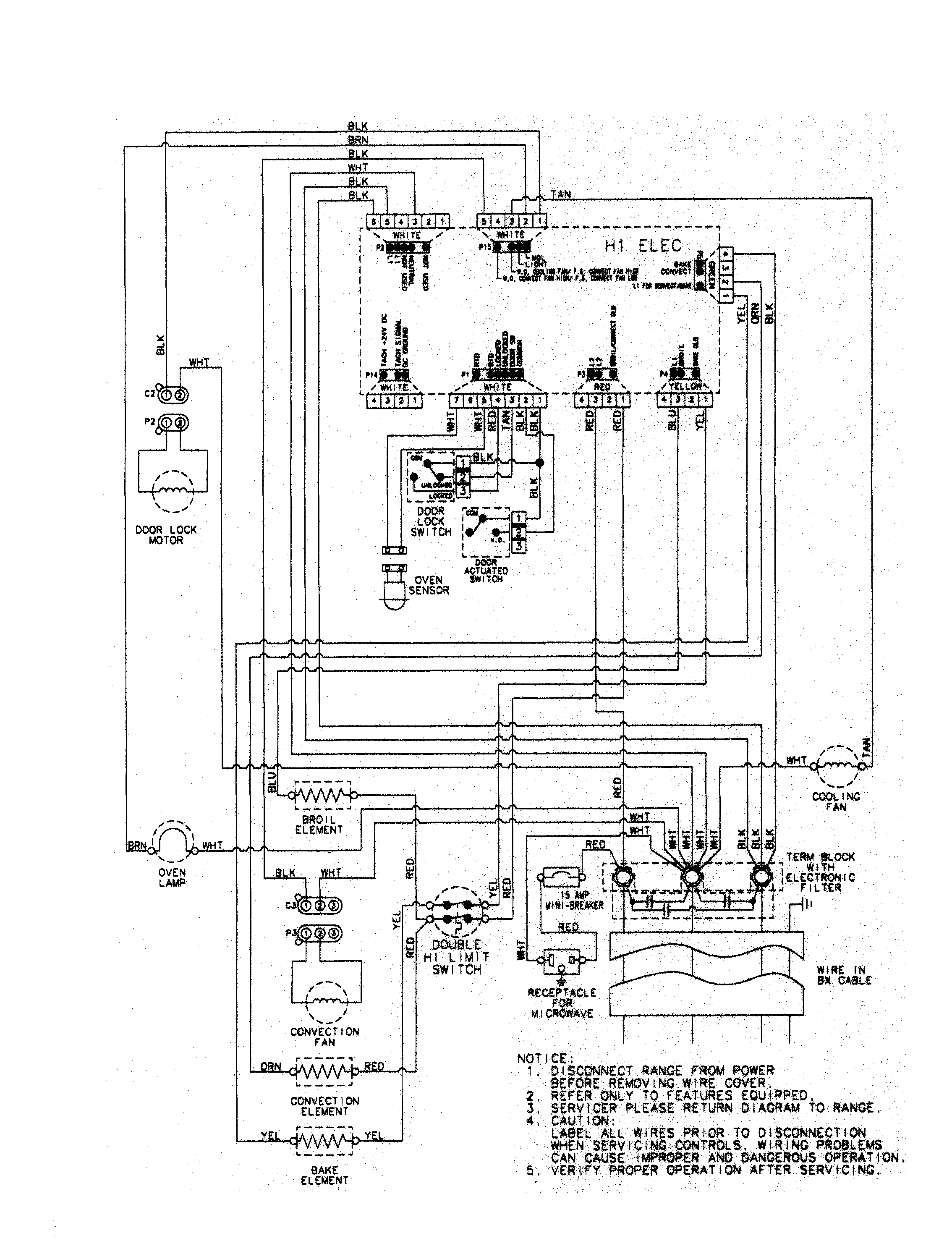

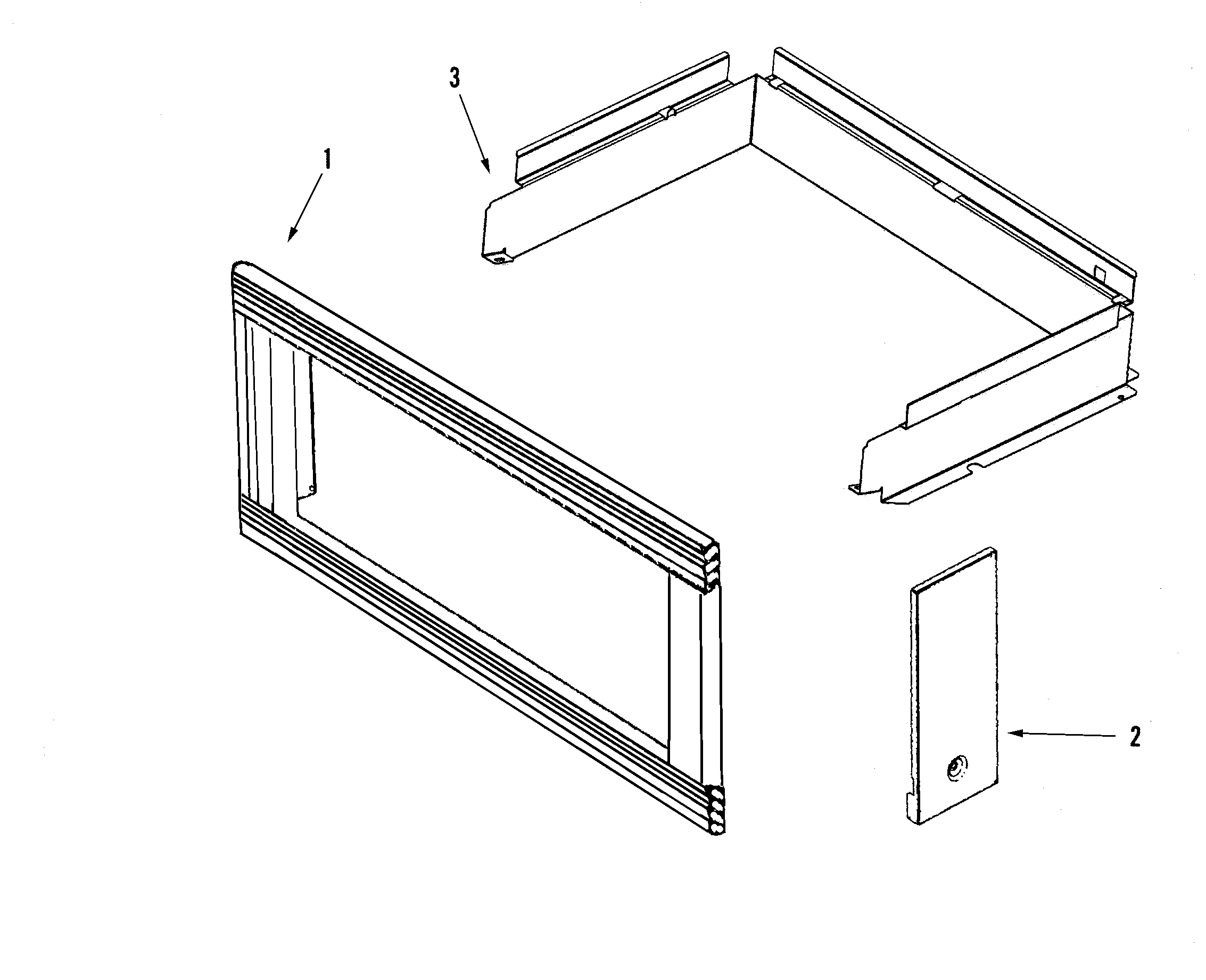

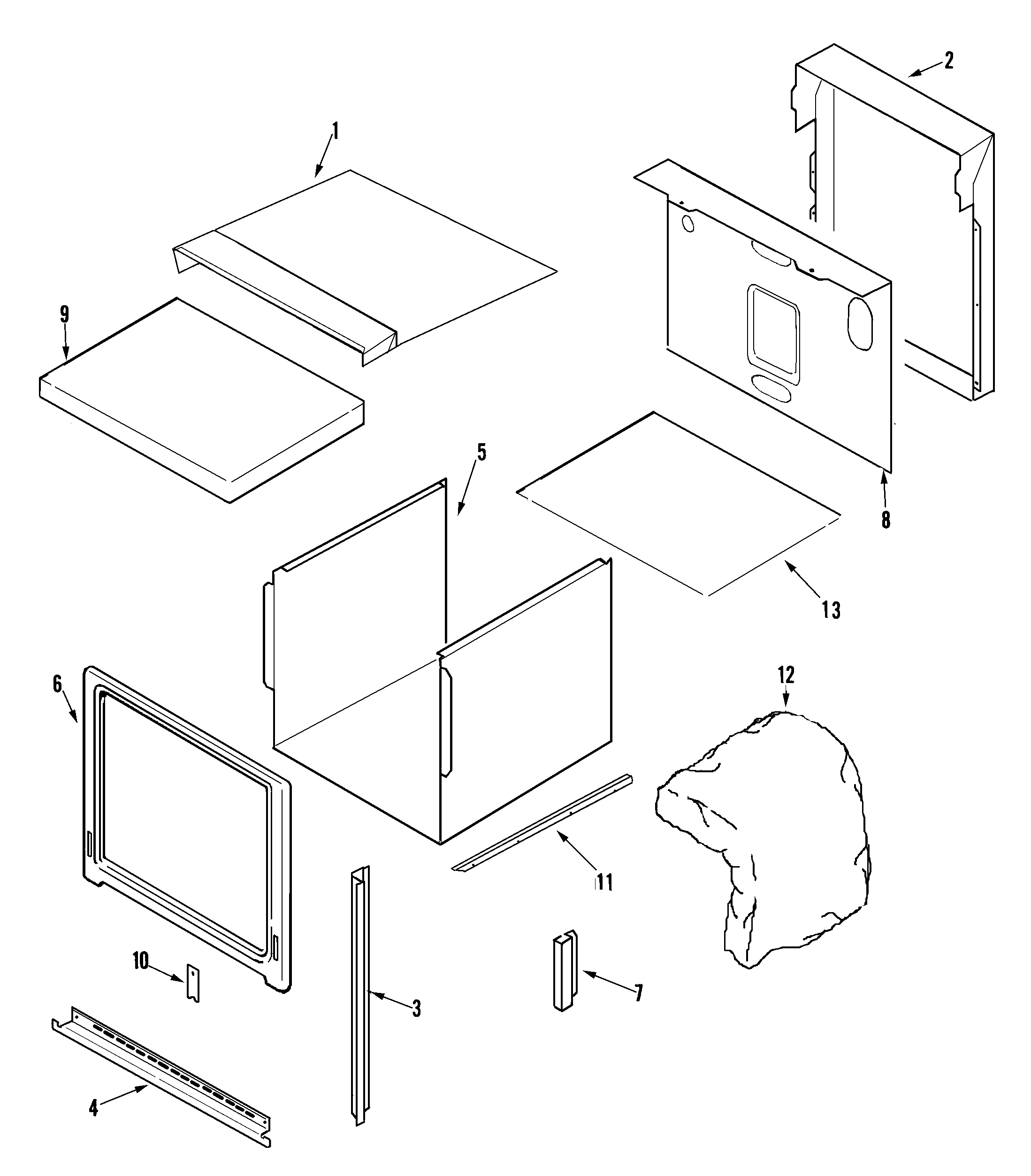

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Oven Bulb 7407P103-60
#11

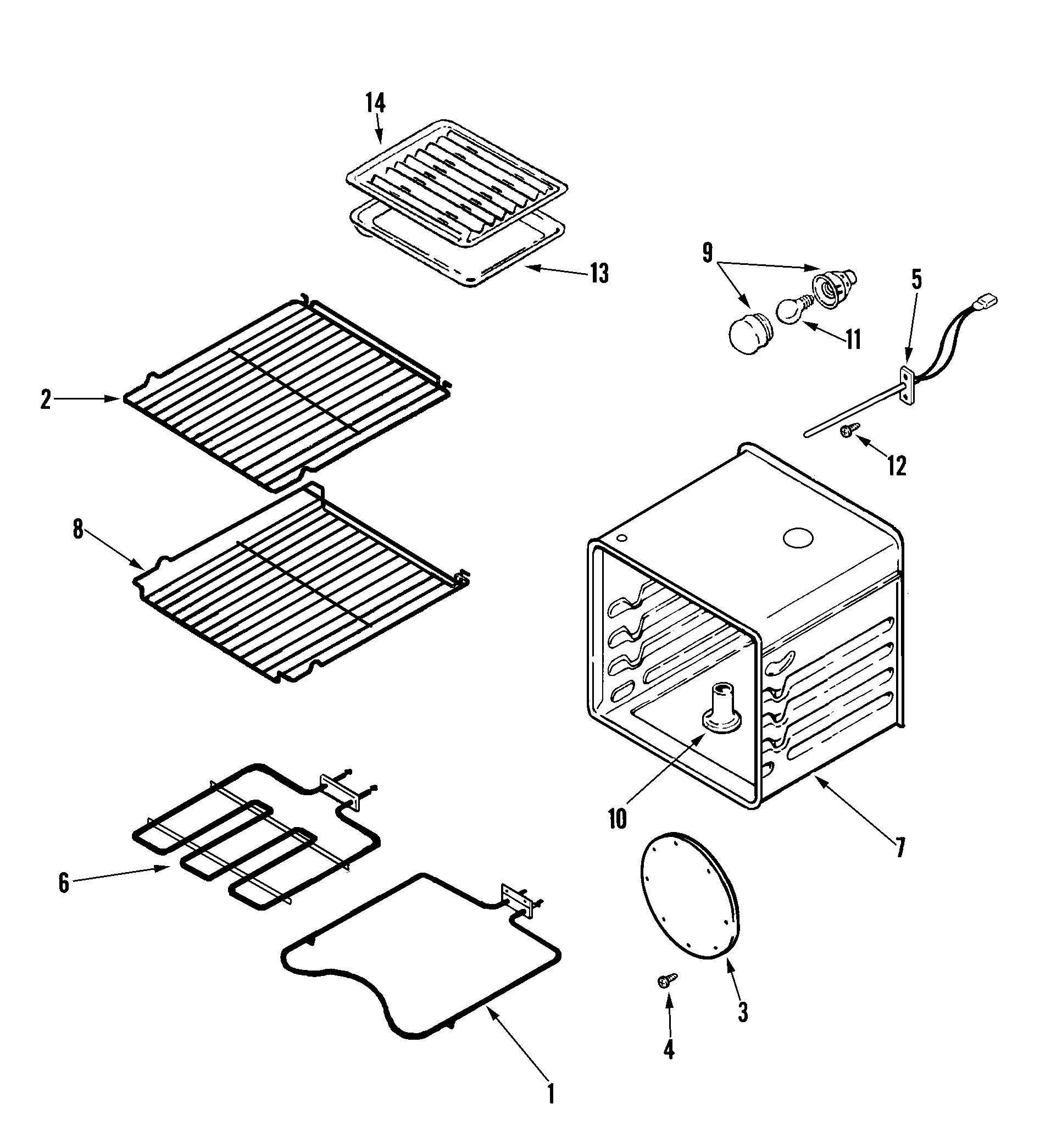

Oven diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Oven Sensor 74004943
#5

Oven diagram

Oven sensor

Part #74004943

Replaced by #12001656

?
Manufacturer substitution
This part replaces 74004943. Substitute parts can look different from the original.
BEST SELLER
$37.39 |
12% OFF Phone Price : $42.39
In Stock
Terminal Block 7401P039-60
#12

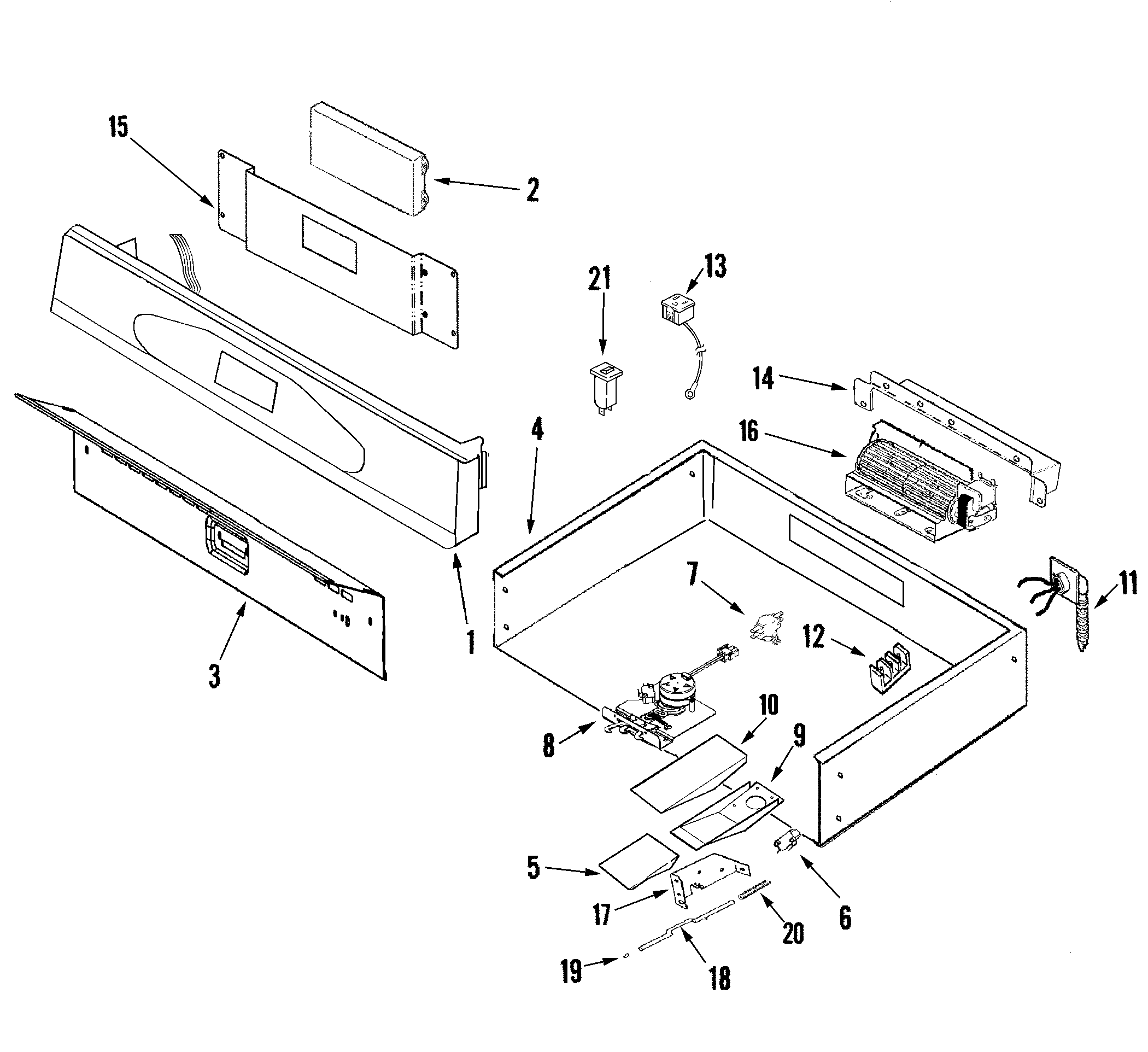

Control panel and internal controls diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
13% OFF Phone Price : $39.10
In Stock
Bake Element 71001638
#1

Oven diagram

Bake element

Part #71001638

Replaced by #WPW10310258

?
Manufacturer substitution
This part replaces 71001638. Substitute parts can look different from the original.
$82.70 |
10% OFF MSRP : $92.00
In Stock
Broiler Element 74004812
#6

Oven diagram

Broiler element

Part #74004812

Replaced by #WPW10310260

?
Manufacturer substitution
This part replaces 74004812. Substitute parts can look different from the original.
$92.97 |
15% OFF MSRP : $110.00
In Stock
Wall Oven Safety Thermostat 74008265
#7

Control panel and internal controls diagram

Wall oven safety thermostat

Part #74008265

$84.89 |
6% OFF Phone Price : $89.89
In Stock
Wall Oven Door Seal 71001841
#6

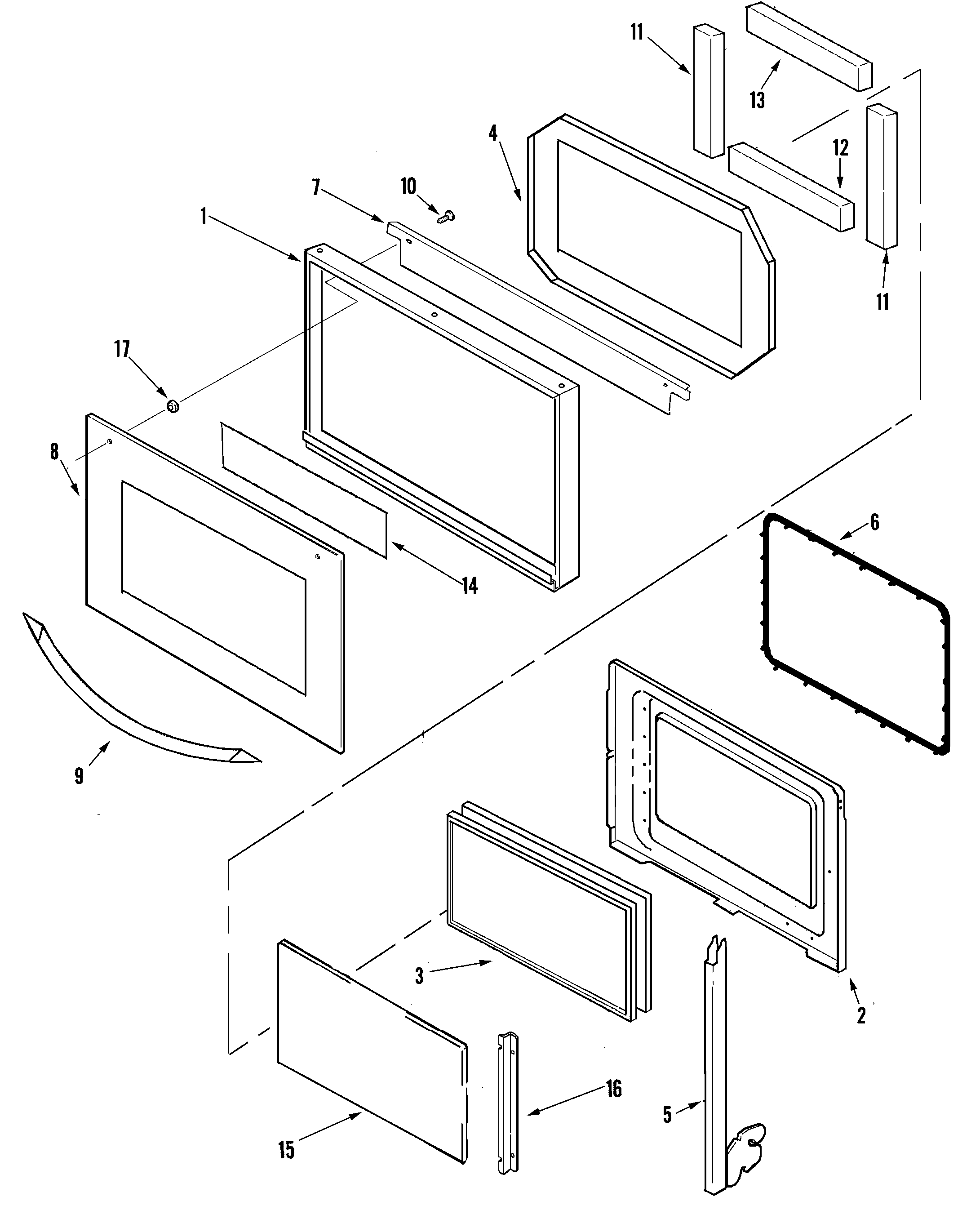

Door diagram

Wall oven door seal

Part #71001841

Replaced by #WP71001841

?
Manufacturer substitution
This part replaces 71001841. Substitute parts can look different from the original.
$76.09 |
6% OFF Phone Price : $81.09
In Stock
Terminal Nut 7103P027-60
#12A

Control panel and internal controls diagram

Terminal nut

Part #7103P027-60

Replaced by #WP7103P027-60

?
Manufacturer substitution
This part replaces 7103P027-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw (#10 X 74004069
#7A

Door diagram

Screw (#10 x

Part #74004069

Replaced by #WP999367

?
Manufacturer substitution
This part replaces 74004069. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 706189
Screw

Part #706189

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 706189. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
