Craftsman
Electric Walk-Behind Mower

Model # 13837097 Official Craftsman electric lawn mower

Here are the diagrams and repair parts for Official Craftsman 13837097 electric lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

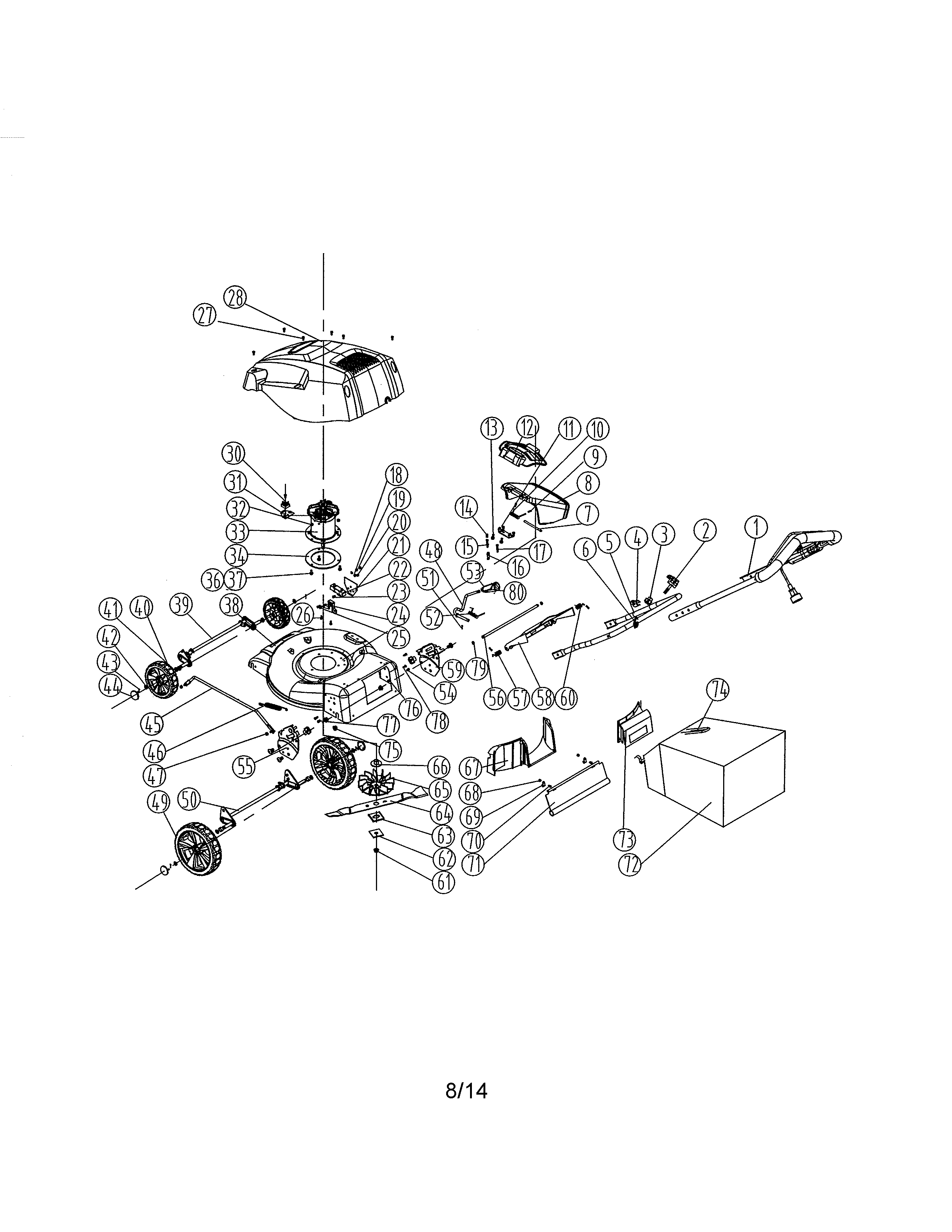

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |

Cable Holder 3410403
#14

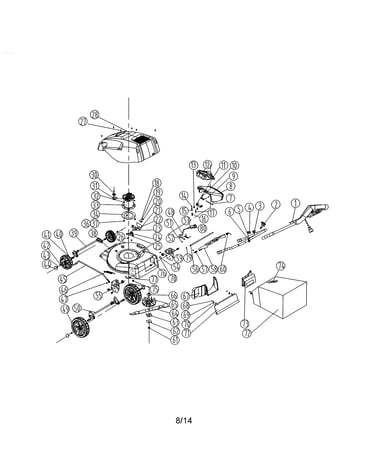

Lawn mower diagram

Cable holder

Part #3410403

The manufacturer no longer makes this part, and there's no substitute part

Lower Handle 33301489-1
#5

Lawn mower diagram

Lower handle

Part #33301489-1

The manufacturer no longer makes this part, and there's no substitute part

Wire Clip (2) 33305227-1
#69

Lawn mower diagram

Wire clip (2)

Part #33305227-1

The manufacturer no longer makes this part, and there's no substitute part

Radiator Rectifier 3331035
#31

Lawn mower diagram

Radiator rectifier

Part #3331035

The manufacturer no longer makes this part, and there's no substitute part

Rear Baffle 34106236-1
#67

Lawn mower diagram

Rear baffle

Part #34106236-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 3220511D
#70

Lawn mower diagram

Screw

Part #3220511D

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Washer 3220898
#42

Lawn mower diagram

Lawn mower washer

Part #3220898

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Electric Motor Fan 3410237
#65

Lawn mower diagram

Lawn mower electric motor fan

Part #3410237

The manufacturer no longer makes this part, and there's no substitute part

Rear Whl Ax 31102222
#50

Lawn mower diagram

Rear whl ax

Part #31102222

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Knob 34106467
#3

Lawn mower diagram

Lawn mower knob

Part #34106467

The manufacturer no longer makes this part, and there's no substitute part
