Craftsman
Reciprocating Saw

Model # 315171020 Official Craftsman reciprocating saw

Here are the diagrams and repair parts for Official Craftsman 315171020 reciprocating saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Reciprocating Saw Blade Clamp Cap Screw 940021-008
#3

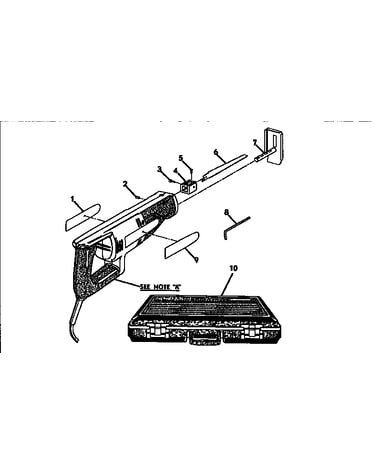

Base assembly diagram

Reciprocating saw blade clamp cap screw

Part #940021-008

The manufacturer no longer makes this part, and there's no substitute part

Gear Trn Asm 999348-001
#48

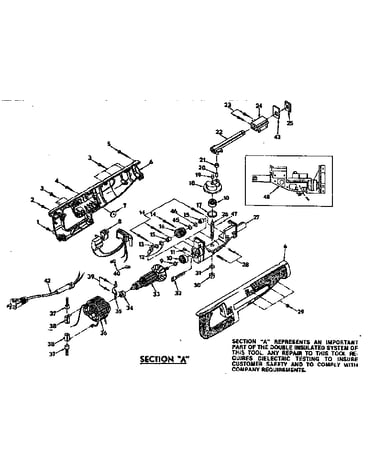

Unit parts diagram

Gear trn asm

Part #999348-001

The manufacturer no longer makes this part, and there's no substitute part

Needle Bearing 612801-005
#15

Unit parts diagram

Needle bearing

Part #612801-005

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 622167-067
#17

Unit parts diagram

Retaining ring

Part #622167-067

The manufacturer no longer makes this part, and there's no substitute part

Felt Wick 999297-001
#25

Unit parts diagram

Felt wick

Part #999297-001

The manufacturer no longer makes this part, and there's no substitute part

Reciprocating Saw Base Assembly 998277-004
#7

Base assembly diagram

Reciprocating saw base assembly

Part #998277-004

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 999708-001
#9

Base assembly diagram

Data plate

Part #999708-001

The manufacturer no longer makes this part, and there's no substitute part

Cord 999507-001
#42

Unit parts diagram

Cord

Part #999507-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 990705-020
#5

Unit parts diagram

Screw

Part #990705-020

The manufacturer no longer makes this part, and there's no substitute part

Screw 622786-003
#23

Unit parts diagram

Screw

Part #622786-003

The manufacturer no longer makes this part, and there's no substitute part
