Model # 7600-020 Official Robertshaw furnace air cleaner

Here are the diagrams and repair parts for Official Robertshaw 7600-020 furnace air cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |

Front Panel Door Assembly 76-022
#10

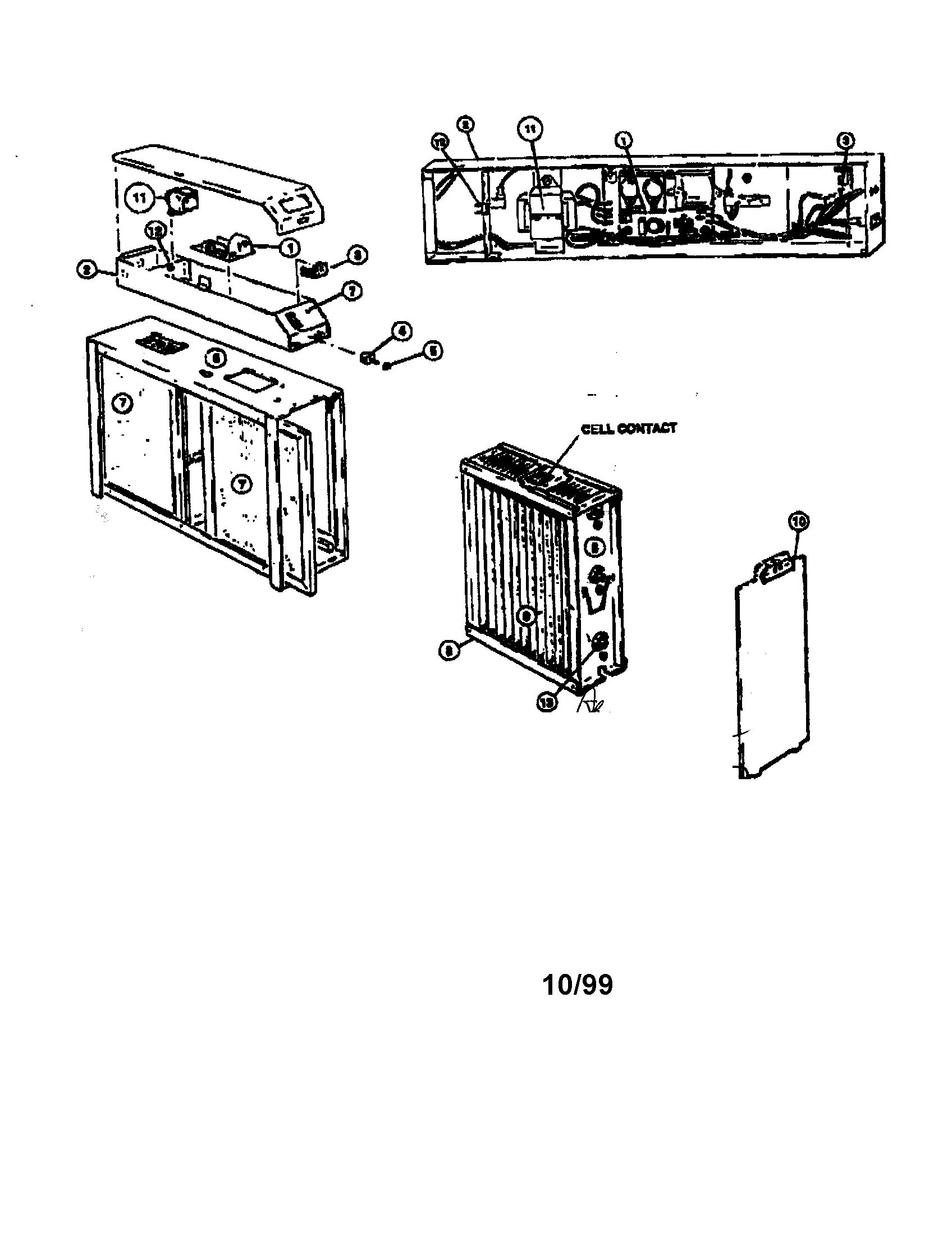

Electronic air cleaners diagram

Front panel door assembly

Part #76-022

The manufacturer no longer makes this part, and there's no substitute part

Air Flow Sensor 76-004
#3

Electronic air cleaners diagram

Air flow sensor

Part #76-004

The manufacturer no longer makes this part, and there's no substitute part

Charcoal Filter (optional-not Shown) 76-026
#10B

Electronic air cleaners diagram

Charcoal filter (optional-not shown)

Part #76-026

The manufacturer no longer makes this part, and there's no substitute part

Pre-filter 76-014
#7

Electronic air cleaners diagram

Pre-filter

Part #76-014

The manufacturer no longer makes this part, and there's no substitute part

Cell, Ionizing - Collecting 76-017
#8

Electronic air cleaners diagram

Cell, ionizing - collecting

Part #76-017

The manufacturer no longer makes this part, and there's no substitute part

Cell, Ionizing - Collecting 76-016
#8A

Electronic air cleaners diagram

Cell, ionizing - collecting

Part #76-016

The manufacturer no longer makes this part, and there's no substitute part

Charcoal Filter (optional, Not Shown 76-025
#10A

Electronic air cleaners diagram

Charcoal filter (optional, not shown

Part #76-025

The manufacturer no longer makes this part, and there's no substitute part

Ionizing Wire Assembly (1-wire) 76-019
#9A

Electronic air cleaners diagram

Ionizing wire assembly (1-wire)

Part #76-019

The manufacturer no longer makes this part, and there's no substitute part

Grounding Clip 76-028
#12

Electronic air cleaners diagram

Grounding clip

Part #76-028

The manufacturer no longer makes this part, and there's no substitute part

Safety Interlock Switch 76-010
#4

Electronic air cleaners diagram

Safety interlock switch

Part #76-010

The manufacturer no longer makes this part, and there's no substitute part
