Model # 973111290 Official Craftsman 3/8" cordless drill/driver

Here are the diagrams and repair parts for Official Craftsman 973111290 3/8" cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

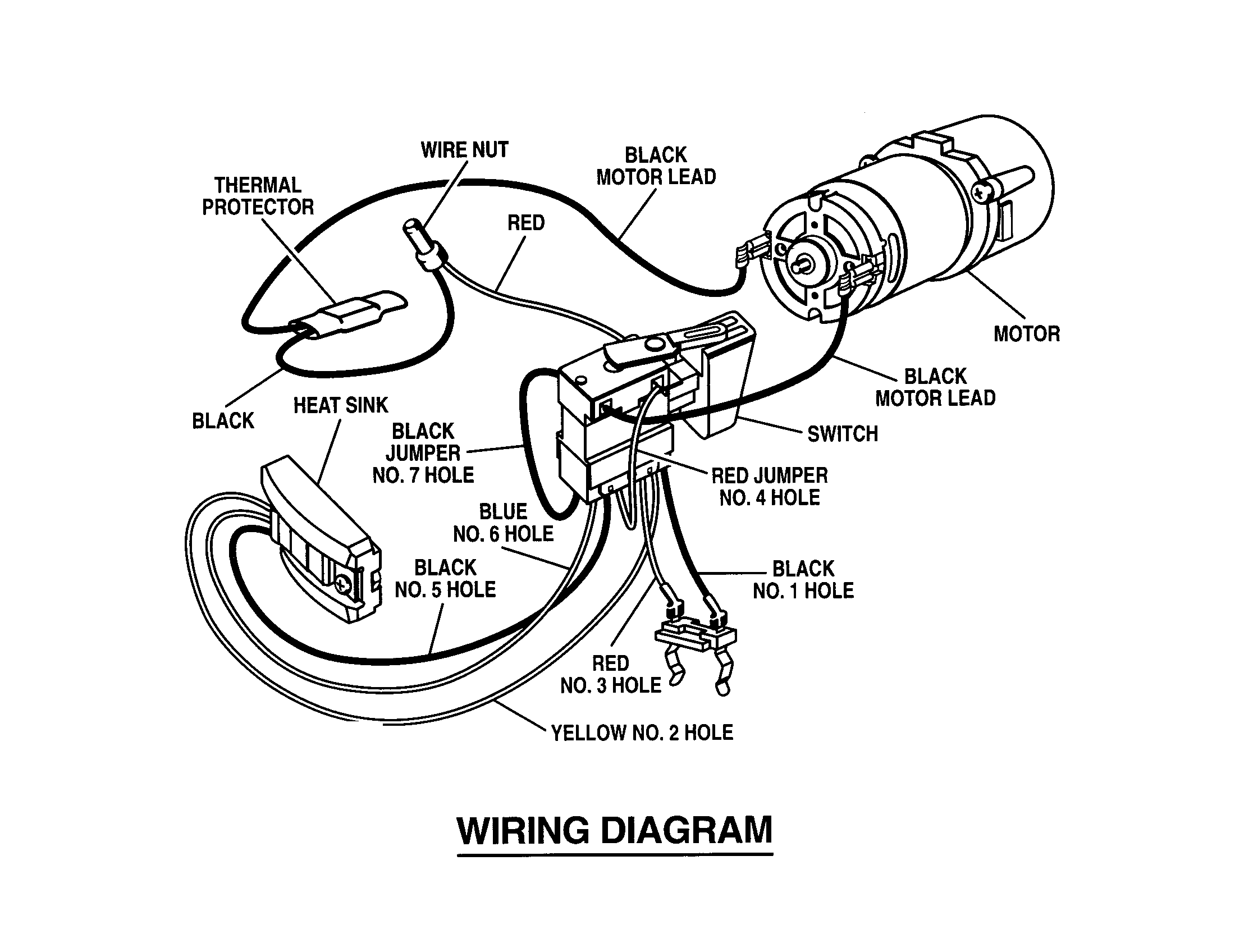

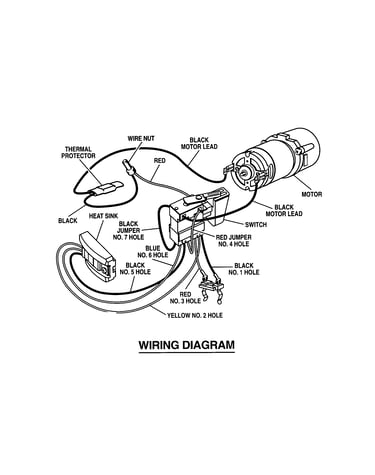

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Battery Pack 9-11013
#4

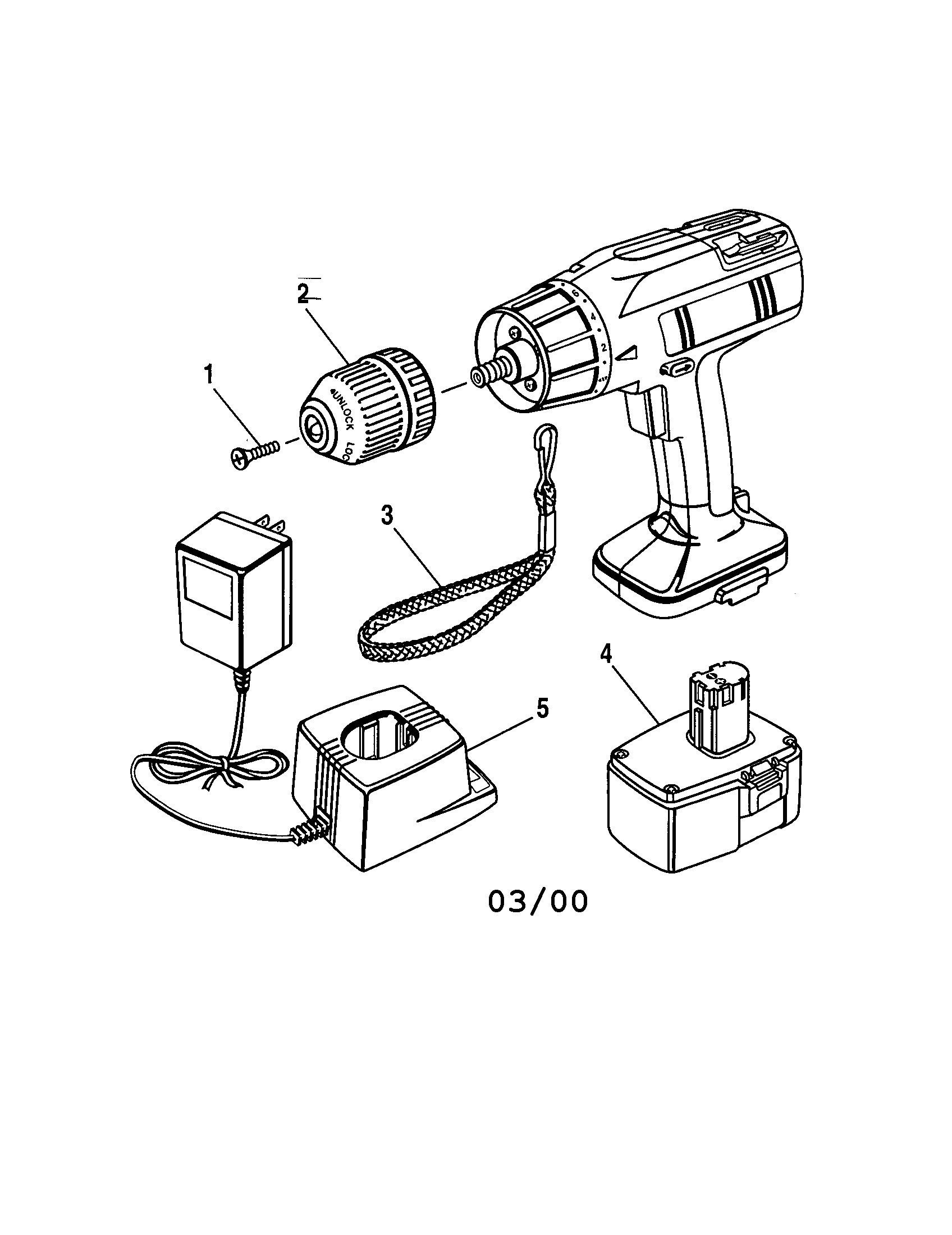

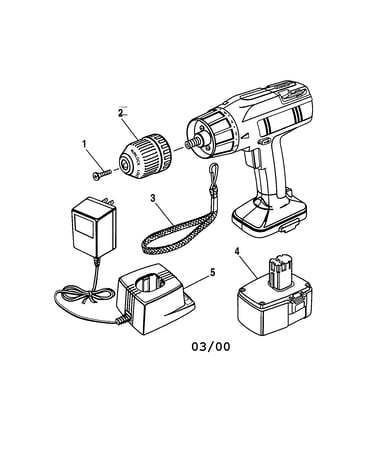

Drill diagram

Battery pack

Part #9-11013

The manufacturer no longer makes this part, and there's no substitute part

Clutch Washer 974356-000
#5

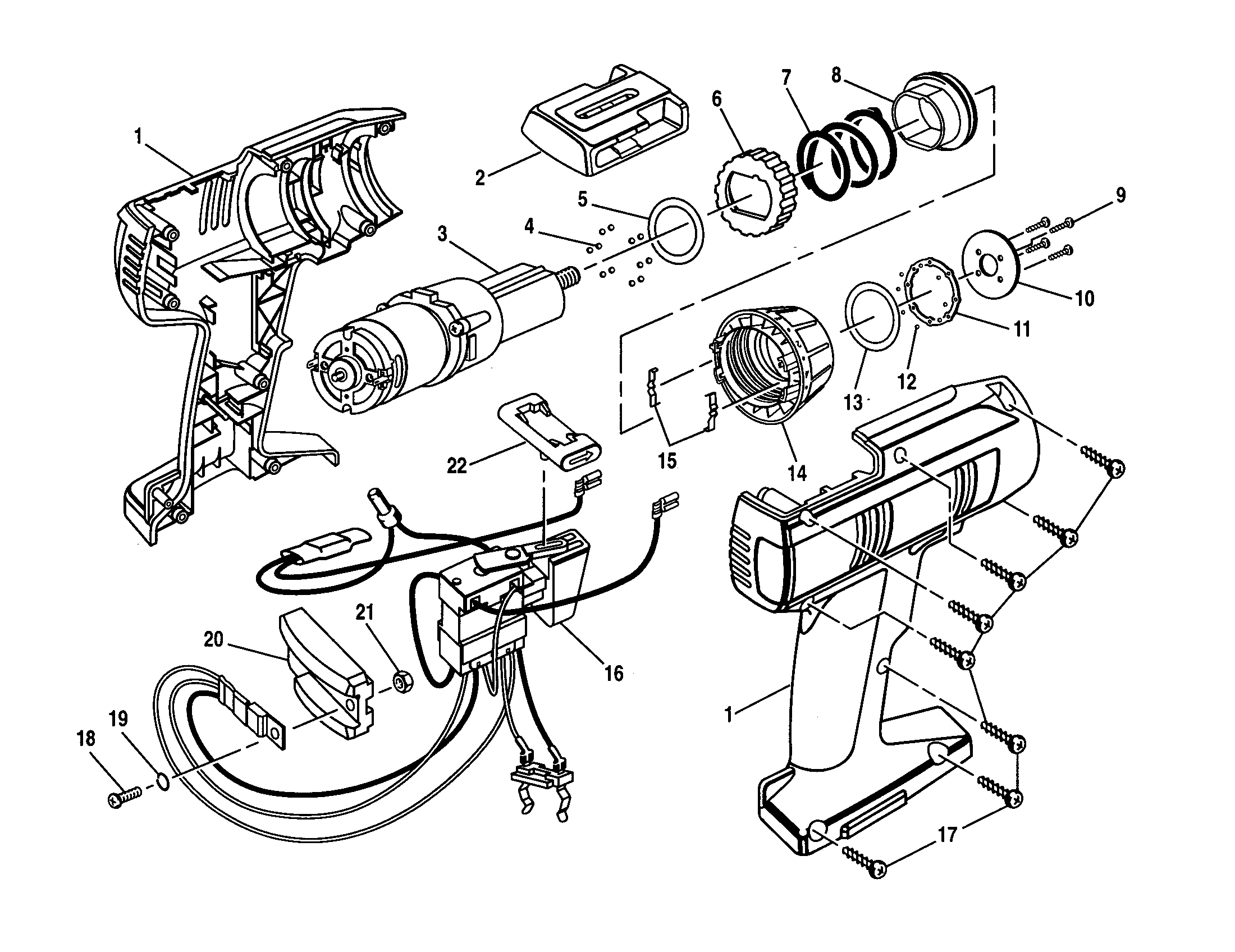

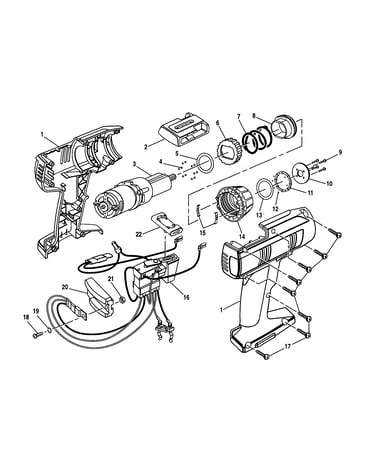

Housing assembly diagram

Clutch washer

Part #974356-000

The manufacturer no longer makes this part, and there's no substitute part

Switch 981592-000
#16

Housing assembly diagram

Switch

Part #981592-000

The manufacturer no longer makes this part, and there's no substitute part

Ring 974360-000
#6

Housing assembly diagram

Ring

Part #974360-000

The manufacturer no longer makes this part, and there's no substitute part

Cl Balls 974366-000
#12

Housing assembly diagram

Cl balls

Part #974366-000

The manufacturer no longer makes this part, and there's no substitute part

Actuator 974364-000
#22

Housing assembly diagram

Actuator

Part #974364-000

The manufacturer no longer makes this part, and there's no substitute part

Washer 974368-000
#13

Housing assembly diagram

Washer

Part #974368-000

The manufacturer no longer makes this part, and there's no substitute part

Heat Sink 977395-000
#20

Housing assembly diagram

Heat sink

Part #977395-000

The manufacturer no longer makes this part, and there's no substitute part

Cap 974359-000
#14

Housing assembly diagram

Cap

Part #974359-000

The manufacturer no longer makes this part, and there's no substitute part

Chuck 973094-001
#2

Drill diagram

Chuck

Part #973094-001

The manufacturer no longer makes this part, and there's no substitute part
