Bissell
Upright Vacuum

Model # 82G7 Official Bissell vacuum

Here are the diagrams and repair parts for Official Bissell 82G7 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

Tray 2032335
#6

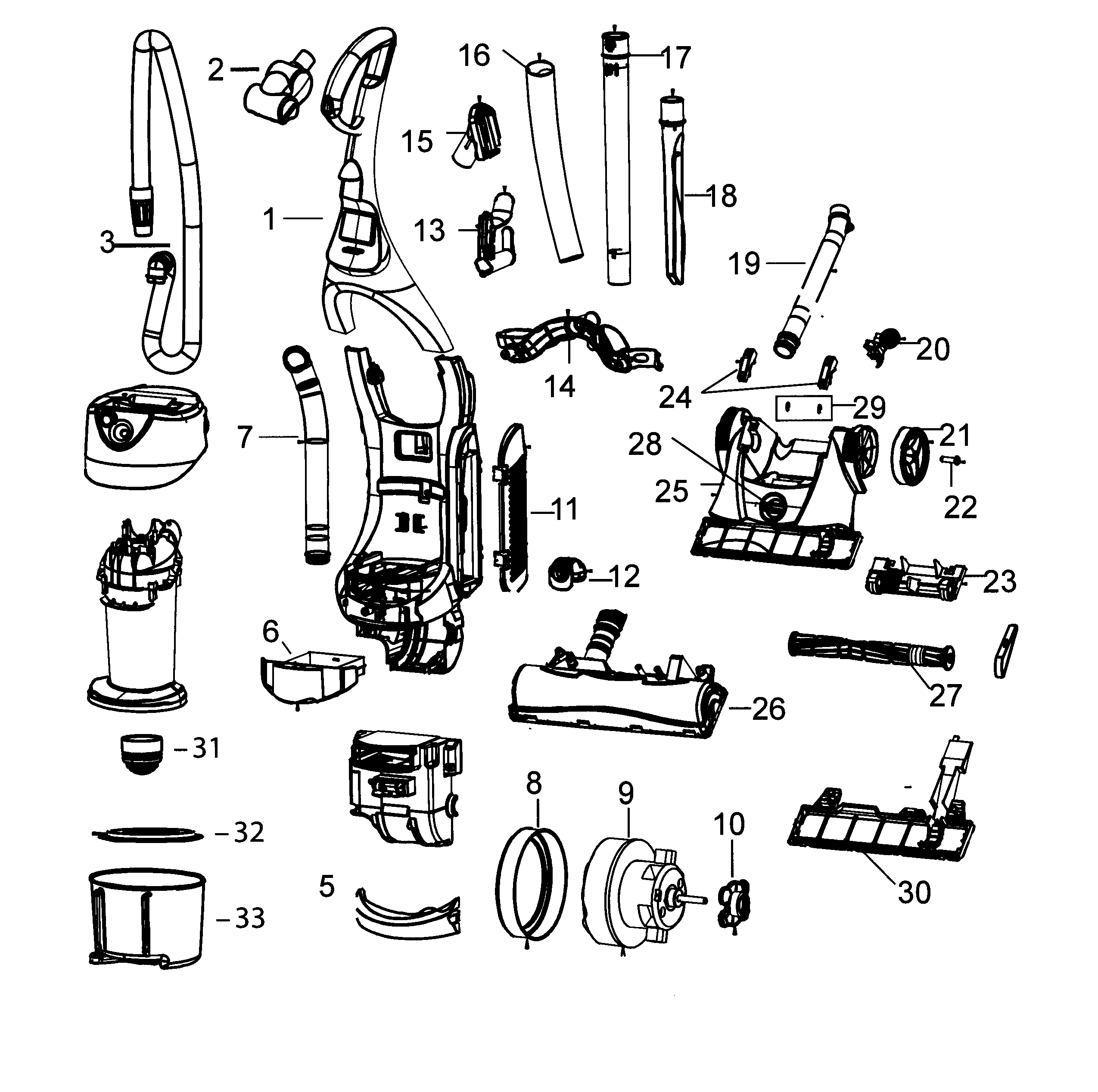

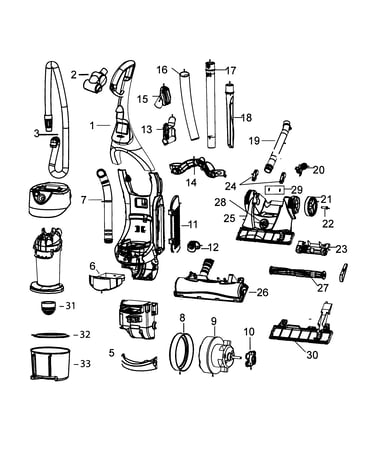

Main assy diagram

Tray

Part #2032335

The manufacturer no longer makes this part, and there's no substitute part

Plate Case 2032326
#32

Main assy diagram

Plate case

Part #2032326

The manufacturer no longer makes this part, and there's no substitute part

Handle Assembly 2032363
#1A

Main assy diagram

Handle assembly

Part #2032363

The manufacturer no longer makes this part, and there's no substitute part

Hose Clip 2032308
#12

Main assy diagram

Hose clip

Part #2032308

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Cord 2032319
#NI

Main assy diagram

Vacuum power cord

Part #2032319

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 3290
#NI

Main assy diagram

Vacuum filter

Part #3290

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor 2032320
#9

Main assy diagram

Vacuum motor

Part #2032320

The manufacturer no longer makes this part, and there's no substitute part

Handle Assembly 2032425
#1D

Main assy diagram

Handle assembly

Part #2032425

The manufacturer no longer makes this part, and there's no substitute part

Dirt Cup 2032328
#33

Main assy diagram

Dirt cup

Part #2032328

The manufacturer no longer makes this part, and there's no substitute part

Height Adjustment Body 2032351
#23

Main assy diagram

Height adjustment body

Part #2032351

The manufacturer no longer makes this part, and there's no substitute part
