Model # DSC-TX20/P Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-TX20-P digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Microphone 427578301
#4

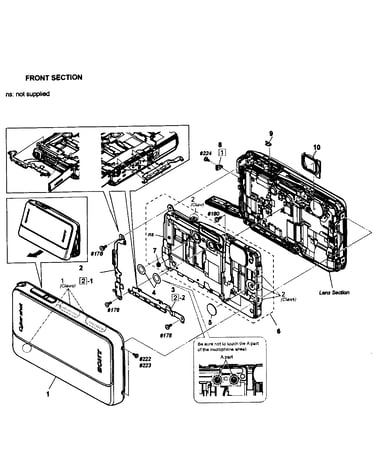

Front assy diagram

Microphone

Part #427578301

$37.79 |
12% OFF Phone Price : $42.79
In Stock
Cabinet 427439001
#151

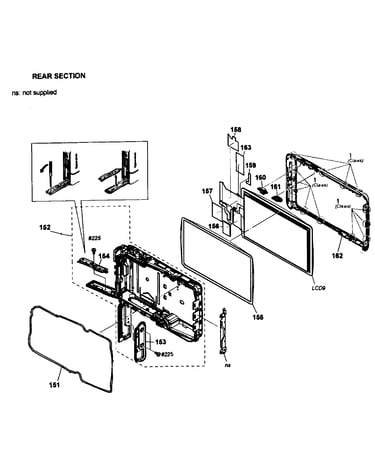

Rear assy diagram

Cabinet

Part #427439001

$15.95
In Stock
Sheet (tp) 428160711
#156

Rear assy diagram

Sheet (tp)

Part #428160711

$20.44
In Stock
Playback 442125211
#161

Rear assy diagram

Playback

Part #442125211

$28.11
In Stock
Fltr Block 185605811
#66

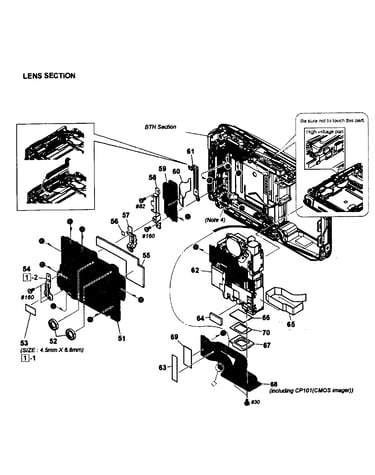

Lens assy diagram

Fltr block

Part #185605811

$13.87
In Stock
Flash Unit 148964211
#103

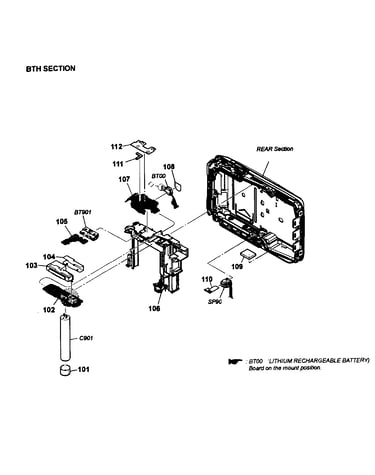

Bth assy diagram

Flash unit

Part #148964211

$35.98
In Stock
Paint Pen 427987601
#NI

Front assy diagram

Paint pen

Part #427987601

$9.89
In Stock
Sheet Hdmi 427578801
#60

Lens assy diagram

Sheet hdmi

Part #427578801

This item is not returnable
$5.65
In Stock
Connector 427576401
#7

Front assy diagram

Connector

Part #427576401

This item is not returnable
$5.80
In Stock
Cushion 443153001
#109

Bth assy diagram

Cushion

Part #443153001

This item is not returnable
$6.49
In Stock
