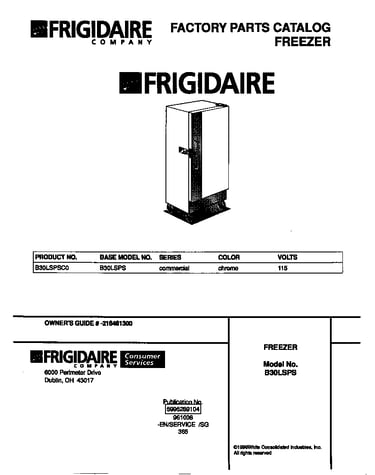

Model # B30LSPSC0 Official Frigidaire upright freezer - 5995289104

Here are the diagrams and repair parts for Official Frigidaire B30LSPSC0 upright freezer - 5995289104, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Filter Drier 216099900
#4

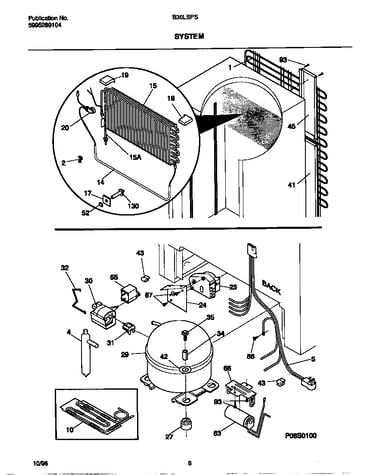

System diagram

Filter drier

Part #216099900

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216099900. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
22% OFF MSRP : $16.34
In Stock
Blade 216325600
#5

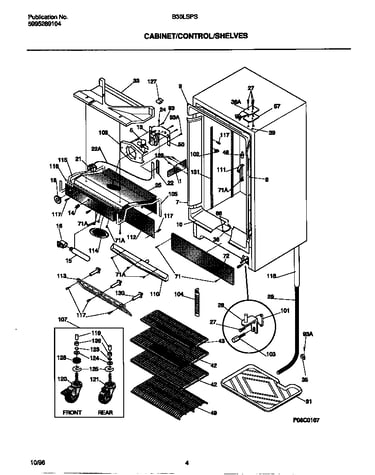

Cabinet/control/shelves diagram

Blade

Part #216325600

Replaced by #5308000010

?
Manufacturer substitution
This part replaces 216325600. Substitute parts can look different from the original.
BEST SELLER
$38.73 |
11% OFF Phone Price : $43.73
In Stock
Light Switch 216361000
#14

Cabinet/control/shelves diagram

Light switch

Part #216361000

Replaced by #297243800

?
Manufacturer substitution
This part replaces 216361000. Substitute parts can look different from the original.
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Freezer Evaporator (replaces 3205656) 216195900
#15

System diagram

Freezer evaporator (replaces 3205656)

Part #216195900

$306.77 |
$10.00 OFF Phone Price : $316.77
In Stock
Temperature Control 216360800
#21

Cabinet/control/shelves diagram

Temperature control

Part #216360800

Replaced by #297216041

?
Manufacturer substitution
This part replaces 216360800. Substitute parts can look different from the original.
$36.89 |
12% OFF Phone Price : $41.89
In Stock
Door Gasket 216284600
#1

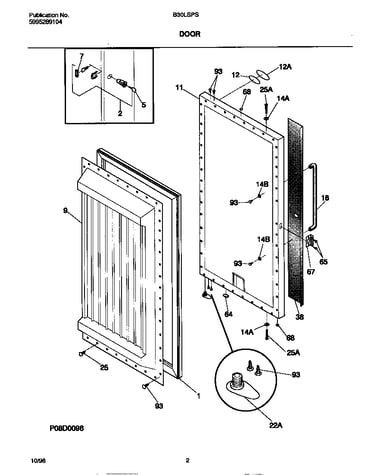

Door diagram

Door gasket

Part #216284600

Replaced by #5304506125

?
Manufacturer substitution
This part replaces 216284600. Substitute parts can look different from the original.
$170.03 |
6% OFF Phone Price : $180.03
In Stock
Bracket Evaporator 216377100
#111

Cabinet/control/shelves diagram

Bracket evaporator

Part #216377100

This item is not returnable
$2.99
In Stock
Wire Harness 216384800

#NI

All parts diagram

Wire harness

Part #216384800

$19.37
In Stock
Lock Retainer 216423000
#67

Door diagram

Lock retainer

Part #216423000

$61.46
In Stock
Key 216362800
#5

Door diagram

Key

Part #216362800

This item is not returnable
$5.57
In Stock
