Model # MC890E1 Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire MC890E1 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Diode 08037625
#3

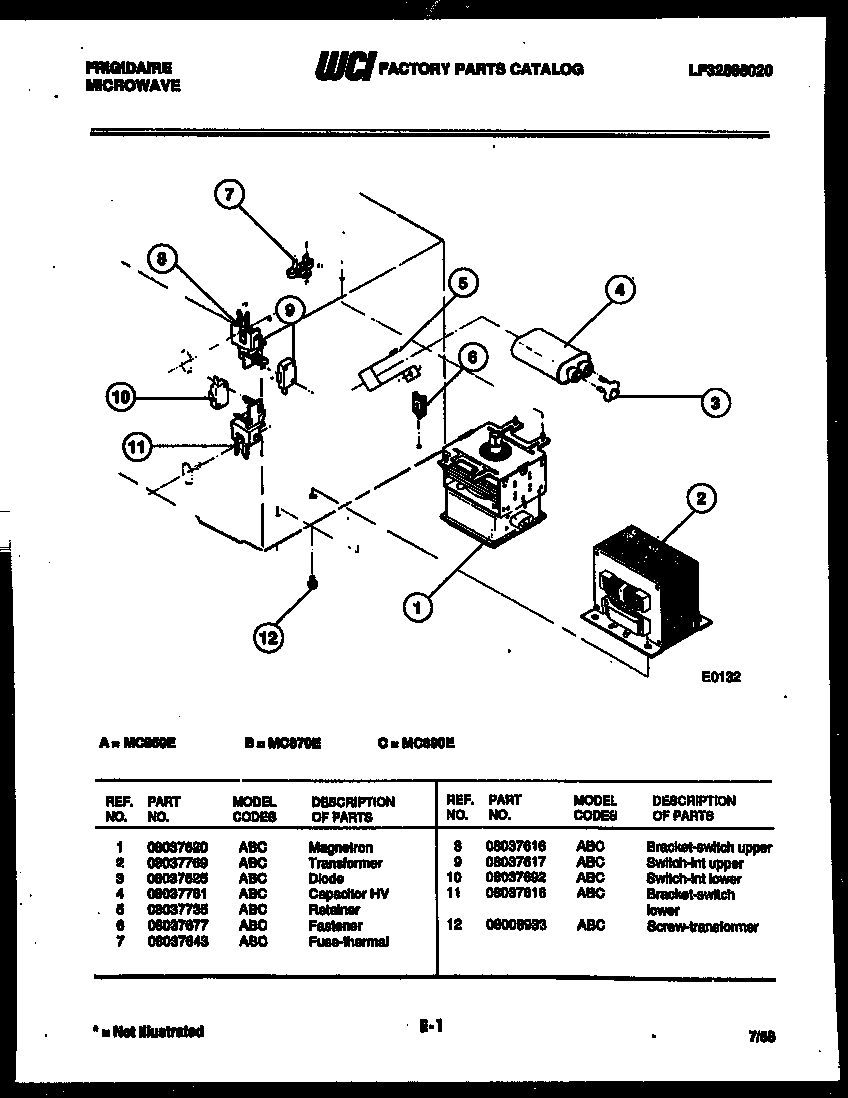

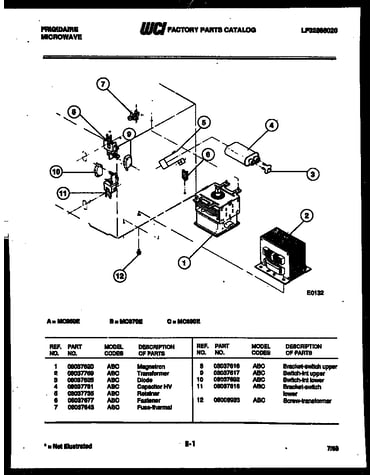

Power control diagram

Diode

Part #08037625

The manufacturer no longer makes this part, and there's no substitute part

Bracket 08037720
#26

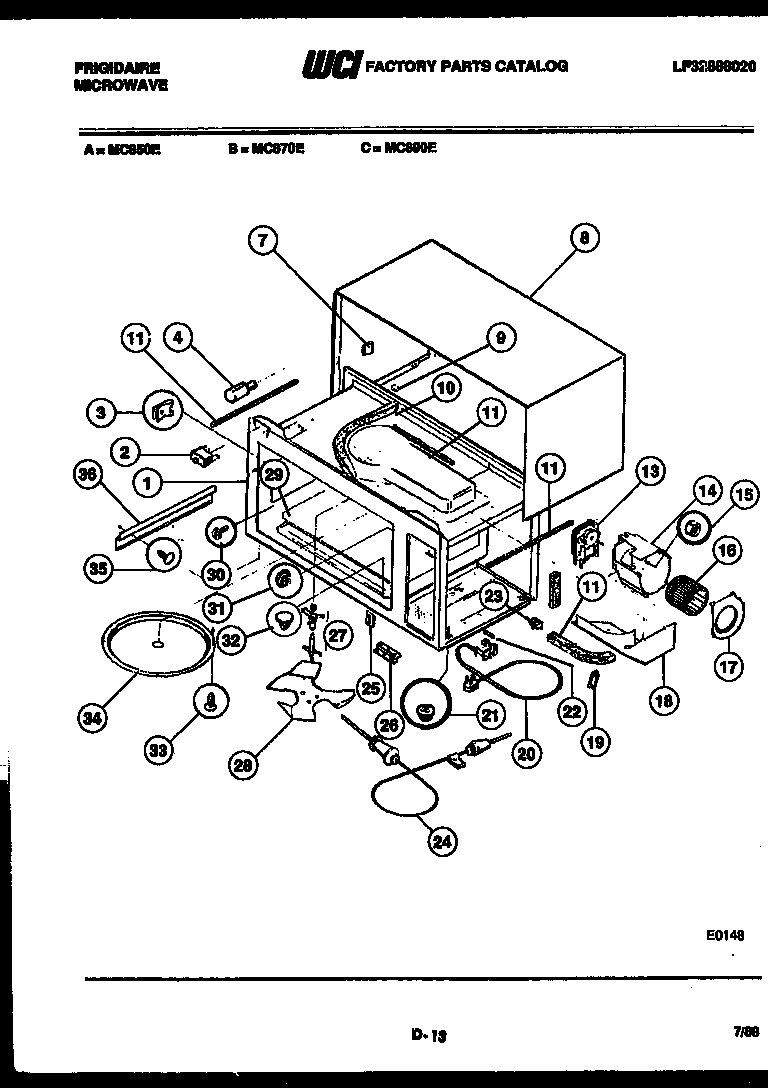

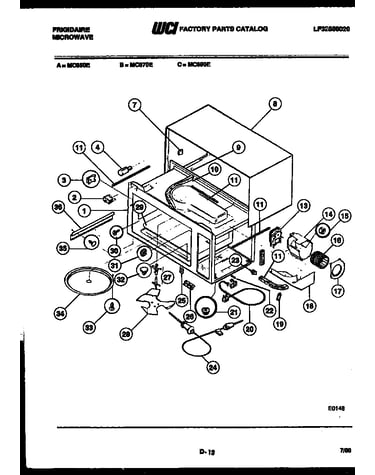

Body parts diagram

Bracket

Part #08037720

The manufacturer no longer makes this part, and there's no substitute part

Recept - Probe 08037698
#23

Body parts diagram

Recept - probe

Part #08037698

The manufacturer no longer makes this part, and there's no substitute part

Screw Angle 08037768
#5

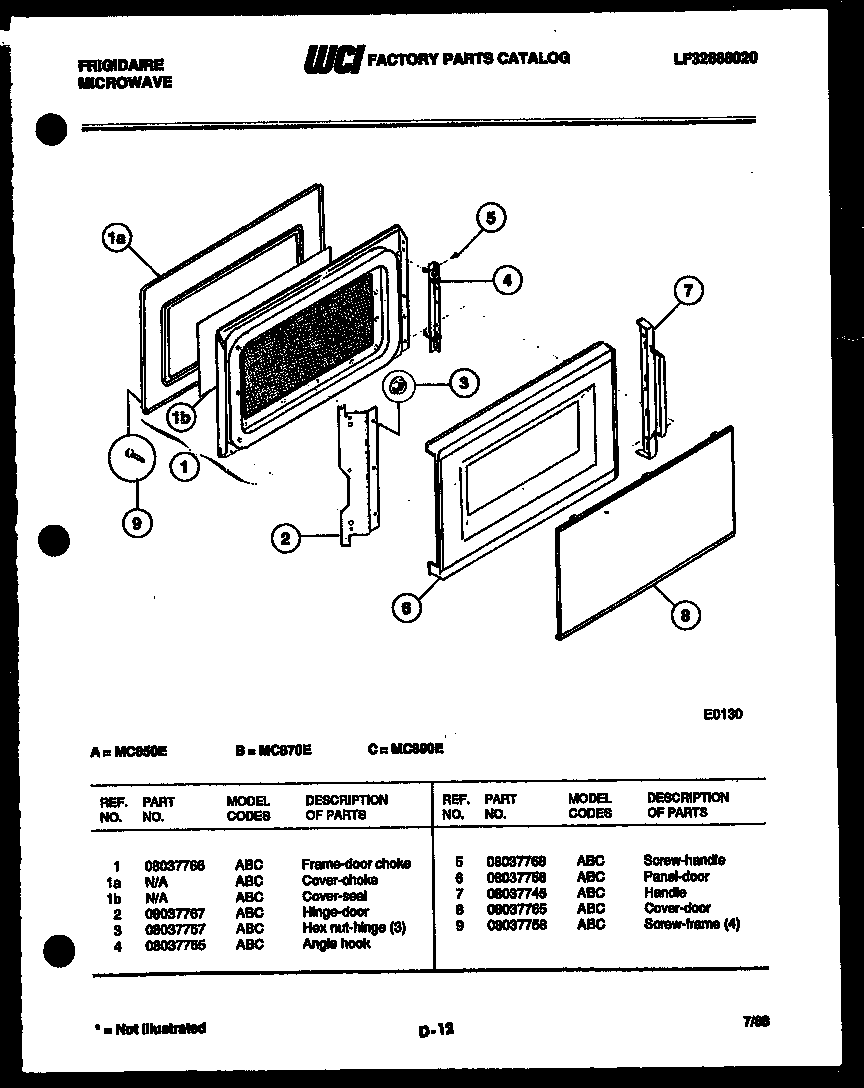

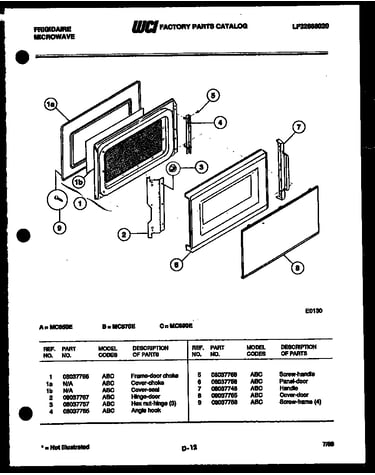

Door parts diagram

Screw angle

Part #08037768

The manufacturer no longer makes this part, and there's no substitute part

Collar-stirrer 08950212
#27

Body parts diagram

Collar-stirrer

Part #08950212

The manufacturer no longer makes this part, and there's no substitute part

Cover - Blower 08037731
#17

Body parts diagram

Cover - blower

Part #08037731

The manufacturer no longer makes this part, and there's no substitute part

Magentron 08037620
#1

Power control diagram

Magentron

Part #08037620

The manufacturer no longer makes this part, and there's no substitute part

Duct - Foam Mag 08037728
#37

Body parts diagram

Duct - foam mag

Part #08037728

The manufacturer no longer makes this part, and there's no substitute part

Touch Panel 8037776
#3

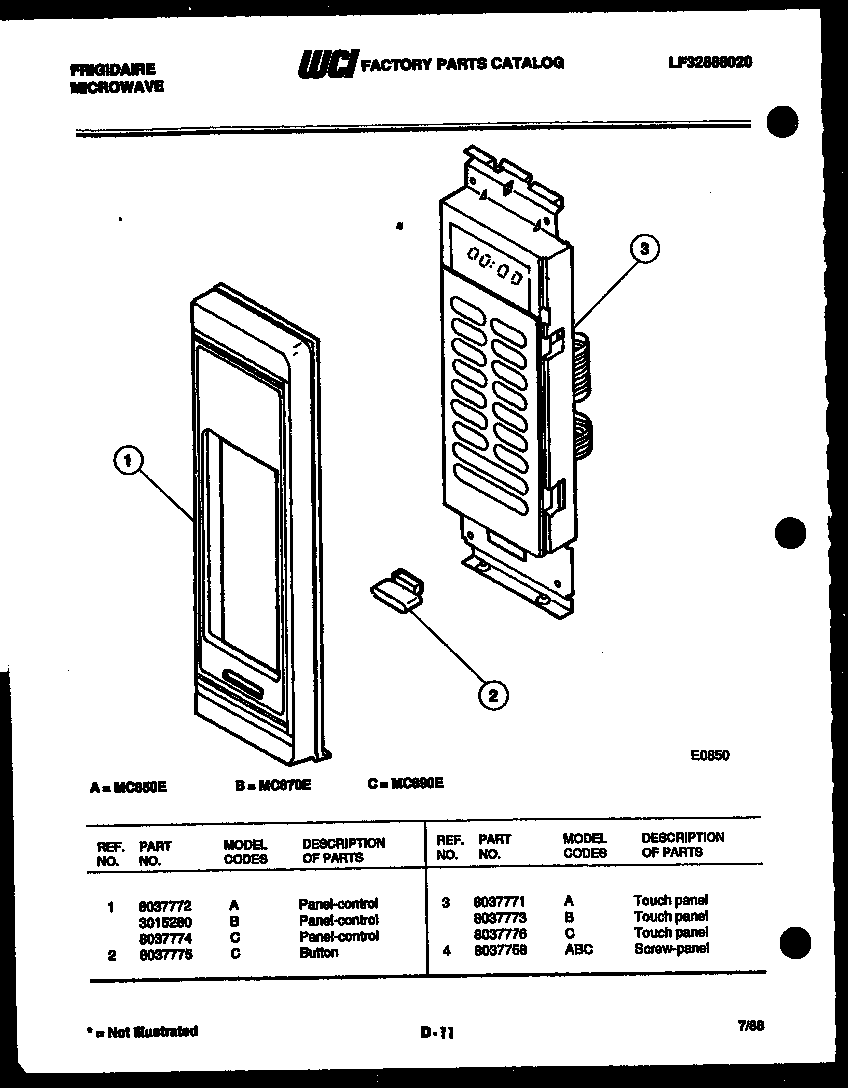

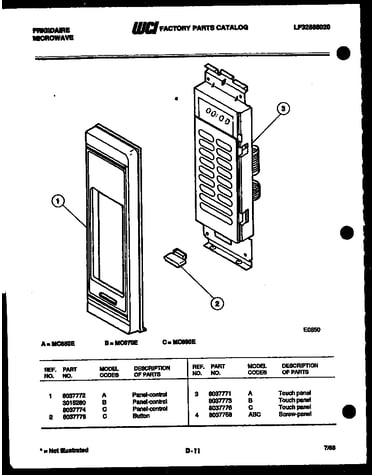

Control panel diagram

Touch panel

Part #8037776

The manufacturer no longer makes this part, and there's no substitute part

Screw (4) 08037758
#9

Door parts diagram

Screw (4)

Part #08037758

The manufacturer no longer makes this part, and there's no substitute part
