Model # CMM1200 TYPE 2 Official Black & Decker lawn mower

Here are the diagrams and repair parts for Official Black & Decker CMM1200-TYPE-2 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Tie Wrap 239715-06
#14

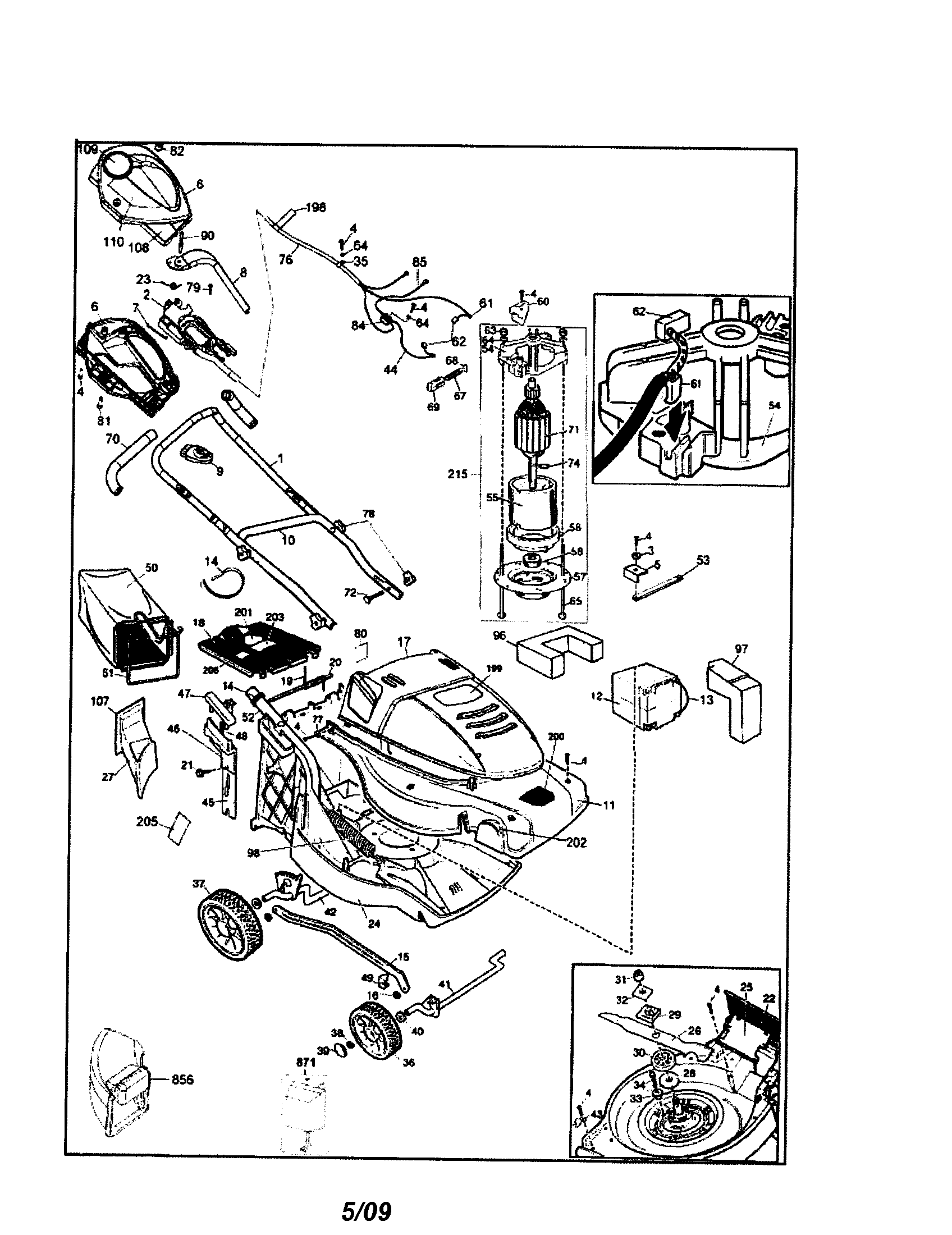

Lawn mower diagram

Tie wrap

Part #239715-06

The manufacturer no longer makes this part, and there's no substitute part

Frnt Foam 242781-00
#97

Lawn mower diagram

Frnt foam

Part #242781-00

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Motor Brush 242274-00
#69

Lawn mower diagram

Lawn mower motor brush

Part #242274-00

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Discharge Chute Door 90511856
#18

Lawn mower diagram

Lawn mower discharge chute door

Part #90511856

The manufacturer no longer makes this part, and there's no substitute part

Danger Label 90512672
#206

Lawn mower diagram

Danger label

Part #90512672

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Safety Key 90530033
#9

Lawn mower diagram

Lawn mower safety key

Part #90530033

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Push Nut 241658-03
#16

Lawn mower diagram

Lawn mower push nut

Part #241658-03

The manufacturer no longer makes this part, and there's no substitute part

Indicator 242353-02
#49

Lawn mower diagram

Indicator

Part #242353-02

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Blade Spacer, Lower 92715-00
#32

Lawn mower diagram

Lawn mower blade spacer, lower

Part #92715-00

The manufacturer no longer makes this part, and there's no substitute part

Danger Label 90508744
#198

Lawn mower diagram

Danger label

Part #90508744

The manufacturer no longer makes this part, and there's no substitute part
