Ryobi
Gas Line Trimmer

Model # 140R Official Ryobi trimmer

Here are the diagrams and repair parts for Official Ryobi 140R trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |

Eyelet 180373
#19

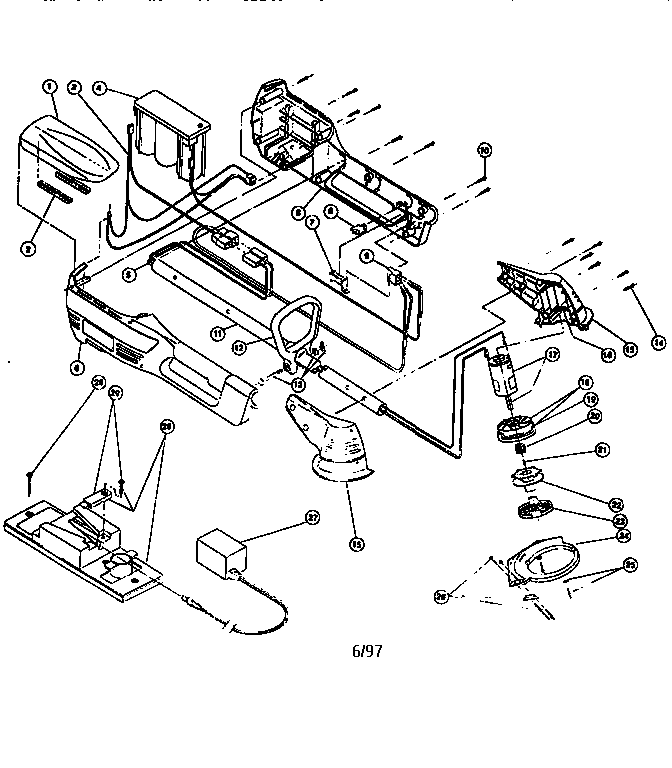

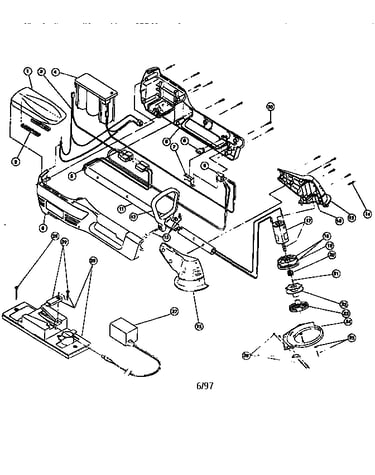

Replacement parts diagram

Eyelet

Part #180373

The manufacturer no longer makes this part, and there's no substitute part

Screw 180375
#21

Replacement parts diagram

Screw

Part #180375

The manufacturer no longer makes this part, and there's no substitute part

Battery, 6-volt 180410
#4

Replacement parts diagram

Battery, 6-volt

Part #180410

The manufacturer no longer makes this part, and there's no substitute part

Door 180411
#1

Replacement parts diagram

Door

Part #180411

The manufacturer no longer makes this part, and there's no substitute part

Cushion 180363
#2

Replacement parts diagram

Cushion

Part #180363

The manufacturer no longer makes this part, and there's no substitute part

Support 180518
#16

Replacement parts diagram

Support

Part #180518

The manufacturer no longer makes this part, and there's no substitute part

Clamp Screw 180378
#29

Replacement parts diagram

Clamp screw

Part #180378

The manufacturer no longer makes this part, and there's no substitute part

Motor 001803-710
#17

Replacement parts diagram

Motor

Part #001803-710

The manufacturer no longer makes this part, and there's no substitute part

Harness 180513
Harness

Part #180513

The manufacturer no longer makes this part, and there's no substitute part

Charger 180409
#27

Replacement parts diagram

Charger

Part #180409

The manufacturer no longer makes this part, and there's no substitute part
