Model # F7091 Official Hoover carpet cleaner

Here are the diagrams and repair parts for Official Hoover F7091 carpet cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Sleeve 59131321
#81

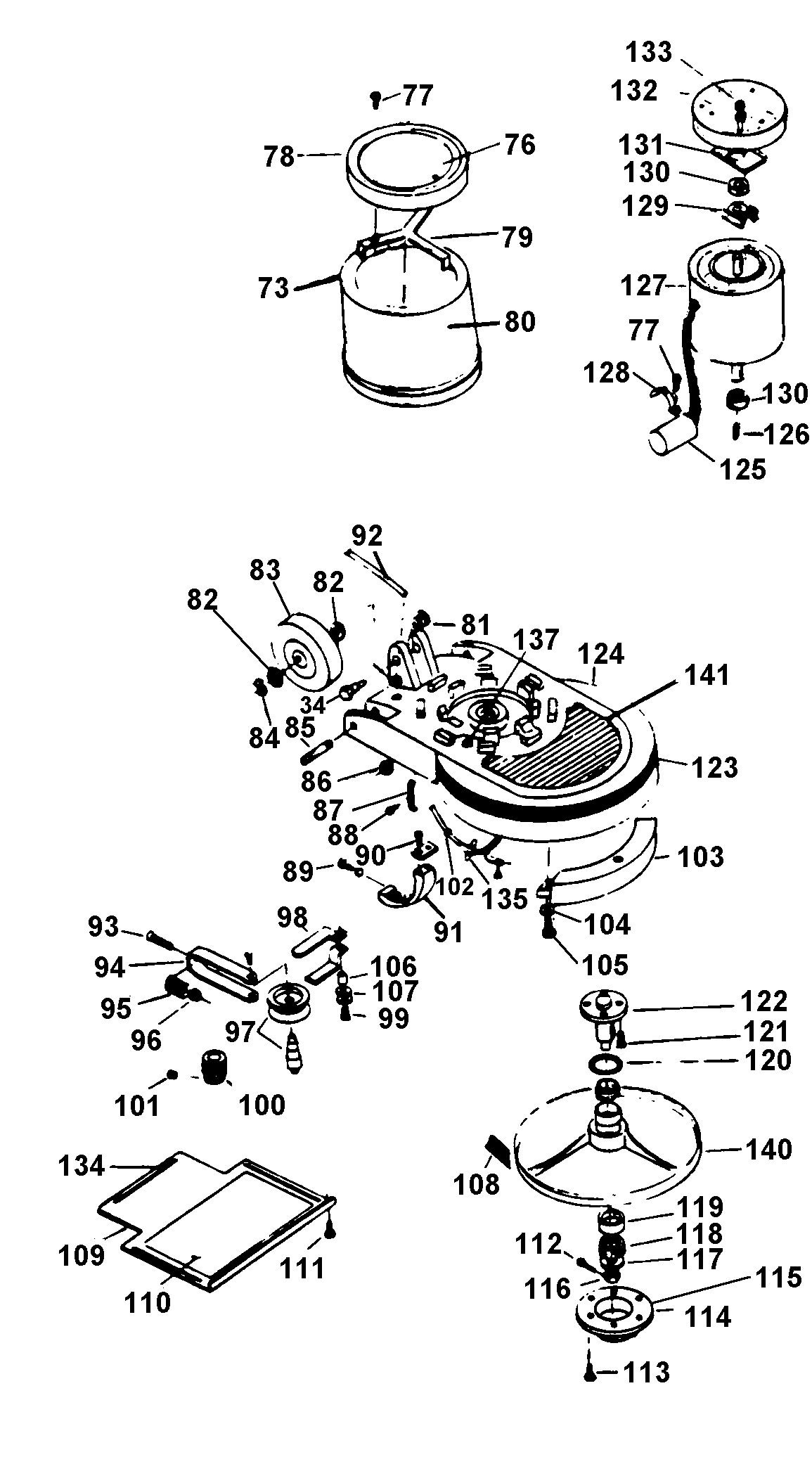

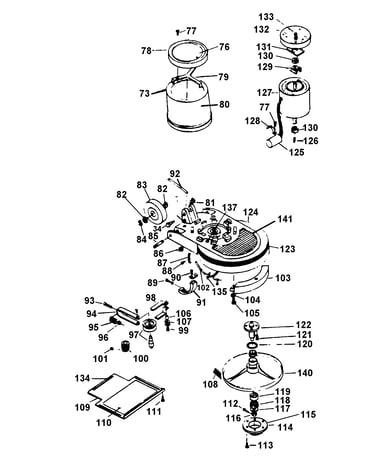

Mainbody, motor, gears diagram

Sleeve

Part #59131321

The manufacturer no longer makes this part, and there's no substitute part

Cover-adv-f7089 Cover, 17" 59131339
#109

Mainbody, motor, gears diagram

Cover-adv-f7089 cover, 17"

Part #59131339

The manufacturer no longer makes this part, and there's no substitute part

Switch 59131378
#11

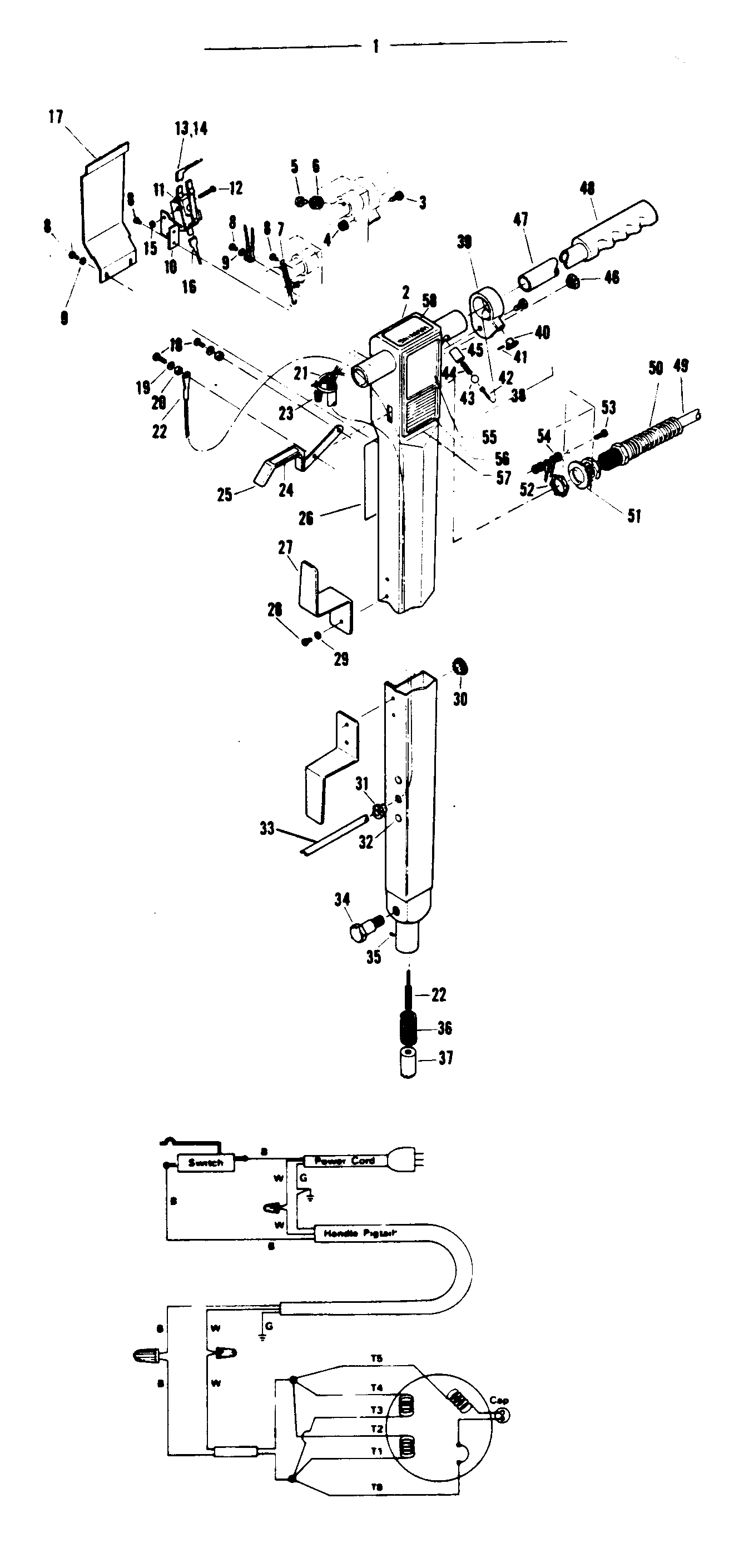

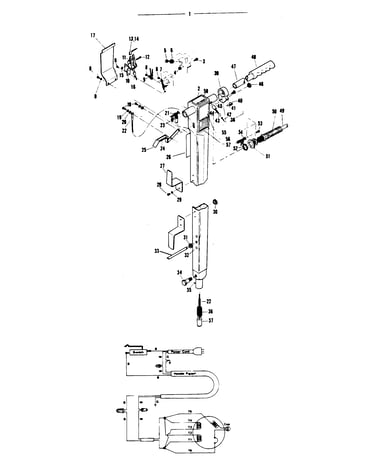

Handle, switch diagram

Switch

Part #59131378

The manufacturer no longer makes this part, and there's no substitute part

Spring-adv-f7089/91/ 59131330
#95

Mainbody, motor, gears diagram

Spring-adv-f7089/91/

Part #59131330

The manufacturer no longer makes this part, and there's no substitute part

Thru Bolt-adv-f7091 (qty 4) 1-1/4 H.p., 20" 59131364
#133A

Mainbody, motor, gears diagram

Thru bolt-adv-f7091 (qty 4) 1-1/4 h.p., 20"

Part #59131364

The manufacturer no longer makes this part, and there's no substitute part

Screw-adv-f7089/91/9 59131375
#5

Handle, switch diagram

Screw-adv-f7089/91/9

Part #59131375

The manufacturer no longer makes this part, and there's no substitute part

Clamp-adv-f7089/91 59131358
#128

Mainbody, motor, gears diagram

Clamp-adv-f7089/91

Part #59131358

The manufacturer no longer makes this part, and there's no substitute part

Grommet-adv-f7089/91 59131334
#102

Mainbody, motor, gears diagram

Grommet-adv-f7089/91

Part #59131334

The manufacturer no longer makes this part, and there's no substitute part

Bushing-adv-f7089/91 59131237
#45

Handle, switch diagram

Bushing-adv-f7089/91

Part #59131237

The manufacturer no longer makes this part, and there's no substitute part

Cover-adv-f7091 59131340
#109A

Mainbody, motor, gears diagram

Cover-adv-f7091

Part #59131340

The manufacturer no longer makes this part, and there's no substitute part
