Maytag
Microwave/Hood Combo

Model # MMV4205AAS Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag MMV4205AAS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Magnetron 53001581
#6

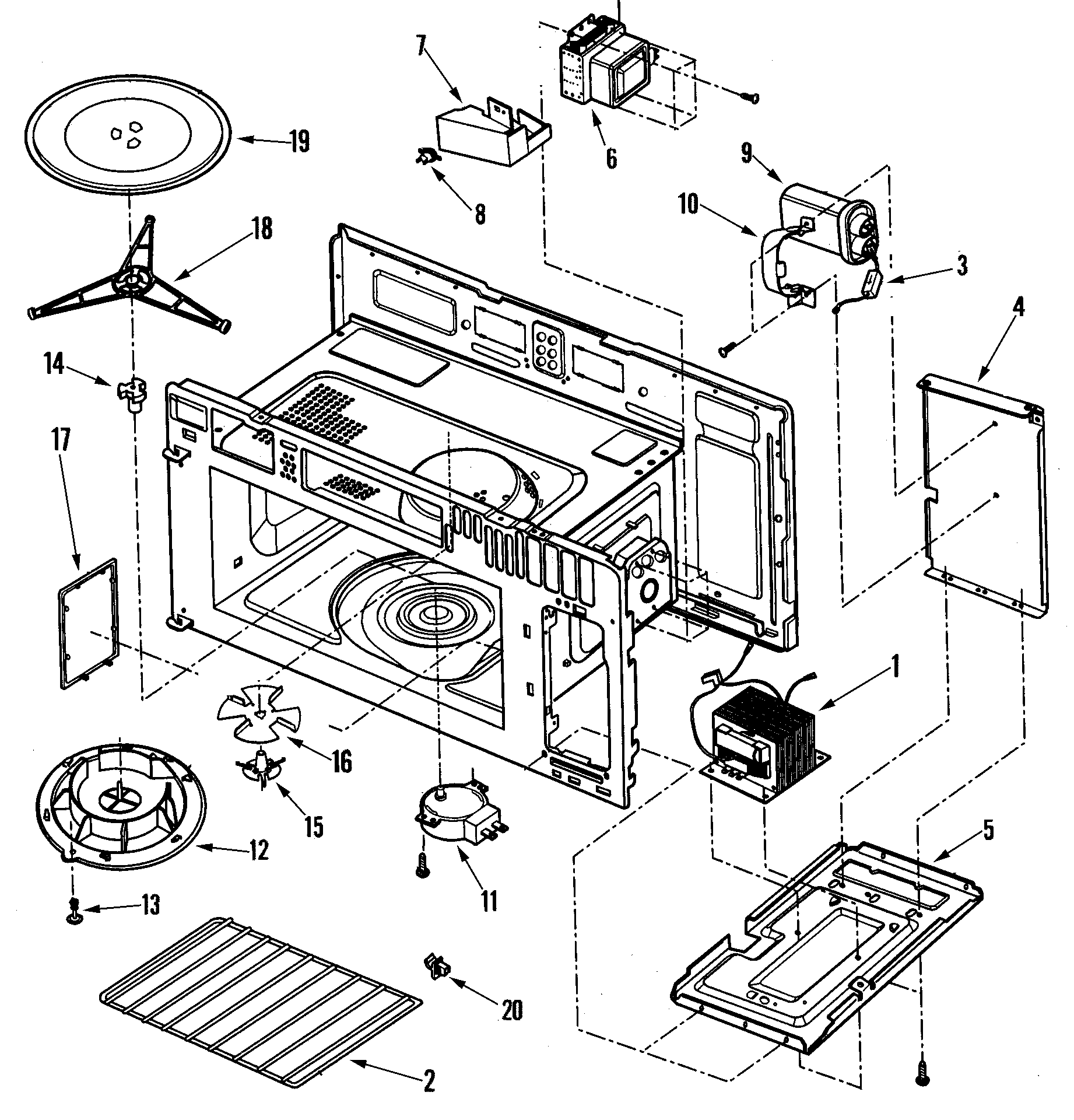

Cavity diagram

Magnetron

Part #53001581

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 53001539
#9

Cavity diagram

Capacitor

Part #53001539

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces 53001539. Substitute parts can look different from the original.
$85.65 |
14% OFF MSRP : $100.00
In Stock
Fuse R0131110
#11A

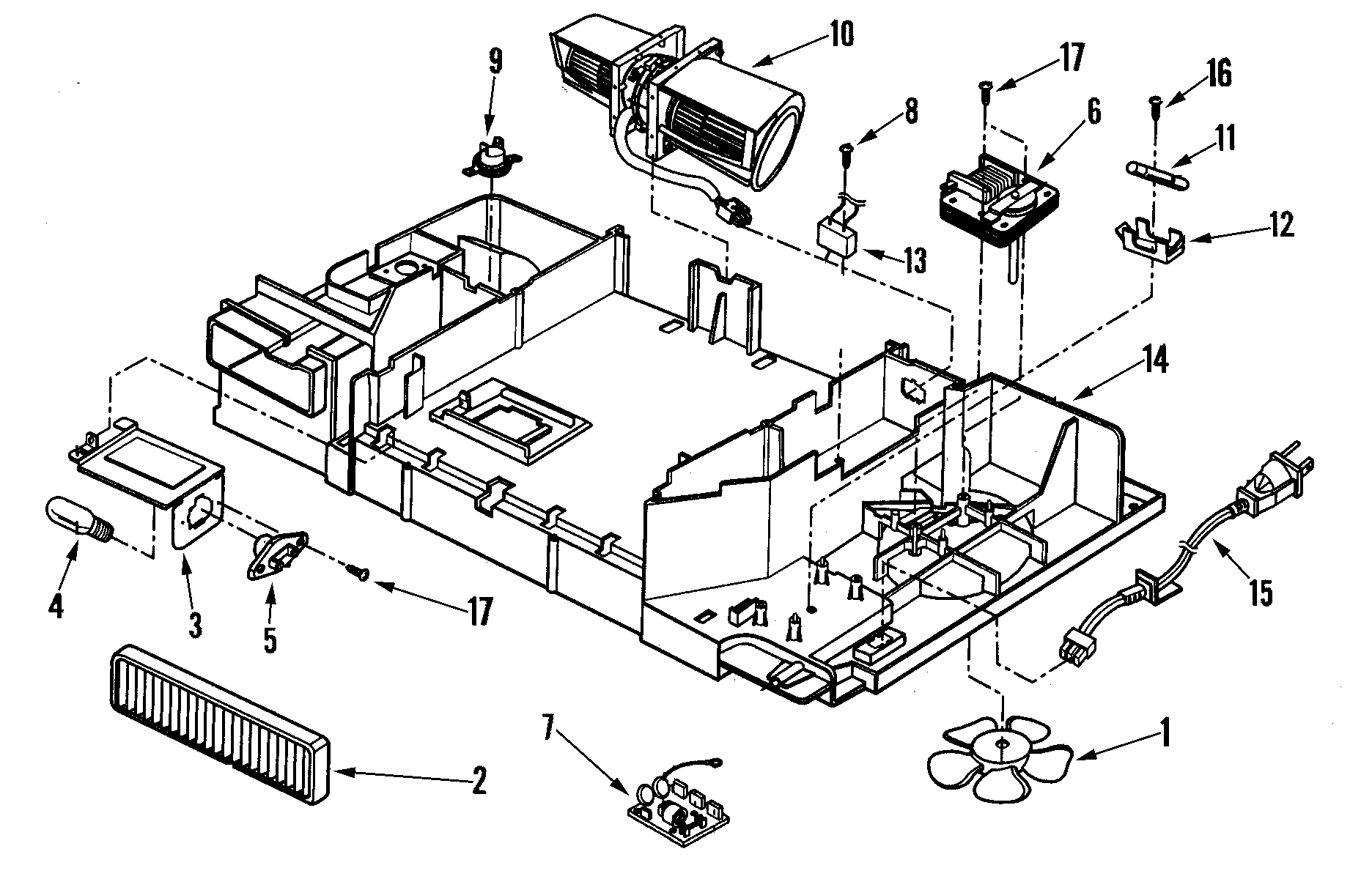

Blower motor diagram

Fuse

Part #R0131110

Replaced by #WP8183507

?
Manufacturer substitution
This part replaces R0131110. Substitute parts can look different from the original.
This item is not returnable
$14.39 |
12% OFF Phone Price : $16.39
In Stock
Screw Cord R9800501
#1A

Installation diagram

Screw cord

Part #R9800501

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces R9800501. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Plate Screw R0654036
#7

Base/latch board assembly diagram

Plate screw

Part #R0654036

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0654036. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Rivet R9800452
#13

Cavity diagram

Rivet

Part #R9800452

Replaced by #WP4359508

?
Manufacturer substitution
This part replaces R9800452. Substitute parts can look different from the original.
This item is not returnable
$6.02 |
14% OFF Phone Price : $7.02
In Stock
Fuse Holder R0131021
#12A

Blower motor diagram

Fuse holder

Part #R0131021

Replaced by #W10206728

?
Manufacturer substitution
This part replaces R0131021. Substitute parts can look different from the original.
This item is not returnable
$12.09 |
14% OFF Phone Price : $14.09
In Stock
Ring R0130609
#18

Cavity diagram

Ring

Part #R0130609

Replaced by #WPW10207752

?
Manufacturer substitution
This part replaces R0130609. Substitute parts can look different from the original.
This item is not returnable
$17.99 |
10% OFF MSRP : $20.00
In Stock
Diode R0131275
#3

Cavity diagram

Diode

Part #R0131275

Replaced by #WPR9800486

?
Manufacturer substitution
This part replaces R0131275. Substitute parts can look different from the original.
$20.69 |
19% OFF Phone Price : $25.69
In Stock
Microwave Grease Filter, 2-pack 56001069
#8

Base/latch board assembly diagram

Microwave grease filter, 2-pack

Part #56001069

Replaced by #WP56001069

?
Manufacturer substitution
This part replaces 56001069. Substitute parts can look different from the original.
This item is not returnable
$15.99 |
11% OFF Phone Price : $17.99
In Stock
