Model # BD200MTB TYPE2 Official Black & Decker multi-tool

Here are the diagrams and repair parts for Official Black & Decker BD200MTB-TYPE2 multi-tool, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Blade 90586064
#31

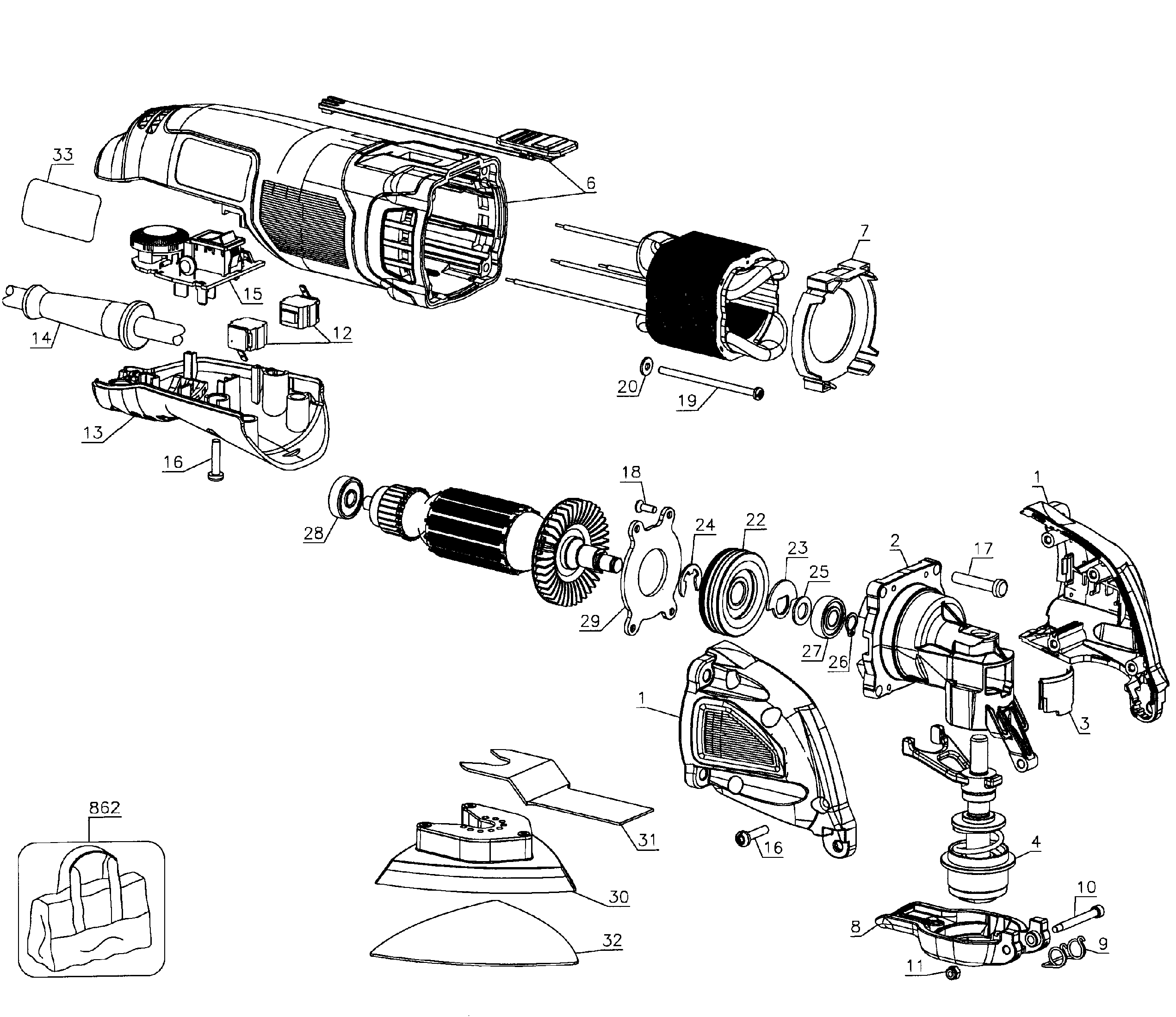

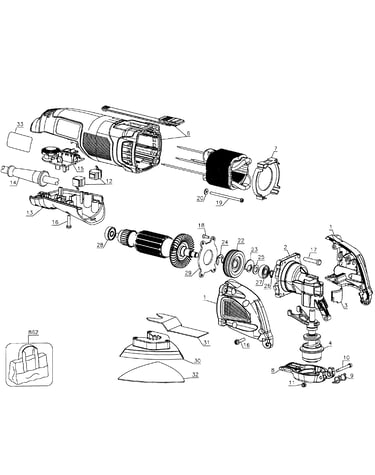

Multi-tool diagram

Blade

Part #90586064

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 90581549
#28

Multi-tool diagram

Ball bearing

Part #90581549

The manufacturer no longer makes this part, and there's no substitute part

Brush And Holder 90584493
#12

Multi-tool diagram

Brush and holder

Part #90584493

The manufacturer no longer makes this part, and there's no substitute part

Motor Plat 90581537
#29

Multi-tool diagram

Motor plat

Part #90581537

The manufacturer no longer makes this part, and there's no substitute part

Ft Housing 90586522
#1

Multi-tool diagram

Ft housing

Part #90586522

The manufacturer no longer makes this part, and there's no substitute part

Counterwei 90581541
#23

Multi-tool diagram

Counterwei

Part #90581541

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 90586443
#6

Multi-tool diagram

Housing assembly

Part #90586443

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 90584336
#15

Multi-tool diagram

Switch assembly

Part #90584336

The manufacturer no longer makes this part, and there's no substitute part

Assembly Sleeve 90585710
#22

Multi-tool diagram

Assembly sleeve

Part #90585710

The manufacturer no longer makes this part, and there's no substitute part

Lever Assembly 90584344
#8

Multi-tool diagram

Lever assembly

Part #90584344

The manufacturer no longer makes this part, and there's no substitute part
