Model # 41CD875A034 Official Ryobi trimmer

Here are the diagrams and repair parts for Official Ryobi 41CD875A034 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |

Dipstick 791-182378
#78

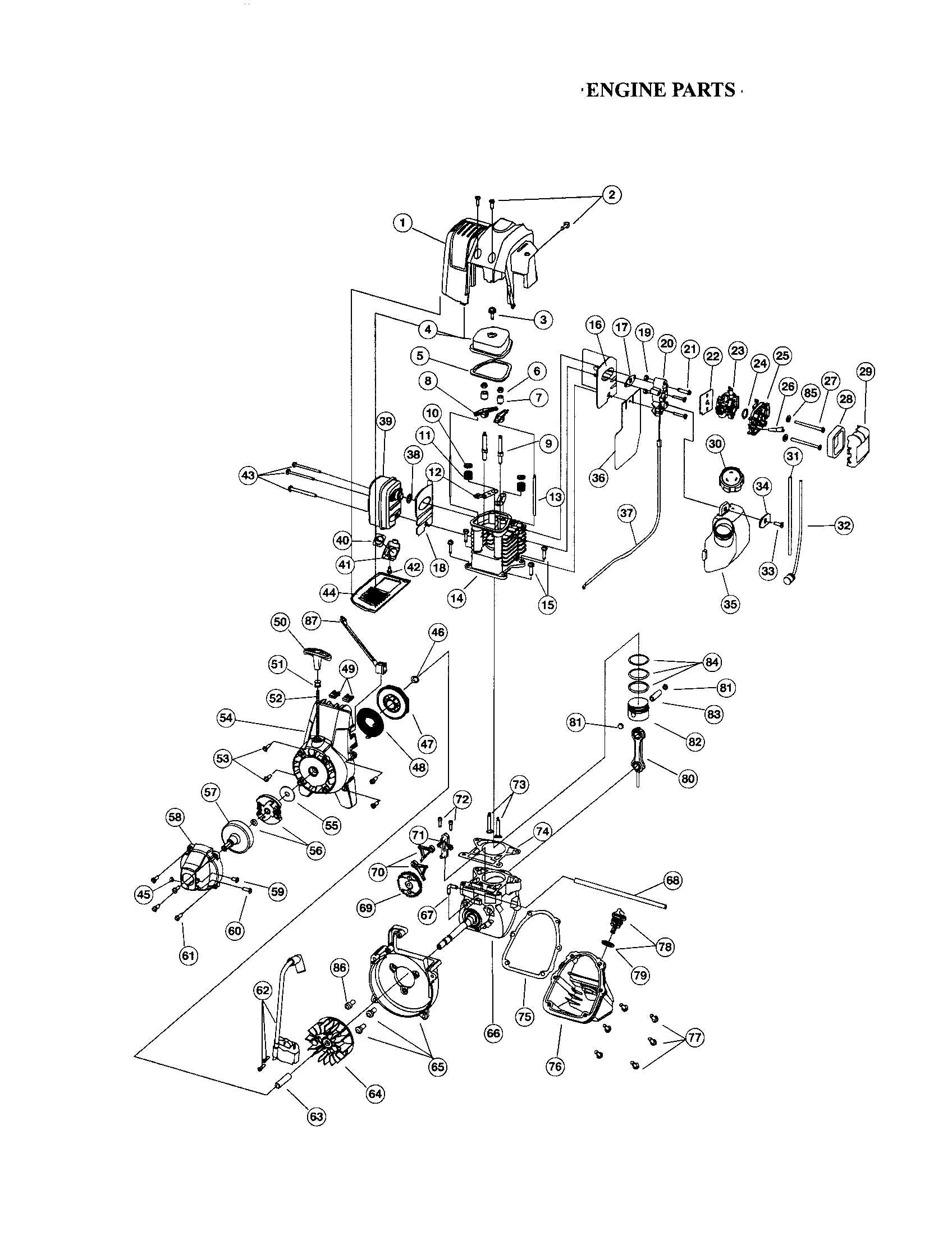

Engine parts diagram

Dipstick

Part #791-182378

The manufacturer no longer makes this part, and there's no substitute part

Cylinder 791-182745

#NI08

All parts diagram

Cylinder

Part #791-182745

The manufacturer no longer makes this part, and there's no substitute part

Washer 791-182354
#34

Engine parts diagram

Washer

Part #791-182354

The manufacturer no longer makes this part, and there's no substitute part

Screw 791-181012
#72

Engine parts diagram

Screw

Part #791-181012

The manufacturer no longer makes this part, and there's no substitute part

Rod 791-181009
#80

Engine parts diagram

Rod

Part #791-181009

The manufacturer no longer makes this part, and there's no substitute part

Carb/pri 753-1225
#23

Engine parts diagram

Carb/pri

Part #753-1225

The manufacturer no longer makes this part, and there's no substitute part

Inner Reel 791-181464
#38

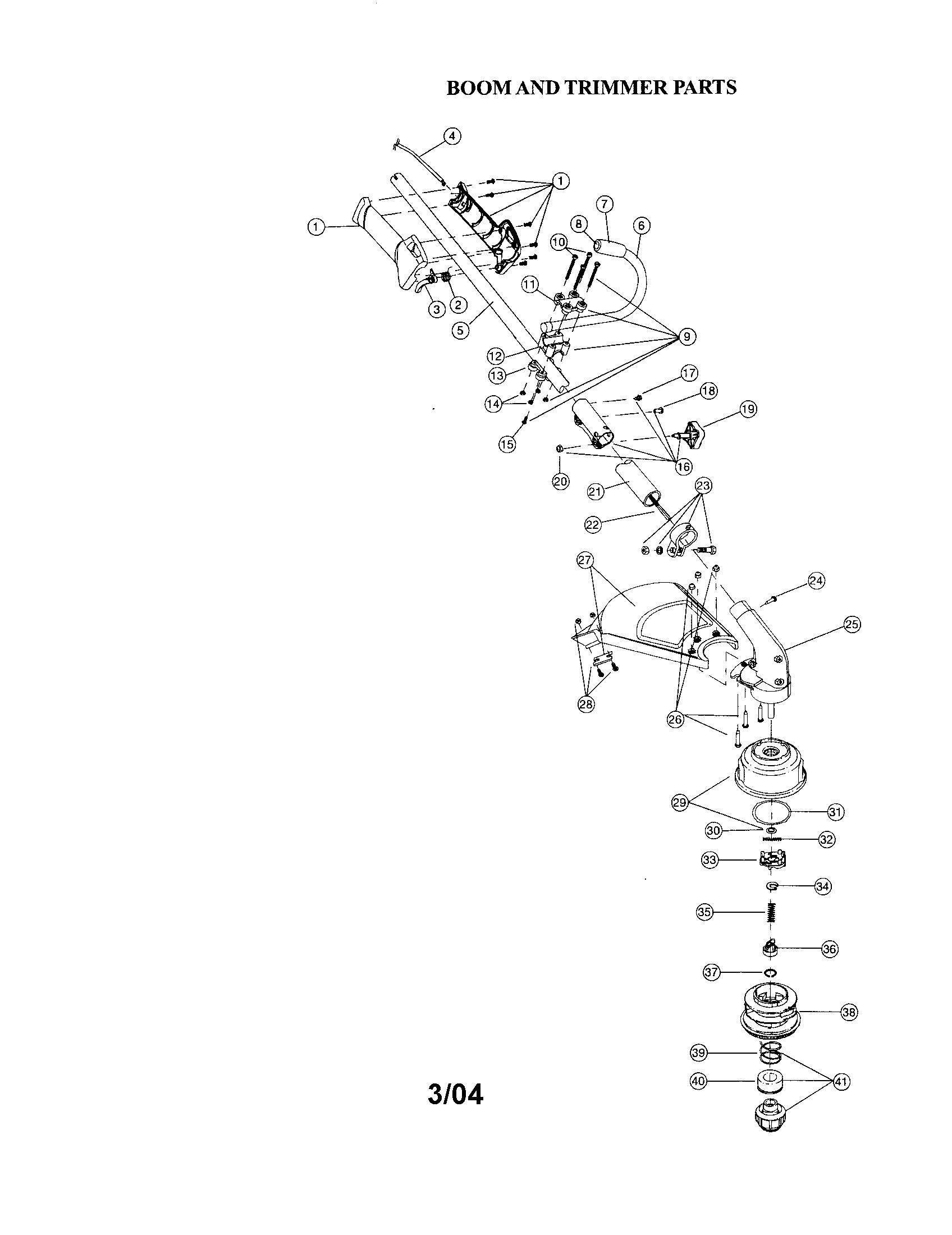

Boom and trimmer diagram

Inner reel

Part #791-181464

The manufacturer no longer makes this part, and there's no substitute part

Closure Tube 791-612021
#8

Boom and trimmer diagram

Closure tube

Part #791-612021

The manufacturer no longer makes this part, and there's no substitute part

Tube 791-182097
#26

Engine parts diagram

Tube

Part #791-182097

The manufacturer no longer makes this part, and there's no substitute part

Grip 791-612831
#7

Boom and trimmer diagram

Grip

Part #791-612831

The manufacturer no longer makes this part, and there's no substitute part
