Caloric
Countertop Microwave

Model # MPP228-10-0L Official Caloric microwave

Here are the diagrams and repair parts for Official Caloric MPP228-10-0L microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Washer 90443
#40

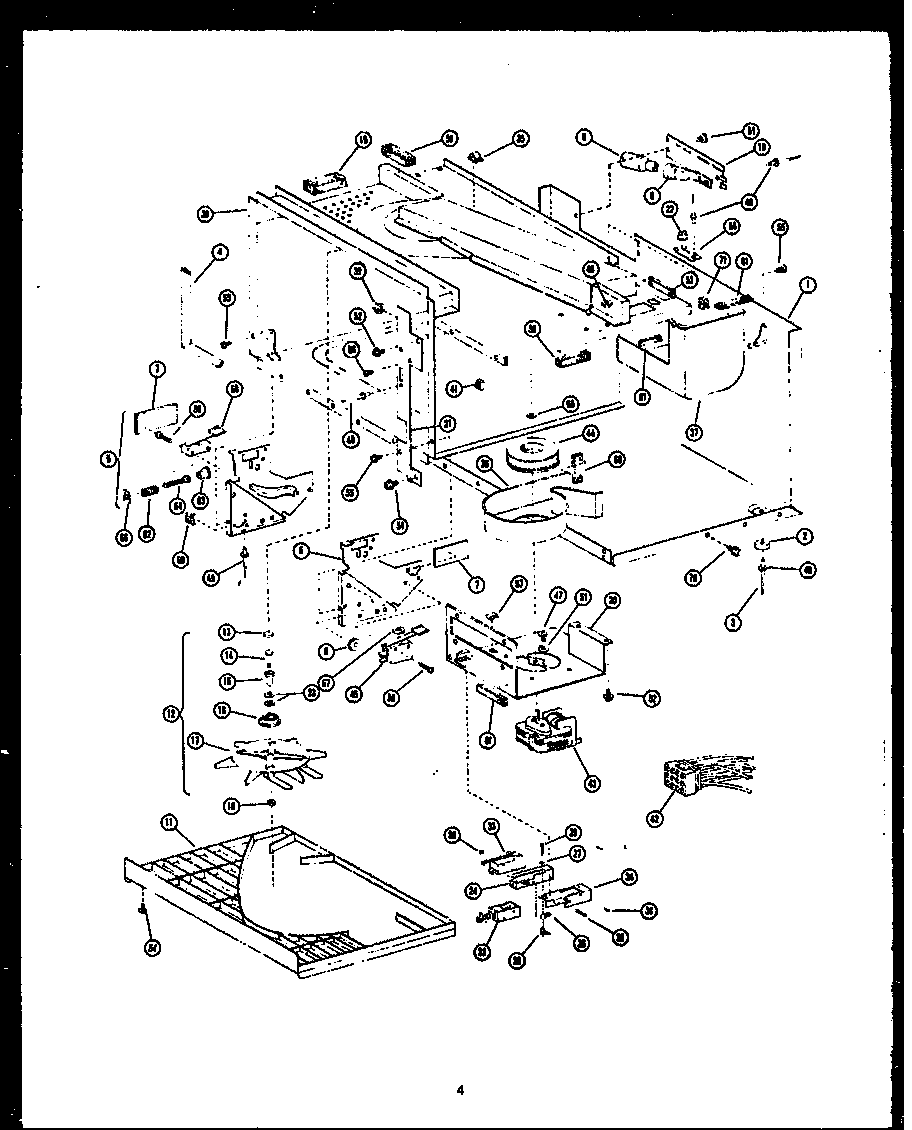

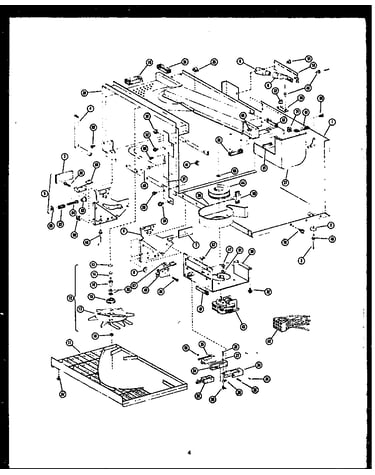

Antenna/blower diagram

Washer

Part #90443

The manufacturer no longer makes this part, and there's no substitute part

Clip, "u" Type 88481
#57

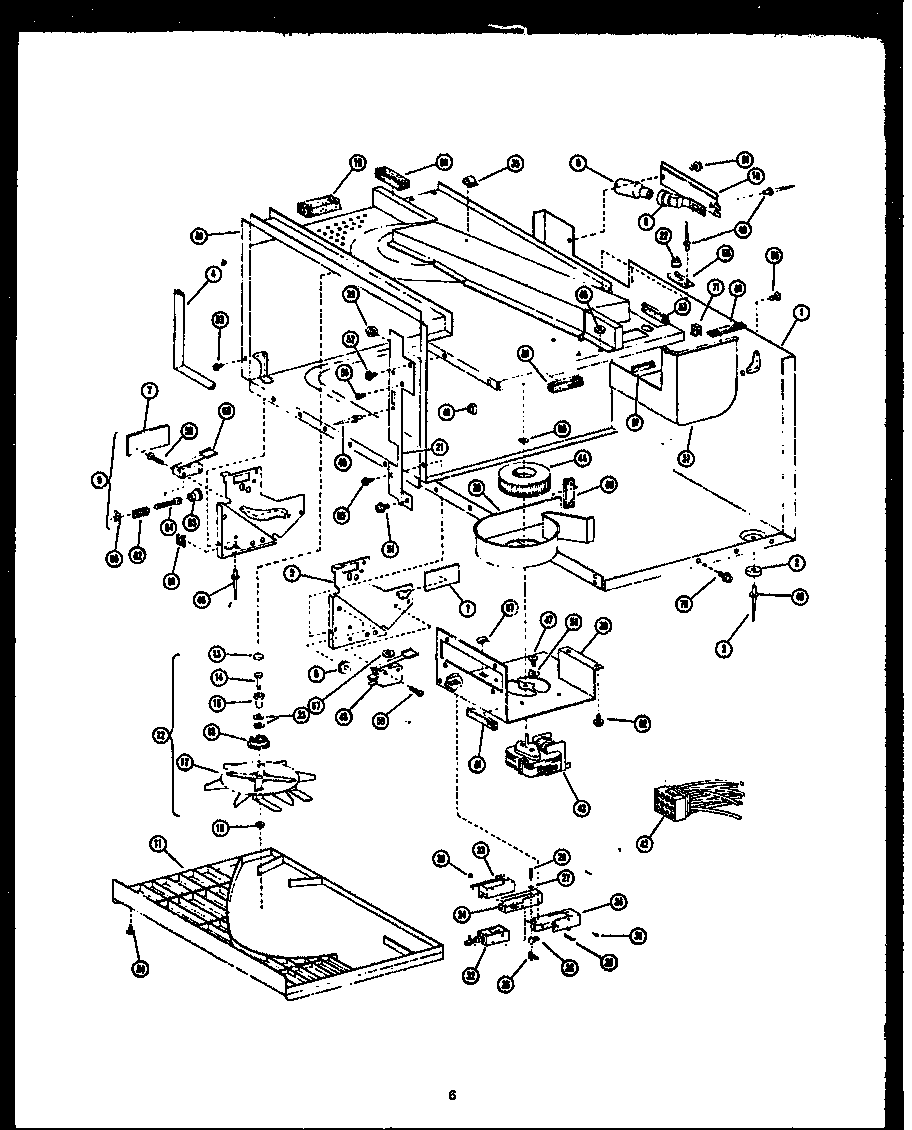

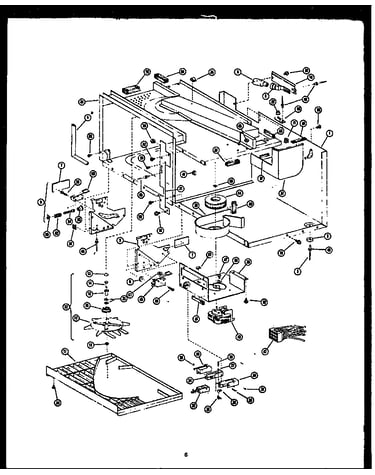

Hardware diagram

Clip, "u" type

Part #88481

The manufacturer no longer makes this part, and there's no substitute part

Trim, R.h. 88224
#7B

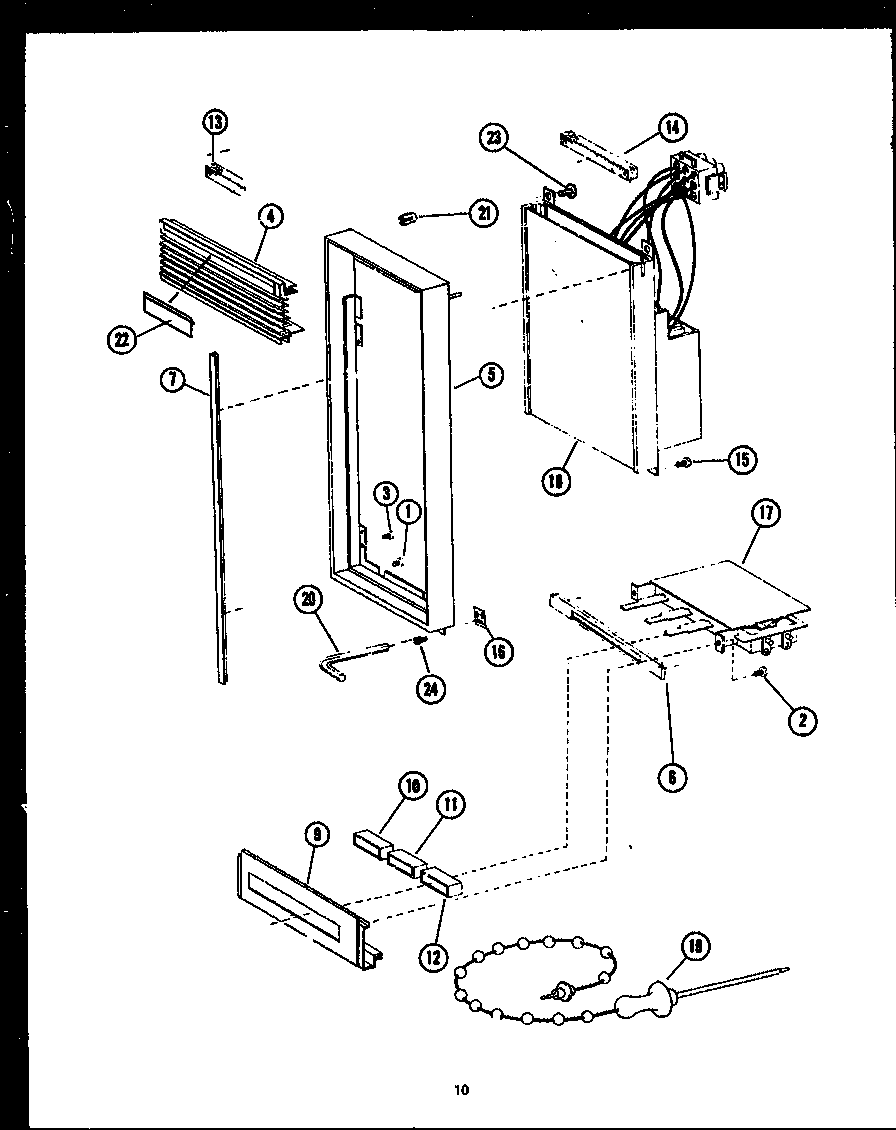

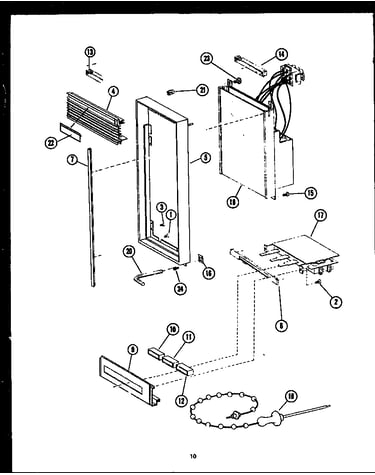

Control panel parts diagram

Trim, r.h.

Part #88224

The manufacturer no longer makes this part, and there's no substitute part

Control Escutcheon 88236
#5

Control panel parts diagram

Control escutcheon

Part #88236

The manufacturer no longer makes this part, and there's no substitute part

Screw, #4- 40 Z 7/32"- Hinge To Door 89363
#35

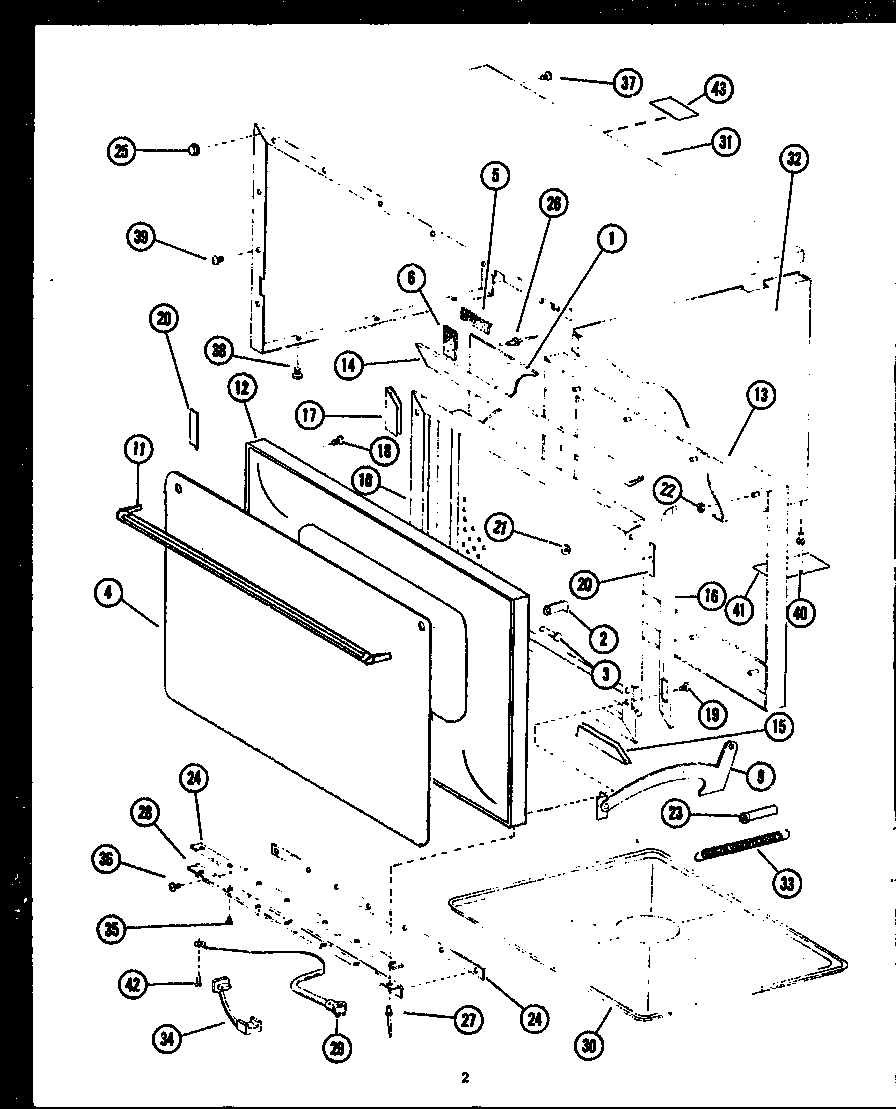

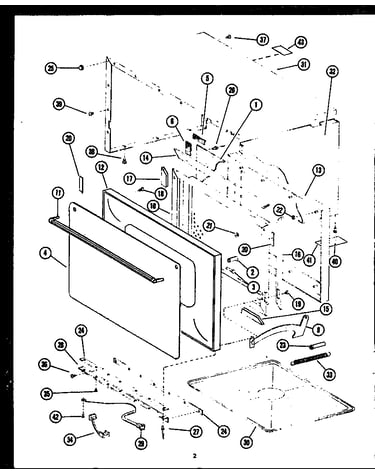

Door diagram

Screw, #4- 40 z 7/32"- hinge to door

Part #89363

The manufacturer no longer makes this part, and there's no substitute part

Arm Counterbalance - R.h. 89368
#9A

Door diagram

Arm counterbalance - r.h.

Part #89368

The manufacturer no longer makes this part, and there's no substitute part

Pan Base 88233
#1

Antenna/blower diagram

Pan base

Part #88233

The manufacturer no longer makes this part, and there's no substitute part

Wire, Jumper H.v. Filament Trans. To Mag. To Diode 89942
#16B

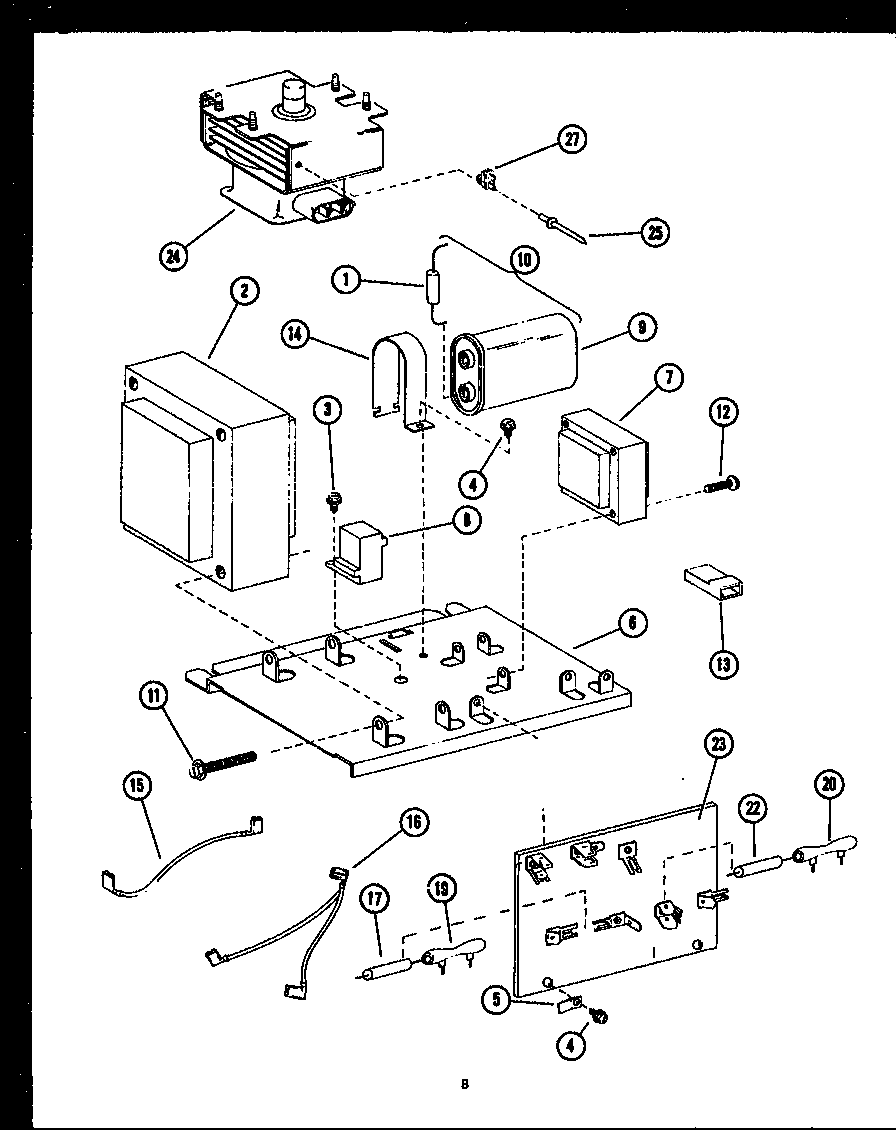

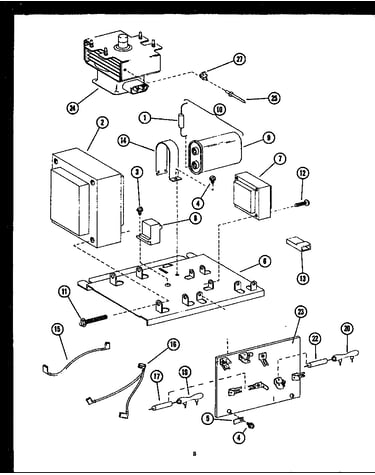

Transformer/magnetron diagram

Wire, jumper h.v. filament trans. to mag. to diode

Part #89942

The manufacturer no longer makes this part, and there's no substitute part

Outer Cabinet 88474
#31

Door diagram

Outer cabinet

Part #88474

The manufacturer no longer makes this part, and there's no substitute part

Gasket, Inner Window 89903
#6

Door diagram

Gasket, inner window

Part #89903

The manufacturer no longer makes this part, and there's no substitute part
